Carbon Fiber Epoxy Laminate (Discontinued )

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

This product has been discontinued. Contact Us for alternatives.

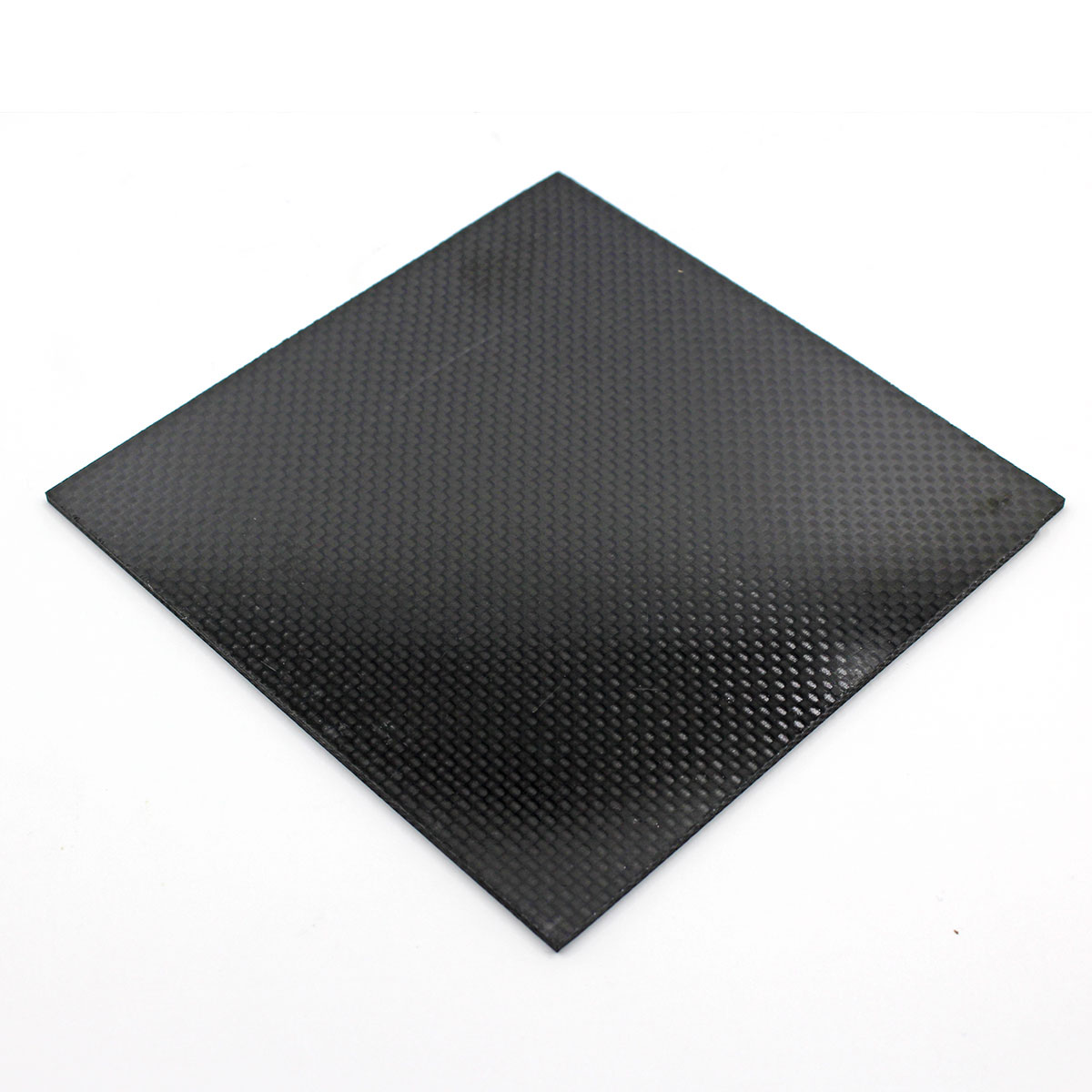

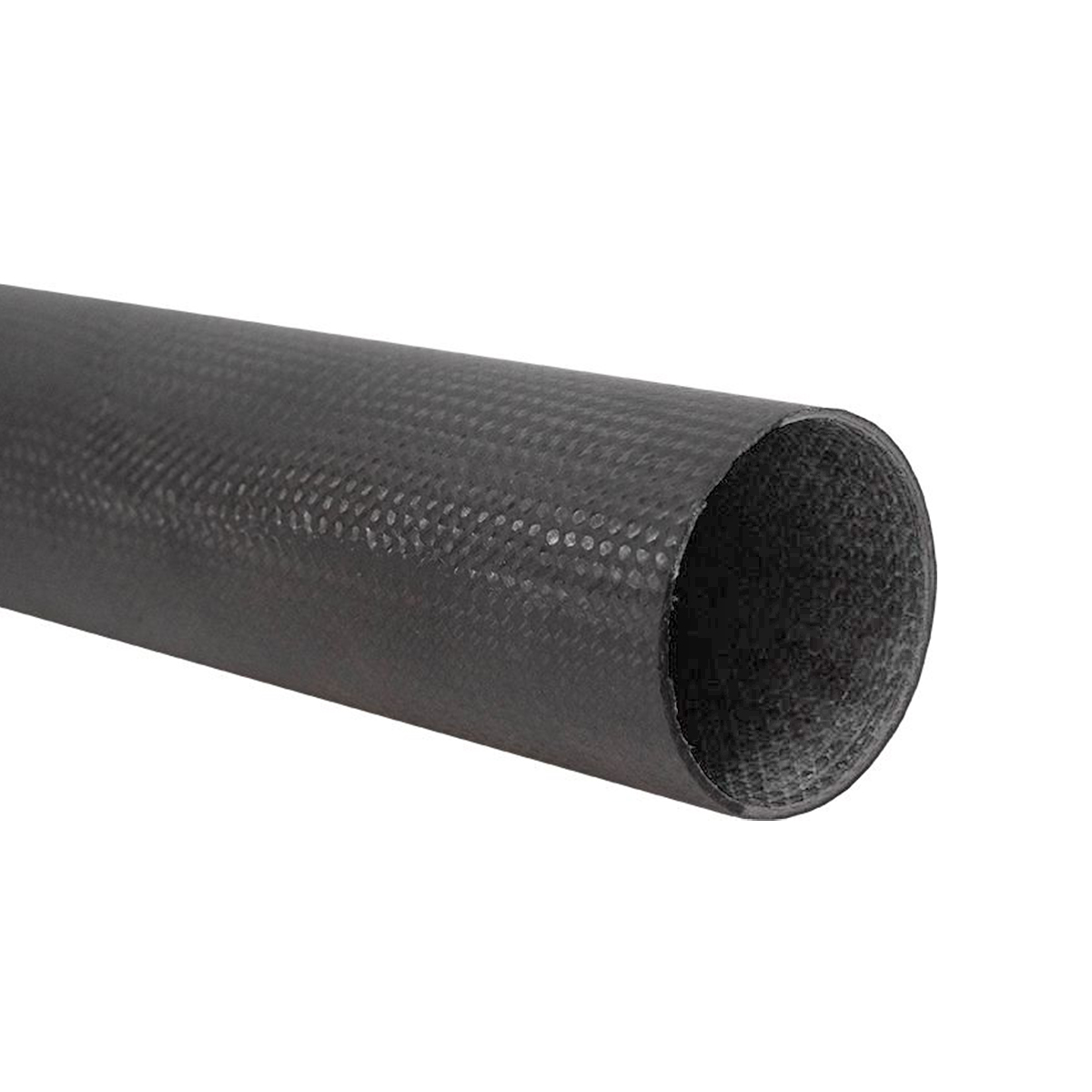

Carbon Fiber composite laminates are available in sheet and tube.  Ideal for applications requiring a structural high-performance composite in applications where reduced weight, high strength to weight ratio, and extremely high strength and stiffness are critical.  Recommended maximum continuous use temperature is 150 C / 302 F.

Available in sheet, tube and machined parts.

Typical Fiber, Fabric & Prepreg Properties

  • Carbon Fiber – Standard Modulus 3K Tow
  • Nominal Fiber Density – 1.77 g/cc
  • Nominal Fiber Modulus – 33,000,000 psi
  • Resin System - Epoxy
  • Weave Type – 2 x 2 Twill Weave +/- 45 Degree Plain Weave

Note: Other Weave Types are available upon request.

Key Properties

  • High Modulus
  • Extreme Strength to Weight Ratio
  • 302F Continuous Use Temp

Limitations

  • Difficult to Machine
  • Properties vary based on reinforcement orientation – higher values are typical when tested parallel to the reinforcement and lower when tested perpendicular to the reinforcement.

Applications

  • Aerospace Structural Components
  • Metal Replacement
  • High Strength Light Weight Structural Components
  • Stiffening Components

Resin Trade Names

Manufacturer Trade Names

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Discontinued This product has been discontinued. Contact Us for alternatives. Sheet Sizes Thicknesses .0625 inch, .125 inch, .156 inch, .250 inch, .312 inch, .500inch, .625 inch, .750 inch, 1.000 inch and 1.500 inch Width x Length 12 x 12 inch, 12 x 24 inch, 24 x 36 inch, 36 x 48 inch, 48 x 48 inch and 48 x 96 inch Tubes Sizes Contact Us for Available Tube Sizes and Machined Parts

Available Colors

  • Black

Safety Data Sheet

Contact Us

Typical Properties of Carbon Fiber Epoxy Laminate (Discontinued )

DETAIL
Description Value
Material Type Thermoset Composite
Chemical Name Epoxy Resin Carbon Fiber Laminate 2 x 2 Twill Weave
Trade Name Carbon Fiber Epoxy Laminate
Additives Proprietary
Color Black
Manufacturer Atlas Fibre
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.5
  ASTM D792 lb/in³ 0.02
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. <.7
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 136,000
Tensile Modulus ASTM D638 psi 11,600,000
Flexural Strength ASTM D790 psi 119,000
Flexural Modulus ASTM D790 psi 7,740,000
Compressive Strength ASTM D695 psi 64,000
THERMAL
Property Test Unit of Measure Value
Max Continuous Operating Temp °C 150
  °F 302
Minimum Operating Temp °C -129
  °F -200
COMPLIANCE
Description Value
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
Relative Cost $$$$$$
Machinability 10

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.
