TECASINT ® 2021 PI

Compliance Info

Slide 1 of 1, currently active

General Info

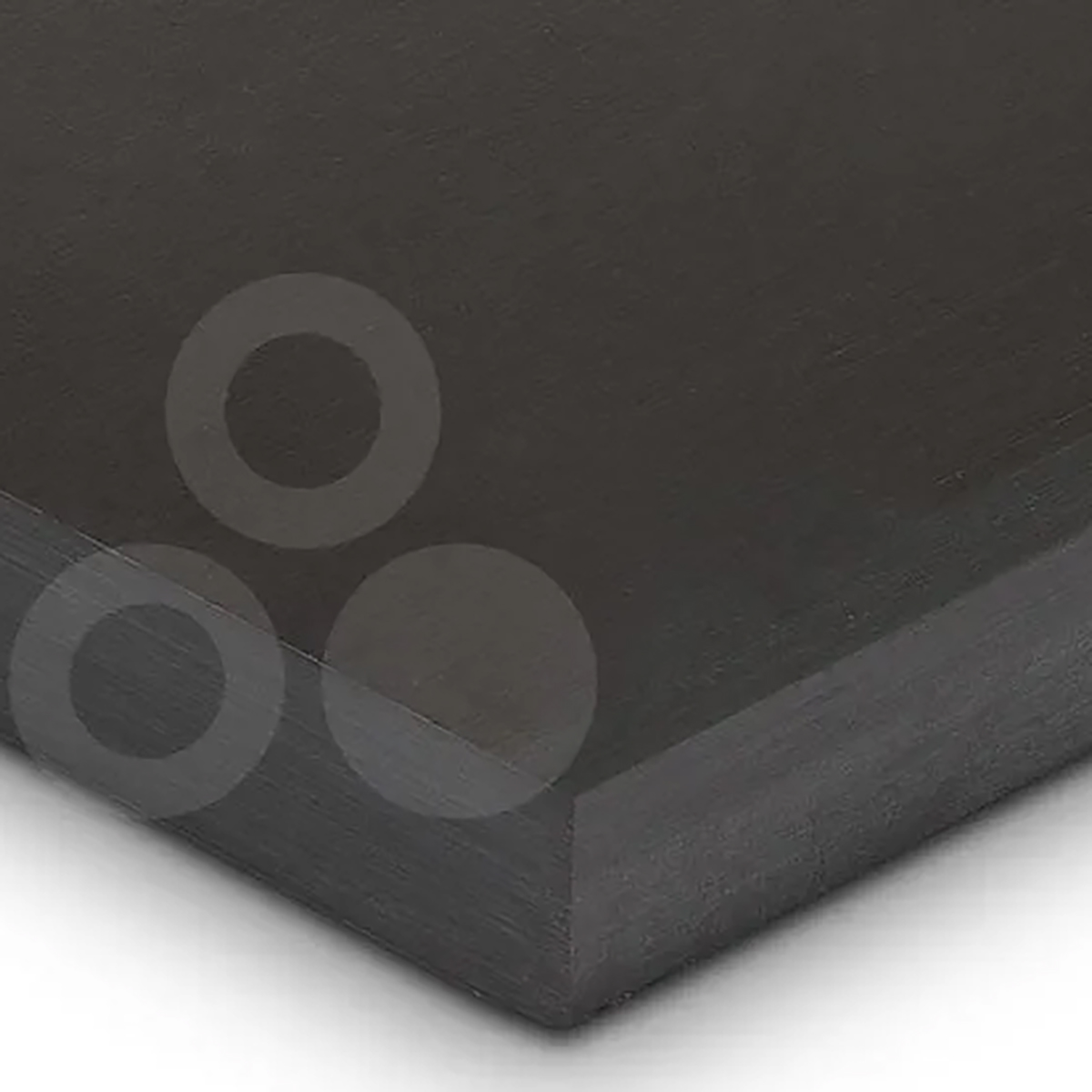

TECASINT® 2021 is a PI Polyimide that contains 15% graphite and is also available for applications requiring improved wear resistance & lower coefficient of friction. It is particularly suitable for tribological applications owing to its improved friction and wear behavior. Thanks to its self lubricating property, TECASINT 2021 is well suited to lubricated and dry applications.

Key Properties

Very Good Slide And Wear Properties
Very Good Thermal Stability
High Thermal And Mechanical Capacity
Good Wear Resistance
Resistance Against High Energy Radiation
High Creep Resistance
Good Chemical Resistance
Sensitive To Hydrolysis In Higher Thermal Range

Limitations

Chemical Resistance to Some Strong Acids and Bases
Hydrolyzes in Presence of Steam

Applications

Bushings & Bearings
Pump & Valve Applications
Thrust Washers

Resin Trade Names

Manufacturer Trade Names

TECASINT® 2021

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available in Sheet and Rod - Contact us for Size Availability

Available Colors

Black

Safety Data Sheet

Typical Properties of TECASINT ® 2021 PI

DETAIL
Description			Value
Material Type			Imidized Amorphous Thermoplastic
Chemical Name			PI Polyimide
Trade Name			TECASINT® 2021
Additives			Graphite filled
Color			Black
Manufacturer			Ensinger
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.46
	ASTM D792	lb/in³	0.053
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.44
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	14,645
Tensile Modulus	ASTM D638	psi	638,000
Tensile Elongation at Break	ASTM D638	%	3.7
Flexural Strength	ASTM D790	psi	20,700
Flexural Modulus	ASTM D790	psi	587,000
IZOD Impact-Notched	ASTM D256	ft-lb/in	17.5
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	2.3
Heat Deflection Temp	ASTM D648	°C at 264 psi	316
	ASTM D648	°F at 264 psi	600
Max Continuous Operating Temp		°C	280
		°F	536
Minimum Operating Temp		°C	-195
		°F	-319
Flammability Rating	UL94	NA	V-0
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TECSINT® is a registered trademark of Ensinger.
