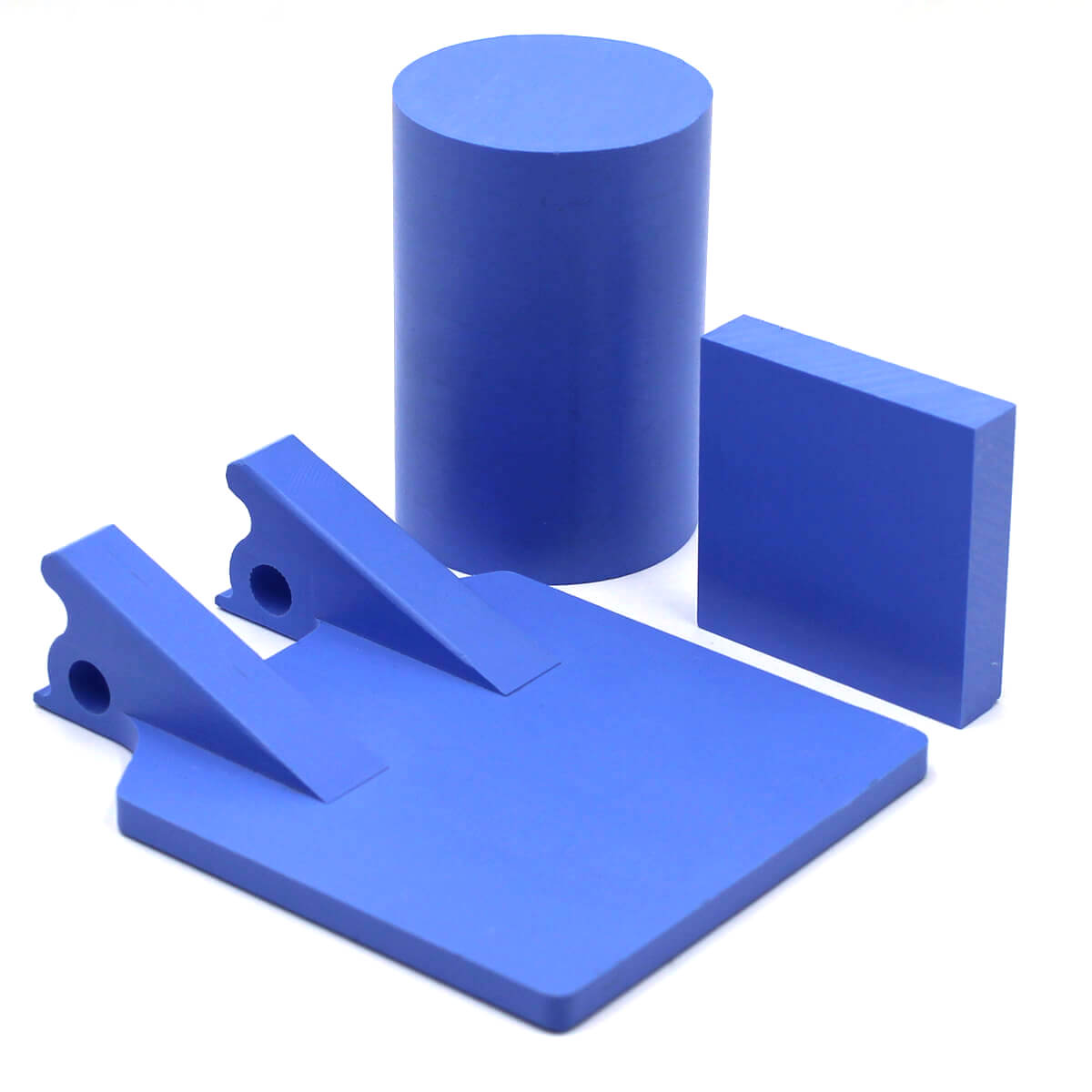

Sustarin ® C XDT X Ray Detectable Acetal

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

Unit Price

Subtotal

Note: There is a $50.00 line item minimum on all orders.

General Info

Sustarin® C XDT is FDA compliant X-Ray detectable Copolymer Acetal for enhanced food & product safety in a wide range of food processing & pharmaceutical applications offering X-Ray detectability with X-Ray detection systems.

Sustarin® C XDT is easily machined with excellent dimensional stability for close tolerance parts. Key properties include a low coefficient of friction and excellent wear properties, especially in wet or moist environments.

Key Properties

  • X-Ray Detectable
  • High Hardness and Rigidity
  • Low Moisture Absorption
  • Very Good Sliding Properties
  • High Abrasion Resistance
  • Good Combination of Rigidity, Stiffness and Toughness
  • Low Creep Tendency
  • Good Machinability

Limitations

  • Wear Resistance in Dry Environments
  • Lower Temperature Stability (to 180 F)
  • Poor Resistance to Strong Acids and Alkalies
  • Formaldehyde Outgassing
  • Lower Stiffness than Homopolymer Acetal

Applications

  • Baffles
  • Bushings & Bearings
  • Conveyor Components
  • Cups & Sleeves
  • Forming Plates
  • Gears
  • Guides
  • Mixer Components
  • Pillow Blocks
  • Piston Fillers
  • Rollers
  • Scraper Blades
  • Sprockets
  • Wear Plates
  • Wear Strips

Resin Trade Names

Manufacturer Trade Names

  • Sustarin® C XDT Acetal

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet* Thickness .375” to 6.000” Width & Length 24.000” x 48.000” Thickness .500” to 2.000” Width & Length 48.000” x 96.000” Width & Length 48.000” x 120.000” Rod* Diameters .250” to 6.000” Length 10’ Diameters 7.000” to 12.000” Length 3’ Tube* Various Sizes Available OD & ID vary depending on formulation. (*) Minimums may apply for some formulations depending on grade & shape size required. Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

  • Blue

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Sustarin ® C XDT X Ray Detectable Acetal

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name POM Polyoxymethylene Acetal Copolymer
Trade Name Sustarin® C XDT Acetal
Additives FDA X-Ray Detectable Additive & Colorant
Color Blue
Manufacturer Rochling
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.57
  ASTM D792 lb/in³ 0.057
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.2
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 0.9
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 7,200
Tensile Elongation at Break ASTM D638 % 6
Flexural Strength ASTM D790 psi 10,000
Flexural Modulus ASTM D790 psi 460,000
Hardness ASTM D785 NA Shore D70
IZOD Impact-Notched ASTM D256 ft-lb/in 1.1
THERMAL
Property Test Unit of Measure Value
Heat Deflection Temp ASTM D648 °C at 264 psi 110
  ASTM D648 °F at 264 psi 230
Melting Point Temp ASTM D3418 °C 168
  ASTM D3418 °F 334
Max Continuous Operating Temp °C 85
  °F 185
Minimum Operating Temp °C -50
  °F -58
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF Yes
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
ASTM Shape Spec ASTM D6100 & D6778
UV Resistant No
Relative Cost $$$$
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Sustarin® is a registered trademark of Röchling Engineering Plastics.
