General Info
SUSTAPEEK (polytheretherketone) CF 30 (30% carbon fiber reinforced) offers higher mechanical properties, higher stiffness, better dimensional stability and is thermally and electrically conductive when compared to unfilled PEEK. SustaPEEK products are manufactured with PEEK resin from Victrex.
Key Properties
- Continuous use temperature of 480° F
- Better dimensional stability than unfilled PEEK
- Improved Stiffness at Higher Temperatures
- Electrically & Thermally Conductive
- Excellent hydrolysis resistance
- Excellent chemical resistance
Limitations
- Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF
Applications
- Bearing & Wear Applications
- Bushings & Bearings
- Metal Replacement
- Structural Applications
- Thrust Washers
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

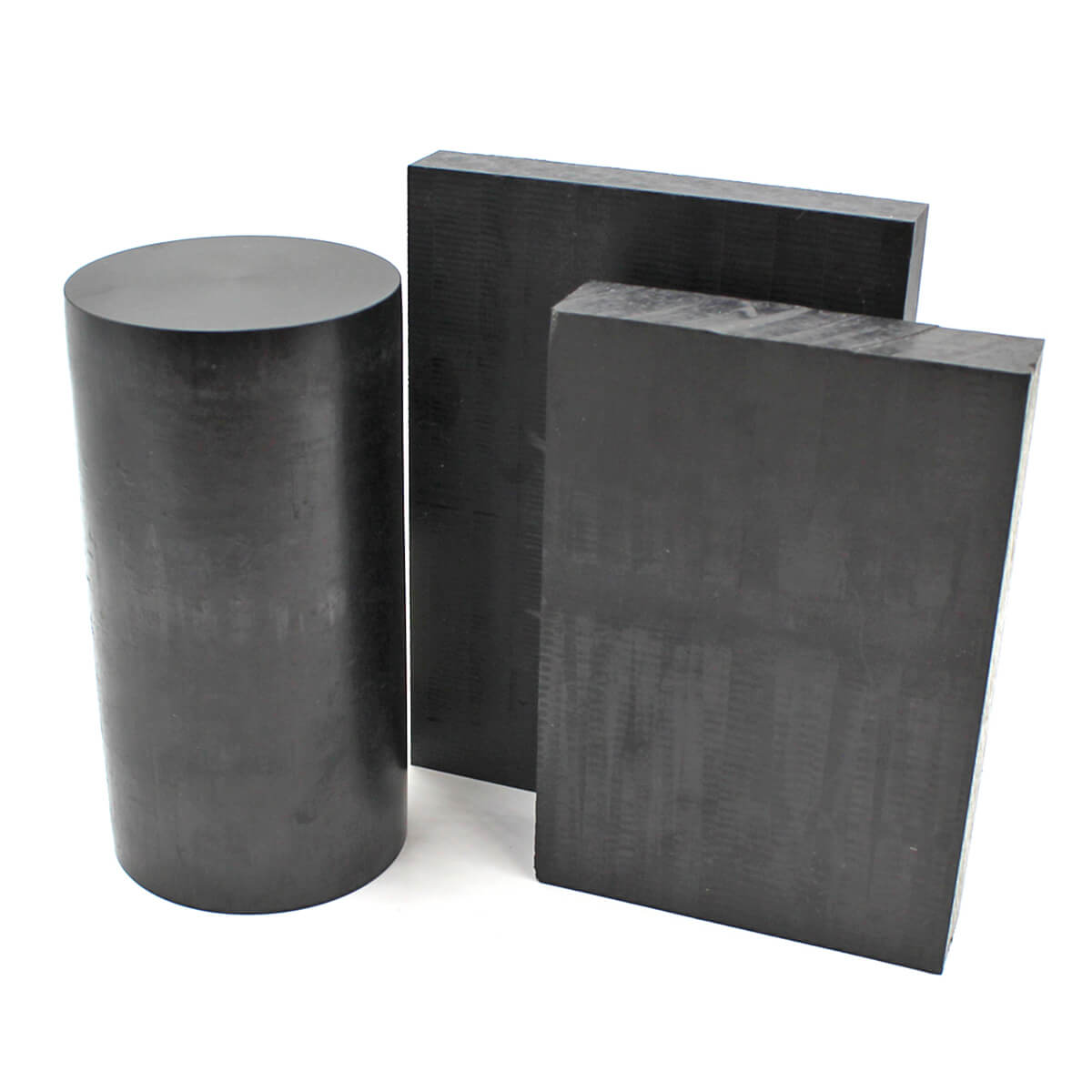

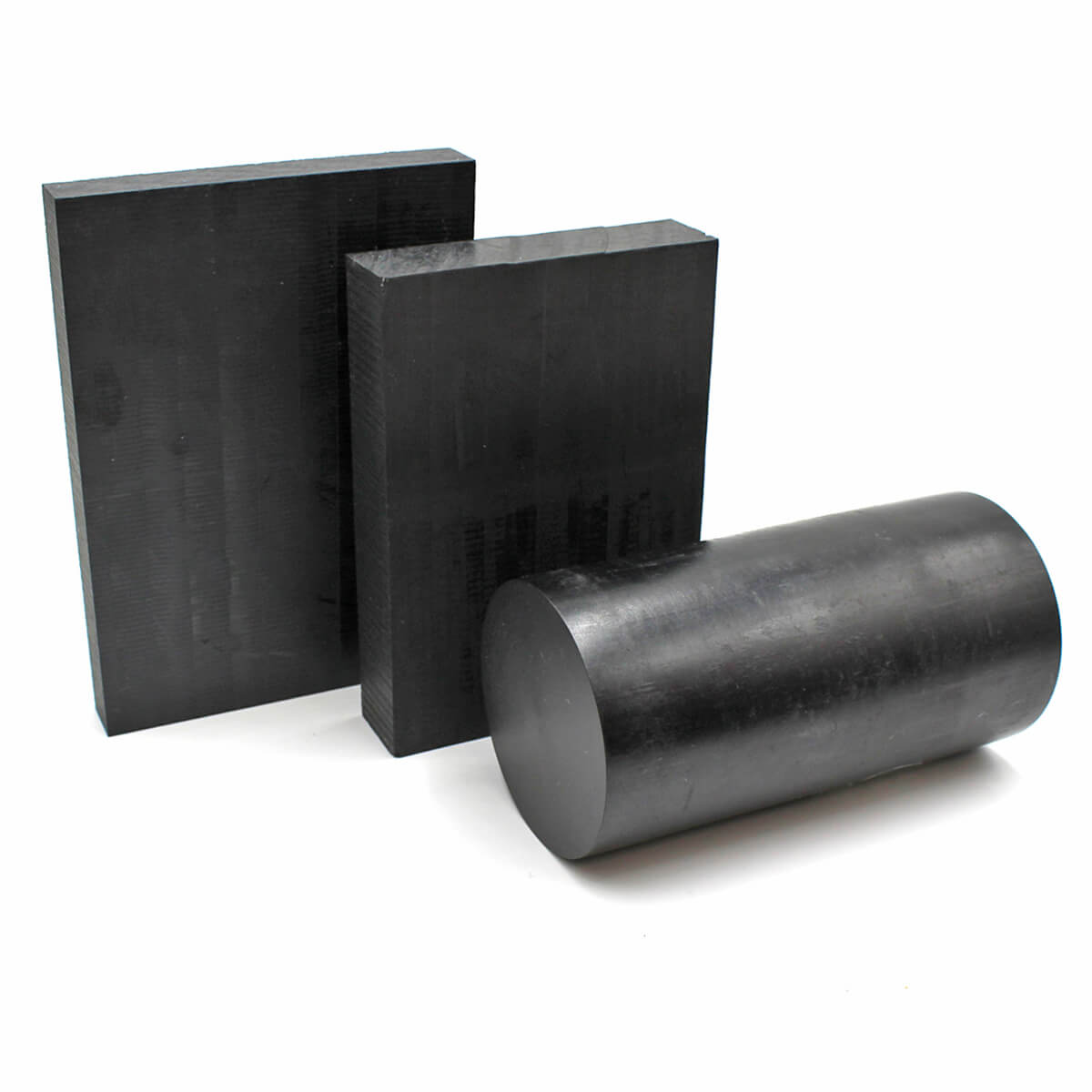

Available Sizes

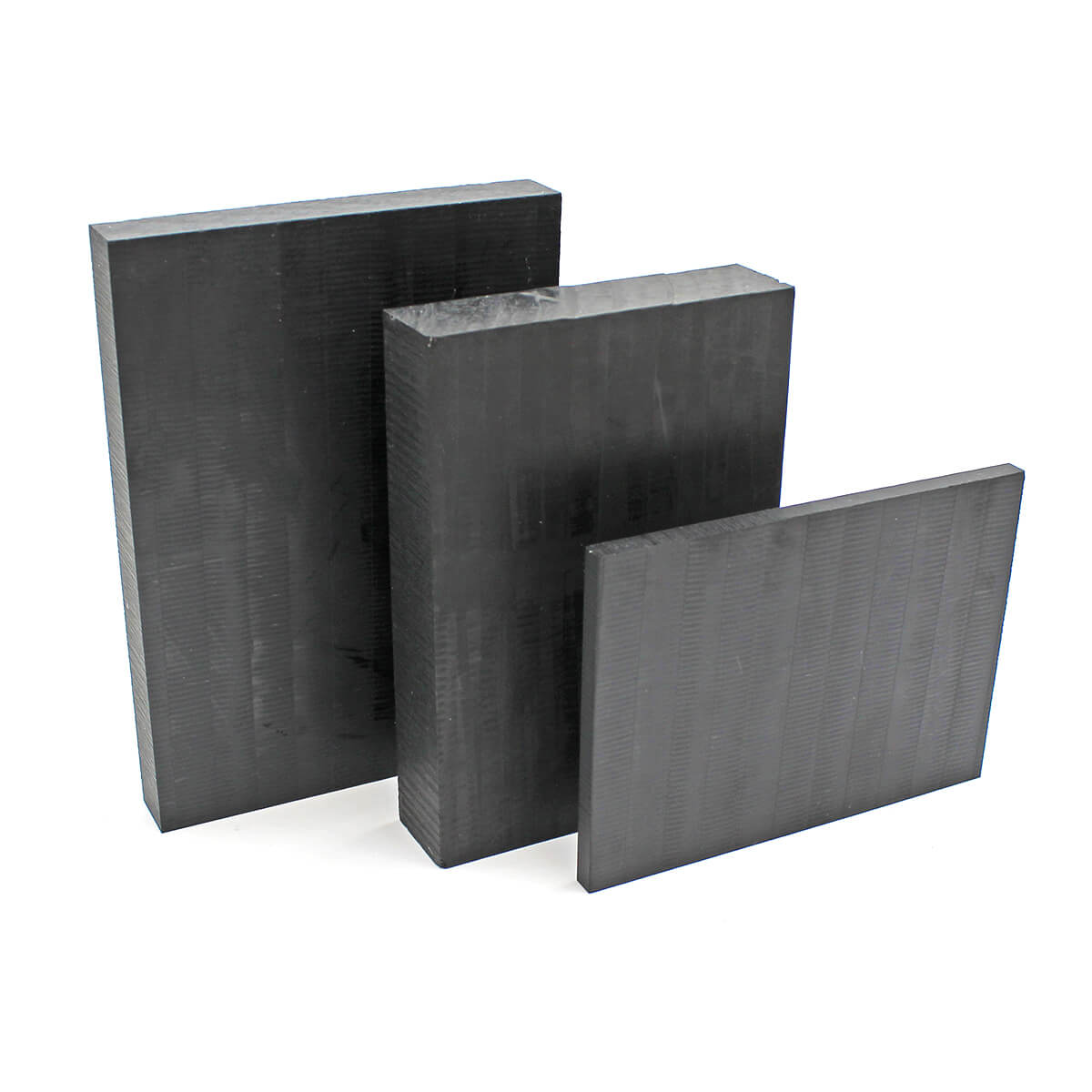

Sheet*
Thickness .375” to 6.000”
Width & Length 24.000” x 48.000”
Thickness .500” to 2.000”
Width & Length 48.000” x 96.000”
Width & Length 48.000” x 120.000”

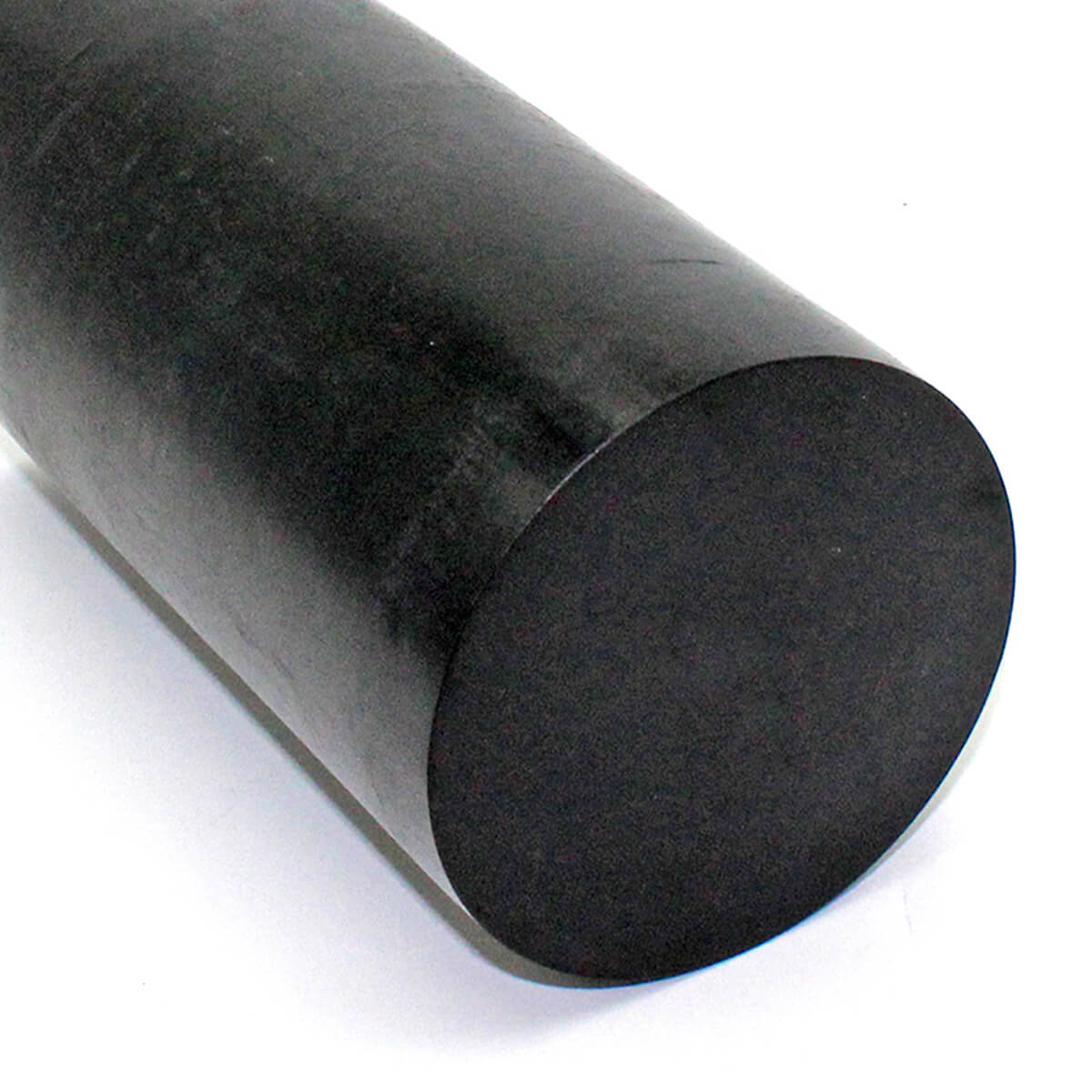

Rod*
Diameters .250” to 6.000” Length 10’
Diameters 7.000” to 12.000” Length 3’
Tube*
Various Sizes Available OD & ID vary depending on formulation.
(*) Minimums may apply for some formulations depending on grade & shape size required.
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
