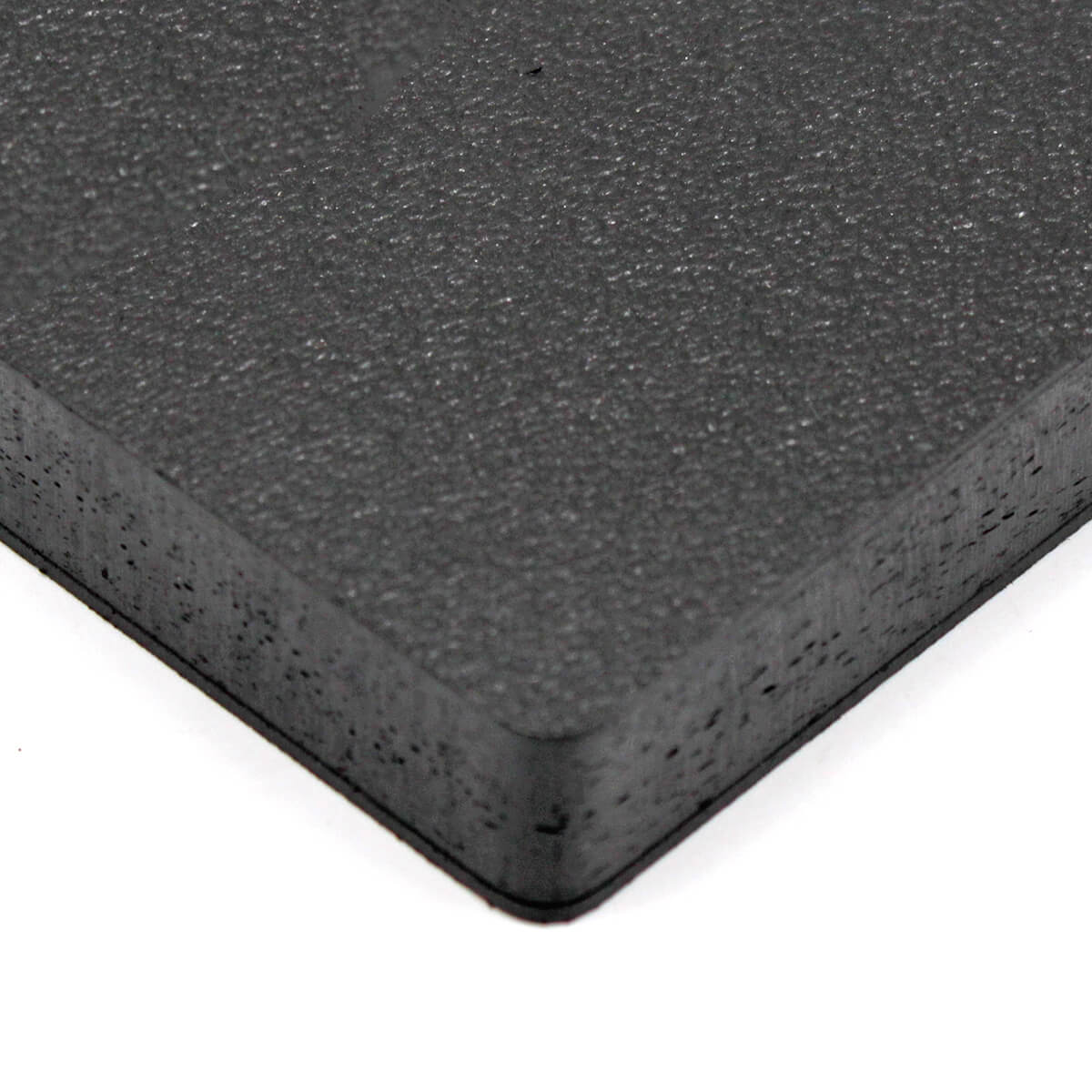

Seaboard ® Supreme DS HDPE

Compliance Info

Slide 1 of 1, currently active

General Info

HDPE with a specially formulated foamed core material has more stiffness and twice the normal dimensional stability of Seaboard HDPE

Key Properties

1/2 The Expansion / Contraction Versus Standard HDPE
Twice the Stiffness of Standard HDPE
Foamed Core for Reduced Weight
UV Stabilized

Limitations

Difficult to Bond

Applications

Seat Bottoms
Large Span Applications
Engine Covers

Resin Trade Names

Manufacturer Trade Names

Seaboard® Supreme DS HDPE

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Finish |Matte Black | Thickness .375” to 1.000” Standard sheet size is 48.000” x 96.000” Custom colors & sizes available upon request. Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Seaboard ® Supreme DS HDPE

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			HDPE High Density Polyethylene
Trade Name			Seaboard® Supreme DS HDPE
Additives			Proprietary
Color			Black
Manufacturer			Vycom
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	0.902
	ASTM D792	lb/in³	0.033
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.01
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.01
MECHANICAL
Property	Test	Unit of Measure	Value
Flexural Modulus	ASTM D790	psi	500,000
Hardness	ASTM D2240	NA	Shore D74
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D703	x 10-5 in./in./°F	2.2
Max Continuous Operating Temp		°C	82
		°F	180
Minimum Operating Temp		°C	-60
		°F	-76
Flammability Rating	UL94	NA	HB
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Seaboard® is a registered trademark of Vycom.
