General Info
NYCAST NYLOIL is a Type 6 Cast Nylon with an oil-based lubricant during the manufacturing process. The result is a high crystalline, internally homogeneously lubricated, high-strength polymer with enhanced wear and reduced friction properties. NYLOIL is green in color, other colors upon request.
Key Properties
- Low Coefficient of Friction
- Self-Lubricating
- Good Wear Resistance
- High Young's Modulus
- Improved Dimensional Stability
Limitations
- High Moisture Absorption
- Limited Resistance to Strong Acids & Alkalies
Applications
- Bushings & Bearings
- Metal Replacement Applications
- Rollers
- Sheaves
- Structural Components
- Wear Strip
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

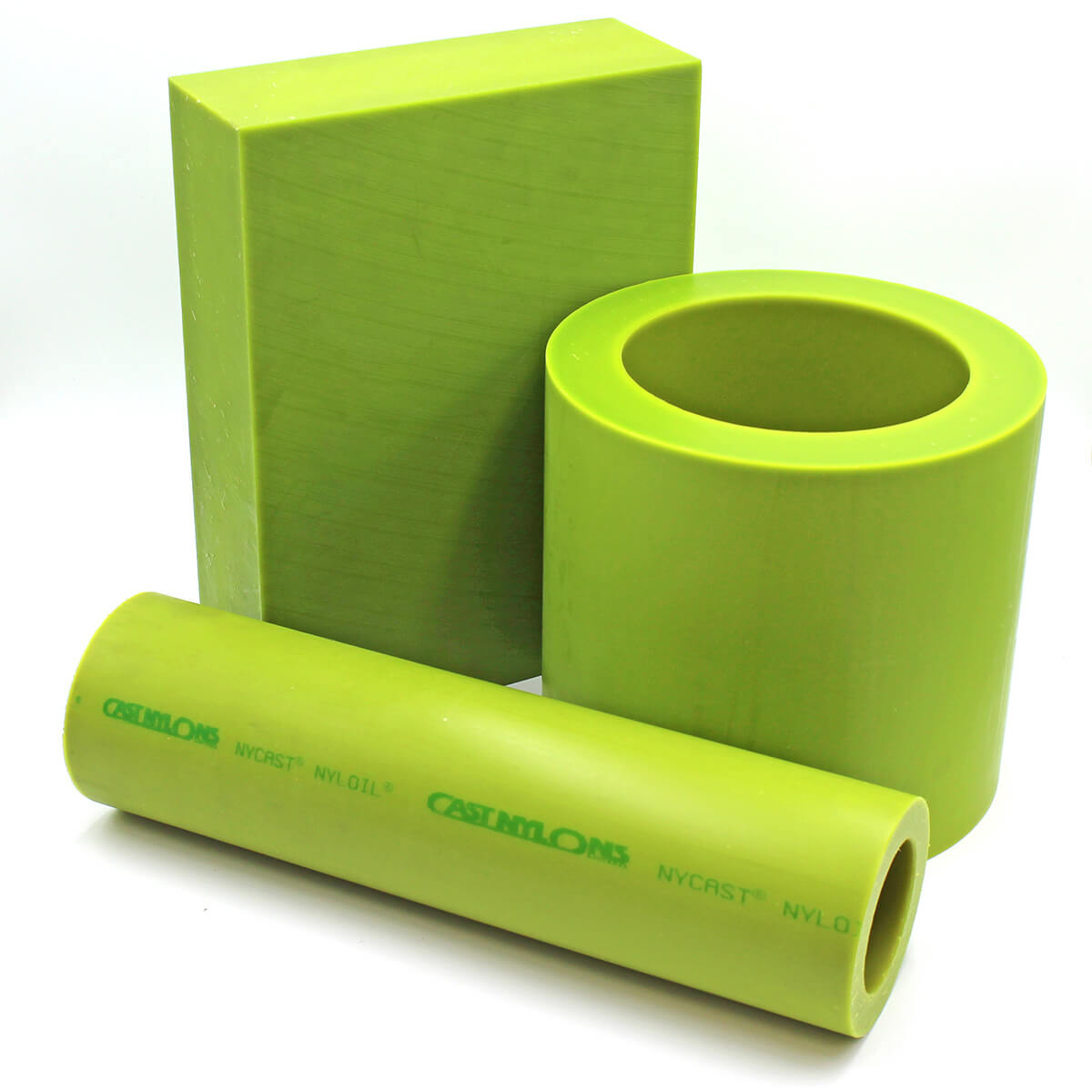

Available Sizes

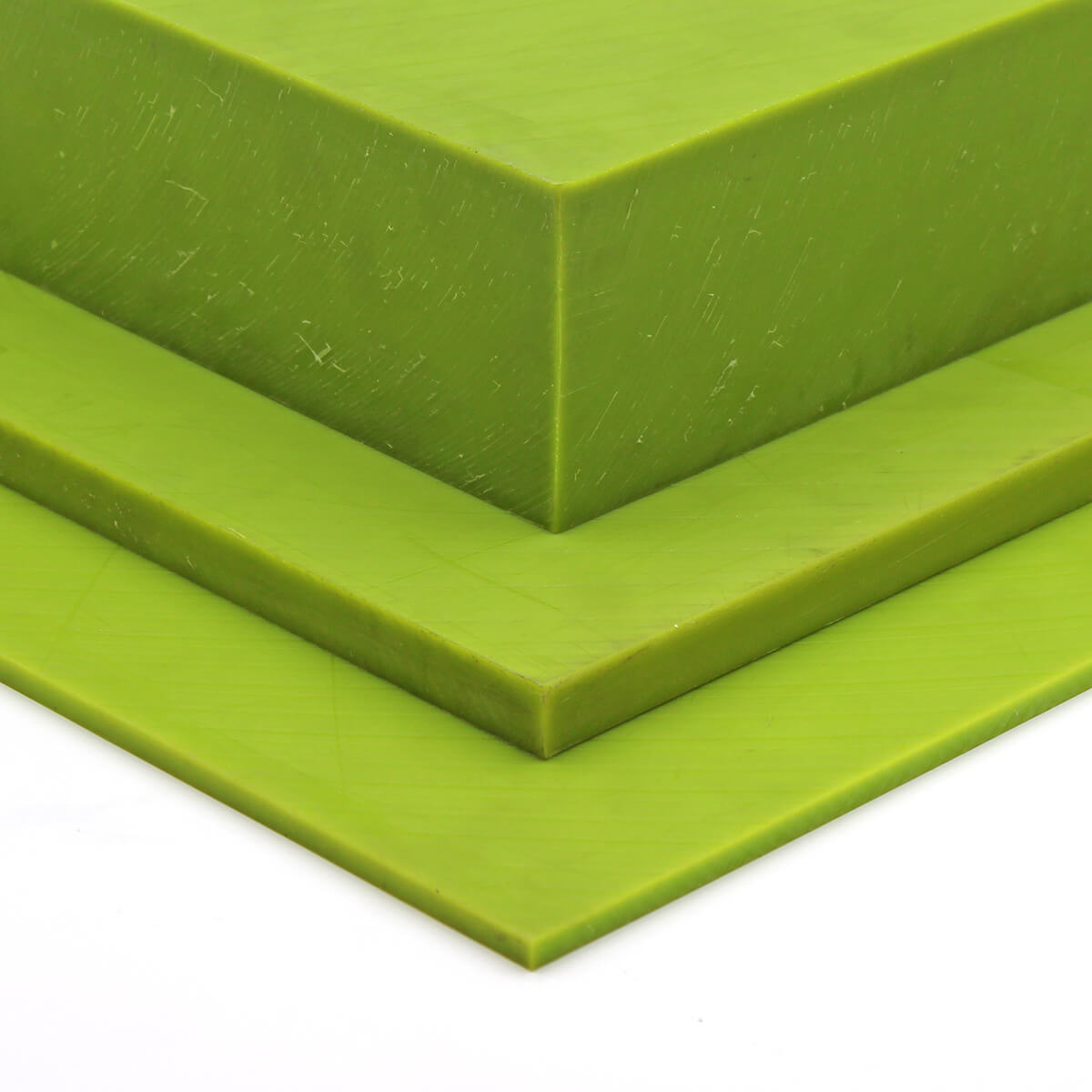

Sheet
Thickness .125”
Standard sheet size is 48.000” x 120.000”
Thickness .250” to 2.000”
Standard Sheet Sizes 24.000” x 48.000”, 28.000” x 57.000”, 36.000” x 48.000” & 48.000” x 120.000”
Thickness 2.250” to 4.000”
Standard Sheet Sizes 24.000” x 48.000” & 48.000” x 120.000”
Thickness 6.000” & 8.000”
Standard Sheet Size 24.000” x 48.000”
Rod
Diameter 1.000” to 28.000”
Standard Lengths 24.000”, 48.000” & 120.000” depending on size

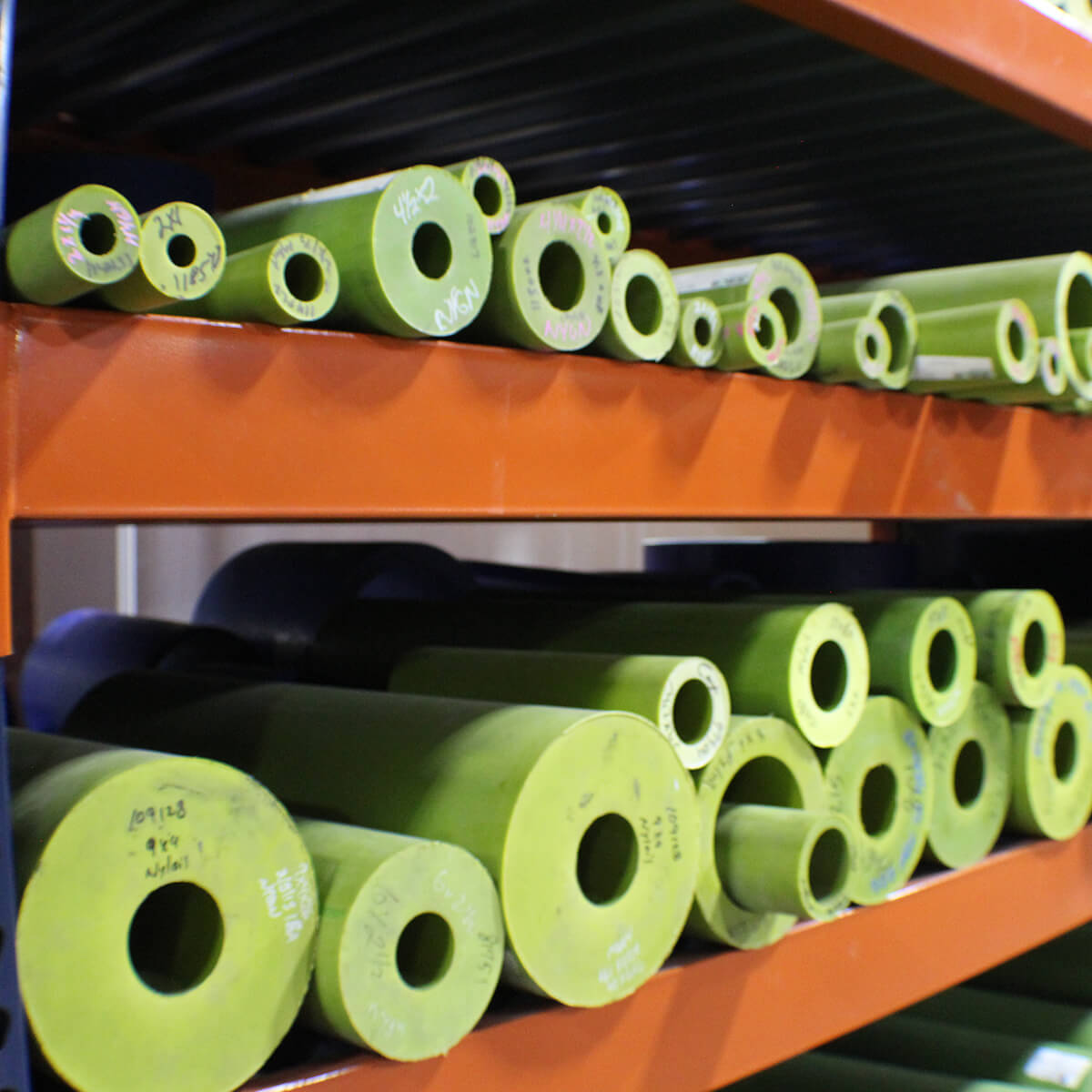

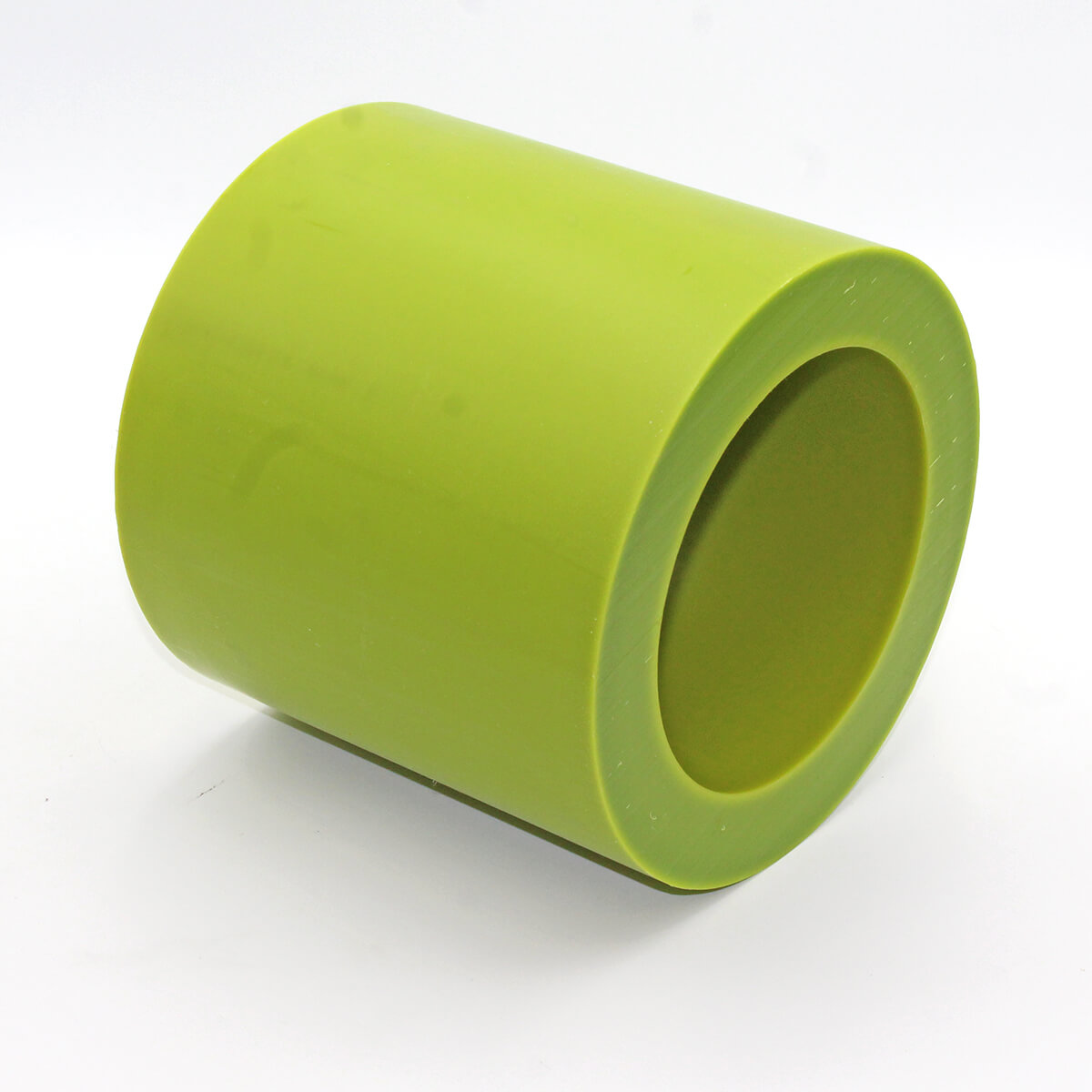

Tube
Outside Diameter 2.000” to 40.000”
Inside Diameter .750” to 30.500”
Standard Lengths 26.000”, 39.000” & 52.000” depending on size
Discs
Outside Diameter 12.250” to 84.000”
Thicknesses 2.000” and up
Rings
Outside Diameter 12.250” to 84.000”
Inside Diameter Call for Availability
Thicknesses 2.000” and up
Custom Cast Near Net Shapes & Cast Parts Available Upon Request
Some sizes may have minimum order quantities.
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
Available Colors
- Green
- Custom Colors Upon Request
- NYCAST nylons are available in 13 colors of nylon 6 to choose from to allow color-coding of components
