PolyPly Armor XtremeEPP™ Sheet - Ideal For Plywood, FRP & Metal Replacement Material

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

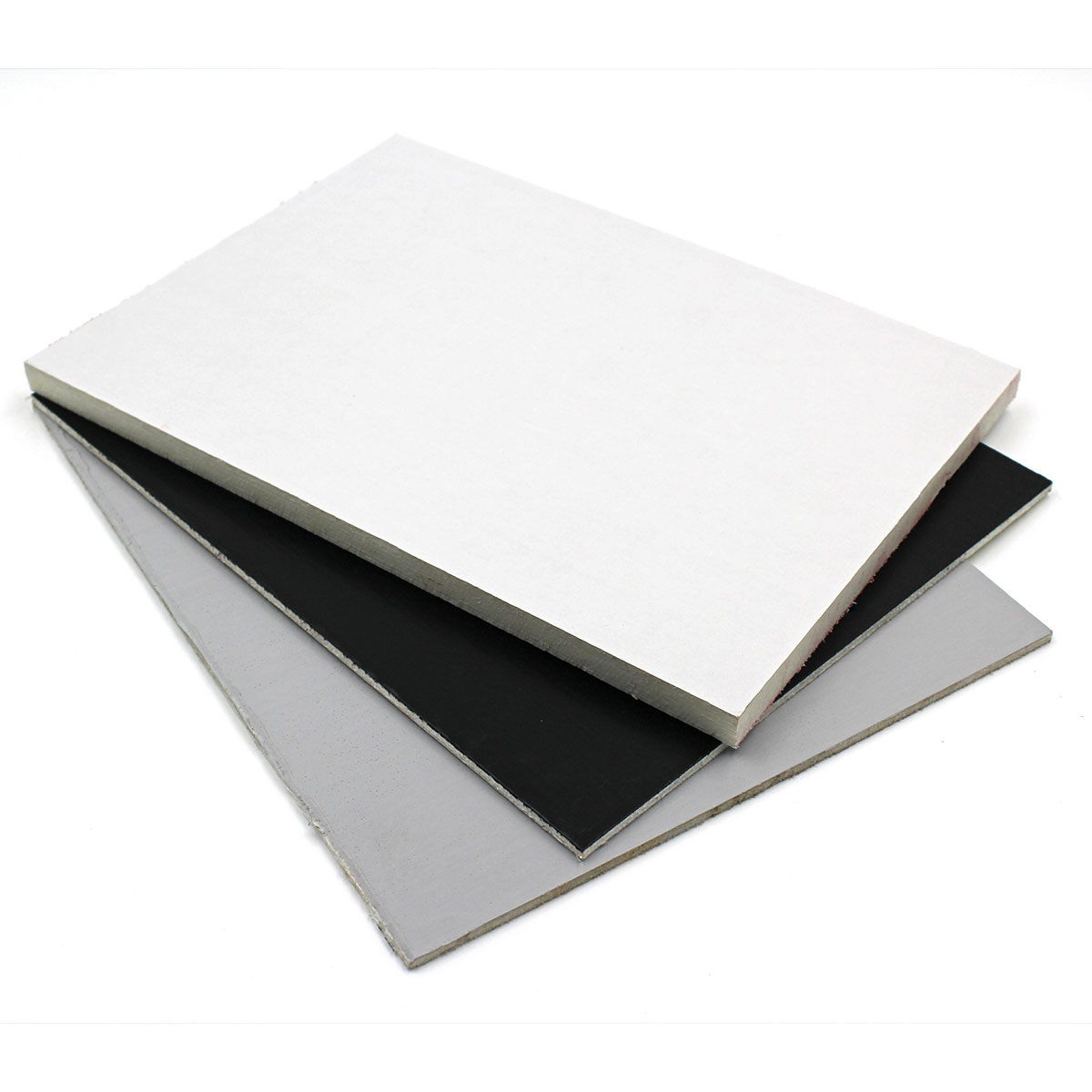

PolyPly Armor is an XtremeEPP composite by Boedeker Plastics, Inc.  This lightweight composite is manufactured from a proprietary thermoplastic resin with alternating layers of continuous glass fiber reinforcement.  PolyPly Armor is a tough composite sheet that offers outstanding impact resistance, chemical resistance, UV resistance, moisture resistance; it provides a very durable surface that is long-lasting and is quick and easy to clean.

It is available in sheet and roll stock in thicknesses ranging from .030" to .500" thickness in various ply configurations.

PolyPly Armor is ideal for plywood replacement in the following markets: transportation, storm protection, security, recreation vehicles, construction, solar, and other applications and industries.

PolyPly Armor can be hung or fixtured in place as a storm, hurricane, or security shield for windows and other areas for maximum protection.  PolyPly Armor can be mechanically fastened or bonded with various adhesives with an optional polyester scrim applied to one or both sides for additional bonding strength with adhesives.

Key Properties

  • High Impact Strength
  • Toughness
  • Easy to Clean
  • High Strength
  • UV Resistant
  • Lightweight
  • Excellent Chemical Resistance
  • Paintable

Limitations

Applications

  • Plywood Replacement

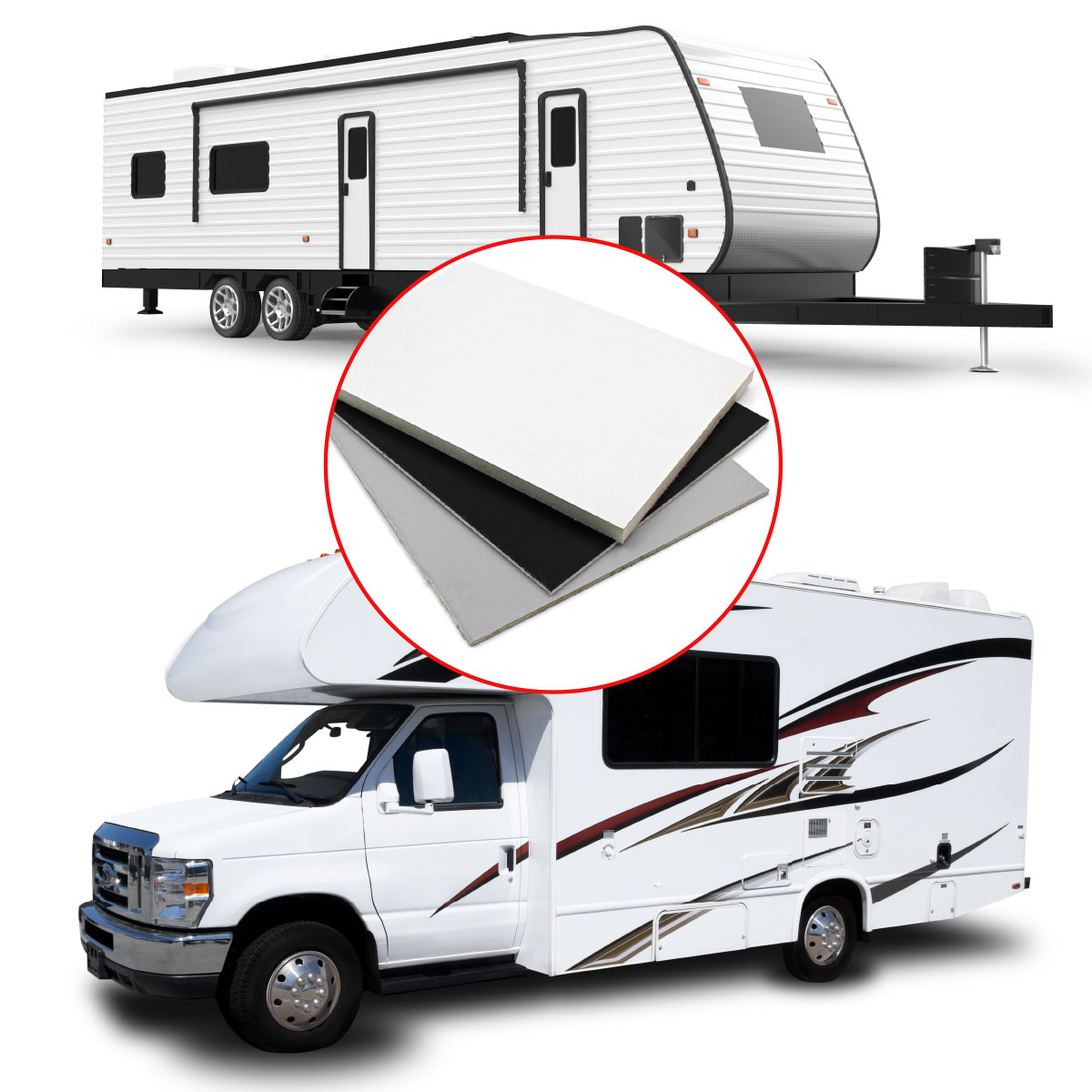

  • Recreational Vehicle Wall Coverings
  • Shipping Container Liners

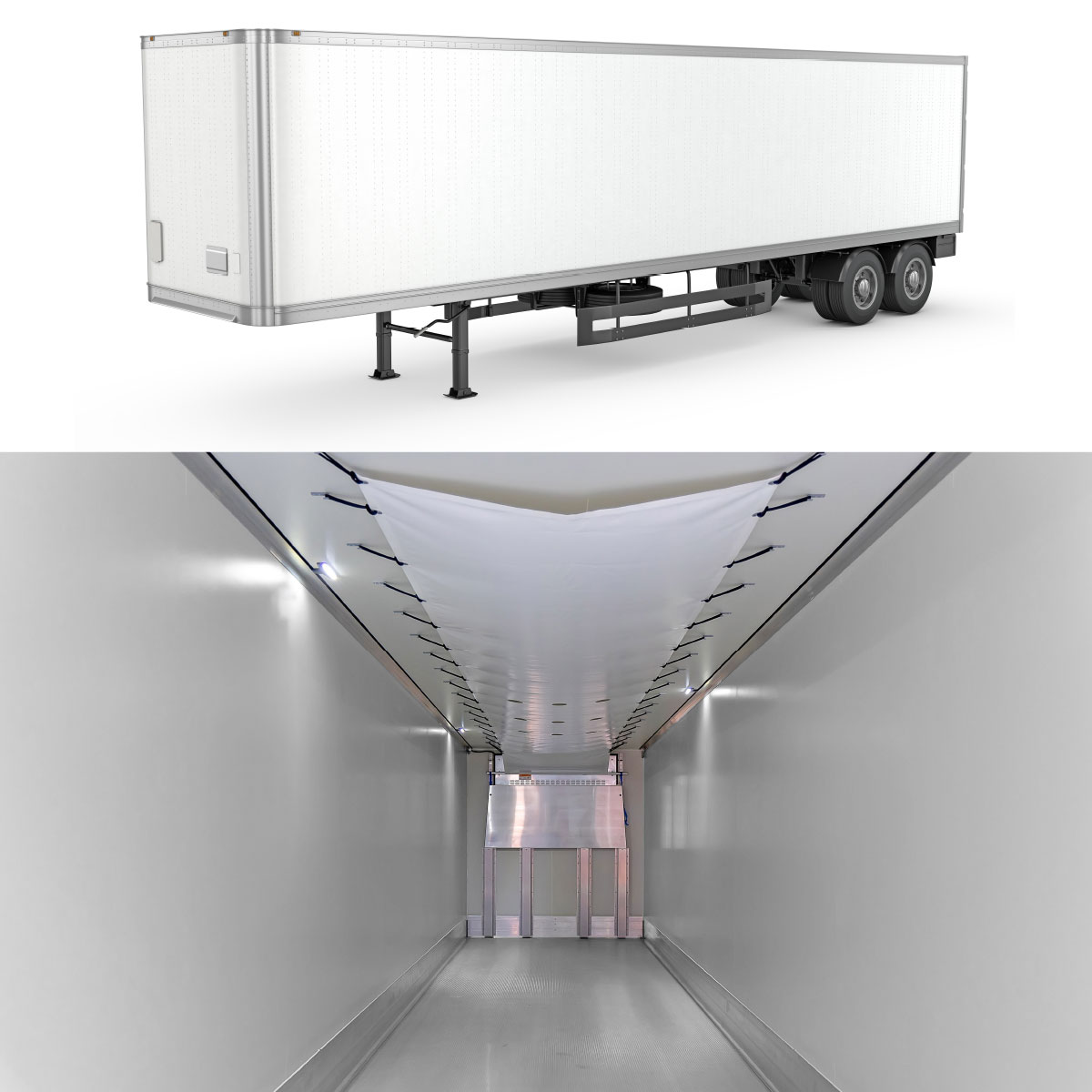

  • Aerodynamic Components for Transportation (Semi Trailers)
  • Hurricane Protection
  • Storm Protection

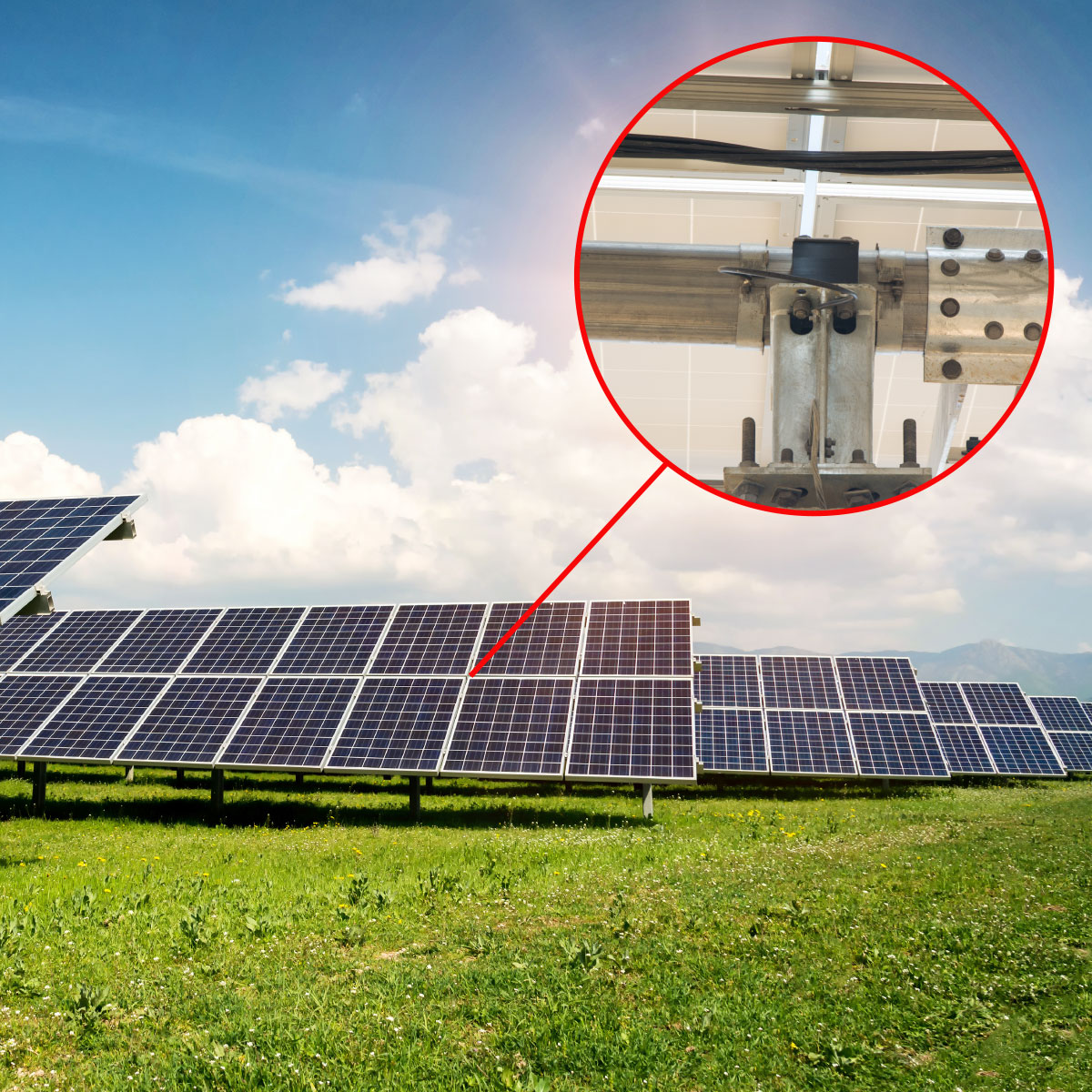

  • Solar System Structural Panels
  • Construction
  • Concrete Forms

Resin Trade Names

Manufacturer Trade Names

  • PolyPly Armor an XtremeEPP Composite by Boedeker Plastics, Inc.

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Standard Sheet Thickness .030, .060, .100, .180 inch Custom Sheet Thickness up to .500 inch Widths 84.000, 90.000, 102.000, 108.000 inch Lengths 96.000 inch and rolls, custom lengths available Custom sizes will have longer lead-times and minimums will apply.

Available Colors

  • White or Black, Custom Colors By Request

Safety Data Sheet

Contact Us

Typical Properties of PolyPly Armor XtremeEPP™ Sheet - Ideal For Plywood, FRP & Metal Replacement Material

DETAIL
Description Value
Material Type CFRT Continuous Fiber Reinforced Thermoplastic
Chemical Name Proprietary
Trade Name PolyPly Armor an XtremeEPP Composite by Boedeker Plastics, Inc.
Additives Continuous Glass Fiber
Color White or Black
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.24
  ASTM D792 lb/in³ 0.045
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 0.13
MECHANICAL
Property Test Unit of Measure Value
Flexural Strength ASTM D790 psi (Machine Direction 0°) 18,490
Flexural Modulus ASTM D790 psi (Machine Direction 0°) 1,495,000
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 1.6
Max Continuous Operating Temp °C 93
  °F 200
Minimum Operating Temp °C -29
  °F -20
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant Yes
Machinability 3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

PolyPly Armor XtremeEPP™ is a registered trademark of Boedeker Plastics, Inc.
