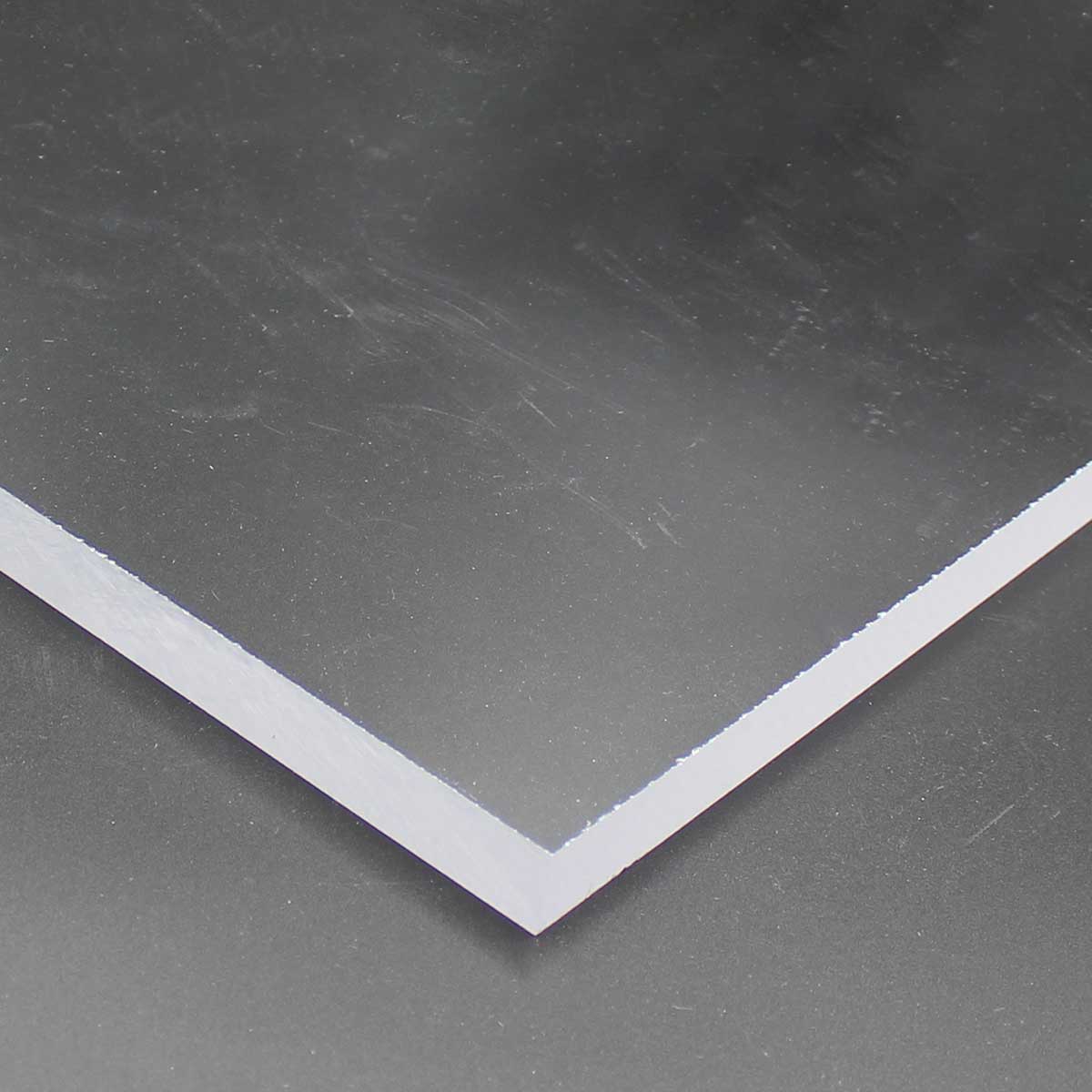

Polystyrene GPPS (General Purpose Polystyrene)

Compliance Info

Slide 1 of 1, currently active

General Info

GPPS (General Purpose Polystyrene) has excellent transparency, good water resistance, and a high dielectric strength. It is widely used for laminated electronic circuits, high frequency insulation sheeting, insulators and other electrical applications.

Note: GPPS is not UV resistant and has poor chemical resistance.

This product has limited availability and may require long lead-times and minimum order quantities.

Key Properties

Excellent Electrical
Good Mechanical Properties
Well-Balanced Physical Properties

Limitations

Brittleness
Poor Chemical Resistance
Poor Weatherability

Applications

Co-Axial Cable Separators
Containers
Handles
Insulators
Knobs & Buttons
Lighting Diffusers
Packaging Applications
Profiles
Refrigerator Door Linings
Sign Panels
Splash Shields
Standoffs
Trays

Resin Trade Names

Manufacturer Trade Names

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

This product is more common as a custom molded pars or extruded profile has a limited sheet and film availability and will have longer lead times and minimum order quantities. Contact Us for more details.

Available Colors

Transparent and Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Polystyrene GPPS (General Purpose Polystyrene)

DETAIL
Description			Value
Material Type			Amorphous Thermoplastic
Chemical Name			PS Polystyrene
Additives			Unfilled
Color			Transparent and Colors
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.05
	ASTM D792	lb/in³	0.038
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.06
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D68	psi	7,500
Tensile Modulus	ASTM D638	psi	450,000
Tensile Elongation at Break	ASTM D638	%	47
Flexural Strength	ASTM D790	psi	6,100
Flexural Modulus	ASTM D790	psi	475,000
Compressive Strength	ASTM D695	psi	14,500
Hardness	ASTM D785	NA	Rockwell M75
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.8
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	4
Heat Deflection Temp	ASTM D648	°C at 264 psi	95
	ASTM D648	°F at 264 psi	200
Max Continuous Operating Temp		°C	32
		°F	150
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	60
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.
