GEHR PP-C™ Natural Copolymer

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

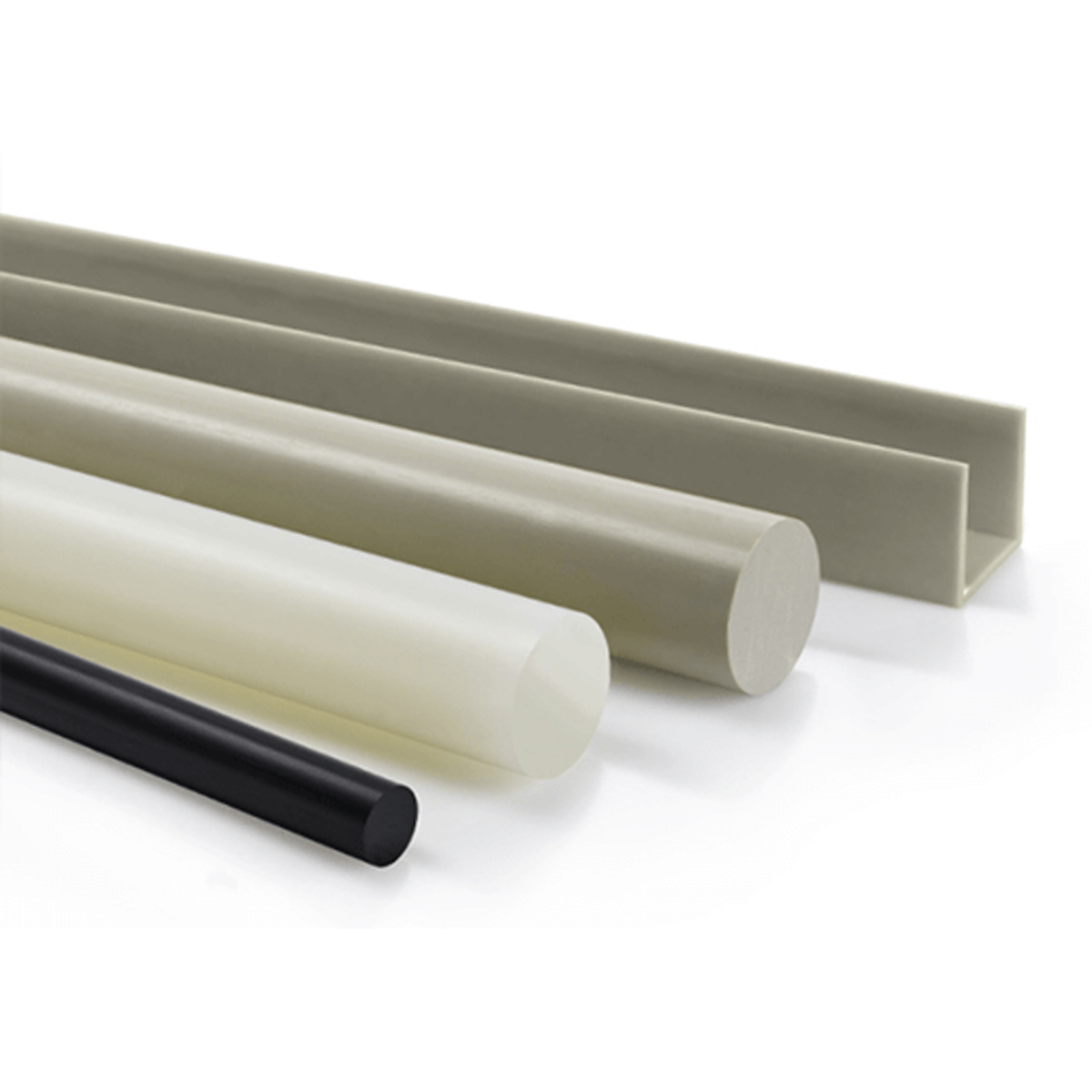

GEHR PP-C™ Natural Plastic Rod is a semi-crystalline thermoplastic made from Polypropylene Copolymer (PP-C), designed for structural and chemical-handling applications requiring high chemical resistance, light weight, cleanliness, and excellent impact performance. This material is frequently used in corrosive environments where strength and machinability are critical.

Manufactured by GEHR and offered by Boedeker, GEHR PP-C™ Natural Rod provides high resistance to acids, alkalis, and aqueous solutions, along with very low moisture absorption and very low density, making it ideal for lightweight yet durable machined parts. Its continuous operating temperature ensures consistent performance across a broad temperature range.

GEHR PP-C™ offers better impact resistance at low temperatures than homopolymer polypropylene, while retaining ease of welding using common thermoplastic welding methods (excluding high-frequency welding, due to low dielectric loss). Its natural (unpigmented) color supports use in applications requiring purity and cleanliness, such as food contact or lab equipment.

This rod stock is suitable for machining into components like valve parts, pump housings, chemical tanks, and fluid-handling fixtures where chemical resistance and durability are required.

Note:

  • FDA Compliance:
    • FDA Compliant.
  • USP Compliance:
    • Class VI*
  • ASTM Specification:
    • D4101
  • NSF Certification: N/A

*GEHR PP-C extruded rod meets requirements of USP Class VI.  Statement does not imply approvals for any specific medical device.  The end user is responsible for biocompatibility evaluations applicable for the intended application.  Contact GEHR Technical Services for additional regulatory information.

Key Properties

  • Chemical Resistance
  • Impact Toughness
  • Lightweight
  • Low Density
  • Machinability
  • Thermal Stability

Limitations

  • Lower Impact Strength Than HDPE
  • Poor Resistance to Aromatic, Aliphatic and Chlorinated Solvents.

Applications

  • Chemical Processing Equipment
  • Fluid-Handling Components
  • Industrial Valve Bodies
  • Lab-Grade Machined Parts
  • Pump Components
  • Structural Plastic Rod Parts

Resin Trade Names

Manufacturer Trade Names

  • GEHR PP-C™ Copolymer

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Important Note: Some sizes will require minimum quantity runs and longer lead times. Contact us for your specific size requirement. Rod Only Rod Sizing 96 Inch Length 0.250 Inch x 96.000 Inch- Natural Only 0.375 Inch x 96.000 Inch- Natural Only 0.500 Inch x 96.000 Inch- Natural Only 0.625 Inch x 96.000 Inch- Natural Only 0.750 Inch x 96.000 Inch- Natural Only 0.875 Inch x 96.000 Inch- Natural Only 1.000 Inch x 96.000 Inch- Natural Only 1.125 Inch x 96.000 Inch- Natural Only 1.250 Inch x 96.000 Inch- Natural Only 1.375 Inch x 96.000 Inch- Natural Only 1.500 Inch x 96.000 Inch- Natural Only 1.750 Inch x 96.000 Inch- Natural Only 1.875 Inch x 96.000 Inch- Natural Only 2.000 Inch x 96.000 Inch- Natural Only 48 Inch Length 2.250 Inch x 48.000 Inch- Natural Only 2.500 Inch x 48.000 Inch- Natural Only 2.750 Inch x 48.000 Inch- Natural Only 3.000 Inch x 48.000 Inch- Natural Only 3.250 Inch x 48.000 Inch- Natural Only 3.500 Inch x 48.000 Inch- Natural Only 3.750 Inch x 48.000 Inch- Natural Only 4.000 Inch x 48.000 Inch- Natural Only 4.500 Inch x 48.000 Inch- Natural Only 5.000 Inch x 48.000 Inch- Natural Only 5.500 Inch x 48.000 Inch- Natural Only 6.000 Inch x 48.000 Inch- Natural Only 7.000 Inch x 48.000 Inch- Natural Only 8.000 Inch x 48.000 Inch- Natural Only 9.000 Inch x 48.000 Inch- Natural Only 10.000 Inch x 48.000 Inch- Natural Only 12.000 Inch x 48.000 Inch- Natural Only 14.000 Inch x 48.000 Inch- Natural Only

Available Colors

  • Natural

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of GEHR PP-C™ Natural Copolymer

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name PP Polypropylene
Trade Name GEHR PP-C™ Copolymer
Additives Unfilled
Color Natural
Manufacturer GEHR Plastics Inc.
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.905
  ASTM D792 lb/in³ 0.032
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 4,200
Hardness ASTM D785 Rockwell R R78
THERMAL
Property Test Unit of Measure Value
Melting Point Temp °C 164
  °F 327
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -10
  °F 14
Flammability Rating UL94 NA HB
ELECTRICAL
Property Test Unit of Measure Value
COMPLIANCE
Description Value
FDA Yes
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI Yes
OTHER
Description Value
ASTM Shape Spec D4101
UV Resistant No
Relative Cost $
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

GEHR PP-C™ is a registered trademark of GEHR Plastics Inc.
