TECATOR ® GF30PAI

Compliance Info

Slide 1 of 1, currently active

General Info

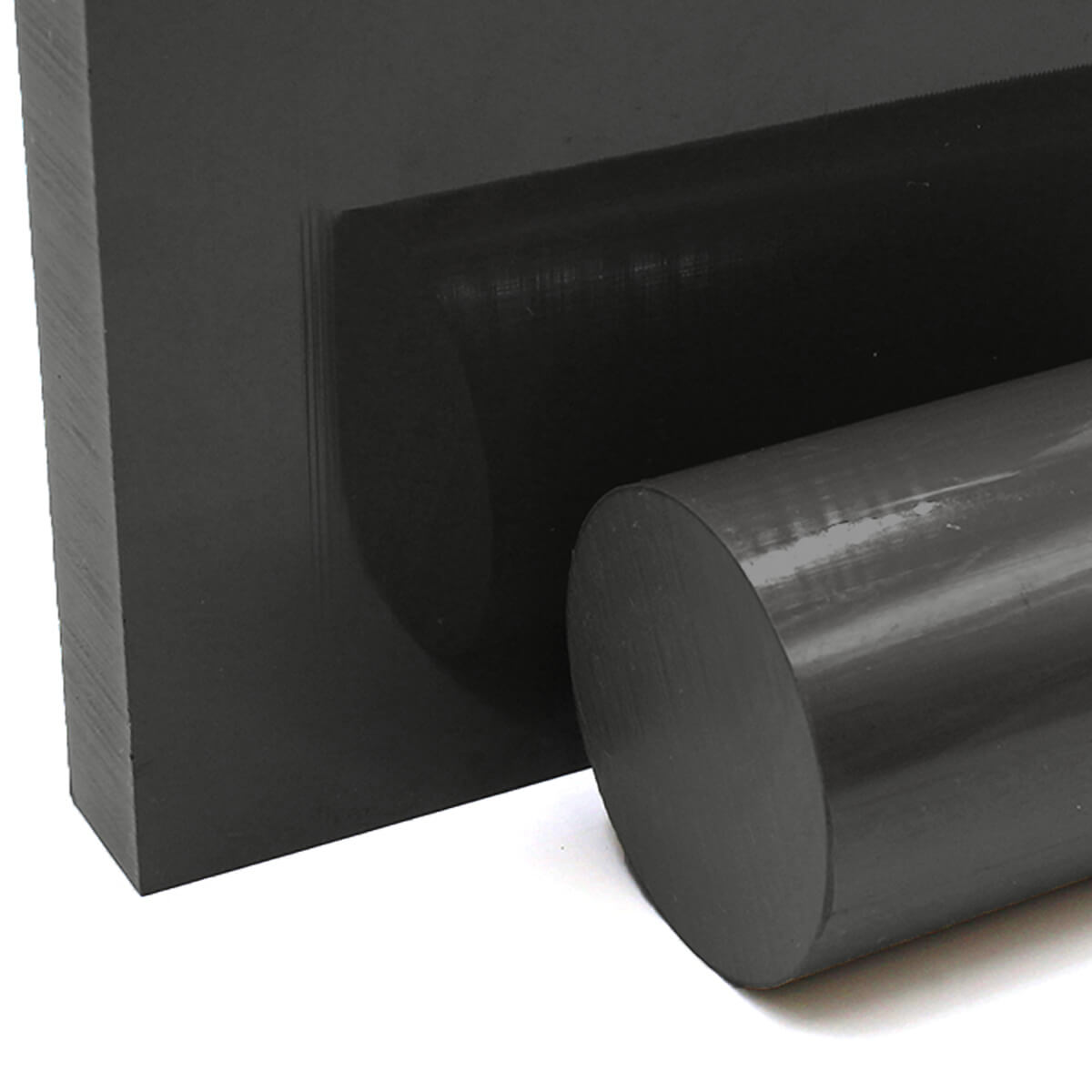

TECATOR® GF30 glass filled PAI Polyamide-imide that maintains its excellent mechanical and wear properties in temperature environments exceeding 500°F. TECATOR® GF30 (XP142T) is a 30% glass filled grade, compression molded with superior stiffness and dimensional stability. It is available in a wide variety of custom tube, ring, rod and plate sizes.

Key Properties

Better Dimensional Stability than unfilled PAI
Higher Stiffness compared to unfilled PAI

Limitations

High Moisture Absorption

Applications

High Temp. Structural Components

Resin Trade Names

Manufacturer Trade Names

TECATOR® GF30

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of TECATOR ® GF30PAI

DETAIL
Description			Value
Material Type			Imidized Amorphous Thermoplastic
Chemical Name			PAI Polyamide-imide
Trade Name			TECATOR® GF30
Additives			30% Glass Fibers
Color			Black
Manufacturer			Ensinger
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.58
	ASTM D792	lb/in³	0.057
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Elongation at Break	ASTM D638	%	2
Flexural Strength	ASTM D790	psi	21,000
Flexural Modulus	ASTM D790	psi	821,000
Hardness	ASTM D785	NA	Rockwell M116
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.75
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	2.11
Max Continuous Operating Temp		°C	260
		°F	500
Minimum Operating Temp		°C	-200
		°F	-328
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	450
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$$$$$
Machinability			8

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TECATOR® is a registered trademark of Ensinger.
