Seaboard ® HDPE

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

Seaboard® HDPE plastic marine, RV, and outdoor materials provide superior performance where water, UV exposure, and other harsh elements are present. Unlike wood or metal alternatives, our marine building materials will not rust, corrode, rot, delaminate, or splinter. With superior scratch resistance, stiffness, and packages, our HDPE and PVC plastic products are ideal for outdoor cabinetry, marine furniture, signage and recreational applications.

Key Properties

  • Excellent Scratch Resistance
  • UV Stabilized
  • Easy to Clean
  • FDA & USDA Compliant

Limitations

  • Difficult to Bond
  • Poor Dimensional Stability – High Thermal Expansion

Applications

  • Marine & Non-Marine Outdoor Cabinetry / Furniture
  • Rails, Trim & Components

Resin Trade Names

Manufacturer Trade Names

  • Seaboard® HDPE

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

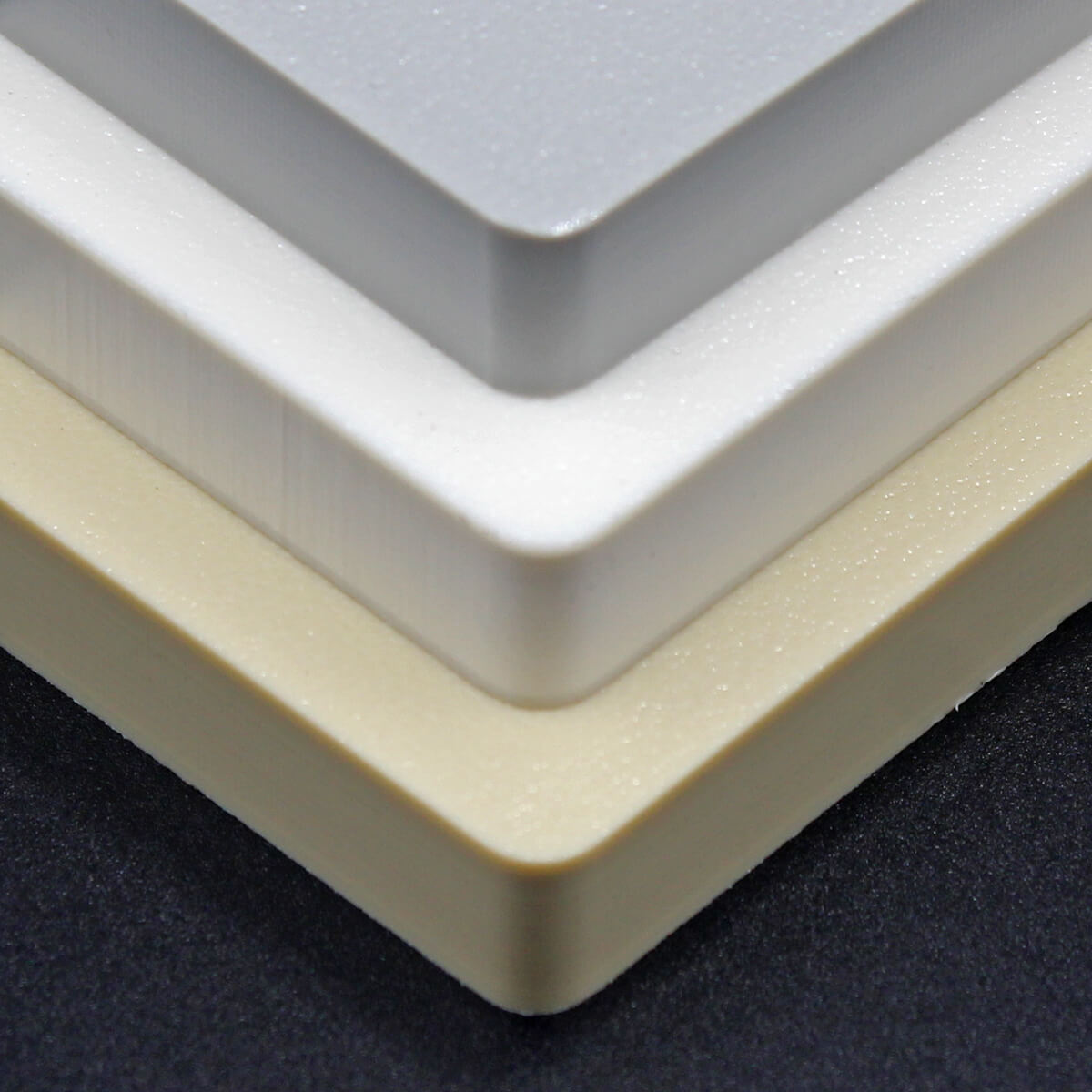

Sheet Finish |Matte All Colors | Thickness .250” to 1.500” Standard sheet size is 48.00” x 96.000” & 54.000” x 96.000” Custom colors & sizes available upon request. Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

  • Polar White

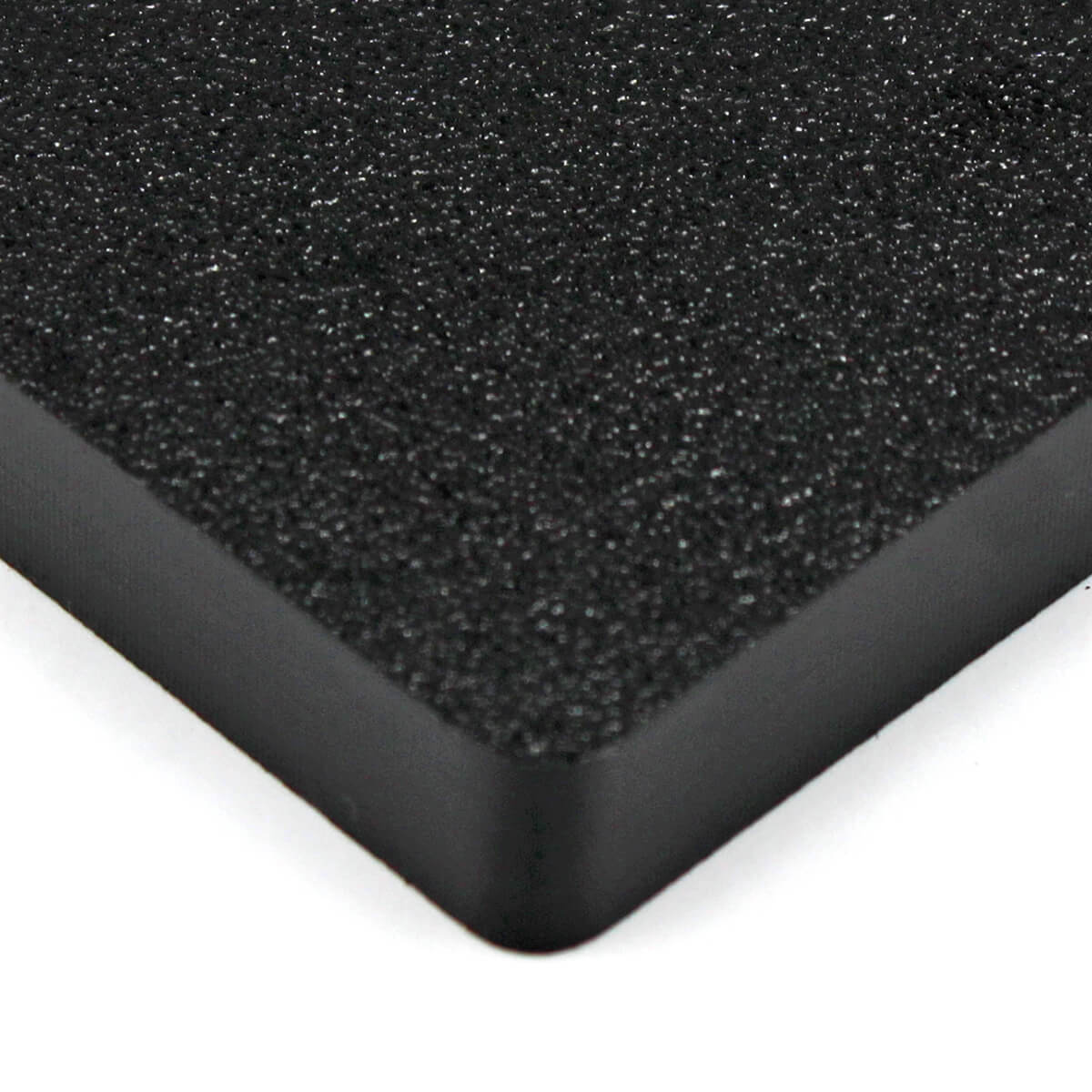

  • Black

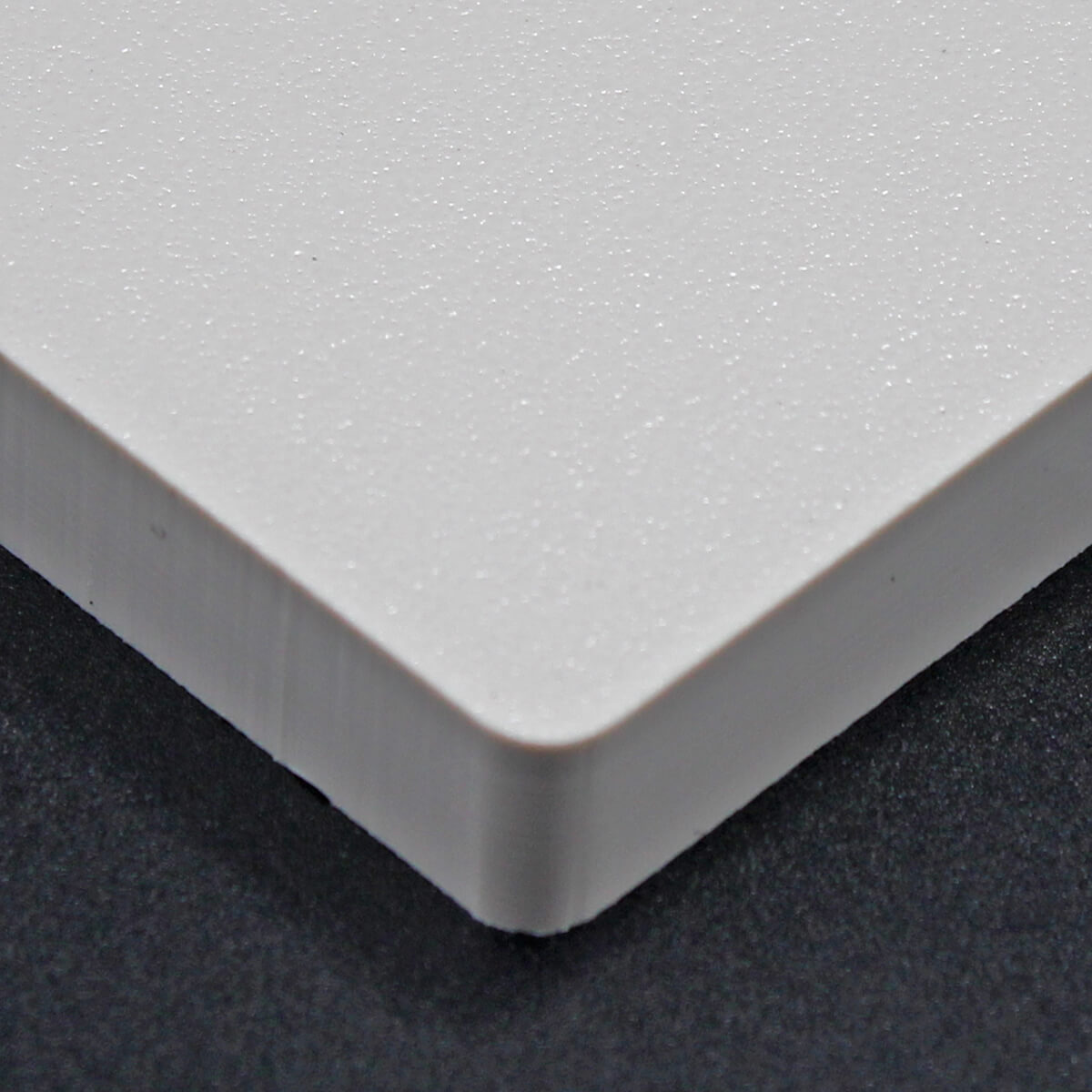

  • Craft Grey

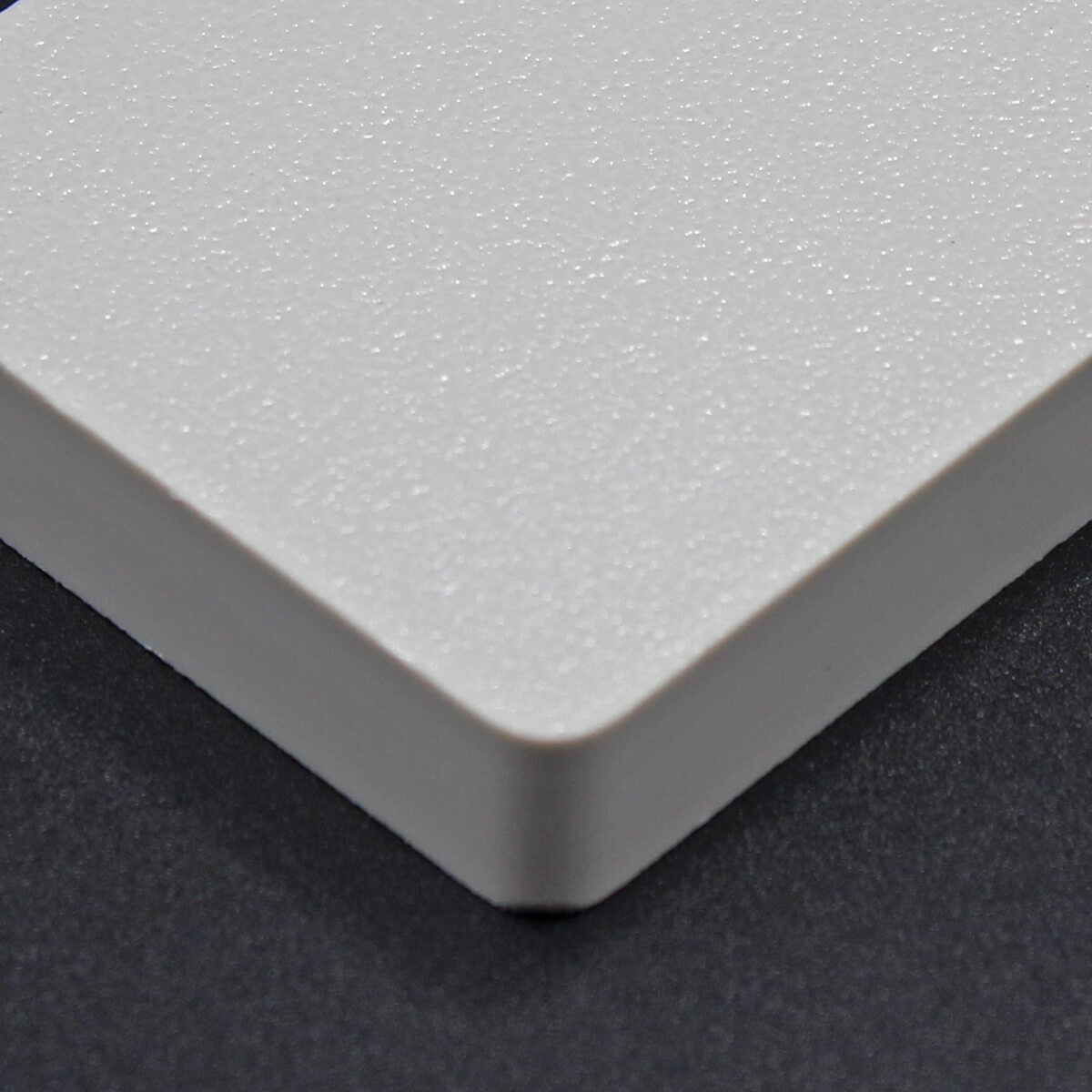

  • Mercury Grey

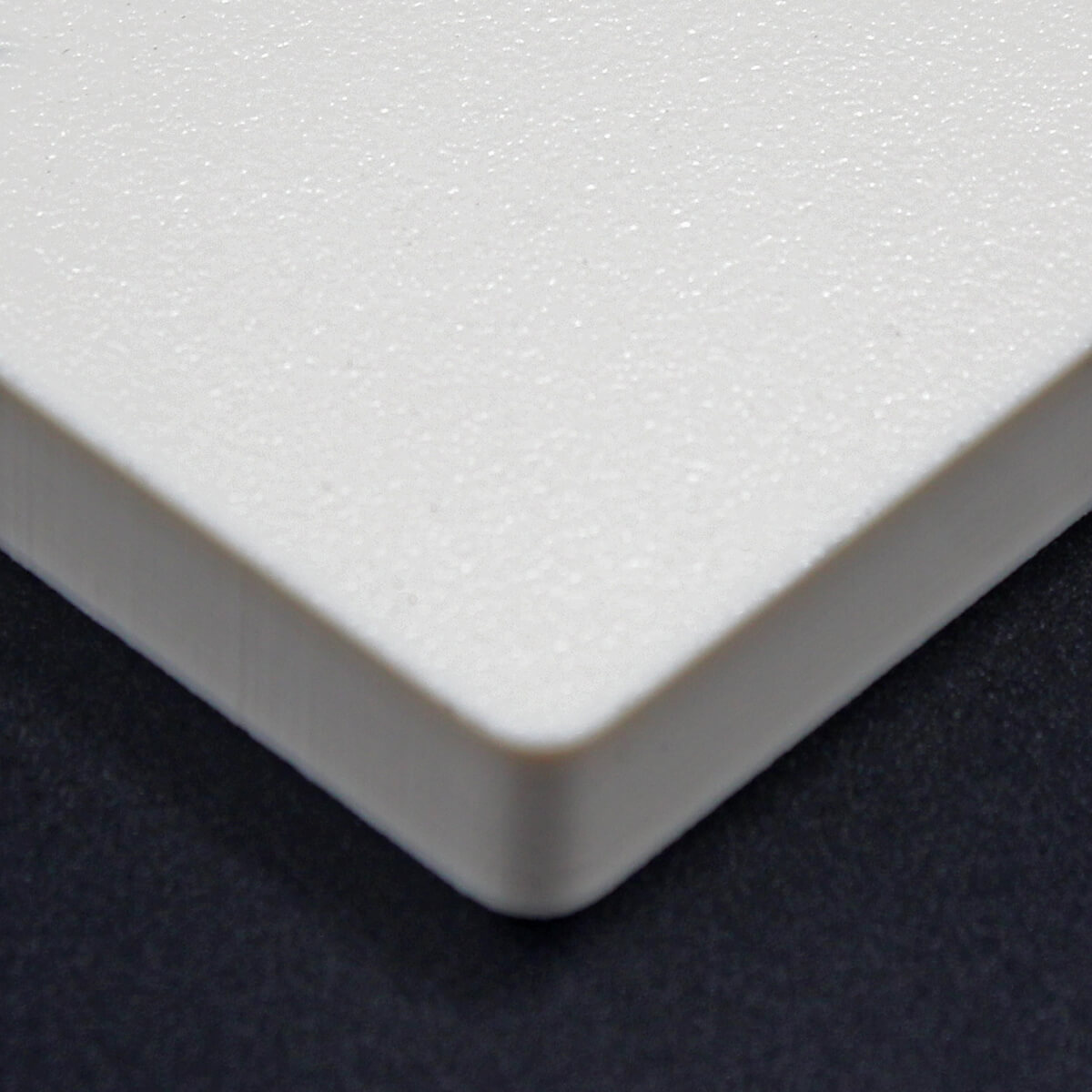

  • Seafoam

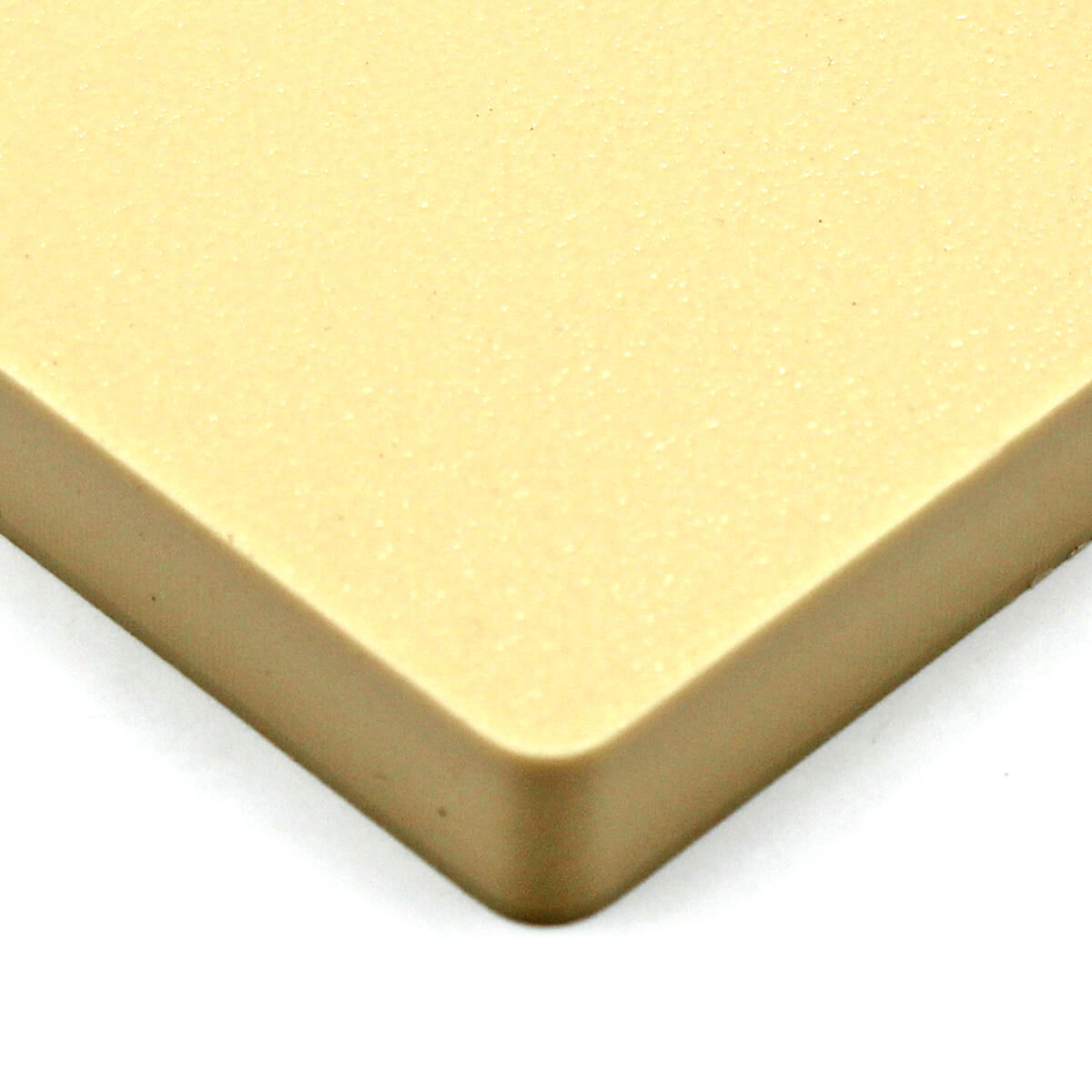

  • Sand Shade

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Seaboard ® HDPE

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name HDPE High Density Polyethylene
Trade Name Seaboard® HDPE
Additives Proprietary
Color Multiple Colors
Manufacturer Vycom
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.96
  ASTM D792 lb/in³ 0.035
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.01
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 0.01
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 4,600
Tensile Elongation at Break ASTM D638 % 600
Flexural Modulus ASTM D790 psi 225,000
Hardness ASTM D2240 NA Shore D69
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D703 x 10-5 in./in./°F 3.3
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -60
  °F -76
Flammability Rating UL94 NA HB
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant Yes
Relative Cost $
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Seaboard® is a registered trademark of Vycom.
