TECAPRO ™ MT White

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

Unit Price

Subtotal

Note: There is a $50.00 line item minimum on all orders.

General Info

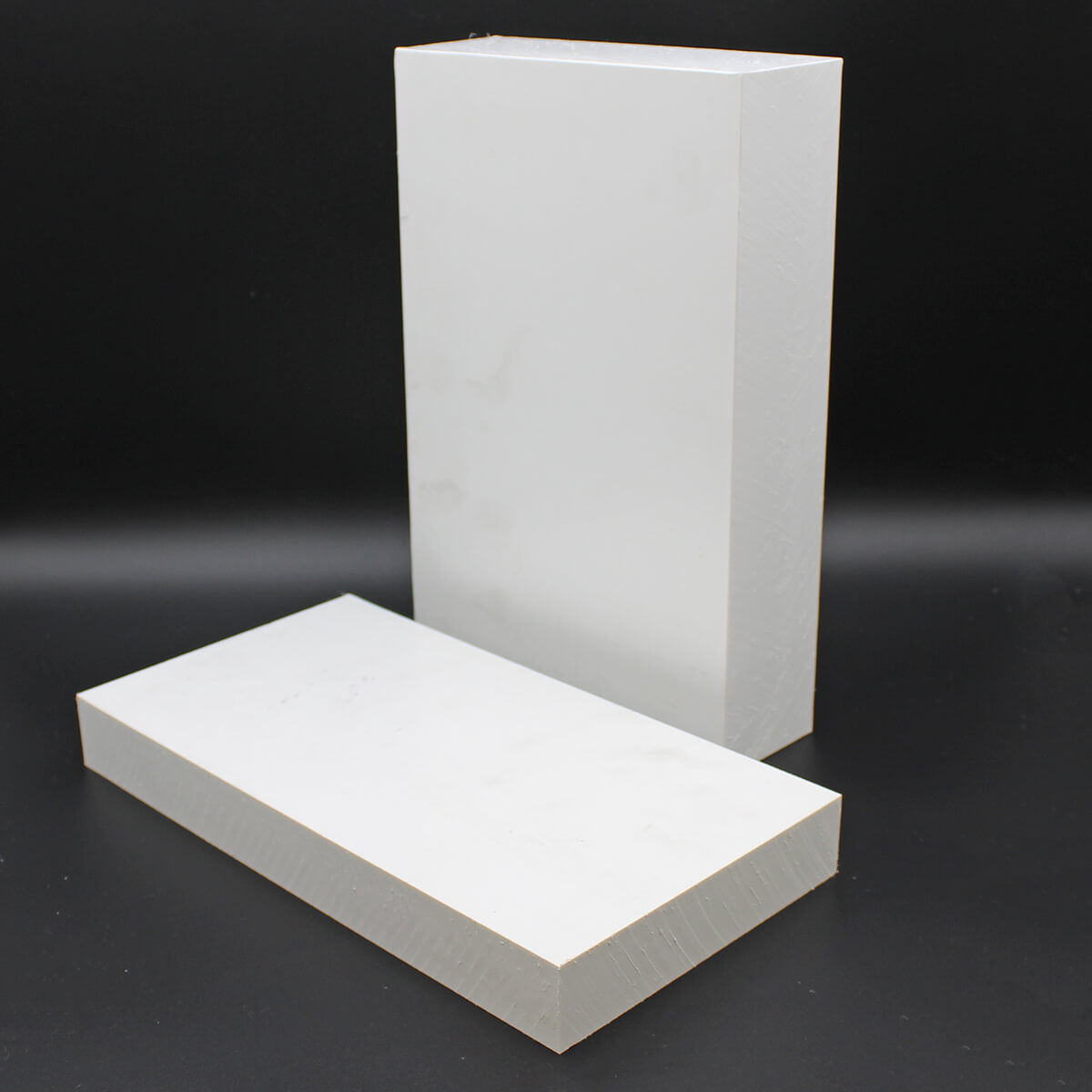

TECAPRO® MT is a white heat stabilized homopolymer polypropylene material specifically designed for stability in high-heat environments. This results in a product with exceptionally low residual stress, allowing for the fabrication of dimensionally stable parts with varying cross-sections. This characteristic reduces the tendency for parts to warp following repeated superheated steam sterilization. Additionally, TECAPRO MT’s low density makes it easy to machine into lightweight components often used in medical technology. The material has been thoroughly tested for biocompatibility according to ISO 10993, and TECAPRO MT white has also been tested according to USP Class VI.

TECAPRO® MT can withstand higher service temperatures with less water absorption than standard polypropylene. The enhanced properties of TecaPro ® MT make this material an excellent candidate for replacement of PBT, Acetal, PTFE, PPO and several other high-performance plastics. Recommended sterilization techniques include steam autoclaving and cold sterilization.

Key Properties

  • Autoclavable
  • Biocompatible
  • FDA Compliant
  • Good chemical resistance
  • Higher Operating Temp Than Standard Polypro
  • Hydrolysis and superheated steam resistant
  • Low moisture absorption
  • Low Residual Stress for Improved Dimensionally Stable Parts with Varying Cross Sections

Limitations

  • Poor Resistance to Aromatic, Aliphatic and Chlorinated Solvents.

Applications

  • Autoclavable Medical Components

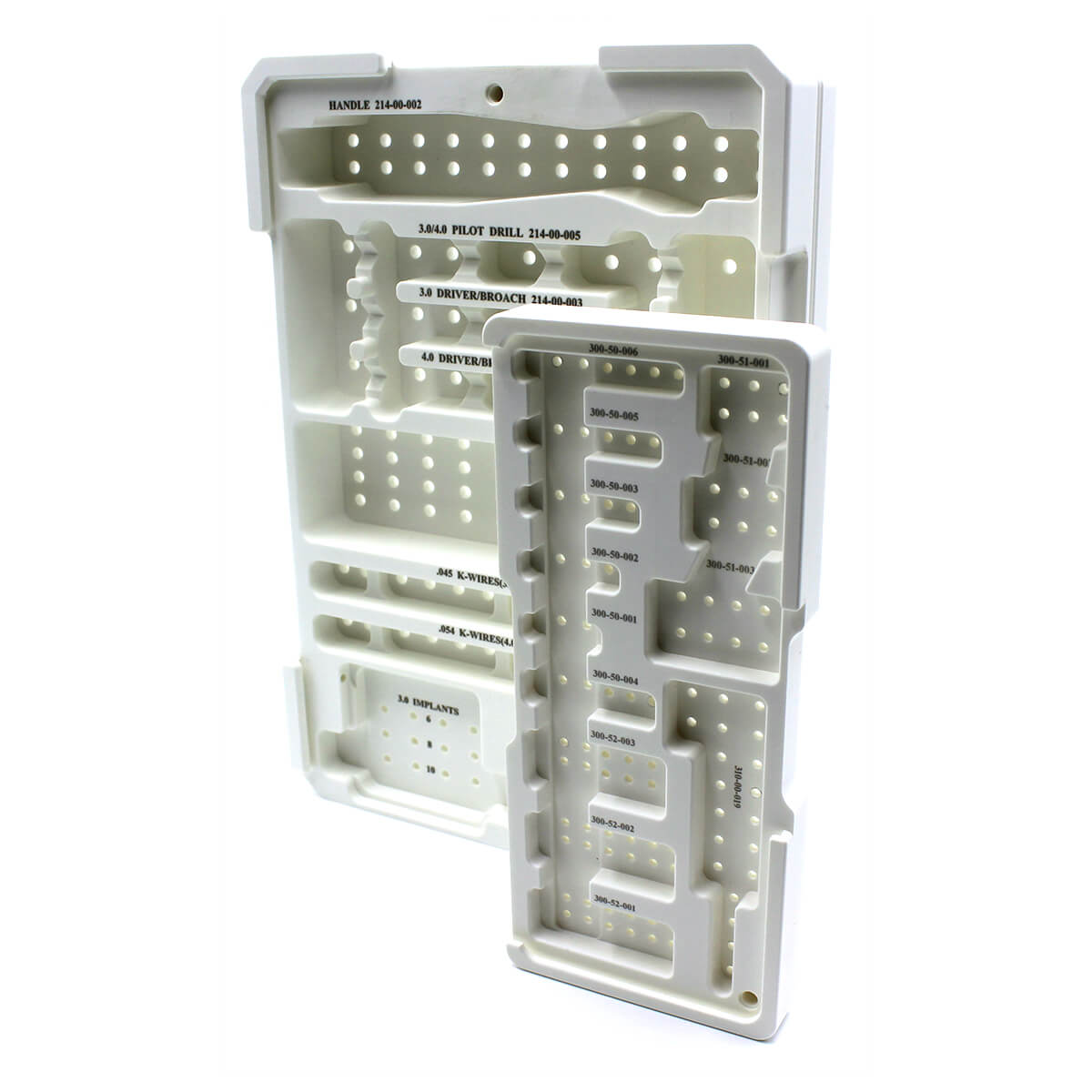

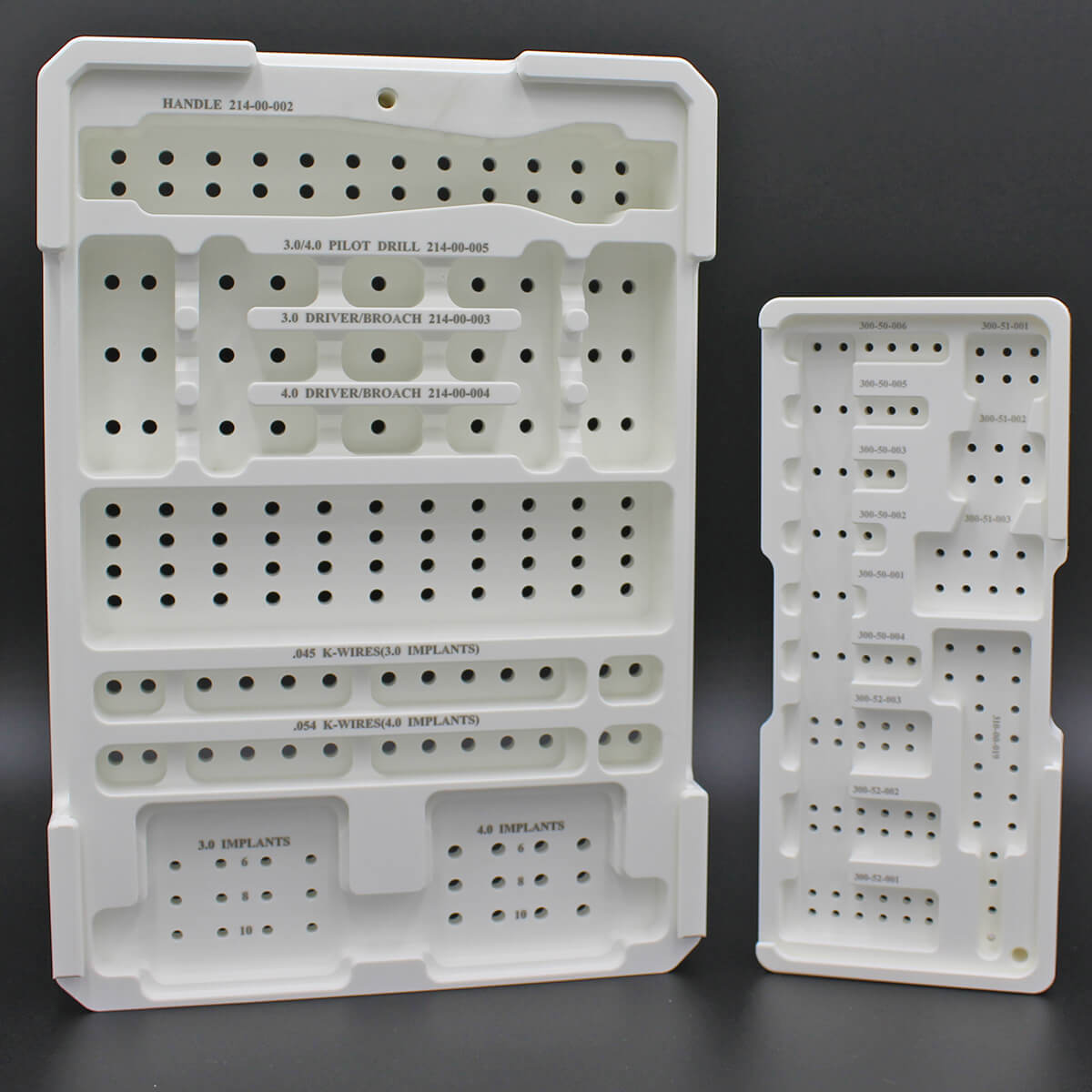

  • Surgical Trays, Caddies / Cases

Resin Trade Names

Manufacturer Trade Names

  • TECAPRO™

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

  • Black
  • White

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of TECAPRO ™ MT White

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name PP Polypropylene
Trade Name TECAPRO™ MT
Additives Heat Stabilized
Color White
Manufacturer Ensinger
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.92
  ASTM D792 lb/in³ 0.033
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.1
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 5,100
Flexural Strength ASTM D790 psi 7,830
Flexural Modulus ASTM D790 psi 210,000
Compressive Modulus ASTM D695 psi 232,000
IZOD Impact-Notched ASTM D256 ft-lb/in 0.899
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 4.6
Heat Deflection Temp ASTM D648 °C at 264 psi 86
  ASTM D648 °F at 264 psi 186
Melting Point Temp ASTM D3418 °C 160
  ASTM D3418 °F 320
Max Continuous Operating Temp °C 100
  °F 212
Minimum Operating Temp °C 0
  °F 32
Flammability Rating UL94 NA HB
ELECTRICAL
Property Test Unit of Measure Value
Surface Resistivity ASTM D257 ohm/square 10^14
COMPLIANCE
Description Value
FDA Yes
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI Yes
OTHER
Description Value
UV Resistant No
Relative Cost $
Machinability 2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TECAPRO is a registered trademark of Ensinger Company.
