General Info
PEEK is an abbreviation for PolyEtherEther-Ketone, a high performance engineering thermoplastic. PEEK grades offer chemical and water resistance similar to PPS (PolyPhenylene Sulfide), but can operate at higher temperatures. PEEK can be used continuously to 480°F (250°C) and in hot water or steam without permanent loss in physical properties. For hostile environments, PEEK is a high strength alternative to fluoropolymers. PEEK carries a V-0 flammability rating and exhibits very low smoke and toxic gas emission when exposed to flame. Unfilled PEEK is approved by the FDA for food contact applications (since 1998).
PEEK (Unfilled) general purpose grade is unreinforced and offers the highest elongation and toughness of all PEEK grades. Unfilled PEEK is available in sheet and rod forms in natural (a very light brown or tan) color (see photo above) and is also available in black . Black PEEK is ideal for instrument components where aesthetics is important, as well as for seal components where ductility and inertness are important. All unfilled PEEK grades comply with FDA regulation 21 CFR 177.2415 for repeated food contact.
Click for more information on the complete line of PEEK Plastic Products
Key Properties
- Excellent Chemical Resistance
- High Temperature Resistance
- Unaffected by continuous exposure to hot water or steam
- Very Low Moisture Resistance
- Low Outgassing Material
- Total Mass Loss (TML%) .31%
- Collected Volatile Condensable Materials (CVCM%) 0.00%
- Water Vapor Regained (WVR%) 0.06%
Limitations
- Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF
Applications
- Back Up Rings
- Electrical Components
- Electrical Connectors
- Manifolds
- Pump & Valve Components
- Semiconductor Components
- Valve Seats
Resin Trade Names
- KetaSpire® PEEK
- VESTAKEEP® PEEK
- VICTREX™ PEEK
Manufacturer Trade Names
- GEHR PEEK Grades
- Ketron® PEEK Grades
- Semitron® PEEK Grades
- SustaPEEK® Grades
- TECAPEEK® Grades
- UNITREX® PEEK Grades
- ZL® 1900 PEEK Grades
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Available in Sheet, Rod, Tube, Film, Custom Profile and Machined and Molded Parts.
Extruded Sheet Sizes
.030 inch to 4.000 inch Thick
Compression Molded Sheet Sizes
Thickness .250 inch x 2.000 inch
Size W X L 12.000 inch x 15.000 inch
Thickness .250 inch to 3.000 inch
Size W X L 10.000 inch x 10.000 inch and 13.000 inch x 13.000
Thickness .250 inch x 2.500 inch
Size W X L 15.000 inch x 30.000 inch and 24.000 inch x 24.000 inch

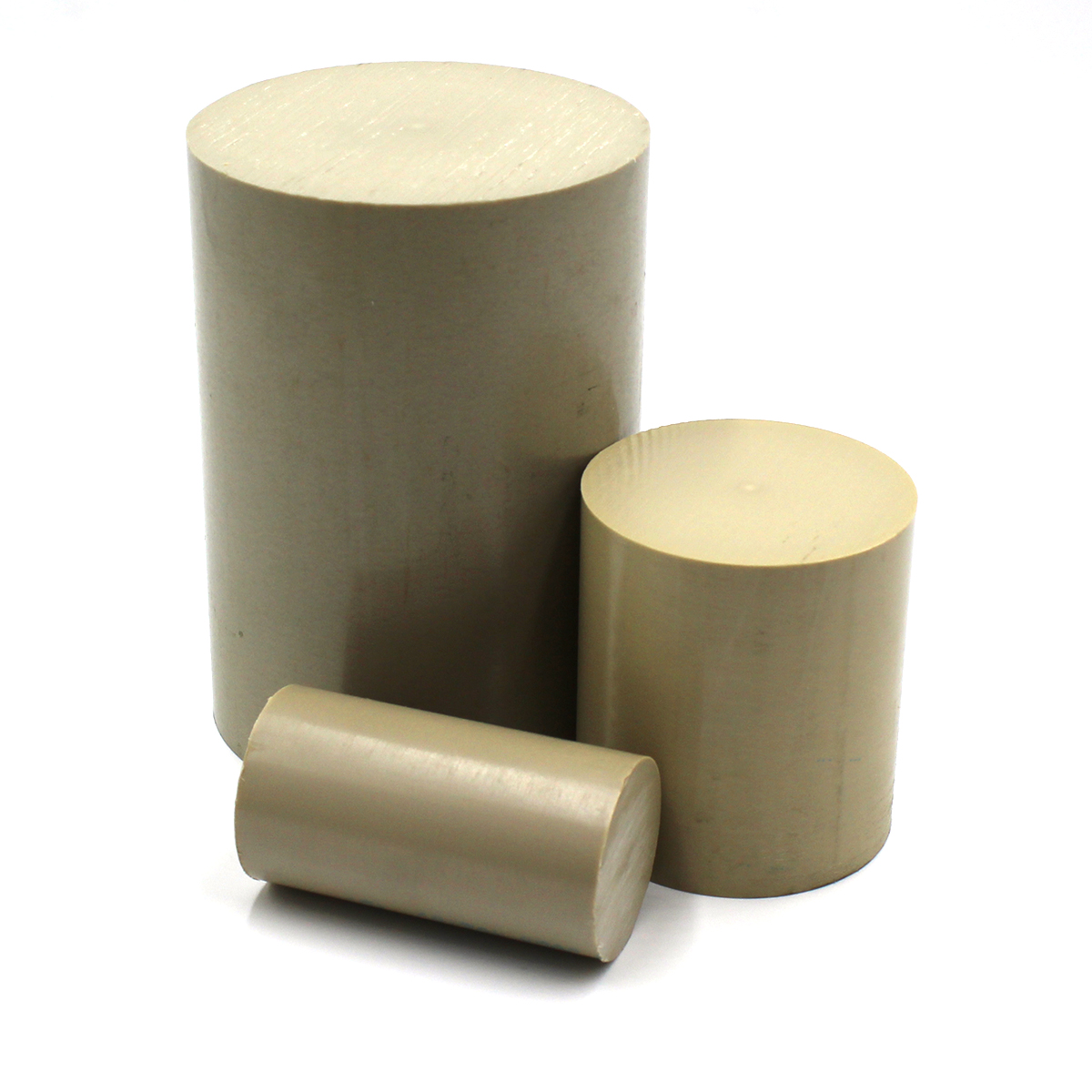

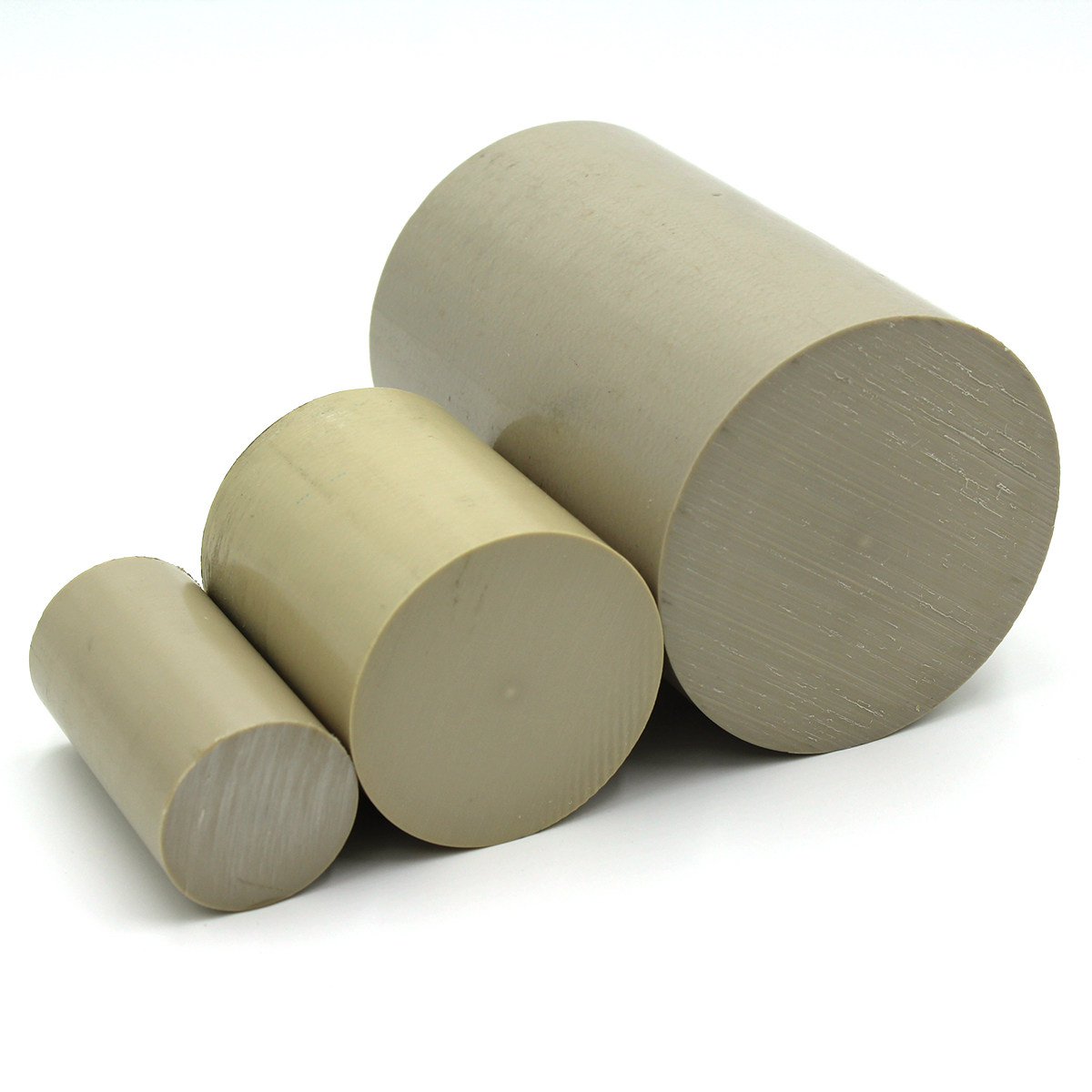

Extruded Rod Sizes
.250 inch to 6.304 inch Diameter
Compression Molded Rod Sizes
Diameter 1.000 inch to 3.250 inch
Lengths 3.000 inch to 6.000 inch L

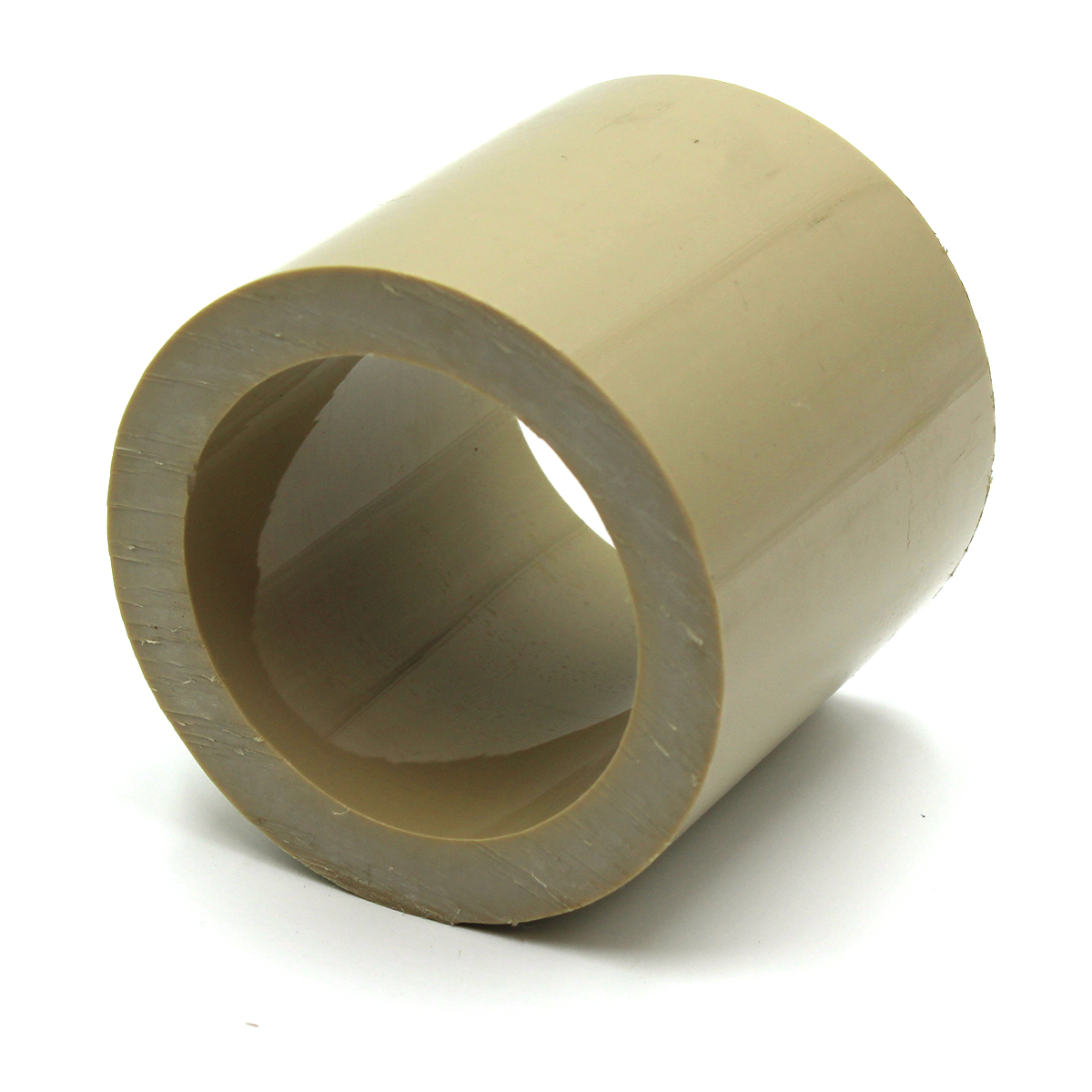

Compression Molded PEEK Tube Sizes
Unfilled PEEK
Outside Diameter 1.500 inch to 81.500 inch
Lengths 3.000 inch to 6.000 inch L
Filled PEEK
Outside Diameter 1.500 inch to 8.000 inch
Lengths 3.000 inch to 8.000 inch
Outside Diameter 8.250 inch to 81.500 inch
Lengths 3.000 inch to 6.000 inch L
Extruded Tubes are available in the following Sizes in Victrex 450G in 118.00 inch lengths
Extruded Tube Sizes
OD X ID
30mm (1.18 inch) 15mm (0.59 inch)
40mm (1.57 inch) 20mm (0.78 inch)
50mm (1.96 inch) 30mm (1.18 inch)
56mm (2.20 inch) 40mm (1.57 inch)
60mm (2.36 inch) 45mm (1.77 inch)
70mm (2.75 inch) 50mm (1.96 inch)
80mm (3.14 inch) 50mm (1.96 inch)
90mm (3.54 inch) 70mm (2.75 inch)
100mm (3.93 inch) 70mm (2.75 inch)
115mm (4.52 inch) 80mm (3.14 inch)
140mm (5.51 inch) 100mm (3.93 inch)
160mm (6.29 inch) 120mm (4.72 inch)
170mm (6.69 inch) 140mm (5.51 inch)
200mm (7.87 inch) 150mm (5.90 inch)
210mm (8.26 inch)* 170mm (6.69 inch)*
* 210mm X 170mm available in 2000mm (78.74 inch) maximum length
Compression Molded Disks
Diameter 3.250 inch to 26.000 inch
Thickness .500 inch to 3.000 inch
Important Note: Not all sizes are listed for every process and PEEK tube is also available in Spin Cast tubes and Injection Molded tubes and calendared sheet.
Contact Us for information on all available sizes
