VICTREX ™ PEEK 450CA30 Carbon Reinforced

Compliance Info

Slide 1 of 4, currently active
Slide 2 of 4
Slide 3 of 4
Slide 4 of 4

General Info

VICTREX™ 450CA30 PEEK is a 30% carbon fiber reinforced PEEK, offering high strength and stiffness over virgin unfilled PEEK for applications demanding strength, wear and abrasion resistance, and outstanding chemical resistance.

These properties, along with excellent dimensional stability with low moisture absorption and low CLTE, make it ideal for tight tolerance in demanding structural, bearing, and wear applications. This grade has a higher thermal conductivity than virgin unfilled PEEK, which increases heat dissipation from bearing surfaces, improving bearing life and capability.

Click For More Information on the Complete Line of PEEK Products

Key Properties

High Thermal Conductivity
Ideal for Higher Strength and Stiffness in a Static Or Dynamic Systems
Excellent Wear Resistance
Low Coefficient of Friction
Low Coefficient of Thermal Expansion
Chemically Resistant To Aggressive Environments

Limitations

Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF

Applications

Bushings and Bearings
Gears and Sprockets
Manifolds
Pump and Valve Components
Rollers
Wear Strips
Pump Case Wear Rings
Structural Components
High Strength Dimensionally Stable Components

Resin Trade Names

VICTREX ™ PEEK 450CA30

Manufacturer Trade Names

VICTREX™ PEEK 450CA30

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

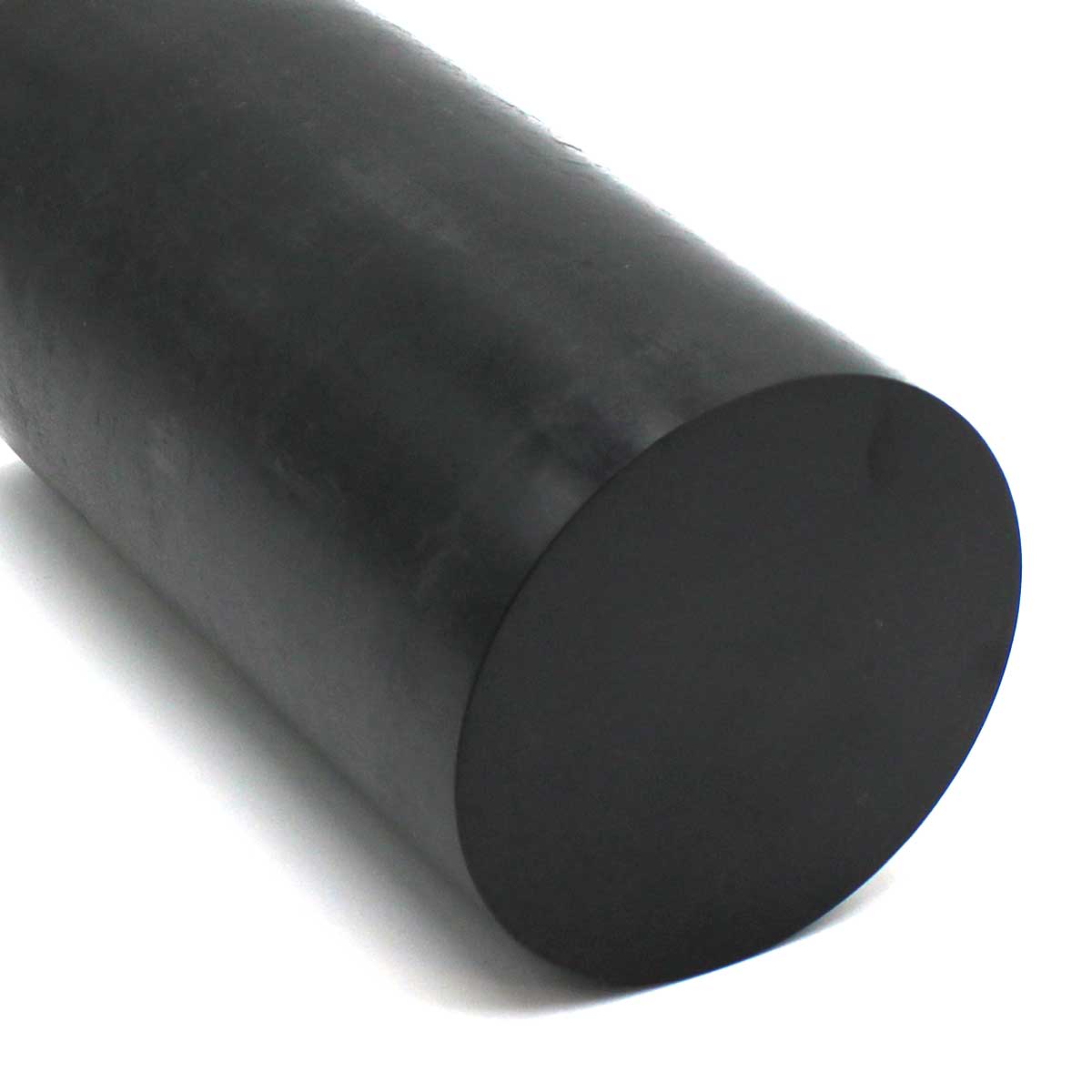

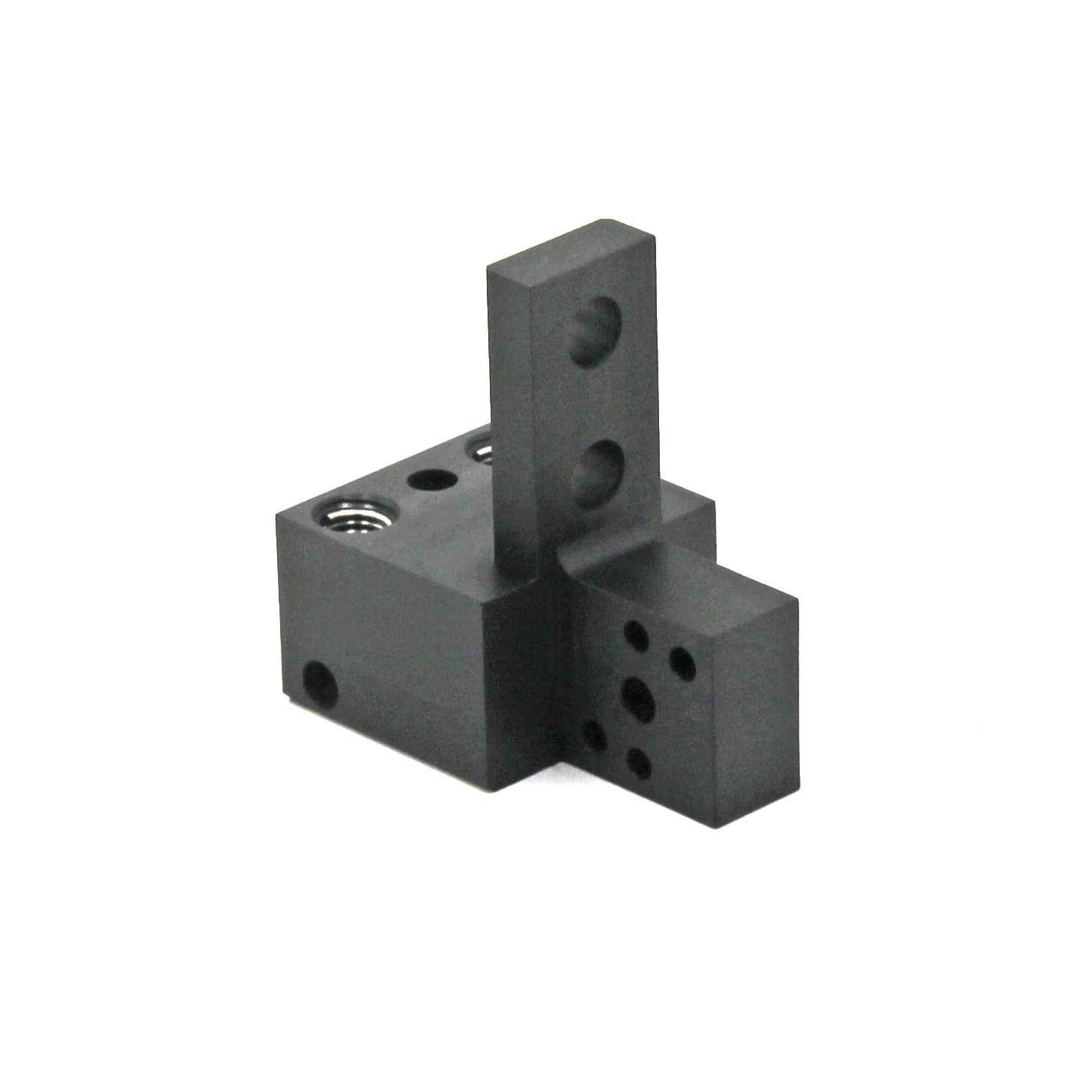

Sheet* Thickness .250 to 1.000 inch Thick Rod* Diameters .250 to 1.000 inch Diameter Tube* Custom Quote Made to Order Contact Us with your specific requirements Also, available in CNC machined and injection molded parts. *If your size is not available in this resin grade, we may have alternative carbon filled peek options.

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of VICTREX ™ PEEK 450CA30 Carbon Reinforced

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			VICTREX™ PEEK 450CA30
Additives			30% Carbon fiber reinforced
Color			Black
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.41
	ASTM D792	lb/in³	0.051
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.06
Water Absorption, Saturation, Immersion	ASTM D570		0.3
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	19,000
Tensile Modulus	ASTM D638	psi	1,200,000
Tensile Elongation at Break	ASTM D638	%	2
Flexural Strength	ASTM D790	psi	30,000
Flexural Modulus	ASTM D790	psi	1,200,000
Compressive Strength	ASTM D695	psi	29,000
Compressive Modulus	ASTM D695	psi	1,000,000
Hardness	ASTM D785	Rockwell	102 M / 126 R
IZOD Impact-Notched	ASTM D256	ft-lb/in	1.03
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	1
Heat Deflection Temp	ASTM D648	°C at 264 psi	288
	ASTM D648	°F at 264 psi	550
Melting Point Temp	ASTM D3418	°C	340
	ASTM D3418	°F	644
Max Continuous Operating Temp		°C	250
		°F	482
Minimum Operating Temp		°C	-60
		°F	-76
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	6.4
	ASTM C117	x 10^4 cal/cm-sec-°C	22
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Surface Resistivity	ASTM D257	ohm/square	< 10^5
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$$$$
Machinability			7

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

VICTREX™ is a trademark of Victrex plc.
