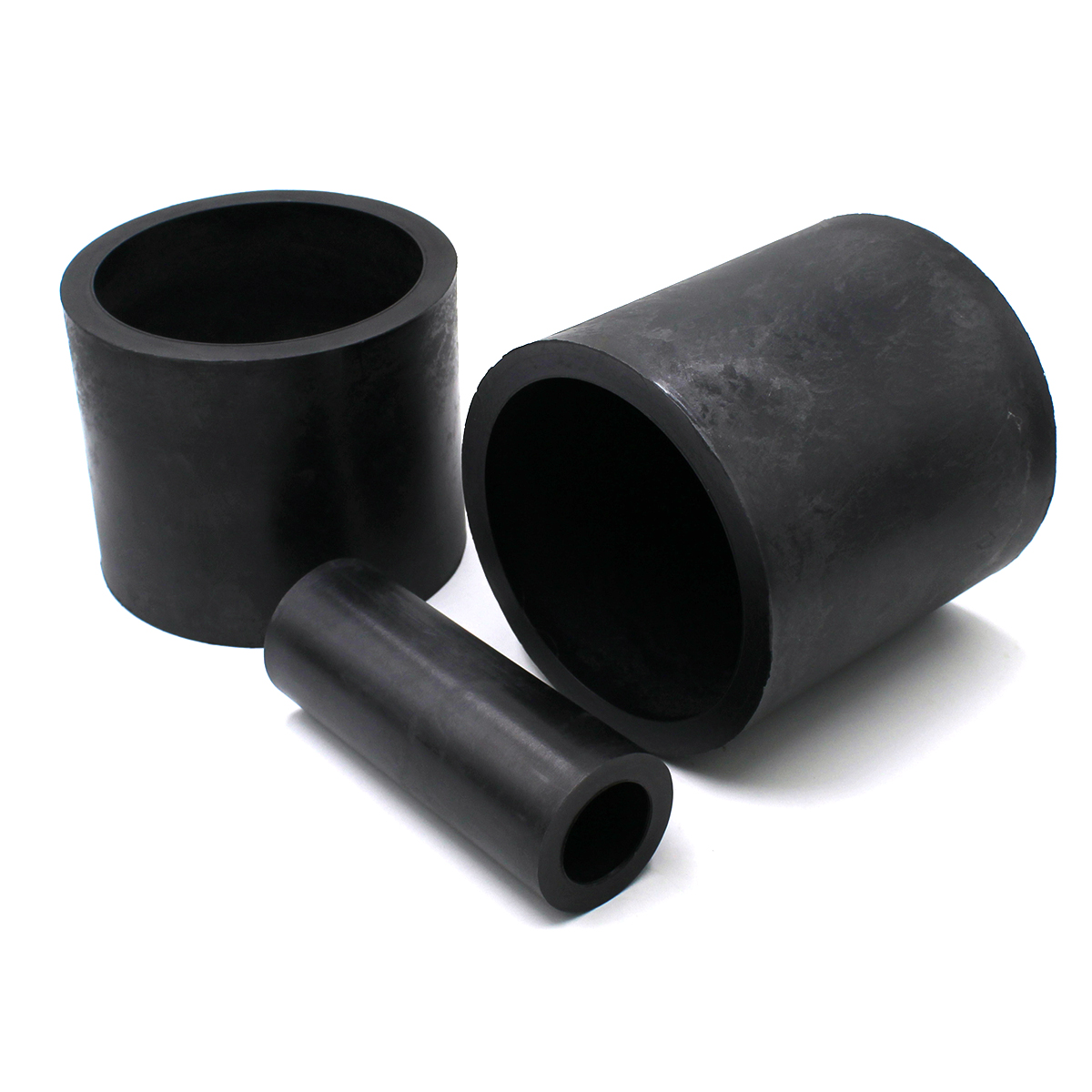

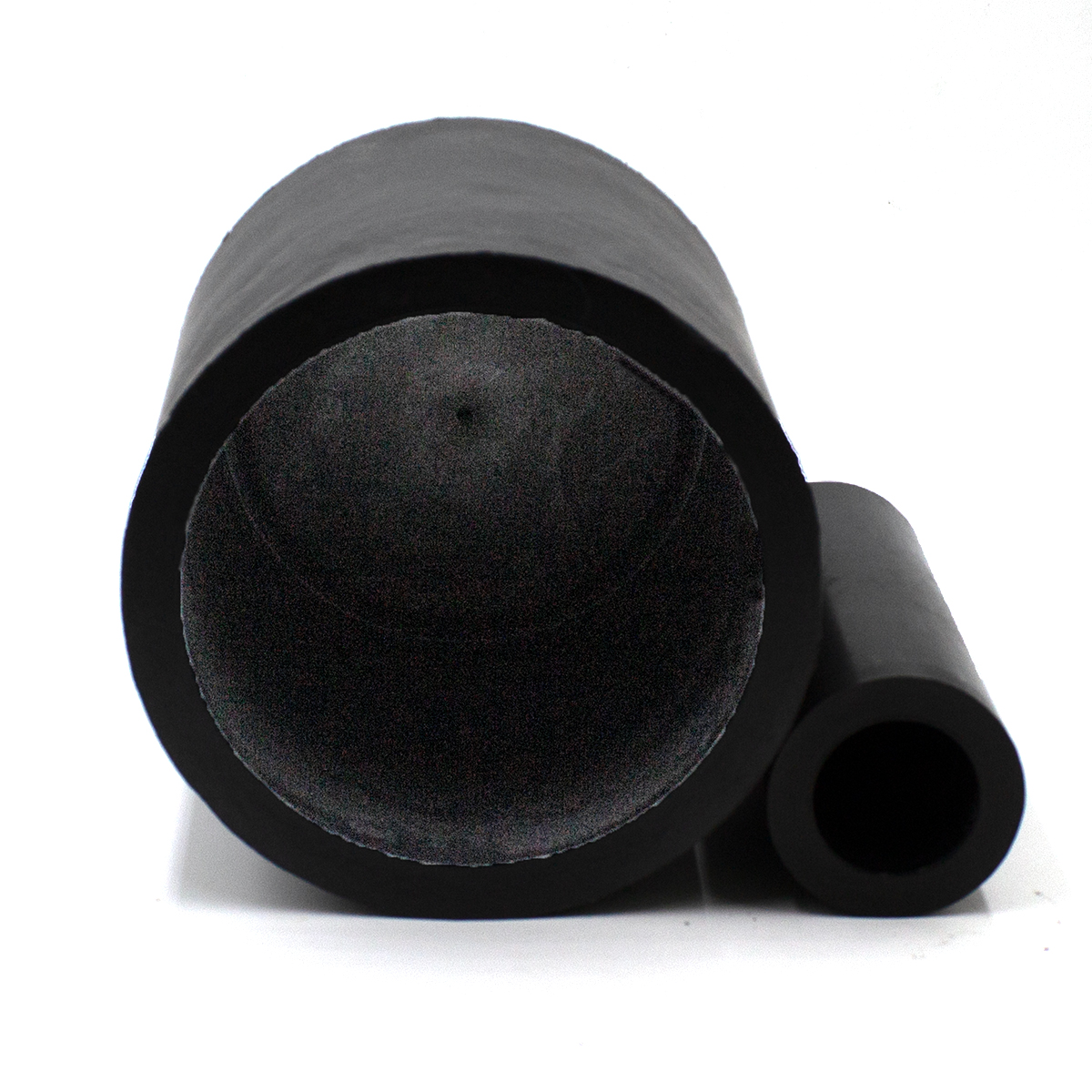

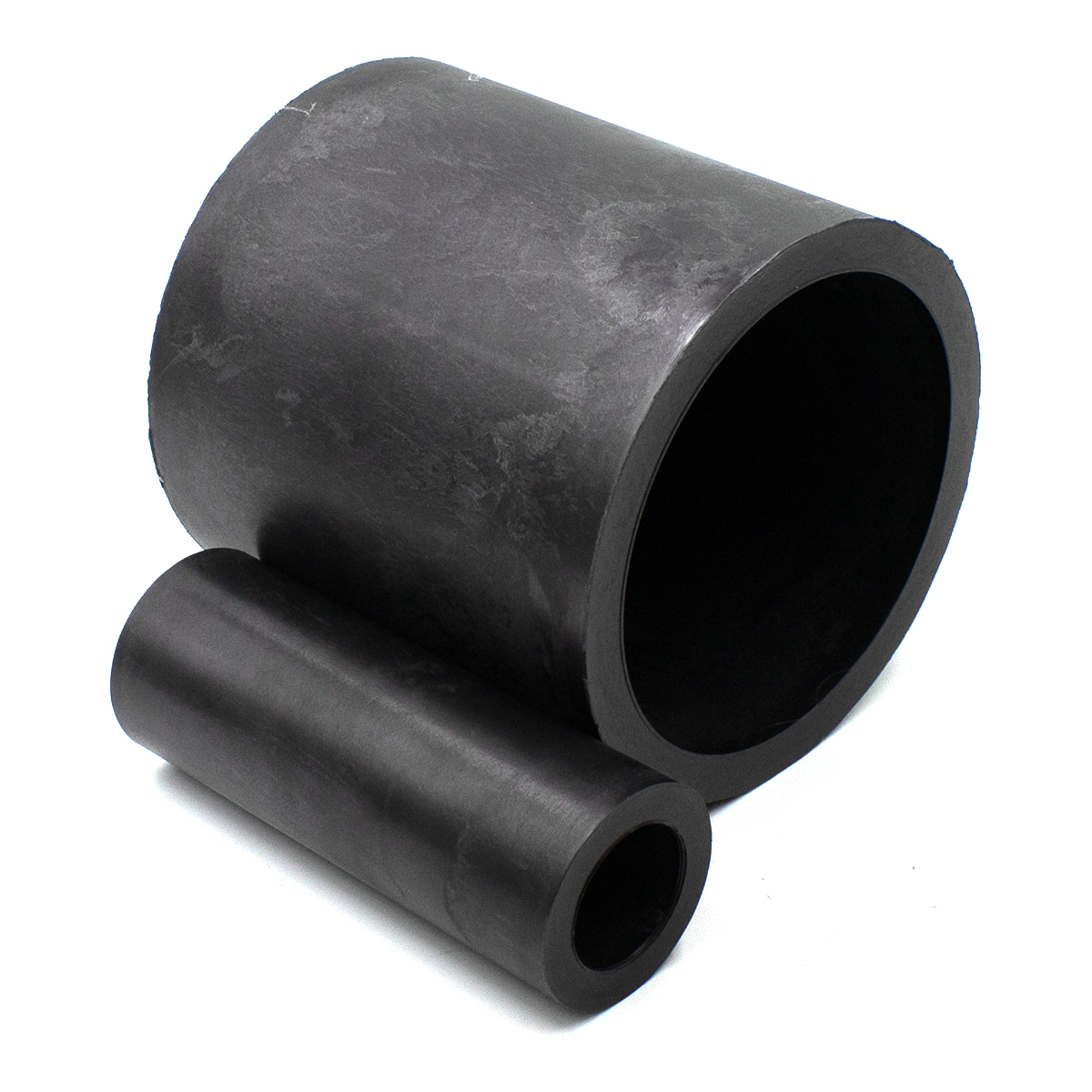

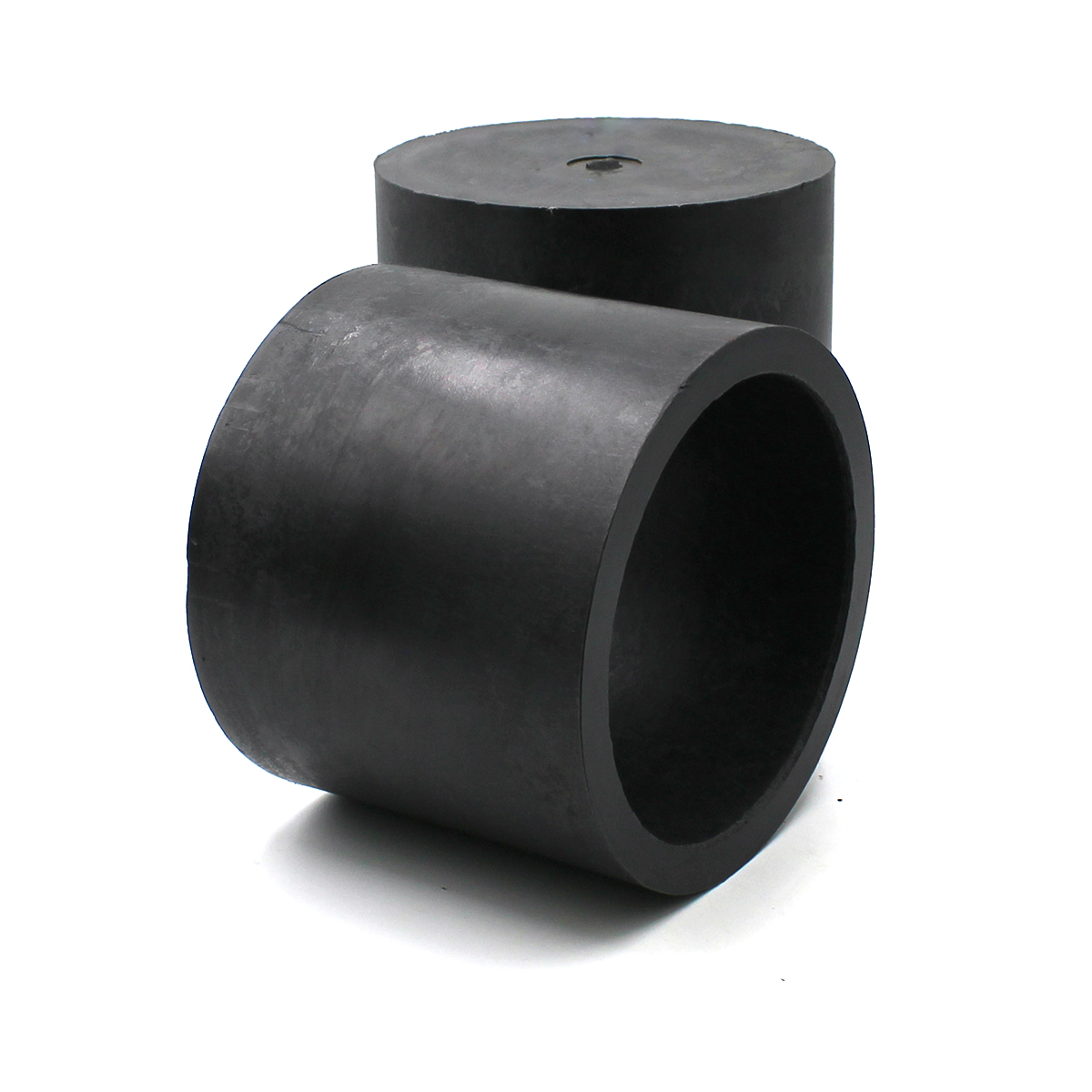

BOETEK™ PEEK IM 5020 30% Carbon Filled Tube

Compliance Info

Slide 1 of 5, currently active
Slide 2 of 5
Slide 3 of 5
Slide 4 of 5
Slide 5 of 5

General Info

BOETEK™ PEEK IM 5020 is a bearing-grade carbon fiber-reinforced polyetheretherketone (PEEK) material. It is available in injection molded tubes in a wide range of sizes. It offers improved dimensional stability, a higher modulus, enhanced mechanical strength, and greater resistance to deformation under load compared to unfilled Virgin PEEK.

The carbon fibers help increase the thermal conductivity to over three and a half times that of unfilled virgin PEEK, allowing for quicker heat dissipation.

Tribological Wear Testing

Wear Rate (PV: 20K psi-fpm) per ASTM D3702 = 4.08 μin/min

It is commonly used for backup rings, bearings, bushings, pump and valve components, pump case wear rings, seals, and thrust washers.

Click for more information on the complete line of PEEK Plastic Products

Key Properties

Excellent Chemical Resistance
High Temperature Resistance
High Wear Resistance
Higher strength & Stiffness than Unfilled PEEK
Higher Thermal Conductivity than Unfilled PEEK (3.5X Higher)
Lower Thermal Expansion than Unfilled PEEK
Unaffected by continuous exposure to hot water or steam
Very Low Moisture Resistance

Limitations

Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF

Applications

Back-Up Rings
Bearings
Bushings
Pump and Valve Components
Pump Case Wear Rings
Seals
Thrust Washers

Resin Trade Names

VESTAKEEP® PEEK

Manufacturer Trade Names

BOETEK™ PEEK IM 5020 30% Carbon Filled

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Tube Only OD X ID X Length 1.000 Inch x 0.500 Inch x 6.000 Inch 1.500 Inch x 1.000 Inch x 6.000 Inch 1.750 Inch x 1.000 Inch x 6.000 Inch 1.750 Inch x 1.250 Inch x 6.000 Inch 2.000 Inch x 1.000 Inch x 6.000 Inch 2.000 Inch x 1.250 Inch x 6.000 Inch 2.250 Inch x 1.500 Inch x 6.000 Inch 2.250 Inch x 1.750 Inch x 6.000 Inch 2.500 Inch x 1.750 Inch x 6.000 Inch 2.500 Inch x 2.000 Inch x 6.000 Inch 2.750 Inch x 2.000 Inch x 6.000 Inch 2.750 Inch x 2.250 Inch x 6.000 Inch 3.000 Inch x 2.250 Inch x 6.000 Inch 3.000 Inch x 2.500 Inch x 6.000 Inch 3.500 Inch x 2.250 Inch x 6.000 Inch 3.500 Inch x 2.750 Inch x 6.000 Inch 3.500 Inch x 3.000 Inch x 6.000 Inch 4.000 Inch x 3.500 Inch x 6.000 Inch 4.250 Inch x 3.250 Inch x 6.000 Inch 4.250 Inch x 3.750 Inch x 6.000 Inch 4.750 Inch x 4.000 Inch x 6.000 Inch 4.750 Inch x 4.250 Inch x 6.000 Inch 5.000 Inch x 4.500 Inch x 6.000 Inch 5.250 Inch x 4.750 Inch x 6.000 Inch 5.500 Inch x 4.500 Inch x 6.000 Inch 5.750 Inch x 5.000 Inch x 6.000 Inch 5.750 Inch x 5.250 Inch x 6.000 Inch 6.000 Inch x 5.250 Inch x 6.000 Inch 6.000 Inch x 5.500 Inch x 6.000 Inch 7.000 Inch x 6.250 Inch x 6.000 Inch 7.750 Inch x 7.000 Inch x 6.000 Inch

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of BOETEK™ PEEK IM 5020 30% Carbon Filled Tube

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			BOETEK™ PEEK IM 5020 30% Carbon Filled
Additives			30% Carbon Filled
Color			Black
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.41
	ASTM D792	lb/in³	0.055
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.15
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	28,000
Tensile Elongation at Break	ASTM D638	%	2
Flexural Strength	ASTM D790	psi	41,000
Flexural Modulus	ASTM D790	psi	2,000,000
Compressive Strength	ASTM D695	psi	41,000
Compressive Modulus	ASTM D695	psi	1,000,000
Hardness	ASTM D785	Shore D	91 D
IZOD Impact-Notched	ASTM D256	ft-lb/in	1.4
Static Coefficient of Friction	ASTM D3702	NA	0.58
Dynamic Coefficient of Friction	ASTM D3702	NA	0.52
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	3
Heat Deflection Temp	ASTM D648	°C at 264 psi	316
	ASTM D648	°F at 264 psi	600
Melting Point Temp	ASTM D3418	°C	340
	ASTM D3418	°F	644
	ASTM D3418	°F	644
Max Continuous Operating Temp		°C	260
		°F	500
Minimum Operating Temp		°C	-60
		°F	-76
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	6.4
	ASTM C117	x 10^4 cal/cm-sec-°C	22
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Surface Resistivity	ASTM D257	ohm/square	< 10^5
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$$$$
Machinability			7

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

BOETEK™ is a trademark of Boedeker Plastics, Inc, with registration currently pending.
