General Info
SUSTAPEEK (polytheretherketone) offers excellent mechanical properties, chemical resistance, 480° F continuous use temperature, hot water and steam resistance & low moisture absorption. SustaPEEK is manufactured with VICTREX PEEK 450G.
Key Properties
- Continuous use temperature of 480° F
- Good dimensional stability
- FDA compliant
- Outstanding rigidity at high temperatures
- Excellent hydrolysis resistance
- Excellent chemical resistance
- Available in Natural & Black
Limitations
- Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF
Applications
- Analytical instruments
- Aircraft interior components
- Medical device and instrumentation
- Semiconductor applications
- Down hole Oil & Gas Components
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

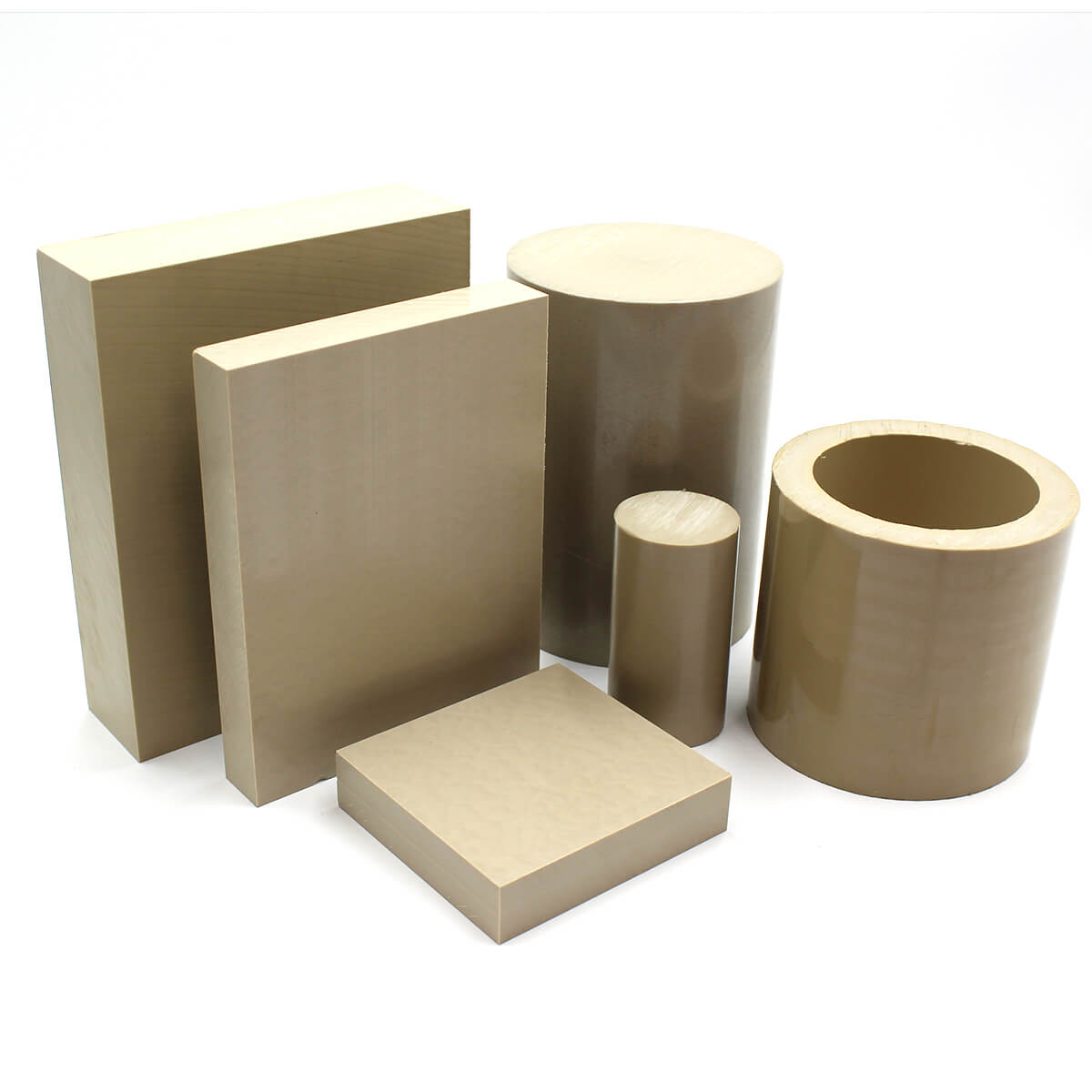

Available Sizes
Sheet X Thickness .375 in to 4.000 in
Width X Length 24.000 in x 48.000 in
Rod*
Diameters .250 in to 6.000 in Length 10 ft
Diameters 7.000 in to 12.000 in Length 3 ft
Tube
Extruded Tubes are available in the following Sizes in Victrex 450G in 118.00 inch lengths
OD X ID
30mm (1.18 in) 15mm (0.59 in)
40mm (1.57 in) 20mm (0.78 in)
50mm (1.96 in) 30mm (1.18 in)
56mm (2.20 in) 40mm (1.57 in)
60mm (2.36 in) 45mm (1.77 in)
70mm (2.75 in) 50mm (1.96 in)
80mm (3.14 in) 50mm (1.96 in)
90mm (3.54 in) 70mm (2.75 in)
100mm (3.93 in) 70mm (2.75 in)
115mm (4.52 in) 80mm (3.14 in)
140mm (5.51 in) 100mm (3.93 in)
160mm (6.29 in) 120mm (4.72 in)
170mm (6.69 in) 140mm (5.51 in)
200mm (7.87 in) 150mm (5.90 in)
210mm (8.26 in)*170mm (6.69 in)*
* 210mm X 170mm available in 2000mm (78.74 in) maximum length
Boedeker offers cut to size service on all in-stock items and same day shipping. If you do not see your size for contact us for alternative options.
