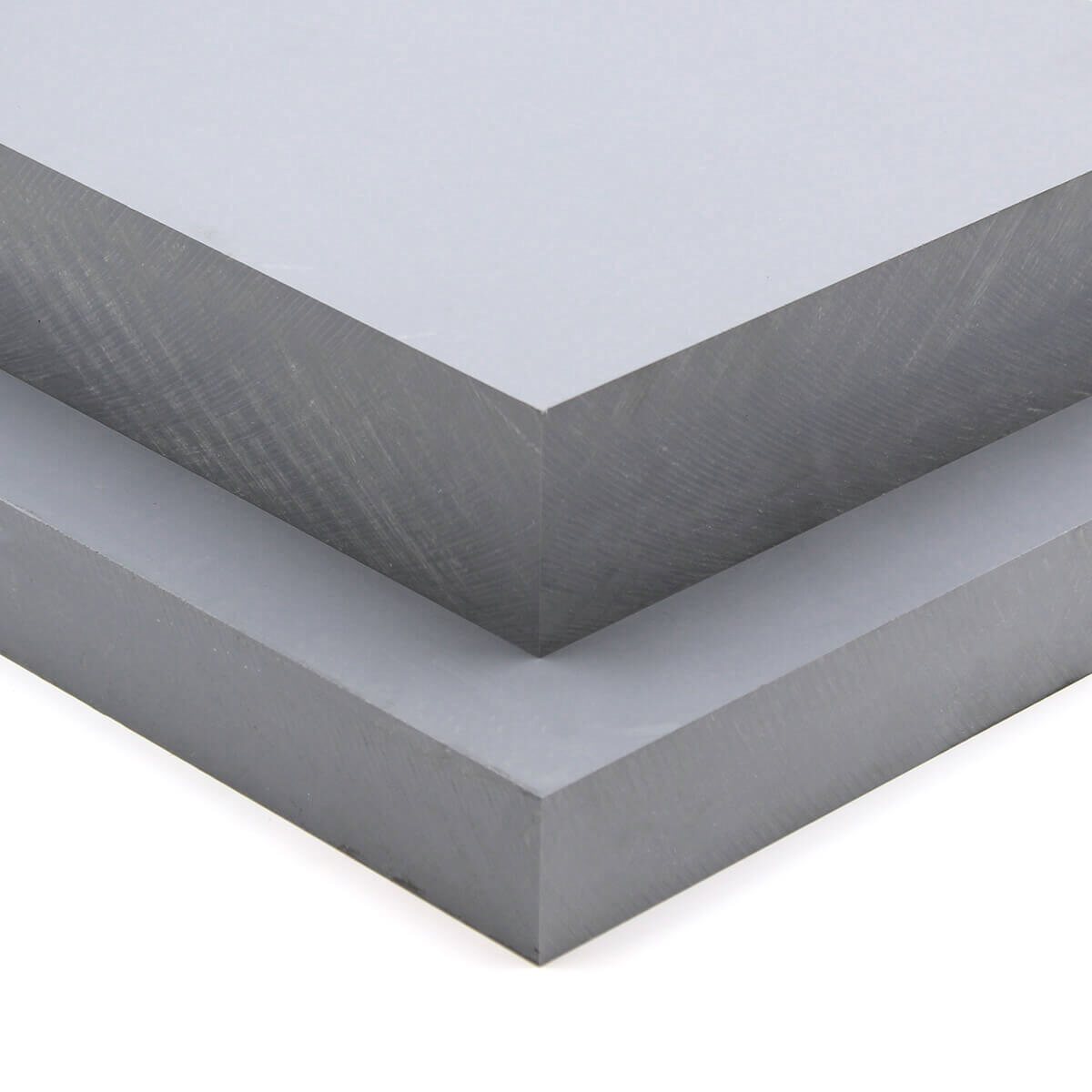

CPVC Gray

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

CPVC shares most of the features and properties of its close relative, PVC with improved chemical resistance and higher operating temperature of 200 F. It is also readily workable, including machining, welding, and forming. Because of its excellent corrosion resistance at elevated temperatures, CPVC is ideally suited for self-supporting constructions where temperatures up to 200°F (93°C) are present. The ability to bend, shape, and weld CPVC enables its use in a wide variety of process application.

Click for more information on the complete line of PVC & CPVC Plastics

Key Properties

Easy to Fabricate with Bending, Forming and Welding
Enhanced Continuous Use Temp Of 200F Over PVC of 140 F
High Rigidity, Strength and Hardness at Increased Temperatures up to +185 F
Higher Chemical Resistance Than PVC
Will Not Sustain Burning UL Rated 94 V-0

Limitations

Applications

Air Handling (Scrubbers, Ducts, and Fume Hoods)
Electrical Cabinets
Pipe Flanges and Spacers
Plating Tanks
Pump & Valve Components
Stripping Tanks
Wastewater Treatment Components
Chemical Plant Tower Packing
Process Vessels

Resin Trade Names

Manufacturer Trade Names

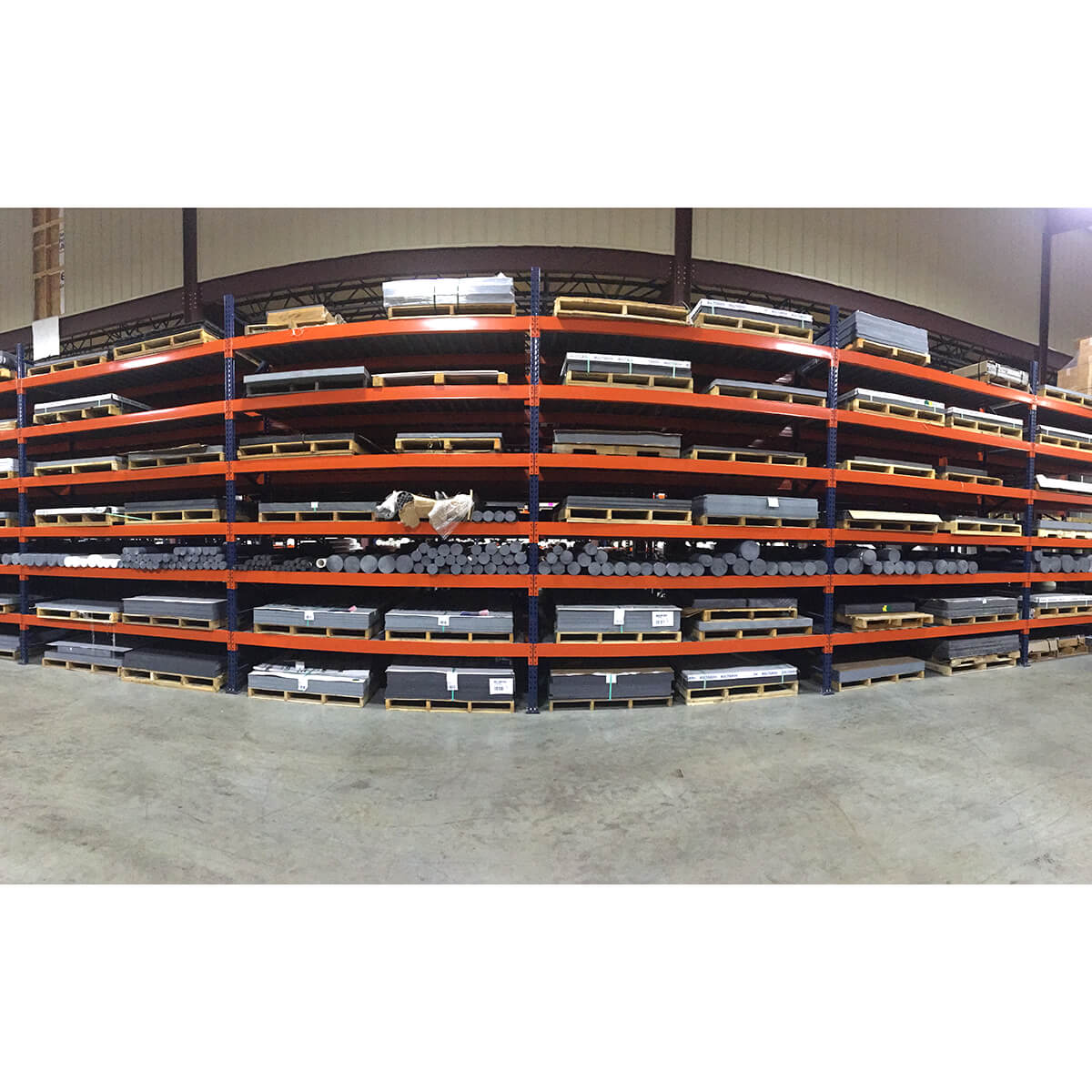

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Light Gray

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of CPVC Gray

DETAIL
Description			Value
Material Type			Amorphous Thermoplastic
Chemical Name			CPVC Chlorinated Polyvinyl Chloride
Additives			Unfilled
Color			Light Gray
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.52
	ASTM D792	lb/in³	0.055
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.04
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	8,200
Tensile Modulus	ASTM D638	psi	430,000
Tensile Elongation at Break	ASTM D638	%	27
Flexural Strength	ASTM D790	psi	15,000
Flexural Modulus	ASTM D790	psi	410,000
Compressive Strength	ASTM D695	psi	14,000
Compressive Modulus	ASTM D695	psi	350,000
Hardness	ASTM D785	NA	Rockwell R121
IZOD Impact-Notched	ASTM D256	ft-lb/in	1.6
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	3.7
Heat Deflection Temp	ASTM D648	°C at 264 psi	103
	ASTM D648	°F at 264 psi	217
Max Continuous Operating Temp		°C	93
		°F	200
Minimum Operating Temp		°C	-17
		°F	0
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	0.95
	ASTM C117	x 10^4 cal/cm-sec-°C	3.3
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	1,250
Dielectric Constant at 1 MHz	ASTM D150	NA	3.7
Surface Resistivity	ASTM D257	ohm/square	10^15
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			Yes
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$
Machinability			3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.
