Trovidur ® EC-N Type 1 PVC Sheet

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

Trovidur® EC-N Type 1 PVC Sheet is an amorphous Polyvinyl Chloride thermoplastic dark gray sheet that is weldable and glueable.

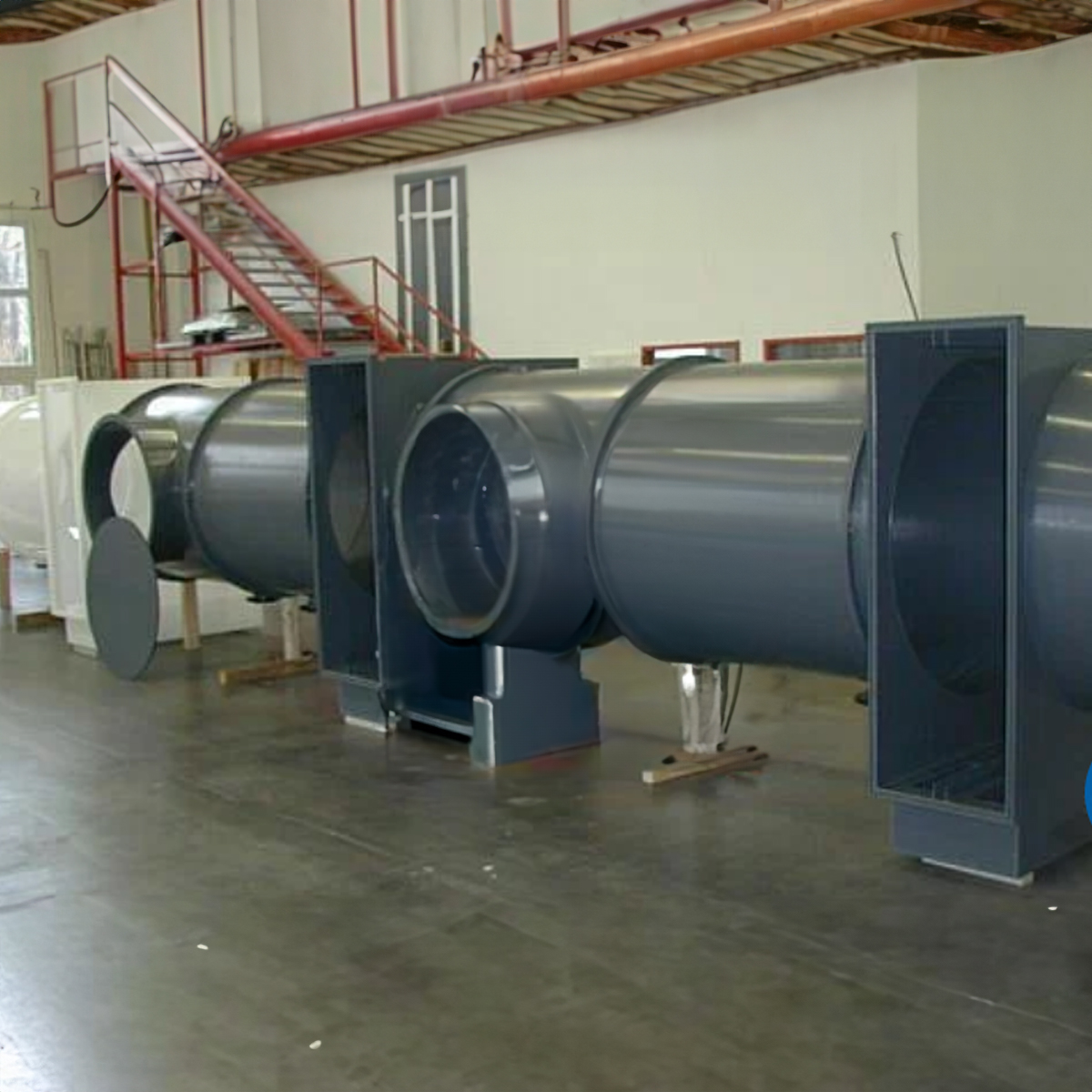

It offers high resistance to acids, lyes, and salt solutions and excels in corrosive environments. It offers outstanding flame retardant and self-extinguishing properties, enhanced durability and safety. It is easily machinable, it finds applications in chemical and waste-water treatment tanks, chemical benches, fume exhaust hoods, marine cabinetry, construction, and swimming pool liners.

Trovidur® EC-N proves invaluable in many industries, offering a reliable solution for demanding applications requiring durability and resistance to harsh conditions.

Flammability Data:

Flammability (Thickness 1 ... 4 mm) DIN 4102 B1

Flammability from 3 mm UL 94 V0, 5VA

Flammability from 1 mm UL 94 V0, 5VB

Key Properties

High chemical resistance to acids, lyes and salt solutions
Good weldability and glueability
Very good electrical insulation properties
Easy processing
Vacuum formable
Self-Extinguishing after removal of the flame
Good impact strength

Limitations

Attacked by Some Solvents
Lower Operating Temp that CPVC

Applications

Chemical Benches and Sinks
Chemical Tanks
Construction Industry
Electrical Switchgear Components
FabricatedFlanges
Fabricated Plastic Tanks
Fume Exhaust Hoods
Manifolds
Marine Cabinetry,Seats and Consoles
Swimming Pool Liners
Waste-Water Treatment Tanks

Resin Trade Names

Manufacturer Trade Names

Trovidur®

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Color: Dark Gray Sheet Thicknesses from .125 in to 1.000 inch Sheet size: up to 48.000 x 96.000 inch Additional sheet sizes and thicknesses are available upon request Longer lead times and minimums may apply for this item. For Rod, Tube, and other PVC products, contact us.

Available Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Trovidur ® EC-N Type 1 PVC Sheet

DETAIL
Description			Value
Material Type			Amorphous Thermoplastic
Chemical Name			PVC Polyvinyl Chloride
Trade Name			Trovidur®
Color			Dark Gray
Manufacturer			Rochling
PHYSICAL
Property	Test	Unit of Measure	Value
Density	DIN EN ISO 1183-1	g/cm³	1.44
	DIN EN ISO 1183-1	lb/in³	0.052
Water Absorption, Saturation, Immersion	DIN EN ISO 62	% by wt.	0.2
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Modulus	DIN EN ISO 527	psi	435,113
Tensile Elongation at Break	DIN EN ISO 527	%	20
Compressive Strength	DIN EN ISO 604	psi	10,877
Hardness	DIN EN ISO 868	Scale D	82
IZOD Impact-Notched	DIN EN ISO 179	ft-lb/in	1.9
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	DIN EN ISO 11359-2	x 10-5 in./in./°F	4.17
Heat Deflection Temp	DIN EN ISO 75	°C at 261 psi	68
	DIN EN ISO 75	°F at 261 psi	154
Max Continuous Operating Temp		°C	60
		°F	140
Minimum Operating Temp		°C	-15
		°F	5
Thermal Conductivity	DIN EN ISO 8302	W / (m * K)	0.16
	DIN EN ISO 8302	W / (m * K)	0.16
Flammability Rating	UL94 (see notes in General Info Section for additional flammability info.)	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	IEC 60243	V/mil	472
Dielectric Constant at 1 MHz	IEC 60250	10^6 Hz	∼ 3,2
Dissipation Factor at 1 MHz	IEC 60250	NA	∼ 0,02
Surface Resistivity	DIN EN 62631-3-2	ohm/square	10^13
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
Relative Cost			$
Machinability			2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Trovidur® is a registered trademark of Röchling Engineering Plastics.
