General Info

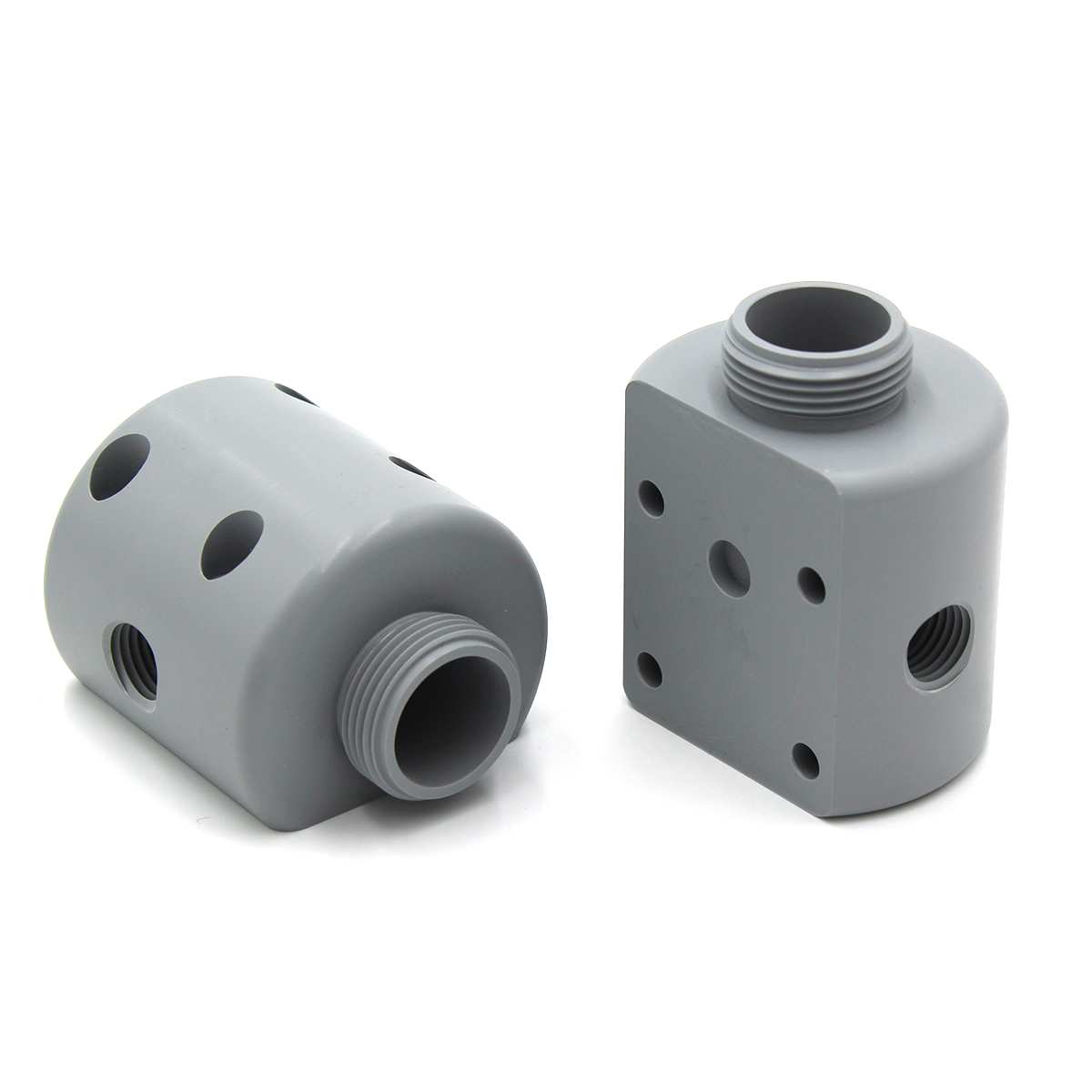

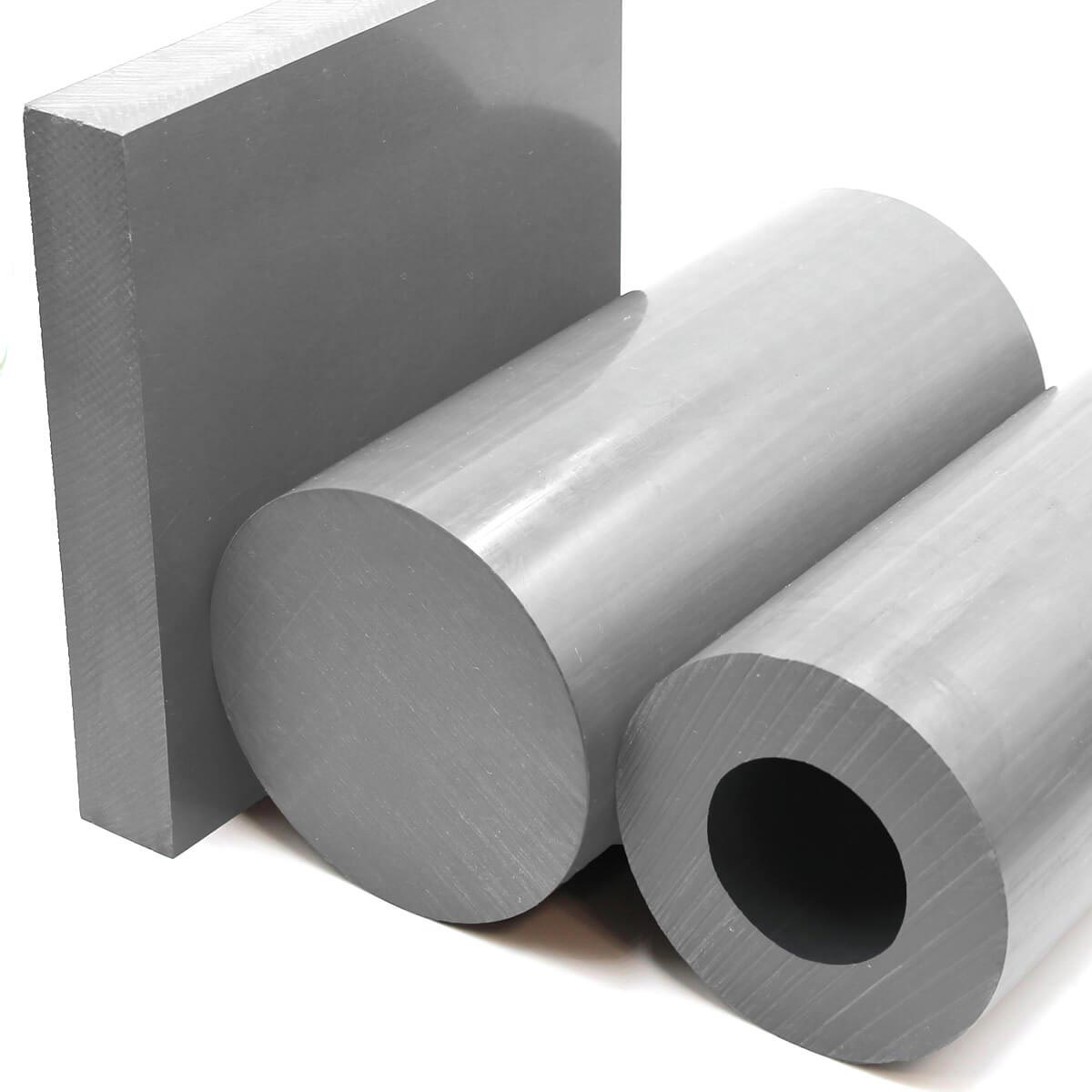

CORZAN® CPVC (Chlorinated Polyvinyl Chloride) is an amorphous thermoplastic renowned for its use in structural applications. It offers superior chemical resistance and has an operating range of -15°F (-26°C) to 200°F (94°C), making it ideal for a variety of demanding environments. It is available in sheet, rod, tube, custom profiles, and as machined or fabricated parts, ensuring versatility for industrial and commercial applications.

Benefits:

CORZAN® CPVC provides enhanced performance at a lower price point than PVDF, featuring improved chemical resistance, higher temperature resistance up to 200°F, and broader pH range capabilities. Structural parts made from CORZAN® CPVC benefit from its chemical resistance, V-0 flammability rating, and ease of fabrication, resulting in increased safety and longer part life in self-supporting structural applications. These benefits are particularly valuable in the chemical processing, semiconductor, water and wastewater, energy, and other high-tech industries.

Click for more information on the complete line of PVC & CPVC Plastics

Key Properties

Easy to Fabricate with Bending, Forming and Welding
Enhanced Continuous Use Temp Of 200F Over PVC of 140 F
High Rigidity, Strength and Hardness at Increased Temperatures up to +185 F
Higher Chemical Resistance Than PVC
Will Not Sustain Burning UL Rated 94 V-0

Limitations

Applications

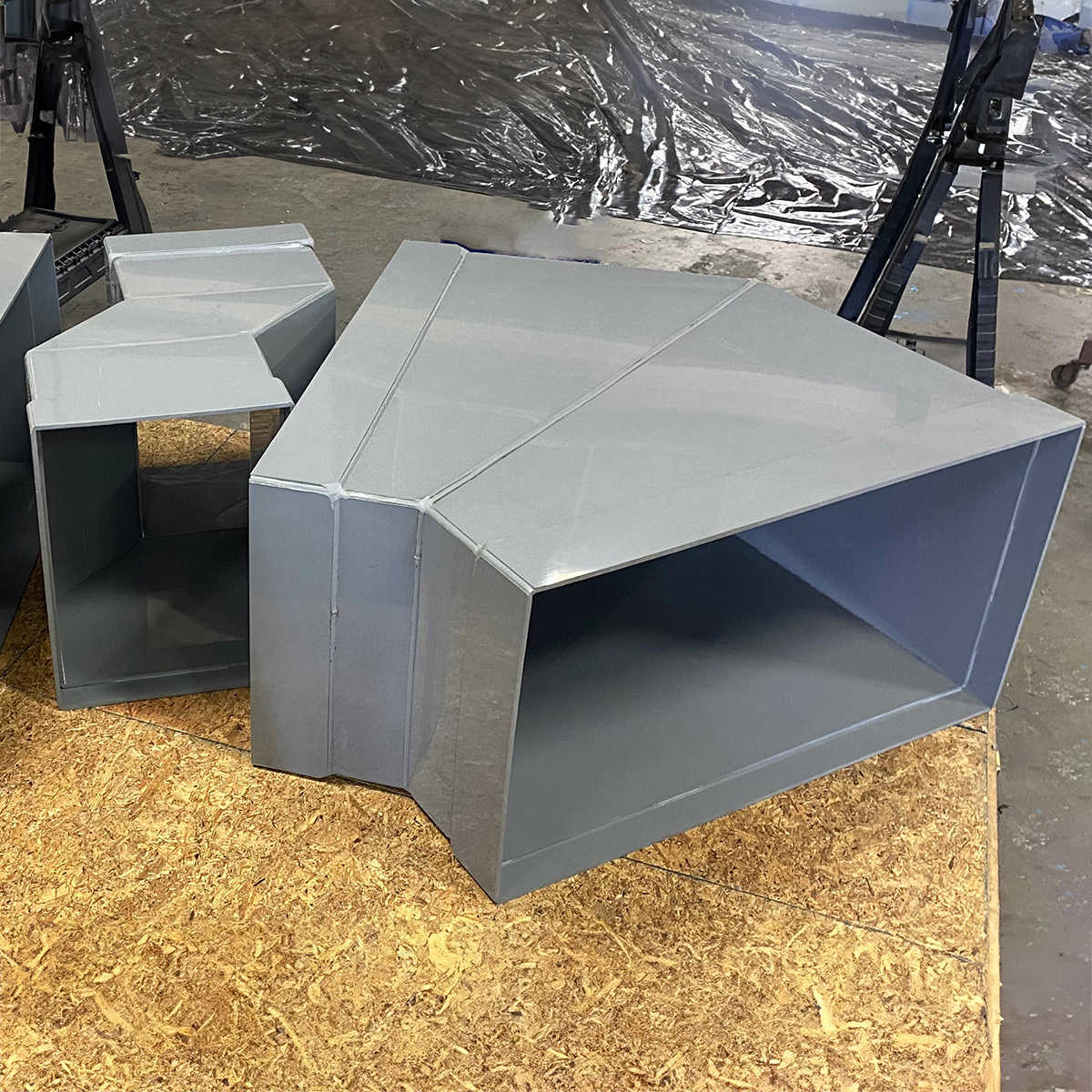

Air Handling (Scrubbers, Ducts, and Fume Hoods)
Electrical Cabinets
Pipe and Fittings

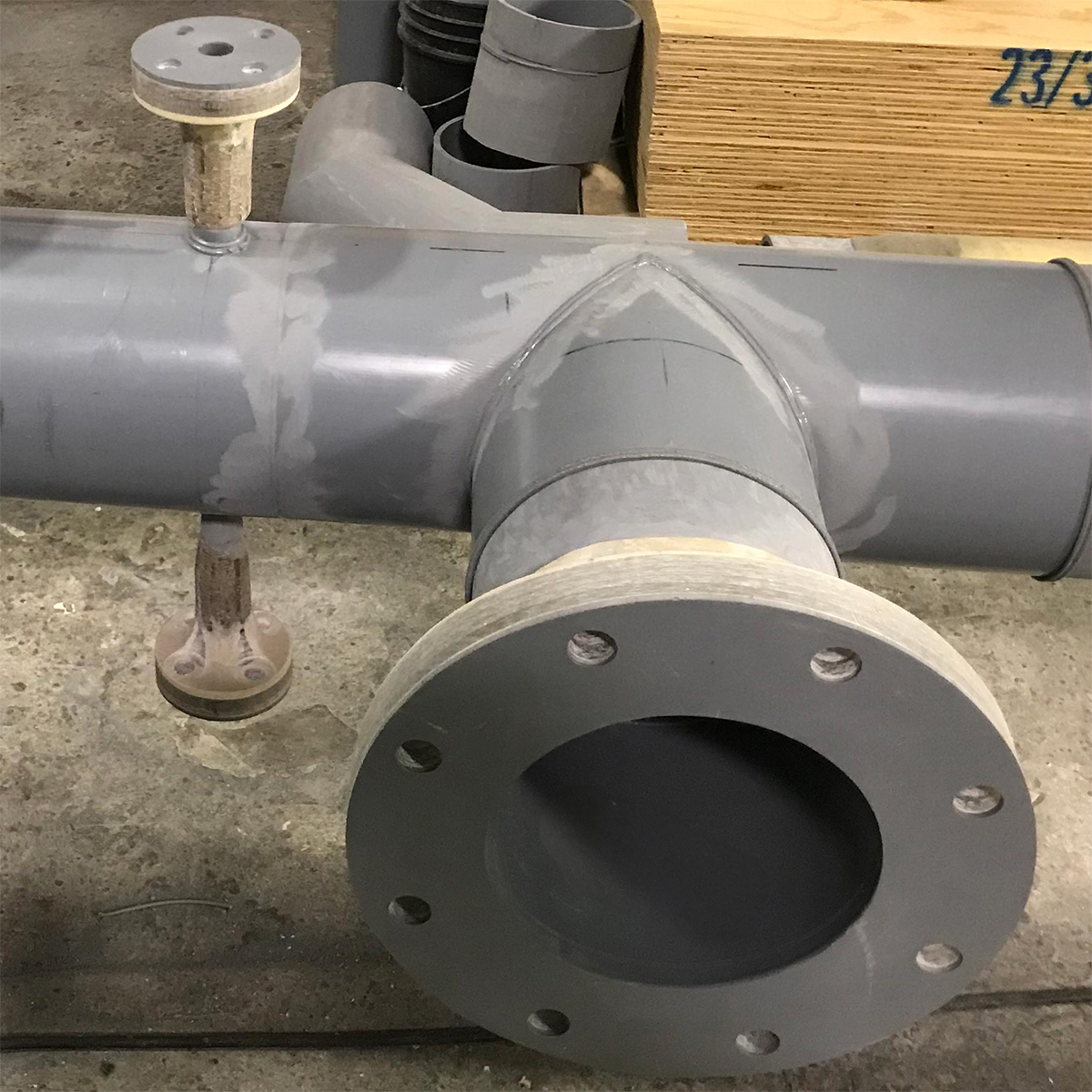

Pipe Flanges and Spacers
Plating and Stripping Tanks
Tank Liners

Resin Trade Names

Corzan®

Manufacturer Trade Names

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Light Gray

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Corzan CPVC ® Gray

DETAIL
Description			Value
Material Type			Amorphous Thermoplastic
Chemical Name			CPVC Chlorinated Polyvinyl Chloride
Additives			Unfilled
Color			Light Gray
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.52
	ASTM D792	lb/in³	0.055
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.04
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	8,200
Tensile Modulus	ASTM D638	psi	430,000
Tensile Elongation at Break	ASTM D638	%	27
Flexural Strength	ASTM D790	psi	15,000
Flexural Modulus	ASTM D790	psi	410,000
Compressive Strength	ASTM D695	psi	14,000
Compressive Modulus	ASTM D695	psi	350,000
Hardness	ASTM D785	NA	Rockwell R121
IZOD Impact-Notched	ASTM D256	ft-lb/in	1.6
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	3.7
Heat Deflection Temp	ASTM D648	°C at 264 psi	103
	ASTM D648	°F at 264 psi	217
Max Continuous Operating Temp		°C	93
		°F	200
Minimum Operating Temp		°C	-17
		°F	0
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	0.95
	ASTM C117	x 10^4 cal/cm-sec-°C	3.3
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	1,250
Dielectric Constant at 1 MHz	ASTM D150	NA	3.7
Surface Resistivity	ASTM D257	ohm/square	10^15
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			Yes
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$
Machinability			3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Corzan® is a trade name of Lubrizol Advanced Materials, Inc.
