 | Nylatron ® Nylon 101 Type 6/6 Extruded (Formerly Quadrant Nylon 101) - Of all the unmodified nylons, Nylon 101 is the strongest, most rigid and has one of the highest melting points. It is commonly specified for screw machined electrical insulators and food contact parts. It is stocked in both natural and black. Other colors are available on a custom basis. Nylon 101 natural is FDA, USDA, NSF, and 3A-Dairy compliant. |  | Nylatron® MC907 PA6 - Unmodified type 6 nylon offering the highest strength and hardness of the nylon 6 grades. MC 907 natural is FDA, USDA and 3A-Dairy compliant. It is off-white in color and primarily used for food contact parts. |

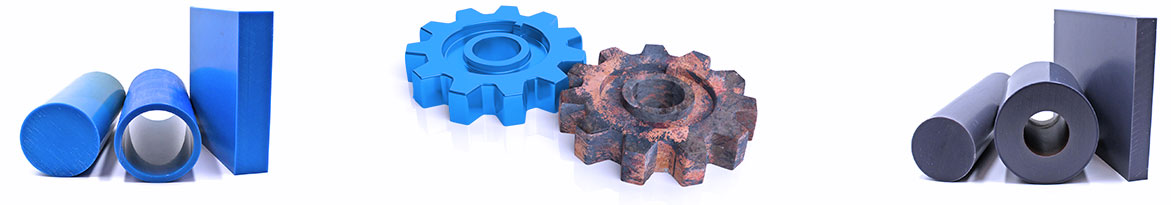

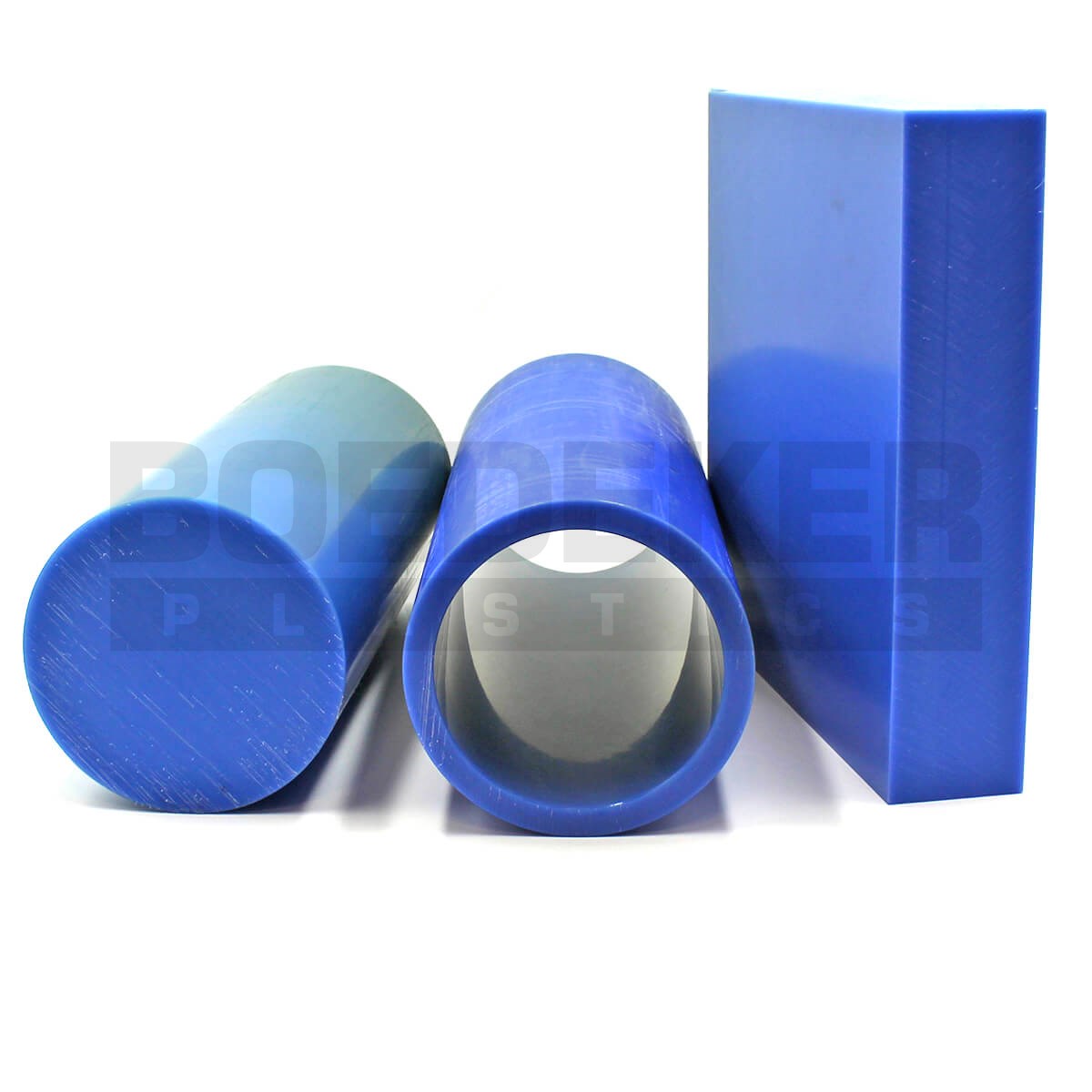

 | Nylatron® 4.6 PA46 - Compared with conventional nylons, Nylatron® 4.6 features a better retention of stiffness and creep resistance over a wide range of temperatures as well as superior heat aging resistance. Therefore, applications for Nylatron® 4.6 are situated in the “higher temperature area” (175-300˚F) where stiffness, creep resistance, heat aging resistance, fatigue strength and wear resistance of PA6 PA66, POM and PET fall short. |  | Nylatron® MC901 - Heat stabilized nylon offering long-term thermal stability to 260°F. It is blue in color and used in a variety of bearing and structural applications such as wheels, gears, and custom parts. |

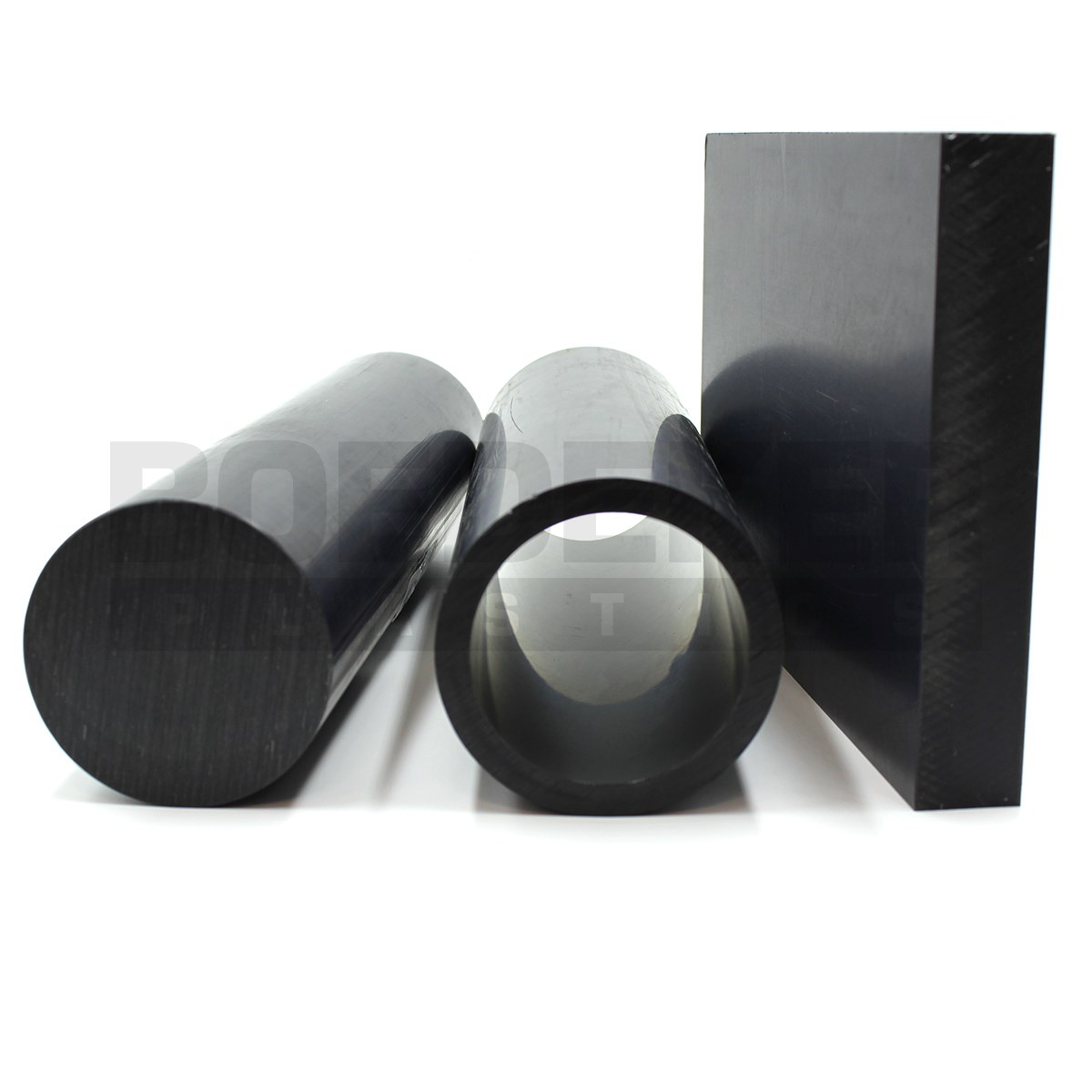

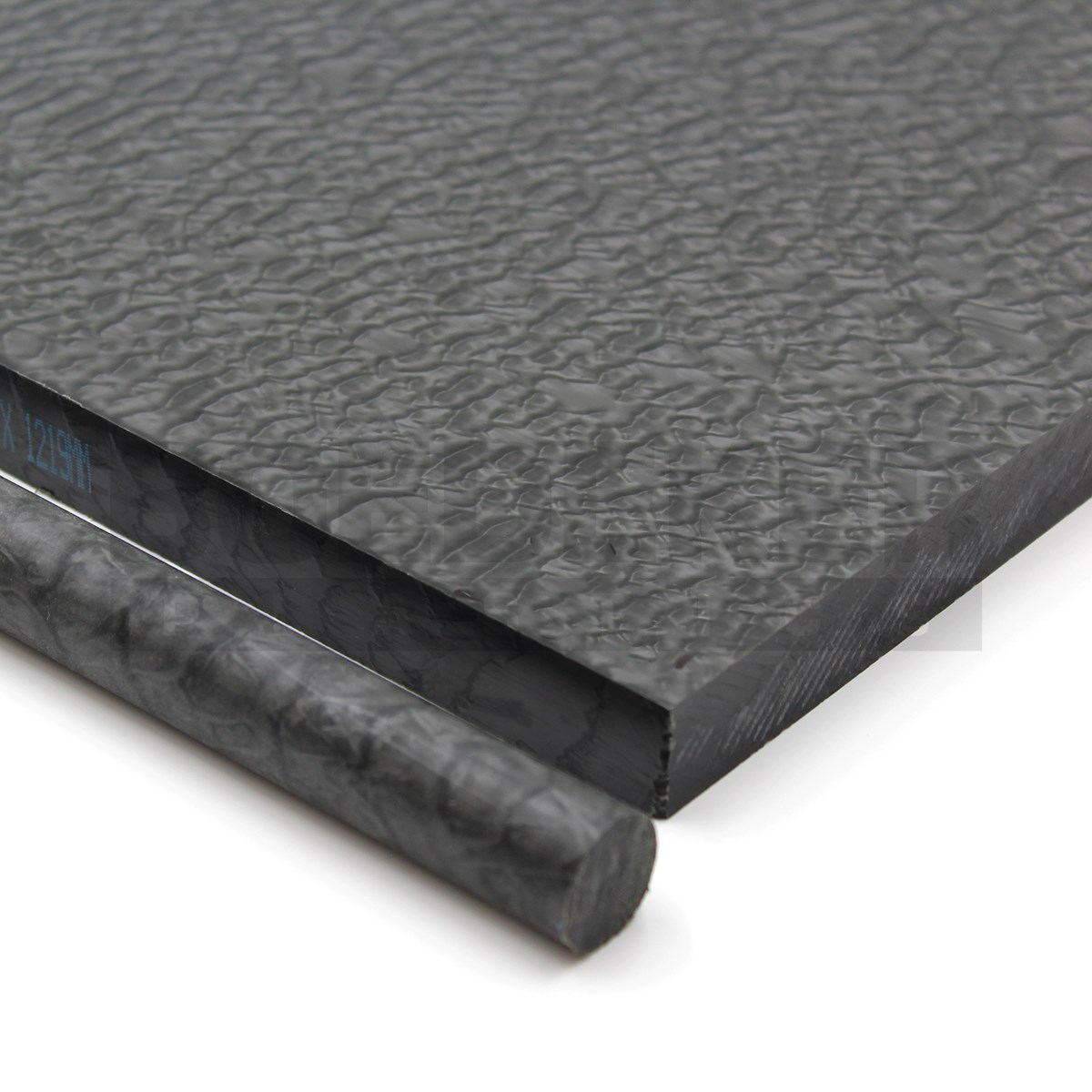

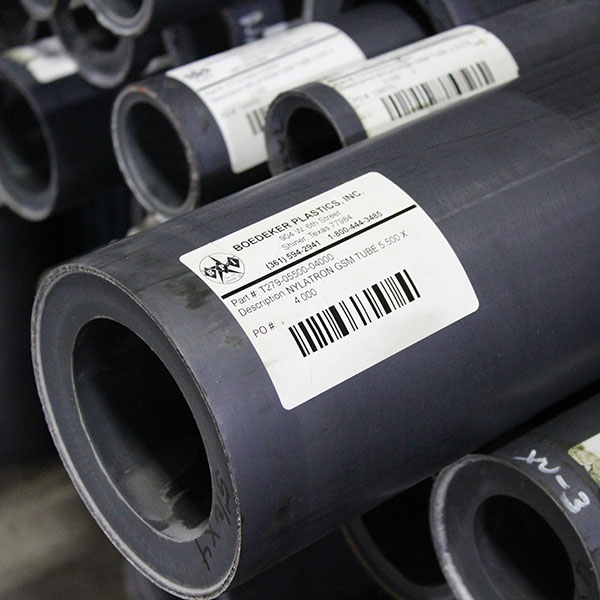

 | Nylatron® GS PA66 Molybdenum disulphide (MoS2) filled nylon offering improved strength and rigidity. With a lower coefficient of linear thermal expansion than Nylon 101, Nylatron® GS PA66 parts maintain better fit and clearances, and have less tendency to seize as bearings. |  | Nylatron® GSM PA6 - Nylatron® GSM contains finely divided particles of molybdenum disulphide (MoS2) to enhance its load bearing capabilities while maintaining the impact resistance inherent to nylon. It is the most commonly used grade for gears, sheaves, sprockets and custom parts. It is grey-black in color. |
 | Nylatron® GF30 - For applications requiring higher compressive strength and rigidity, 30% glass reinforced Nylon 6/6 is also available. It is stocked in diameters ranging from 10mm to 150mm (or .394" to 5.910" in meter lengths). |
| Nylatron® SLG-FDA PA6 - Nylatron® SLG -FDA (Formerly LFG) takes the performance of Nylatron® LIG and adds FDA compliance for applications where food contact is possible. Food packaging and processing equipment users can now benefit from the wear resistance, toughness and low coefficient of friction of this nylon material. |

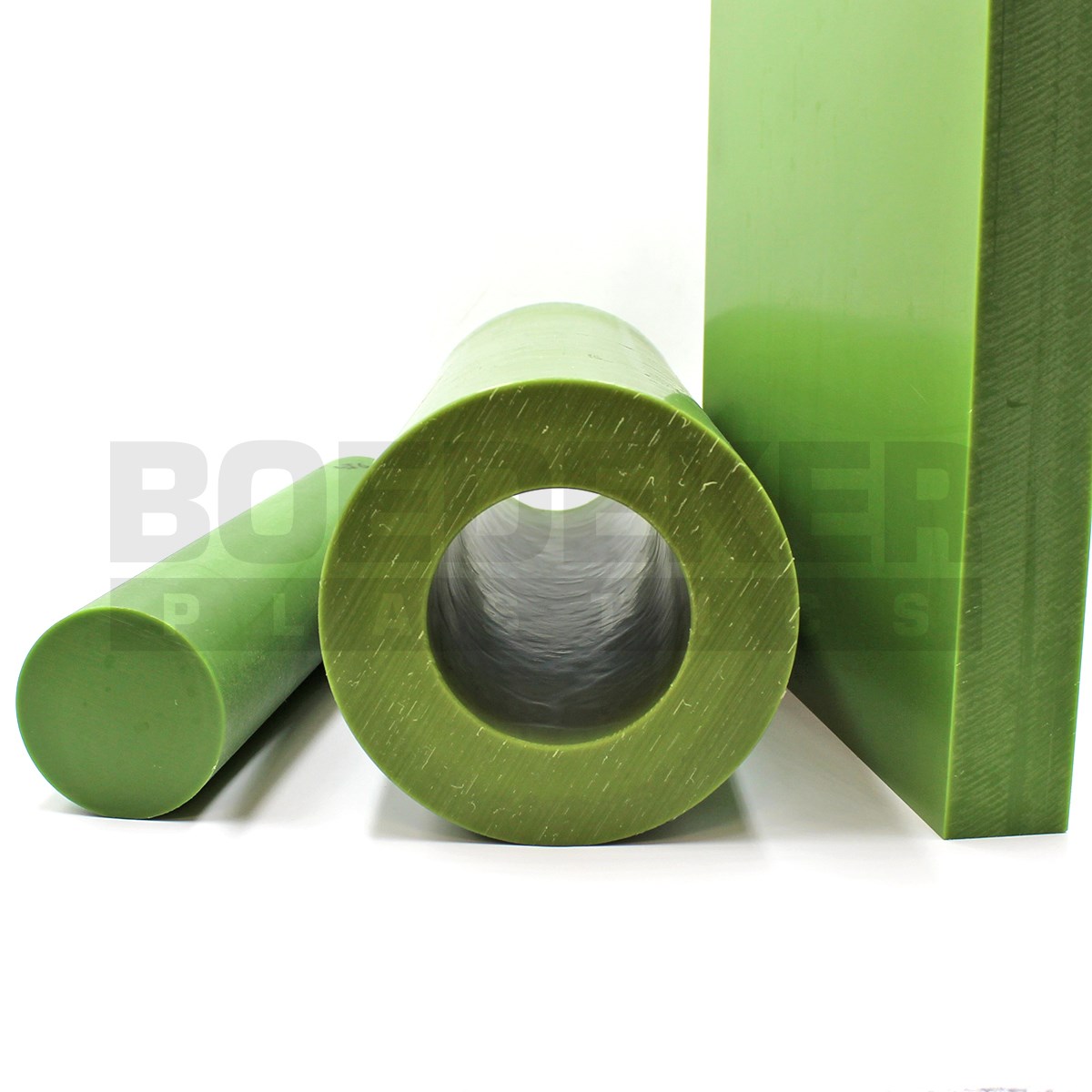

 | Nylatron® LIG PA6 - Nylatron® LIG combines the toughness of cast PA6 with an oil-based lubricant that is encapsulated within the nylon matrix. It increases the load bearing performance of the material when compared to unfilled nylons and reduces the coefficient of friction. It is an ideal material for industrial application in conveying and processing industries. |  | Nylatron® GSM Blue PA6 - The first cast nylon to combine both molybdenum disulphide (MoS2) and oil for the load capability of Nylatron® GSM nylon, plus improved frictional characteristics. It excels in higher pressures, and at low speeds–up to 40 fpm. It offers 20% lower coefficient of friction, 50% greater limiting PV, and a lower “k” factor than Nylatron® GSM, making it ideal for slide pads, thrust washers and trunion bearings. Nylatron® GSM Blue should be considered for any oil-filled nylon application. It is dark blue in color. |

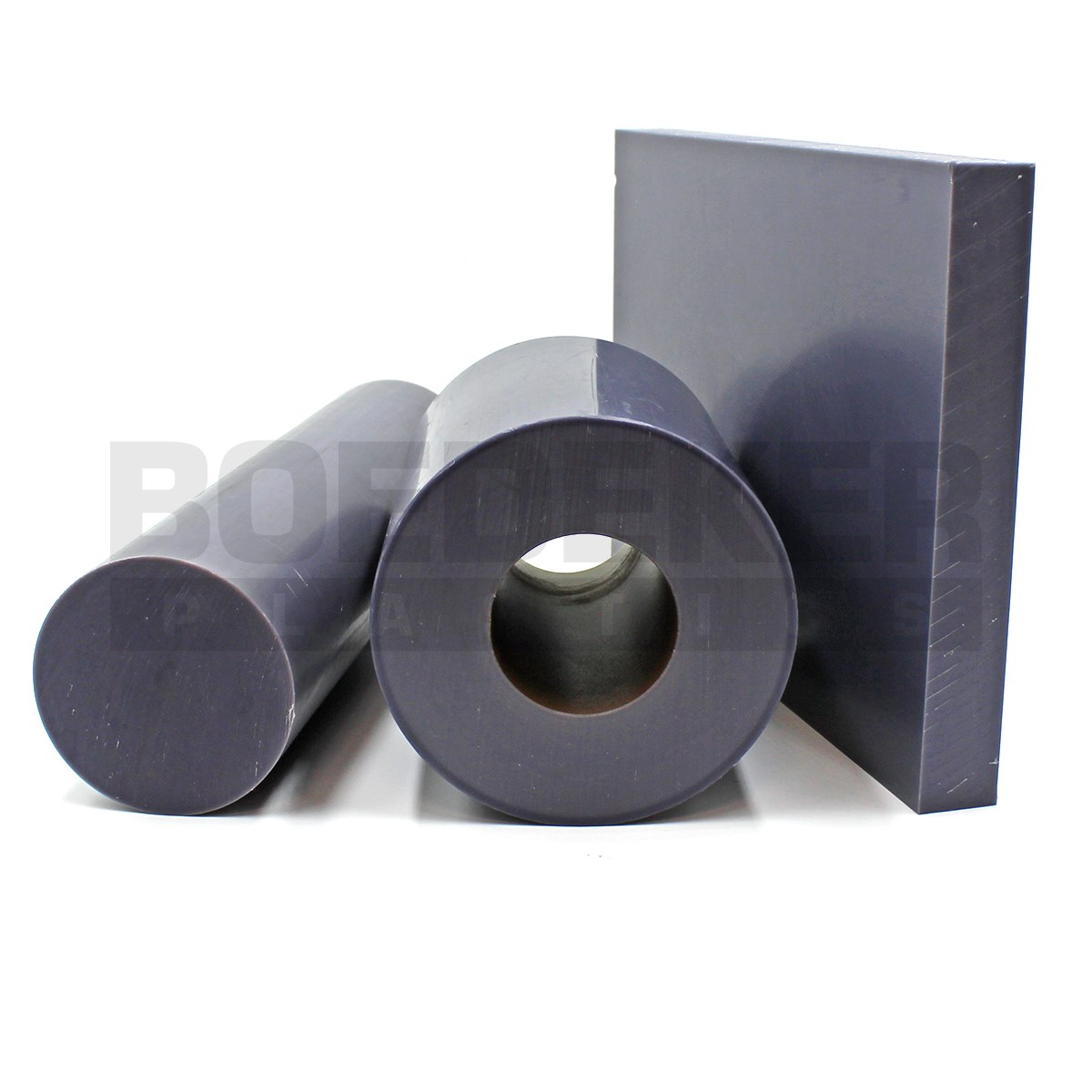

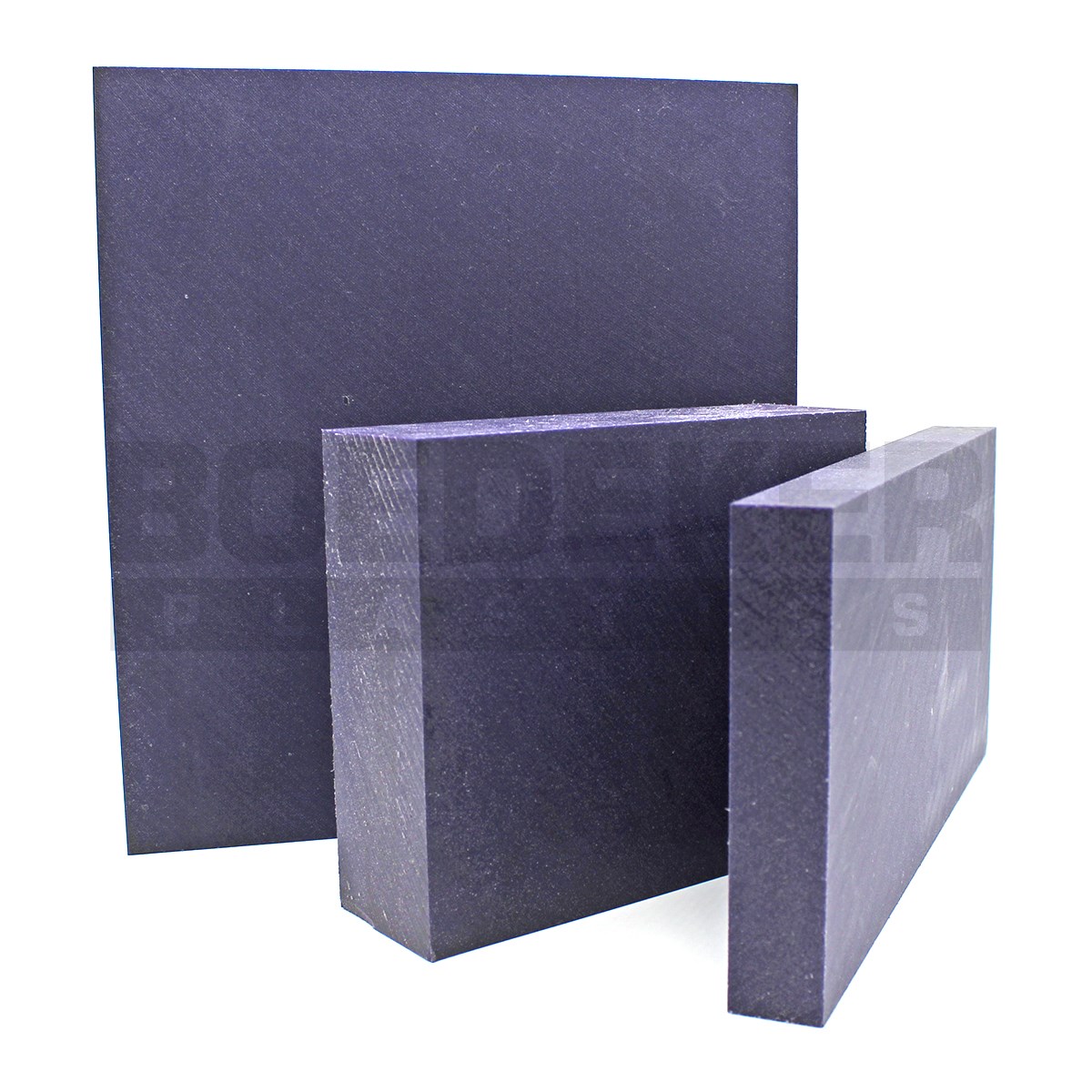

 | Nylatron® NSM PA6 - Solid lubricant additives impart self-lubricating, high pressure/velocity and superior wear resistance characteristics. Nylatron® NSM was developed specifically for demanding applications where larger size parts are required. It is ideal for bearings, gears and wear pads. In wear applications, Nylatron® NSM lasts up to 10 times longer than standard Type 6 nylon. |  | Nylatron® 703XL PA6 - This ultra-high performance bearing grade of PA6 provides wear resistance near the levels of Nylatron® NSM with superior load bearing capability and an industry first - a near zero level of “stick-slip.” This elimination of chatter provides an extraordinary amount of control for high-precision applications. |
 | Nylatron ® 66 SA FR Flame Retardant Nylon - was developed to fulfill the requirements as set out in the test program conducted on plastic material to measure flammability characteristics. It determines the material's tendency either to extinguish or to spread the flame once the specimen has been ignited. This program is described in UL 94 and this product grade fulfils the V-0 criteria as from 1 mm thickness. |  | Nylatron ® 66 SA FST (Fire, Smoke, Toxicity Retardant) - is formulated for interior applications in aircraft materials must meet various requirements to be recognized. Nylatron® 66 SA FST is lightweight, wear resistant and has fire-safety characteristics that meet aviation regulations and standards like JAR/FAR 25.853. |

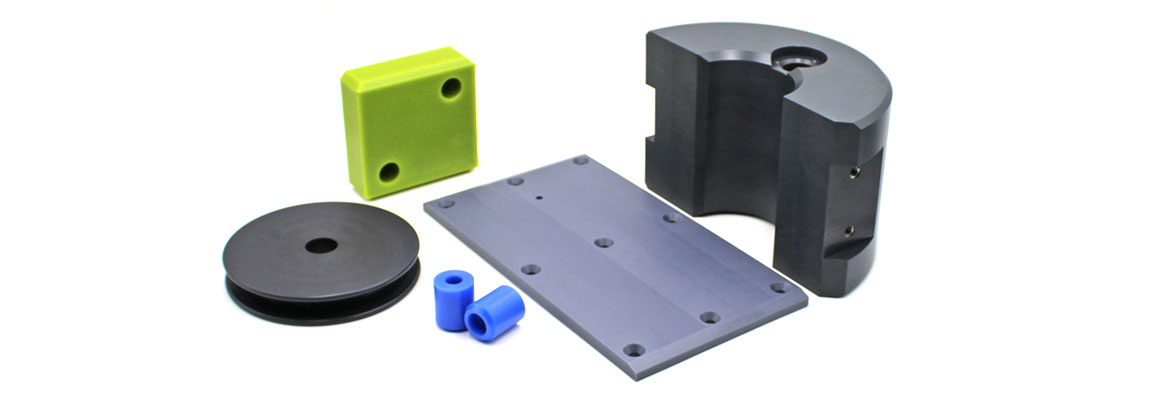

 | Nylatron ® WP PA6 (Wear Pad Formulation) Nylon Sheet - is a Wear Resistant Grade of Cast Nylon optimized for linear bearing applications, offering an ideal combination of value and performance. Explicitly developed for wear pads, Nylatron WP outperforms its competition across a wide range of applications and in multiple industries. |
