Nylatron ® GSVQ II Moly-Filled Type 6/6 Nylon

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

Nyatron GSVQ sheet is formulated per NAVY - MIL-DTL-32286 (3)

NAVY - MIL-DTL-32286 (3) -MATERIAL, BALL VALVE SEAT SEAL AND THRUST WASHER

Scope:

This specification covers material used for ball valve seat seals and thrust washers (nylon 66 with molybdenum disulfide) in petroleum- and polyalphaolefin (PAO)-based hydraulic fluid systems.

Intended Use:

This specification covers nylon 66 with molybdenum disulfide material for use as ball valve seats and thrust washers in petroleum-based hydraulic fluid systems. This specification is military-unique due to a lack of commercial specifications that have these requirements and its use on submarines and surface ships. This material is not recommended or intended for use in water. Use of this material in other fluids (such as synthetic hydraulic fluids or compressed gas) should be evaluated and approved by the system technical authority.

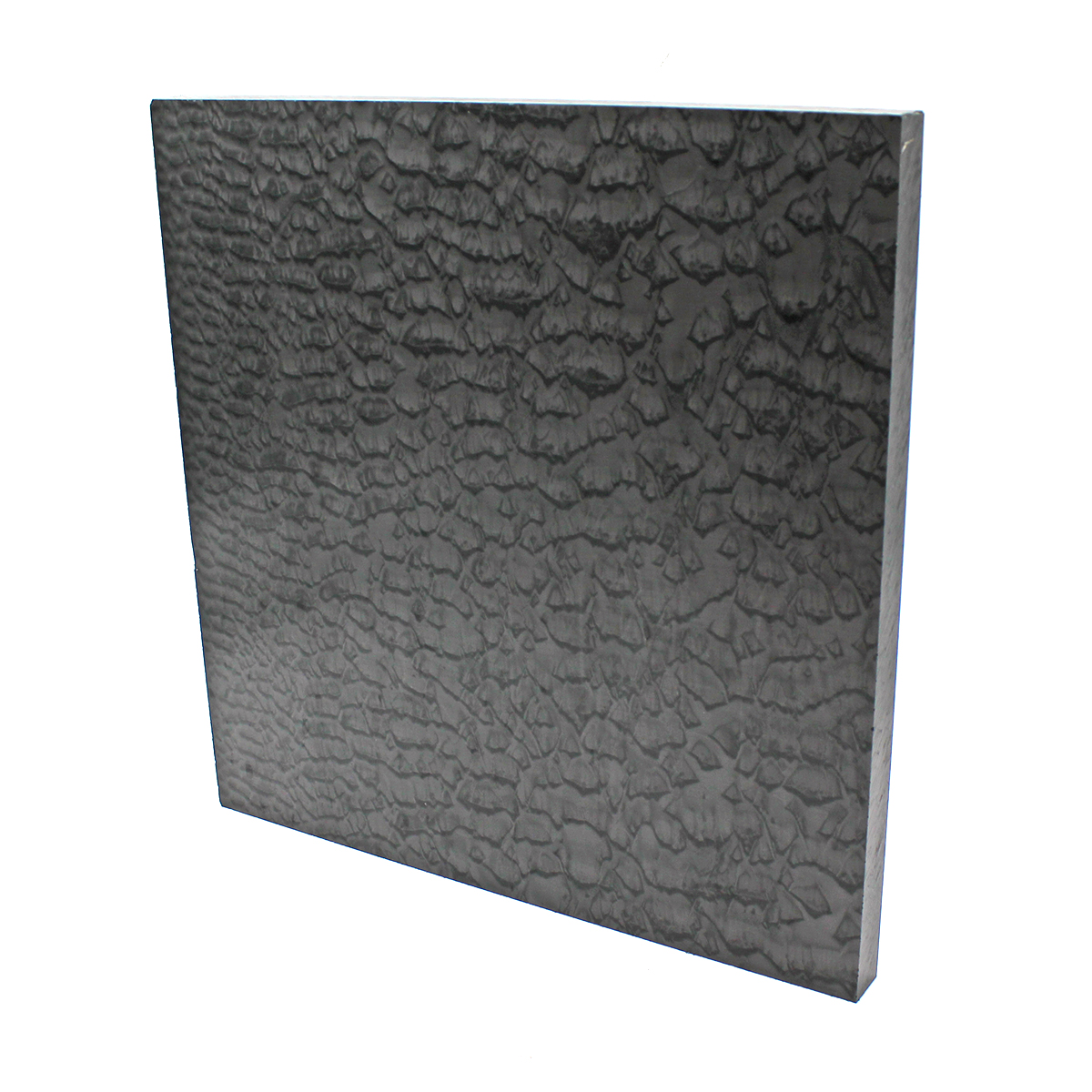

Available in 1.000" x 24.000" x 48.000" Sheet Only

Key Properties

Formulated for NAVY - MIL-DTL-32286 (3) for ball valve seats and thrust washers in petroleum-based hydraulic fluid systems.

Limitations

High Moisture Absorption
Limited Resistance to Strong Acids & Alkalies Note - Nylons can absorb up to 7% (by weight) water under high humidity or submerged in water. This can result in dimensional changes up to 2% and a corresponding reduction of physical properties. Proper design techniques can frequently compensate for this factor.

Applications

Valve Applications
Ball Valve Seat Seals
Thrust Washers

Resin Trade Names

Manufacturer Trade Names

Nylatron ® GSVQ

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available in 1.000" x 24.000" x 48.000" Sheet Only

Available Colors

Gray-Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Nylatron ® GSVQ II Moly-Filled Type 6/6 Nylon

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PA Polyamide Type 6/6
Trade Name			Nylatron ® GSVQ
Additives			MoS2 Filled
Color			Gray-Black
Manufacturer			Mitsubishi Chemical Advanced Materials
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.16
	ASTM D792	lb/in³	0.042
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.3
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	12,500
Tensile Modulus	ASTM D638	psi	480,000
Tensile Elongation at Break	ASTM D638	%	25
Flexural Strength	ASTM D790	psi	17,000
Flexural Modulus	ASTM D790	psi	460,000
Compressive Strength	ASTM D695	psi	16,000
Compressive Modulus	ASTM D695	psi	420,000
Hardness	ASTM D785	Rockwell R	Rockwell R115
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.5
Dynamic Coefficient of Friction	QTM 55007	NA	0.2
Wear K Factor	QTM 55010	in³-min/ft-lbs-hr	90
Limiting PV	QTM 55007	psi-fpm	3,000
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	4
Heat Deflection Temp	ASTM D648	°C at 264 psi	93
	ASTM D648	°F at 264 psi	200
Melting Point Temp	ASTM D3418	°C	260
Max Continuous Operating Temp		°C	104
		°F	220
Minimum Operating Temp		°C	-30
		°F	-22
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	1.7
	ASTM C117	x 10^4 cal/cm-sec-°C	5.9
Flammability Rating	UL94	NA	V-2
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	350
Surface Resistivity	ASTM D257	ohm/square	> 10^13
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
MIL SPEC			NAVY - MIL-DTL-32286 (3)
UV Resistant			No
Relative Cost			$$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

NYLATRON is a registered trademark of Mitsubishi Chemical Advanced Materials.
