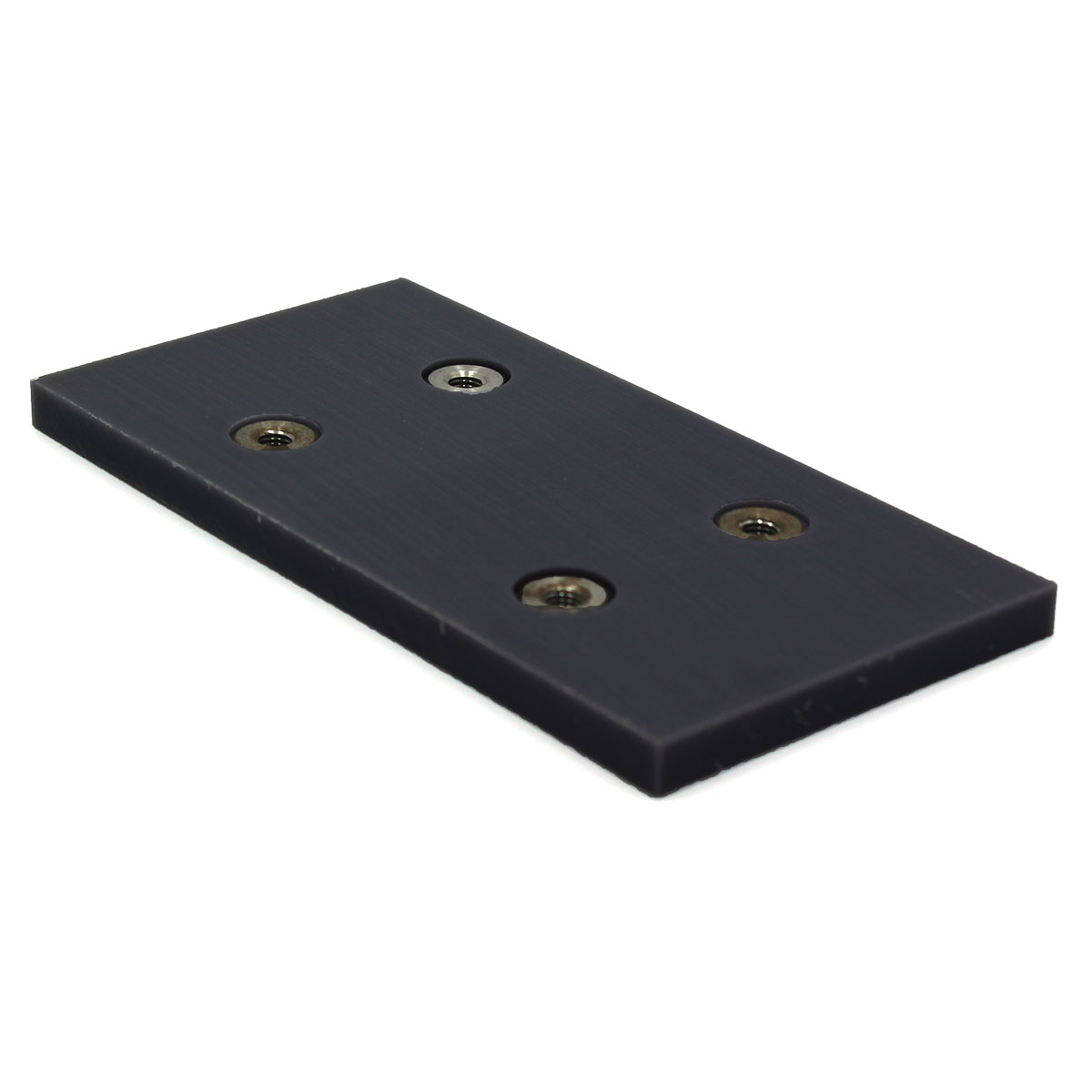

Nylatron ® WP PA6 (Wear Pad Formulation) Nylon Sheet

Compliance Info

Slide 1 of 4, currently active
Slide 2 of 4
Slide 3 of 4
Slide 4 of 4

General Info

Nylatron® WP (Wear Pad) PA6 is a Wear Resistant Grade of Cast Nylon optimized for linear bearing applications, offering an ideal combination of value and performance.

Explicitly developed for wear pads, Nylatron WP outperforms its competition across a wide range of applications and in multiple industries.

Nylatron WP offers an economical solution to provide superior performance, weight and noise reduction, corrosion resistance, and easy machining. This self-lubricating Nylon reduces maintenance and the associated downtime and cost.

Click For More Information on the Complete Line of Nylatron Products

Key Properties

Low cost compared to other premium Nylon wear grades
Improved wear, lower friction, and higher limiting PV than standard Nylon
Reduces chatter and slip stick
Longer wear life than standard Nylon

Limitations

High Moisture Absorption
Limited Resistance to Strong Acids & Alkalies Note - Nylons can absorb up to 7% (by weight) water under high humidity or submerged in water. This can result in dimensional changes up to 2% and a corresponding reduction of physical properties. Proper design techniques can frequently compensate for this factor.

Applications

Bearing and Wear Parts for a Wide Range Automated Equipment
Construction Equipment Wear Pads
Crane Wear Pads
Telescopic Crane Boom Wear Pads
Ag and Farm Equipment Wear Pads

Resin Trade Names

Manufacturer Trade Names

Nylatron ® WP PA6

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available in sheet only as a standard product in 48.000 x 120.000 inch sizes Thicknesses from .250 to 1.000 inch* *Some thicknesses may have a minimum order quantity and will be subject to longer lead times. Contact us for more information on your specific requirement.

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Nylatron ® WP PA6 (Wear Pad Formulation) Nylon Sheet

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PA Polyamide Type 6
Trade Name			Nylatron® WP PA6
Additives			Proprietary Additives
Color			Black
Manufacturer			Mitsubishi Chemical Group
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.15
	ASTM D792	lb/in³	0.042
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.3
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	7
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	10,500
Tensile Modulus	ASTM D638	psi	420,000
Tensile Elongation at Break	ASTM D638	%	20
Flexural Strength	ASTM D790	psi	16,000
Flexural Modulus	ASTM D790	psi	450,000
Compressive Strength	ASTM D695	psi	14,000
Hardness	ASTM D785	Shore D / Rockwell M	85 Shore D / 80 Rockwell M
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.15
Dynamic Coefficient of Friction	QTM 55007 (Dry vs Steel)	NA	0.18
Wear K Factor	QTM 55010	in³-min/ft-lbs-hr	30
Limiting PV	QTM 55007	psi-fpm	13,500
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	5.5
Heat Deflection Temp	ASTM D648	°C at 264 psi	93
	ASTM D648	°F at 264 psi	200
Melting Point Temp	ASTM D3418	°C	216
Max Continuous Operating Temp		°C	93
		°F	200
Minimum Operating Temp		°C	-30
		°F	-22
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	1.7
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Surface Resistivity	ASTM D257	ohm/square	>10^12
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Nylatron® is a registered trademark of Mitsubishi Chemical Group.
