GEHR PEEK-30GF™ 30% Glass Filled

Compliance Info

Slide 1 of 1, currently active

General Info

GEHR PEEK-30GF is a PEEK variant modified with 30 % glass fibers. The glass fiber additive significantly increases the surface hardness and heat deflection temperature compared to the already high values of the unreinforced standard type. Dimensional stability is improved when compared to virgin PEEK with the lower coefficient of linear thermal expansion of the PEEK 30GF material.

Key Properties

Very high mechanical strength
Very high rigidity (also at low temperature) Very high thermal stability
Very high creep resistance
Very high dimensional stability
Very high radiation resistance
Very high hydrolysis resistance

Limitations

Relatively low-notch impact strength
Low resistance to acetone

Applications

High Strength Structural Components
Spacers
Flanges
Fixtures in glass production

Resin Trade Names

Manufacturer Trade Names

GEHR PEEK-30GF™

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

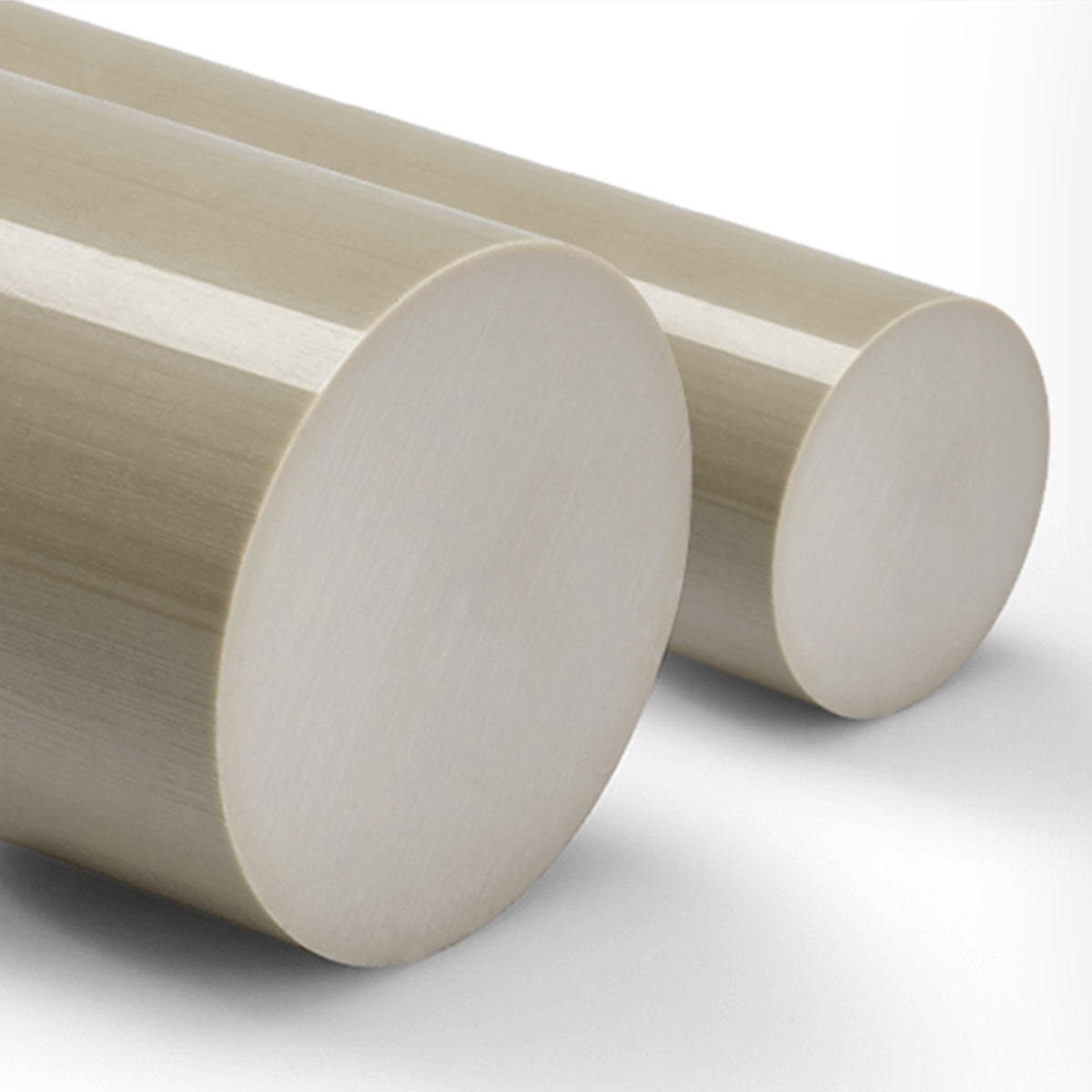

Available in Sheet and Rod only. This is a stock item at GEHR'S Mannheim/Germany Plant, longer lead times may apply. Contact us for size and availability.

Available Colors

Safety Data Sheet

Typical Properties of GEHR PEEK-30GF™ 30% Glass Filled

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			GEHR PEEK-30GF™
Additives			30% Glass Fibers
Color			Tan
Manufacturer			GEHR
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.51
	ASTM D792	lb/in³	0.055
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.5
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi (at break)	26,102
Tensile Elongation at Break	ASTM D638	%	3
Flexural Strength	ASTM D790	psi	33,800
Flexural Modulus	ASTM D790	psi	1,406,000
Hardness	ASTM D785	Shore D	90
IZOD Impact-Notched	ASTM D256	ft-lb/in	2.4
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	2.1
Heat Deflection Temp	ASTM D648	°C at 264 psi	328
	ASTM D648	°F at 264 psi	622
Melting Point Temp	ASTM D3418	°C	340
	ASTM D3418	°F	644
Max Continuous Operating Temp	UL 746B	°C	260
	UL 746B	°F	500
Minimum Operating Temp	UL 746B	°C	-40
	UL 746B	°F	-40
Thermal Conductivity	ASTM C177	BTU-in/ft²-hr-°F	3
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Surface Resistivity	ASTM D257	ohm/square	> 10^13
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$
Machinability			7

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

GEHR PEEK is a trademark of GEHR.
