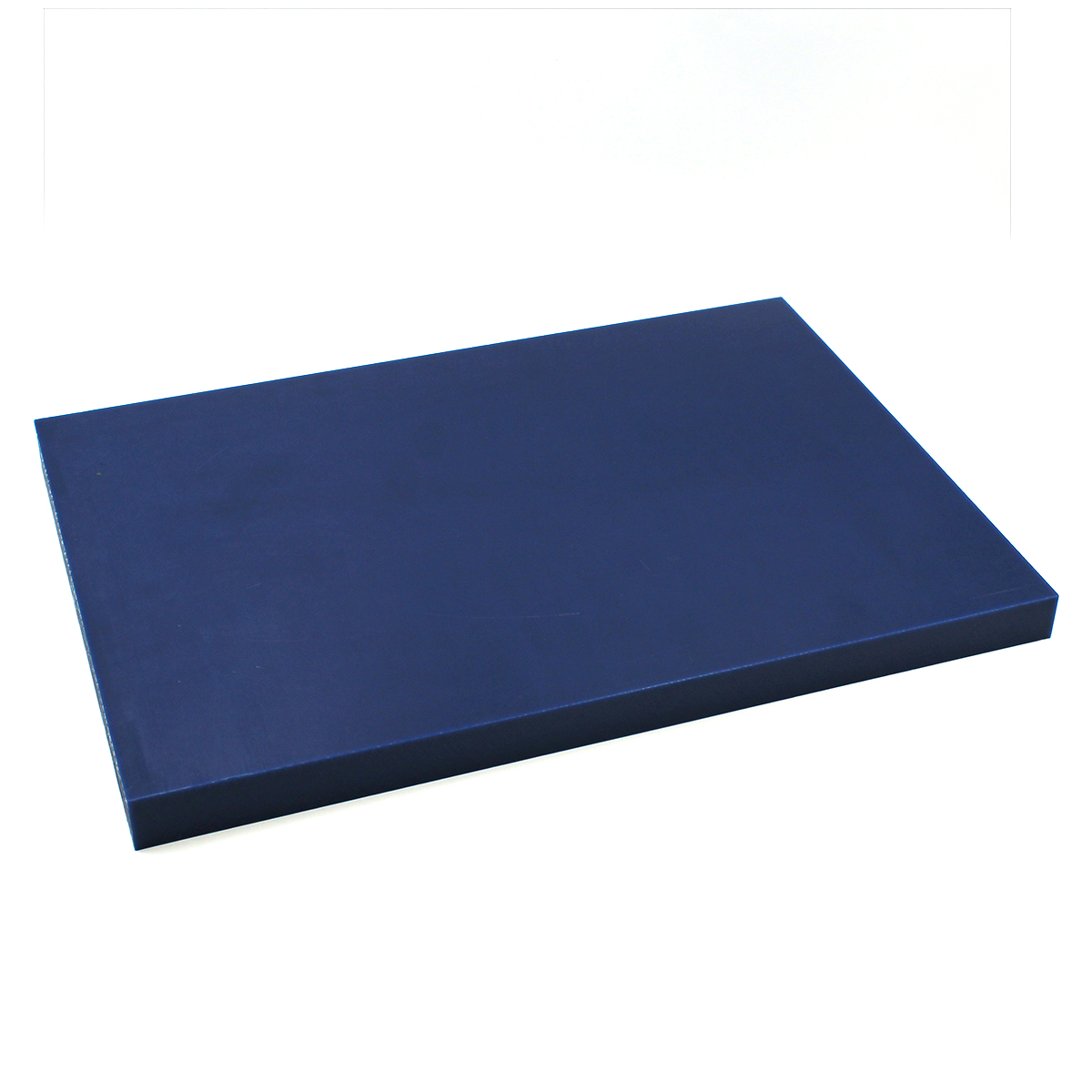

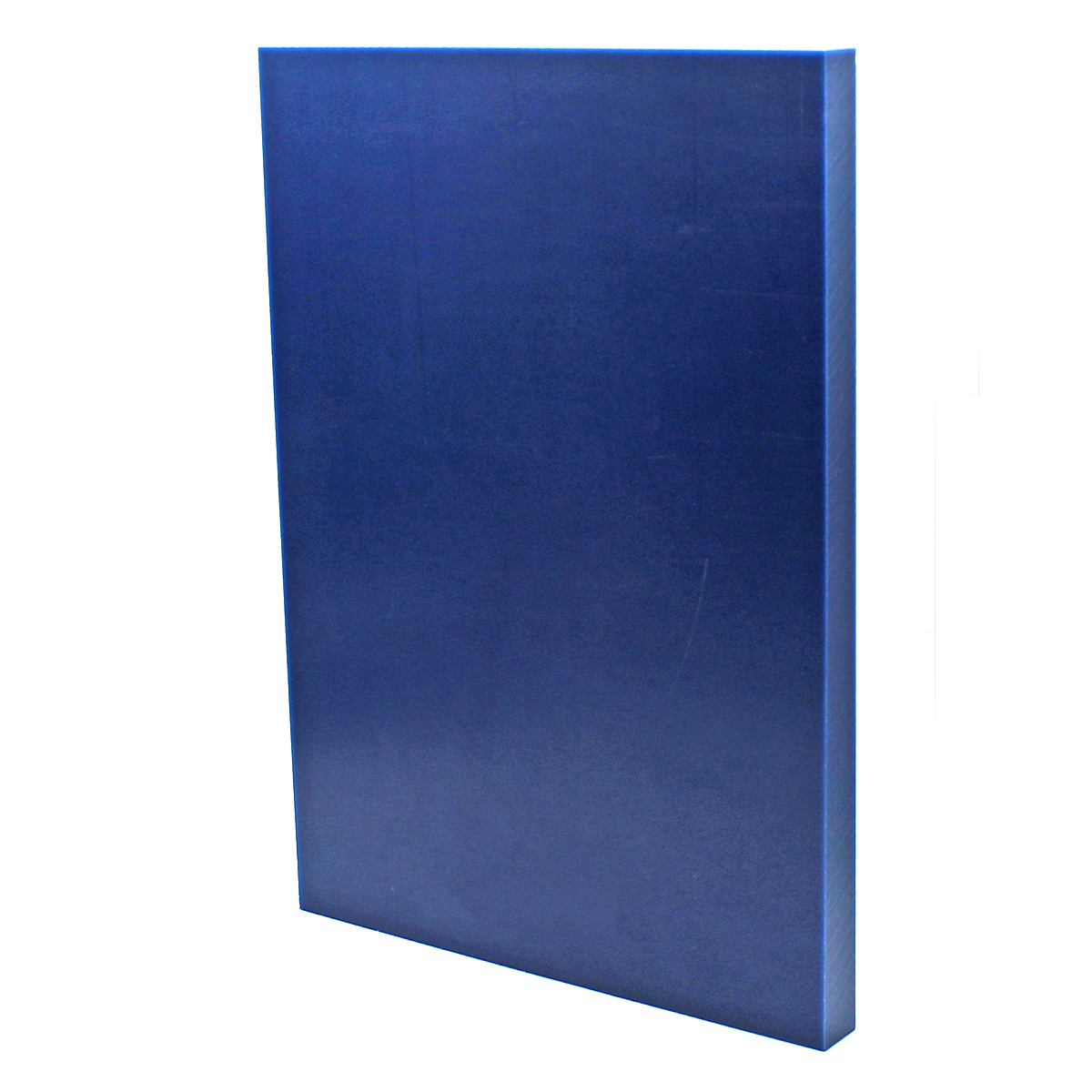

TIVAR ® 88 UHMW-PE

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

Recognized worldwide as the premium lining material for bulk material handling, TIVAR® 88 is noted for its performance in promoting bulk solids flow of cohesive or non-free flowing materials due to its low surface friction. TIVAR® 88 liners are the perfect solution when you need to reduce or eliminate arching, ratholing and erratic material flow challenges in bins, bunkers, hoppers and chutes, railcars, etc. Although every application is unique, some have specific environmental challenges.

Click for more information on the complete line of TIVAR UHMW Plastics

Key Properties

Promotes reliable, steady bulk material flow
Abrasion-, chemical- and corrosion-resistant
Low coefficient of friction
No moisture absorption
Reduces or eliminates arching, ratholing and erratic flow

Limitations

High Heat Environments
High Loads
Subject to Creep, Cold Flow
Thermal Expansion
Tight Tolerance Applications

Applications

Belt scrapers
Bunker liners
Chain conveyor flights
Chute liners
Conveyor skirting
Cyclones
Drag chain conveyor liners
Dragline buckets
Dust collection hopper liners
Front end loader bucket liners
Hopper liners
Off-road truck beds
Pugmill Paddles
Railcar liners
Reclaimer buckets
Screw conveyor liners
Self-unloading ships
Silo liners
Slider beds
Storage bin liners
Surge bin liners
Transfer chute liners
Under chain guides
Wear strips
Vibrating bin dischargers
Vibratory feeder liners

Resin Trade Names

Manufacturer Trade Names

TIVAR® 88 UHMW-PE

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Blue

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of TIVAR ® 88 UHMW-PE

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			UHMW-PE Ultra High Molecular Weight Polyethylene
Trade Name			TIVAR® 88 UHMW-PE
Additives			Proprietary Additives
Color			Blue
Manufacturer			Quadrant
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	0.93
	ASTM D792	lb/in³	0.034
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	<.01
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	<.01
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	5,800
Tensile Modulus	ASTM D638	psi	61,000
Tensile Elongation at Break	ASTM D638	%	300
Flexural Strength	ASTM D790	psi	3,200
Flexural Modulus	ASTM D790	psi	72,500
Compressive Strength	ASTM D695	psi	3,000
Compressive Modulus	ASTM D695	psi	70,000
Hardness	ASTM D785	NA	Shore D69
IZOD Impact-Notched	ASTM D256 Type A	ft-lb/in	No Break
Dynamic Coefficient of Friction	QTM 55007 (Dry vs Steel)	NA	0.12
Limiting PV	QTM 55007	psi-fpm	4,000
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	11
Heat Deflection Temp	ASTM D648	°C at 264 psi	46
	ASTM D648	°F at 264 psi	116
Melting Point Temp	ASTM D3418	°C	135
	ASTM D3418	°F	275
Max Continuous Operating Temp		°C	82
		°F	180
Minimum Operating Temp		°C	-200
		°F	-328
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	2.84
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Constant at 1 MHz	ASTM D150	NA	2.3
Dissipation Factor at 1 MHz	ASTM D150	NA	0.005
Surface Resistivity	ANSI/ESD STM 11.11	ohm/square	10^15
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$
Machinability			3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TIVAR® is a registered trademark of Quadrant Engineering Plastic Products.
