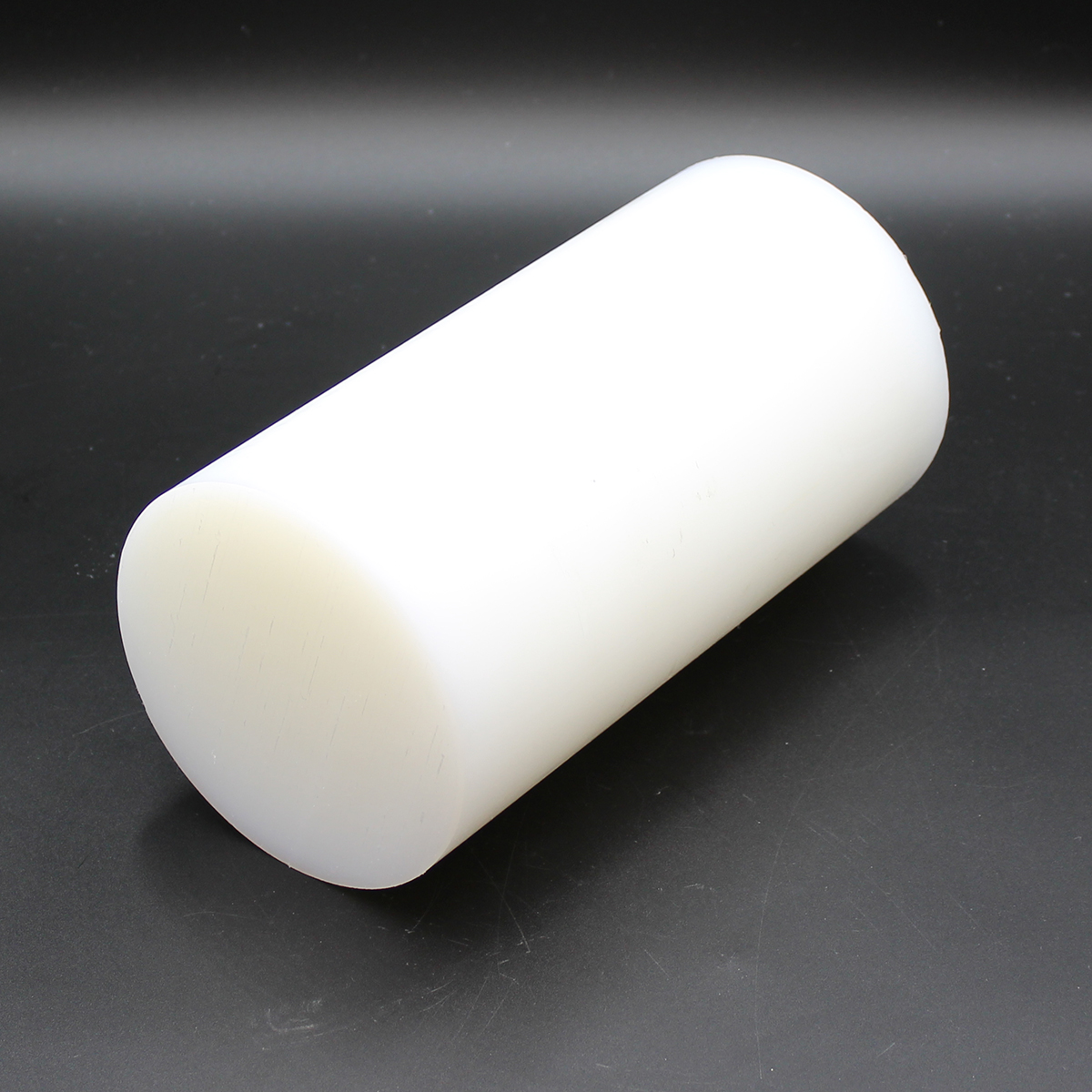

TIVAR ® 1000 UHMW-PE

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

TIVAR® 1000 UHMW-PE meets FDA, USDA and 3-A Dairy Sanitation guidelines for food processing and handling, making it the material of choice for tough food handling problems. Because TIVAR® 1000UHMW-PE is resistant to chemical attack, it stands up to repeated wash downs with aggressive chlorine solutions, common in the food processing industry, which is damaging to other polymer materials. Available in a broad array of custom colors, including many that meet FDA requirements, on a made to order basis.

Click for more information on the complete line of TIVAR UHMW Plastics

Key Properties

Low coefficient of friction/flow promotion
Abrasion/wear resistance
Impact strength
Chemical and corrosion resistance
Self-lubrication characteristics
Zero moisture absorption
Cryogenic capability
Electrical resistivity
Meets FDA and USDA guidelines; 3-A Dairy-approved (natural)
NSF Compliant Standards 51 & 61
Reduces noise
Chemical-, corrosion- and wear-resistant
Non-toxic, low-friction surface
Meets ASTM-D-4020-05 of 3.1 to 6.2-million molecular weight

Limitations

High Heat Environments
High Loads
Subject to Creep, Cold Flow
Thermal Expansion
Tight Tolerance Applications

Applications

Bulk Material Handling – Hopper & Chute Lining Systems
Bushings, Bearings & Rollers
Conveyor Corner Tracks
Conveyor Wear Strip
Food & Beverage Processing Equipment Components
Gears & Sprockets
Linear Wear Pads
Oil & Gas Subsea Components
Wastewater Industry Components

Resin Trade Names

Manufacturer Trade Names

TIVAR® 1000 UHMW-PE

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Natural
Black
Custom Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of TIVAR ® 1000 UHMW-PE

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			UHMW-PE Ultra High Molecular Weight Polyethylene
Trade Name			TIVAR® 1000 UHMW-PE
Additives			Unfilled
Color			Natural
Manufacturer			Mitsubishi Chemical Advanced Materials
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	0.93
	ASTM D792	lb/in³	0.034
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	<.01
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	<.01
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	5,800
Tensile Modulus	ASTM D638	psi	80,000
Tensile Elongation at Break	ASTM D638	%	300
Flexural Strength	ASTM D790	psi	3,500
Flexural Modulus	ASTM D790	psi	87,000
Compressive Strength	ASTM D695	psi	3,000
Compressive Modulus	ASTM D695	psi	80,000
Hardness	ASTM D785	Shore D	Shore D66
IZOD Impact-Notched	ASTM D256 Type A	ft-lb/in	No Break
Dynamic Coefficient of Friction	QTM 55007 (Dry vs Steel)	NA	0.12
Limiting PV	QTM 55007	psi-fpm	3,000
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	11
Heat Deflection Temp	ASTM D648	°C at 264 psi	46
	ASTM D648	°F at 264 psi	116
Melting Point Temp	ASTM D3418	°C	135
	ASTM D3418	°F	275
	ASTM D3418	°F	275
Max Continuous Operating Temp		°C	82
		°F	180
Minimum Operating Temp		°C	-200
		°F	-328
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	2.84
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	1,150
Dielectric Constant at 1 MHz	ASTM D150	NA	2.3
Surface Resistivity	ANSI/ESD STM 11.11	ohm/square	10^15
COMPLIANCE
Description			Value
FDA			Yes
USDA			Yes
NSF			Yes
3-A Dairy			Yes
Canadian Food Inspection Agency			Yes
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$
Machinability			2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TIVAR® is a registered trademark of Mitsubishi Chemical Advanced Materials.
