General Info

Protect equipment and surfaces with Armor-X™. Armor-X's™ non-marring, cushioned surface shields critical surfaces and heavy, expensive parts and equipment, including stainless steel, from gouges and scratches. From work surfaces to flooring, Armor-X™ helps protect your investment.

Click for more information on the complete line of TIVAR UHMW Plastics

Key Properties

Resists oils, cutting fluids and chemicals;
Has excellent impact and wear resistance;
Is more flexible than other polymers;

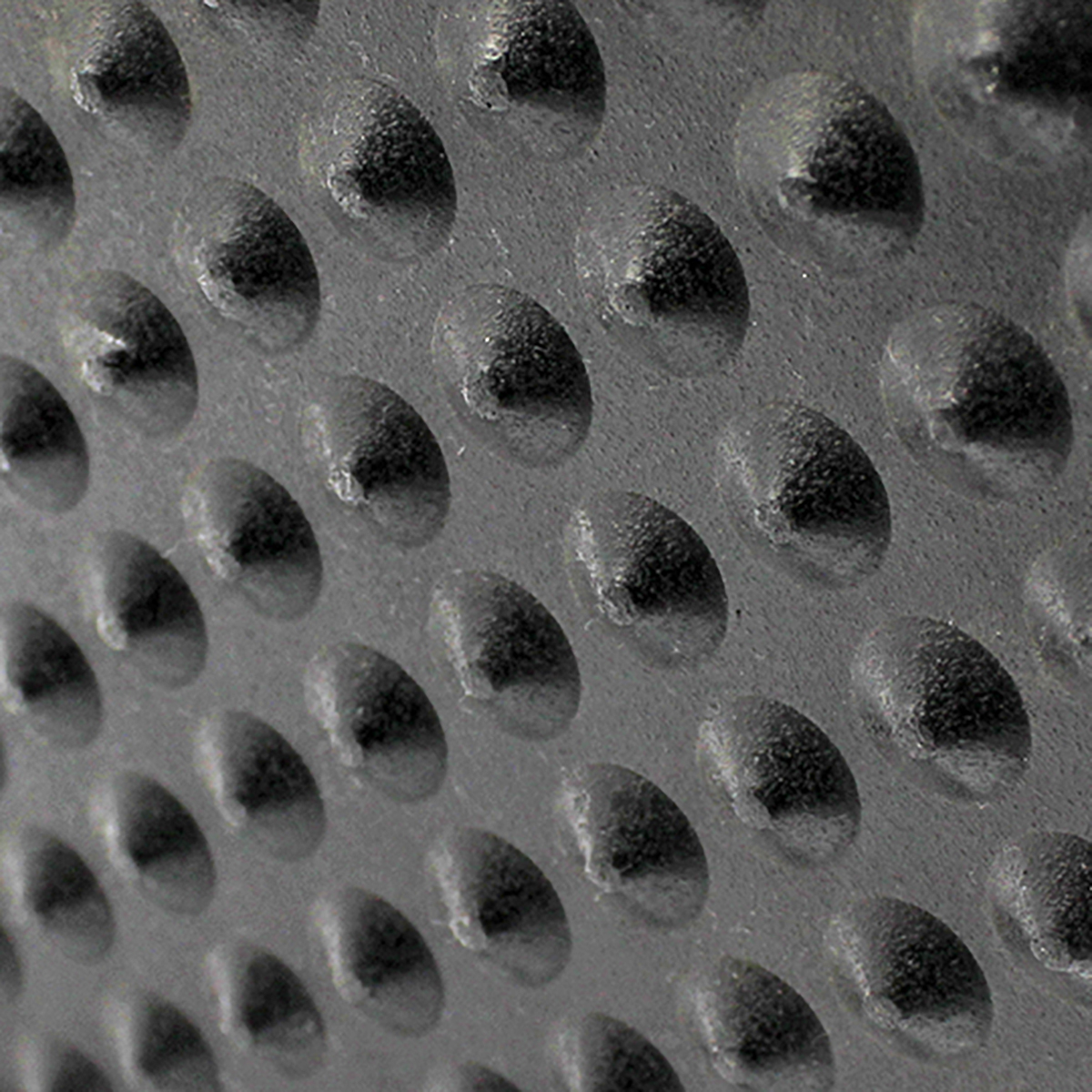

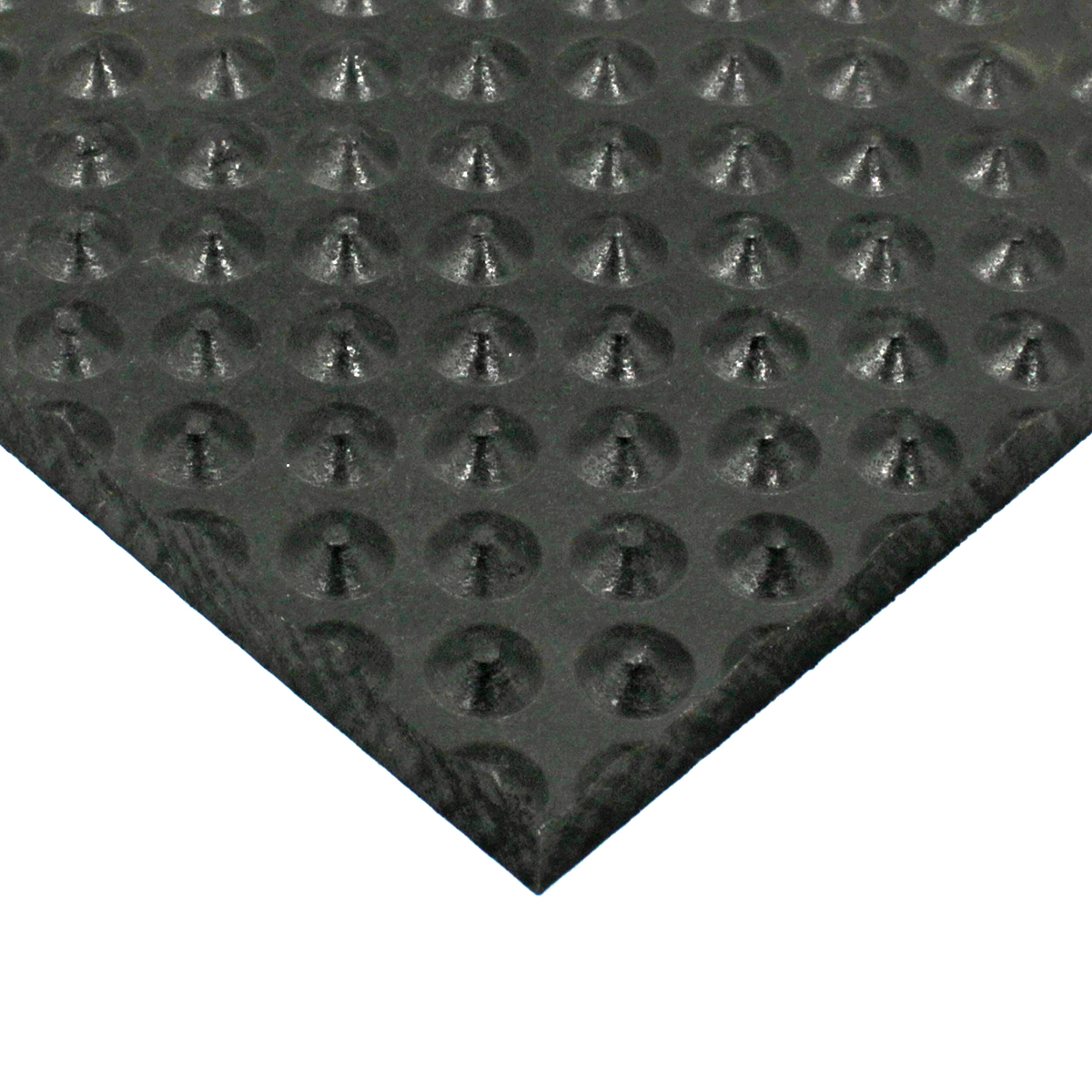

Is available in two finishes, including our anti-skid ProKnob™ surface.

Limitations

High Heat Environments
High Loads
Subject to Creep, Cold Flow
Thermal Expansion
Tight Tolerance Applications

Applications

Bench Tops
Bumper Pads
Machine Shop Flooring
Storage Bins

Resin Trade Names

Manufacturer Trade Names

Armor-X™ UHMW-PE

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of TIVAR Armor-X ™ UHMW-PE

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			UHMW-PE Ultra High Molecular Weight Polyethylene
Trade Name			ARMOR-X® UHMW-PE
Additives			Proprietary Additives
Color			Black
Manufacturer			Quadrant
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1
	ASTM D792	lb/in³	0.036
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	<.01
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	<.01
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	3,200
Tensile Modulus	ASTM D638	psi	51,500
Tensile Elongation at Break	ASTM D638	%	100
Flexural Strength	ASTM D790	psi	2,200
Flexural Modulus	ASTM D790	psi	44,000
Compressive Strength	ASTM D695	psi	3,900
Compressive Modulus	ASTM D695	psi	34,000
Hardness	ASTM D785	NA	Shore D50
IZOD Impact-Notched	ASTM D256 Type A	ft-lb/in	No Break
Dynamic Coefficient of Friction	QTM 55007 (Dry vs Steel)	NA	0.2
THERMAL
Property	Test	Unit of Measure	Value
Heat Deflection Temp	ASTM D648	°C at 264 psi	46
	ASTM D648	°F at 264 psi	116
Melting Point Temp	ASTM D3418	°C	135
	ASTM D3418	°F	275
Max Continuous Operating Temp		°C	82
		°F	180
Minimum Operating Temp		°C	-200
		°F	-328
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Surface Resistivity	ANSI/ESD STM 11.11	ohm/square	10^15
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$
Machinability			3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

ARMOR-X® is a registered trademark of Quadrant Engineering Plastic Products.
