Vespel ® Polyimide SCP-5009 Bearing & Wear Grade

Compliance Info

Slide 1 of 1, currently active

General Info

DuPont™ Vespel® SCP-5009 provides material solutions for high wear and friction applications under high operating pressure and elevated temperature environments.

Click for more information on the complete line of Vespel PI Plastics

Key Properties

Low Coefficient of Thermal Expansion
Good Sealing Properties, at Extreme Conditions
High Compressive Strength, at Extreme Conditions
Low Creep, at Extreme Conditions

Limitations

Chemical Resistance to Some Strong Acids and Bases
Hydrolyzes in Presence of Steam

Applications

Bushings & Bearing
Dynamic Seals
Thrust Washers

Resin Trade Names

DuPont™ Vespel®

Manufacturer Trade Names

DuPont™ Vespel® Polyimide SCP-5009

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

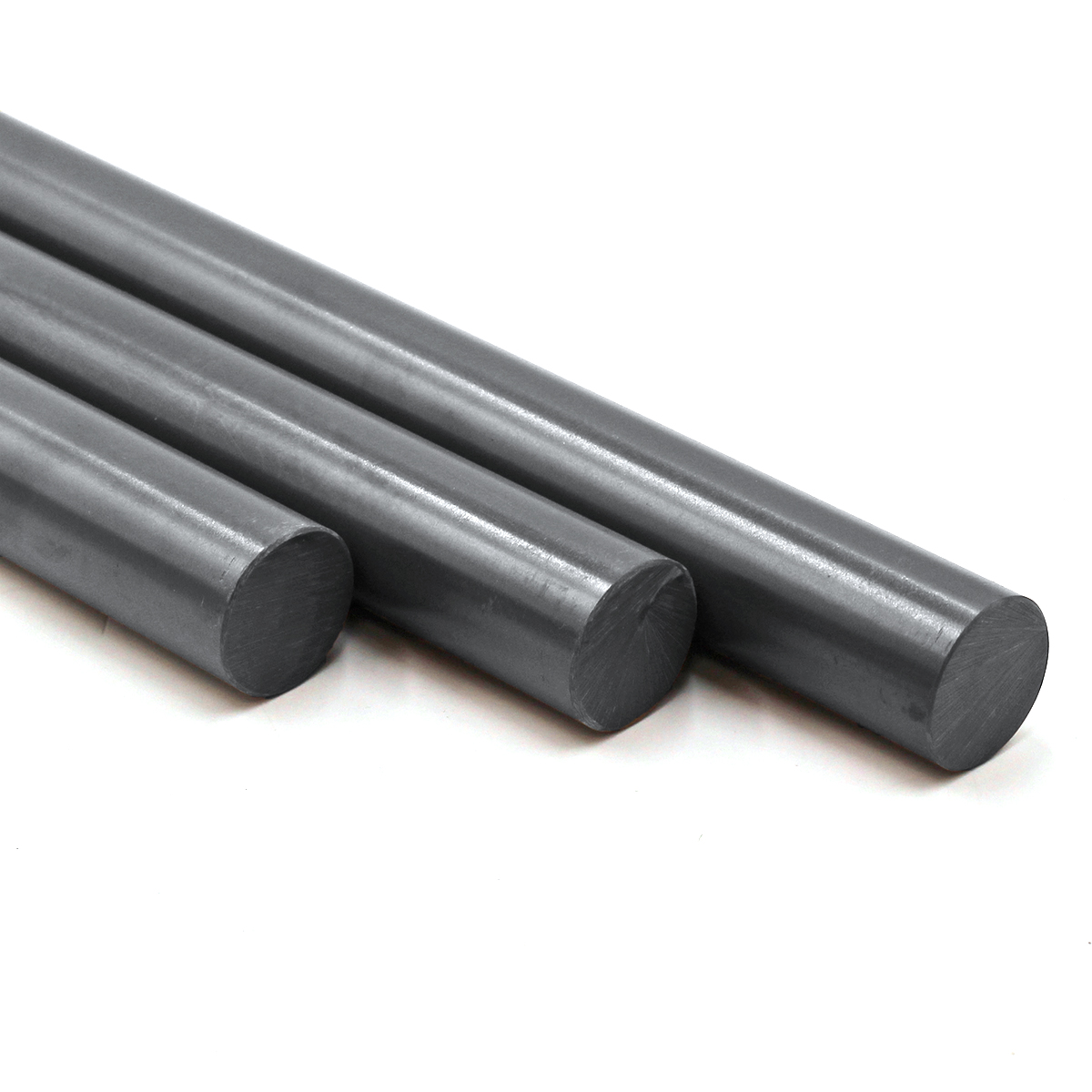

Rod Diameters 0.125” to 3.250” Length 19.000” Bar Thickness Up to 1.500” Width & Length 3.500” x 12.500” Rings & Disks also available Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

Black

Safety Data Sheet

Typical Properties of Vespel ® Polyimide SCP-5009 Bearing & Wear Grade

DETAIL
Description			Value
Material Type			Imidized Amorphous Thermoplastic
Chemical Name			PI Polyimide
Trade Name			DuPont ™ Vespel ® Polyimide SCP-5009
Additives			Bearing Grade Additives
Color			Black
Manufacturer			DuPont
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.5
	ASTM D792	lb/in³	0.054
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.09
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	16,900
Tensile Modulus	ASTM D638	psi	871,000
Tensile Elongation at Break	ASTM D638	%	3
Flexural Strength	ASTM D790	psi	28,300
Flexural Modulus	ASTM D790	psi	903,000
Compressive Strength	ASTM D695	psi	70,000
Compressive Modulus	ASTM D695	psi	376,000
Hardness	ASTM D785	NA	Rockwell E91
Dynamic Coefficient of Friction	COF@PV = 2.0 m/s (400fpm) 1.78MPa (250K psi)*	NA	0.14
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	2.4
Max Continuous Operating Temp		°C	260
		°F	500
Minimum Operating Temp		°C	-195
		°F	-319
Flammability Rating	UL94	NA	V-0
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

DuPont™ Vespel® is a registered trademark of DuPont.
