General Info
DuPont™ Vespel® CR-6100 is a composite material designed for use in hostile chemical environments. Stationary parts in this composite material meet the following specification per API STD 610/ISO 13709, Centrifugal Pumps For Petroleum Petrochemical and Natural Gas Industries:-46 to 230 °C (-50 to 450 °F) temperature limits and 2,000 kPa (20 bar; 300 psi) limiting pressure differential per wear part linear measure of 25 mm (1.0 inch). Due to its low creep and high thermal resistance, Vespel® CR-6100 often excels where other chemically-resistant plastics fall short.
NOTE: Properties for Vespel® CR-6100 are tested in the X-Y direction and Z direction, X-Y values are typically higher in most cases. The properties below are reported in the X-Y direction. Contact us for complete property values.
Click for more information on the complete line of Vespel PI Plastics
Key Properties
- Enhanced Creep Resistance vs. Unfilled PFA
- Excellent Chemical Resistance
- High Thermal Resistance
Limitations
- Some Mechanical & Thermal Properties Are Lower in Z Direction (Contact Us for Complete Values)
- Teflon® PFA fluoropolymer resins are attacked by certain halogenated complexes containing fluorine. These include chlorine trifluoride, bromine trifluoride, iodine pentafluoride, and fluorine itself.
Applications
- Bushings & Bearings
- Compressor Rider Rings
- Compressor Valve Plates
- Pump Bushings & Bearings
- Pump Case Wear Rings
- Thrust Washers
- Transmission Components
- Valve Components
- Valve Seats
Resin Trade Names
- DuPont™ Vespel® Polyimide CR-6100
Manufacturer Trade Names
- DuPont™ Vespel® Polyimide CR-6100
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Sheet
Thickness Up to 1.00”
Width & Length 10.00” x 10.00”
Rod
Diameters 1.000” to 8.000”

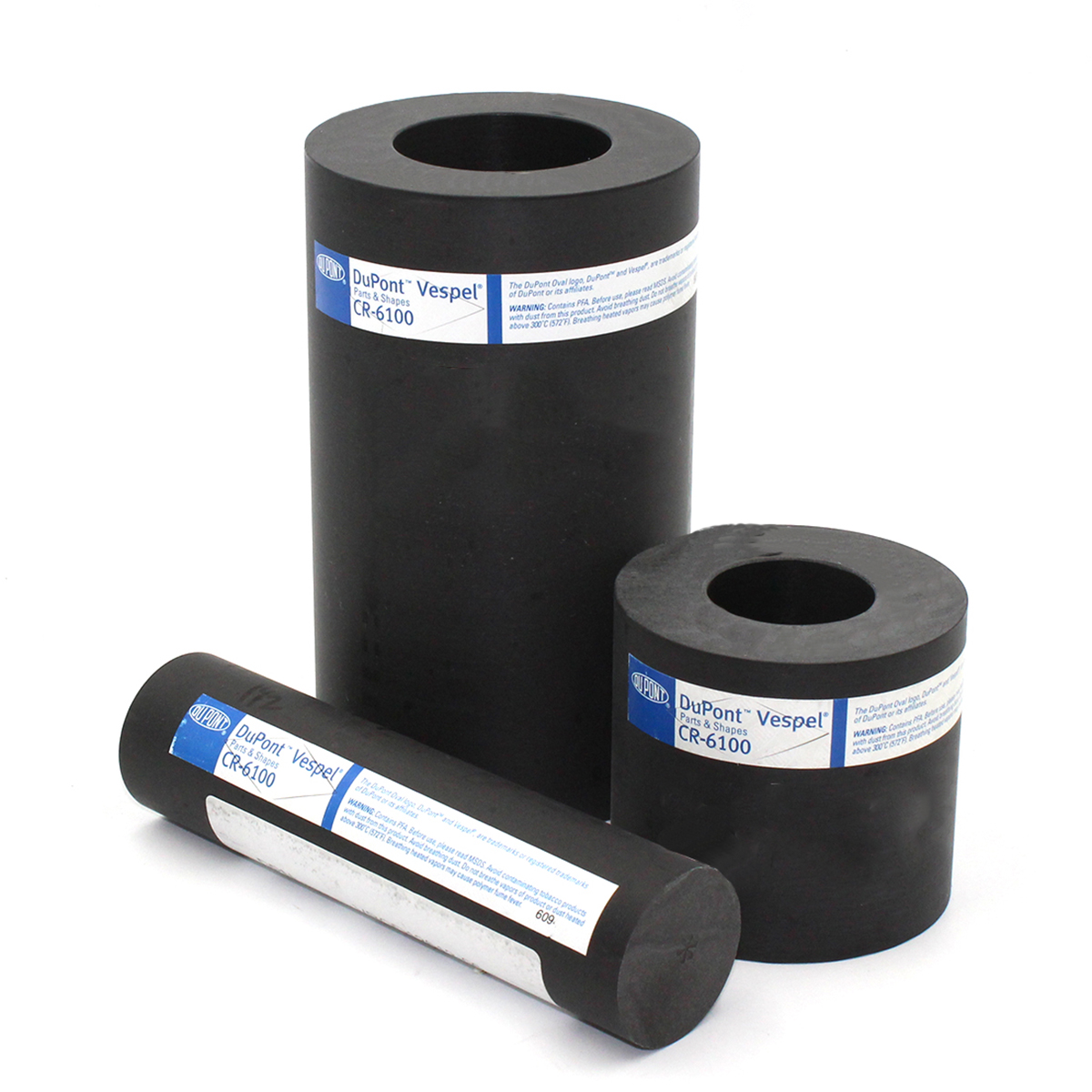

Tube
OD Outside Diameter 2.500” to 16.000”
ID Inside Diameter 1.000” to 14.500”
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
