Torlon ® 4301 Bearing Grade PAI Extruded

Compliance Info

Slide 1 of 7, currently active
Slide 2 of 7
Slide 3 of 7
Slide 4 of 7
Slide 5 of 7
Slide 6 of 7
Slide 7 of 7

General Info

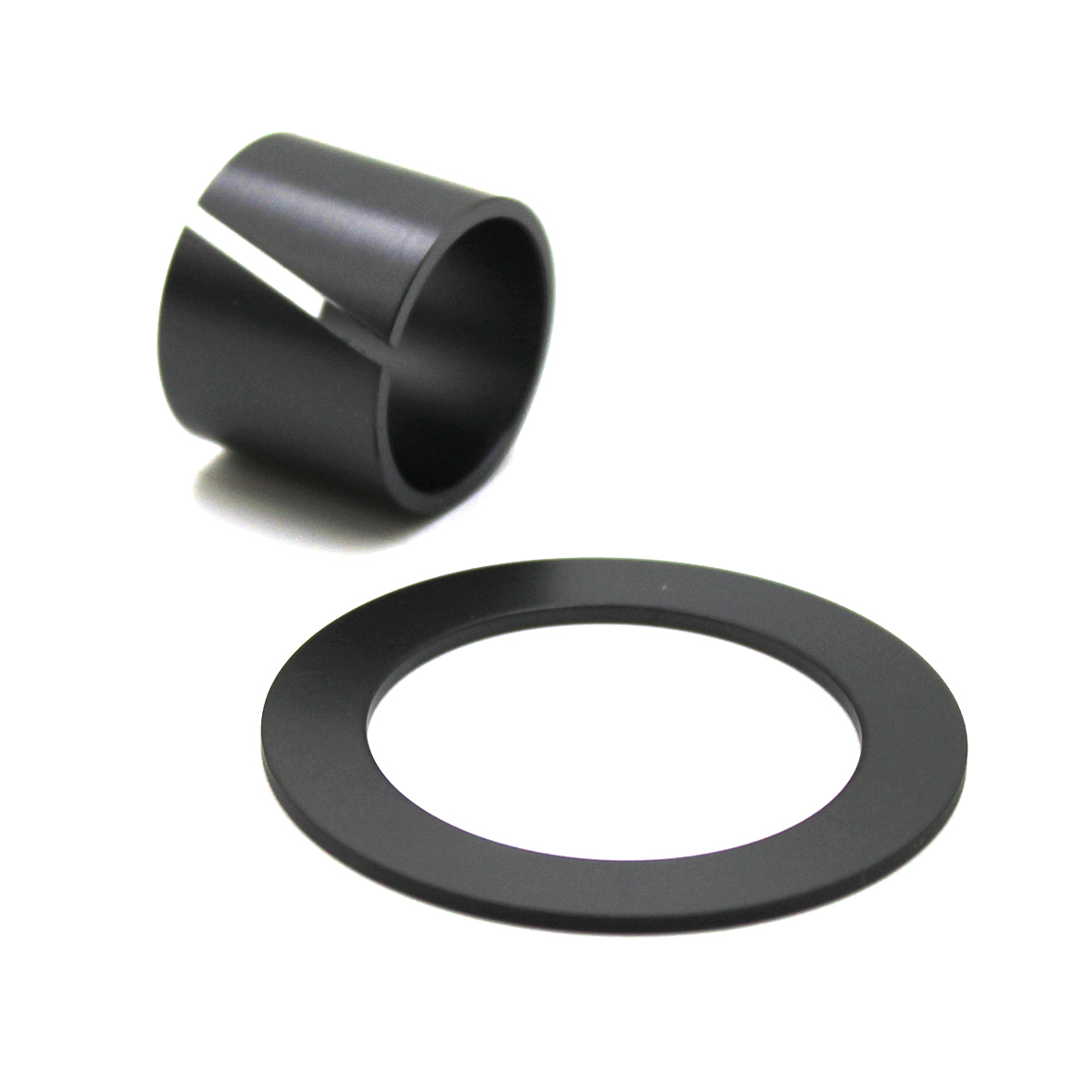

Torlon ® 4301 extruded PAI is ideal for challenging wear and friction parts. It offers a very low expansion rate with a CLTE close to many metals, low friction coefficient, and exhibits little or no slip-stick in use. Torlon ® 4301's flexural modulus of 1,000,000 psi is higher than most advanced engineering plastics. This grade excels in severe service wear applications such as non-lubricated bearings, seals, bushings, bearings, thrust washers, bearing cages, and reciprocating compressor parts. It offers ten times more wear resistance than non-reinforced Torlon 4203.

Click for more information on the complete line of TORLON PAI Plastics

Typical Specifications (Note: For reference only as specifications change. Please verify with Boedeker before your order to confirm specifications)

ASTM 5204 PAI022L15 which replaces Mil-P 46179A Type II, Class 1.	ASTMD7292 PAI0121	AMS 3670/3B	HS MS29.04-02, Form 2, Grade 1 and/or 2.
Honeywell MCS7004, Type 2	BPS 4487	BMS8-269C, Class 2, Grade 12

Key Properties

Maintains strength and stiffness to 500°F (260°C)
Minimal expansion rate to 500°F (260°C)
Excellent wear resistance in bearing grades
Able to endure harsh thermal, chemical and stress conditions

Limitations

Torlon® PAI has a relatively high moisture absorption rate, parts used in high temperatureservice or made to tight tolerances should be kept dry prior to installation. Thermal shock resulting indeformation can occur if moisture laden parts are rapidly exposed to temperatures above 400°F (205° C).

Applications

Bearing Cages

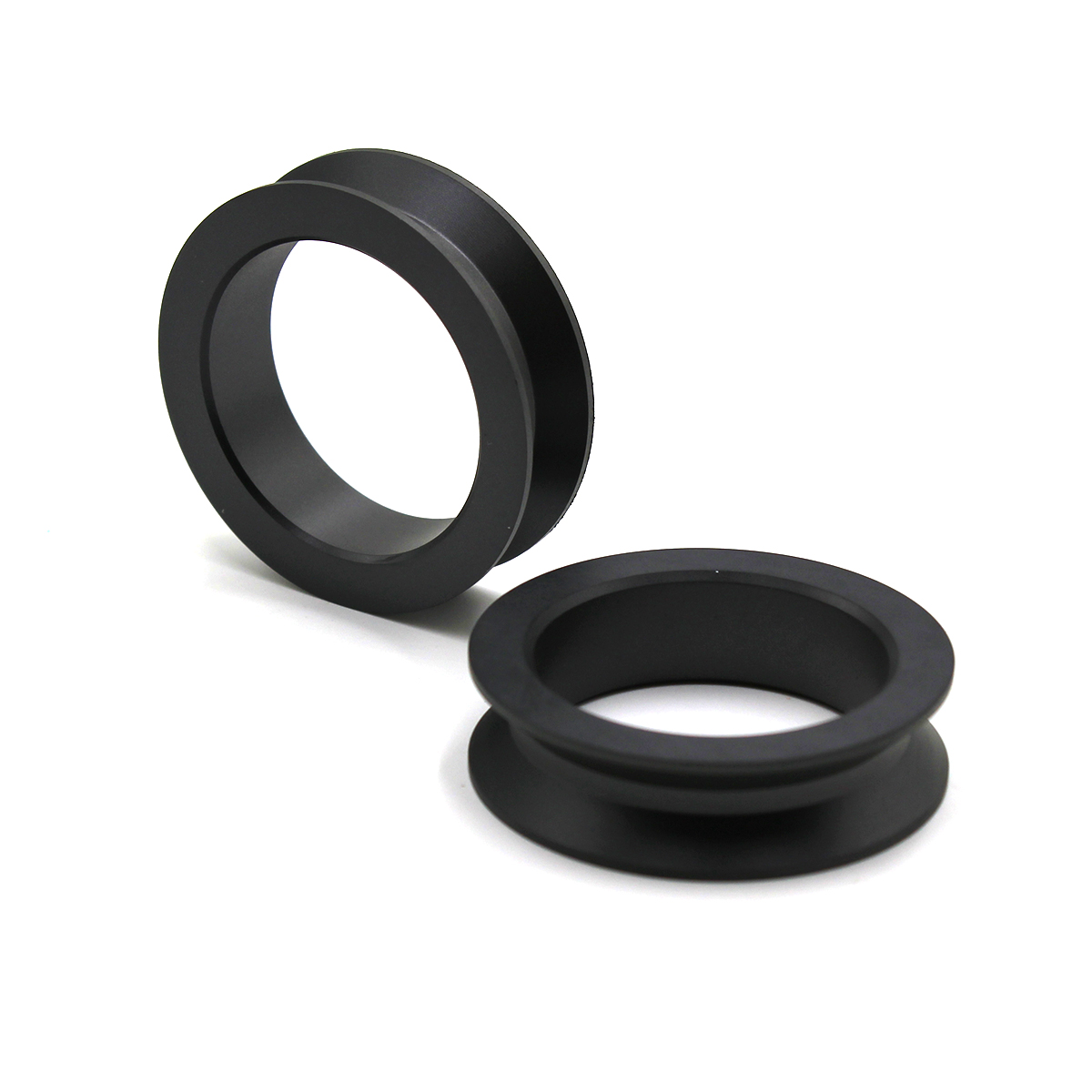

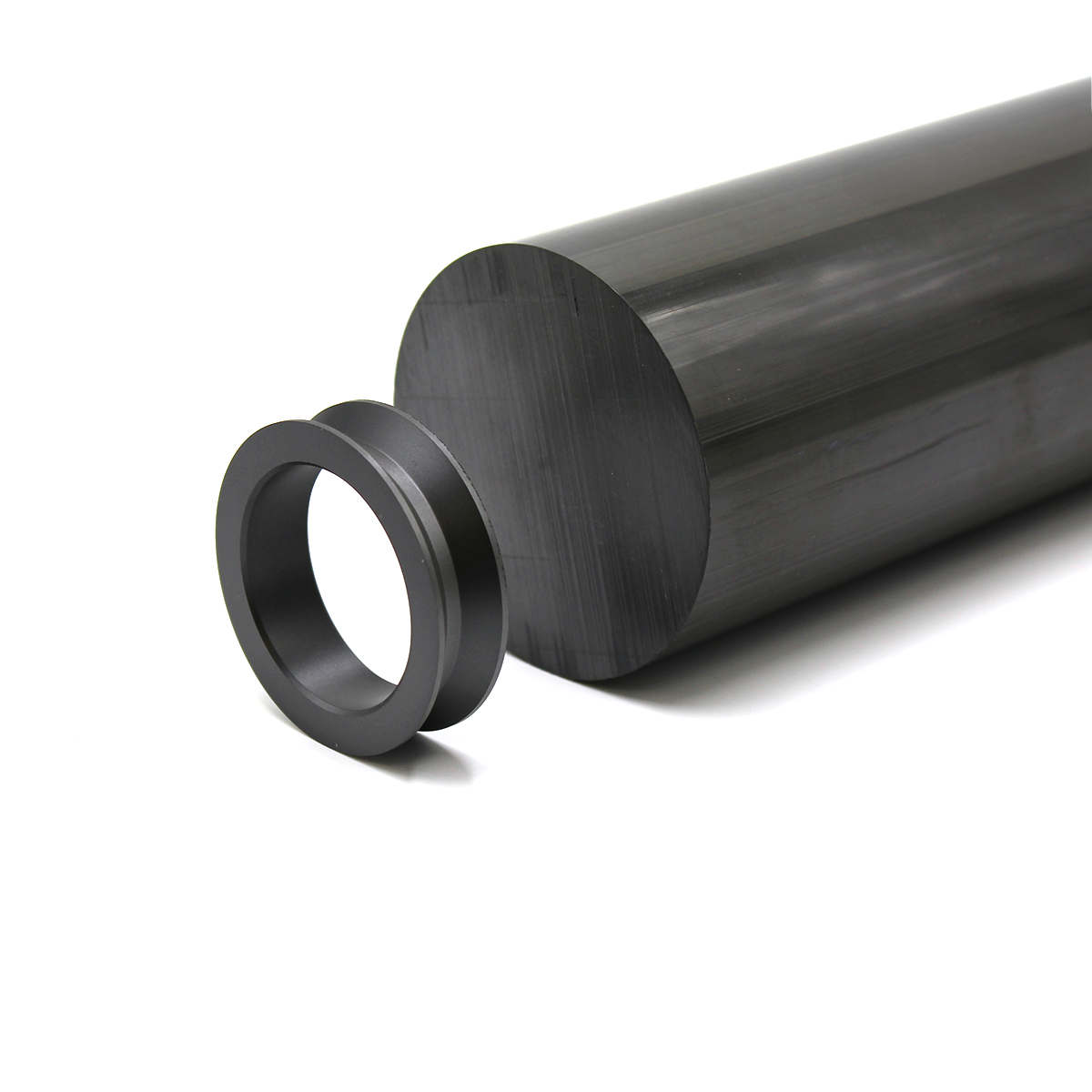

High Temp Bushings & Bearings
Reciprocating Compressor Components
Seals

Resin Trade Names

Torlon® 4301

Manufacturer Trade Names

Duratron®

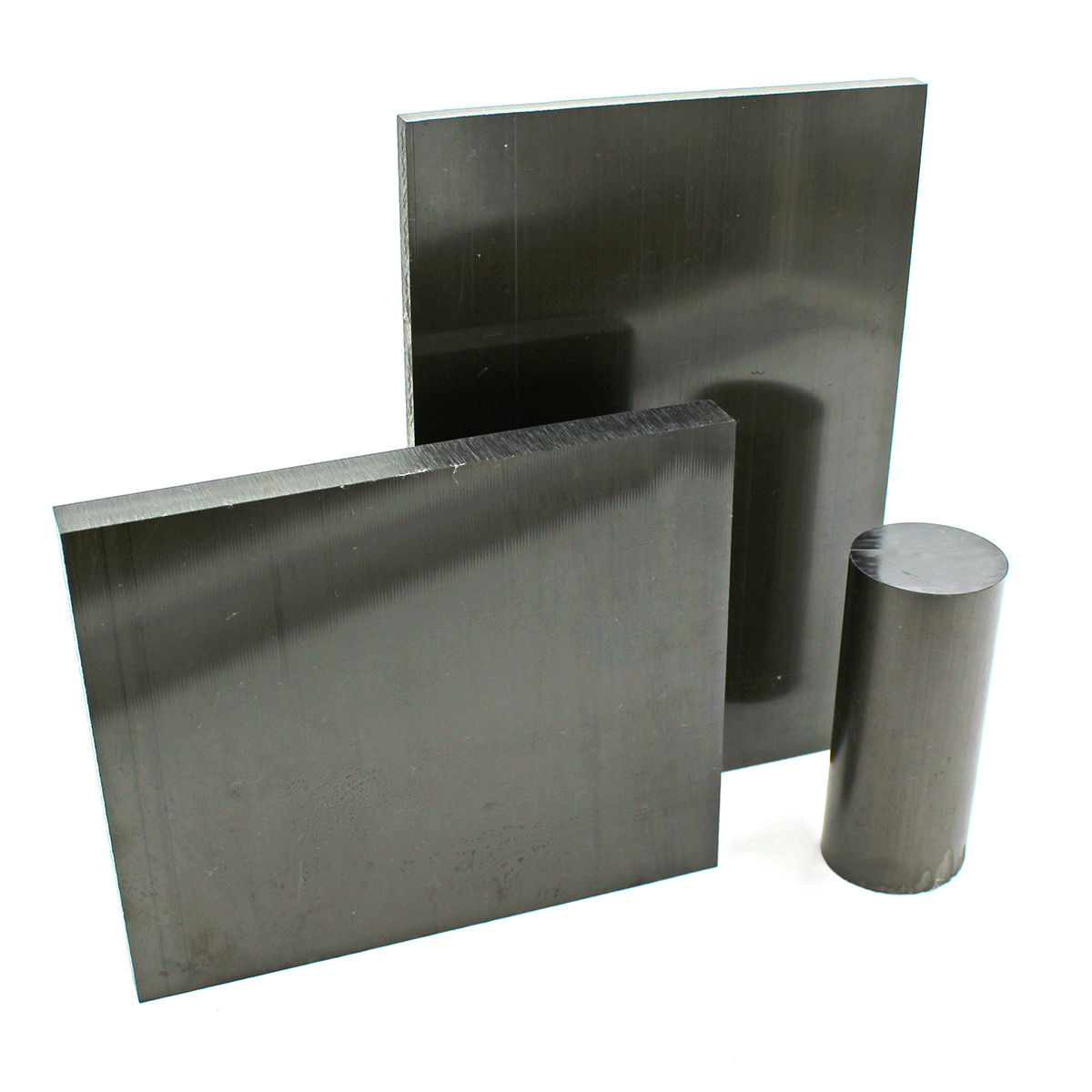

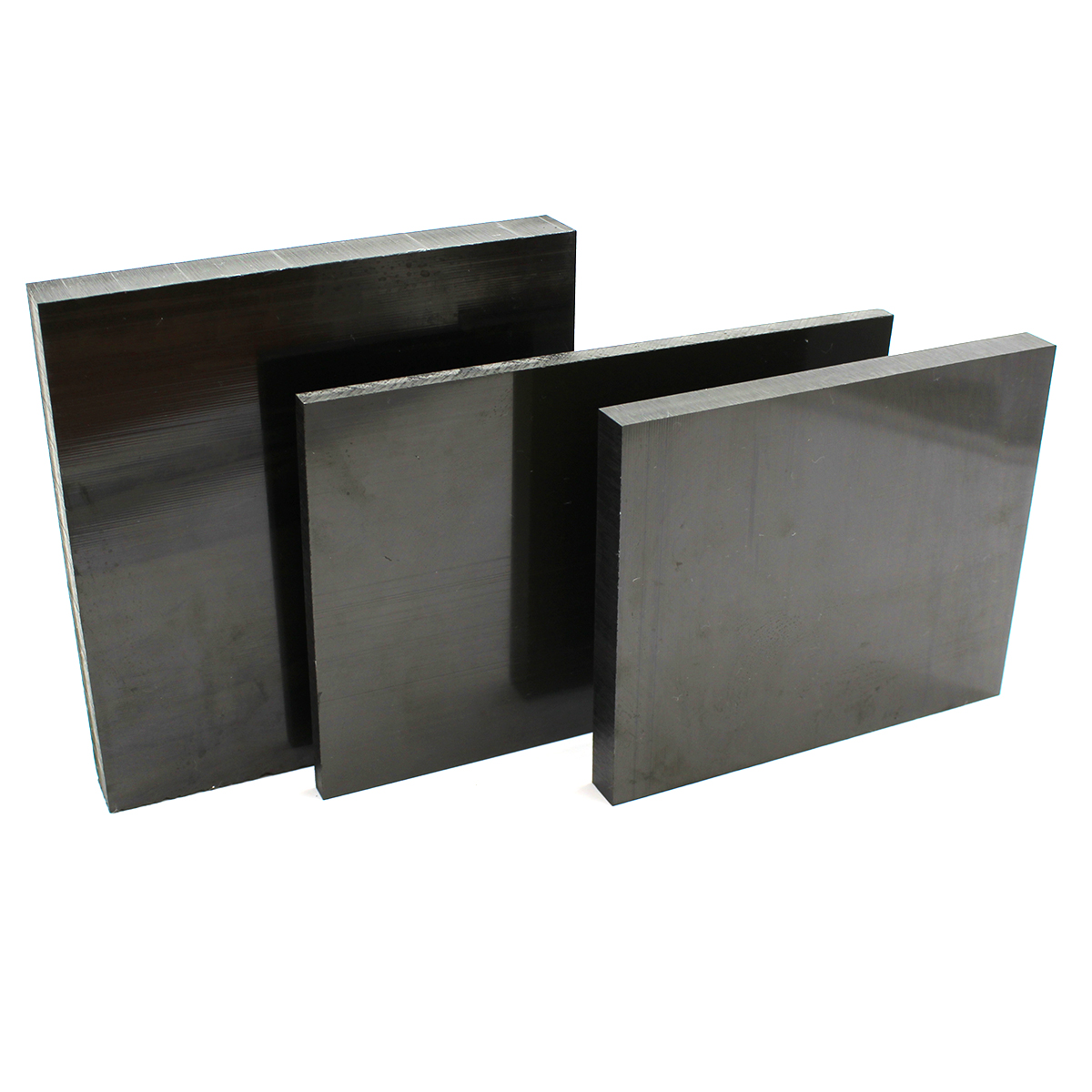

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Torlon ® 4301 Bearing Grade PAI Extruded

DETAIL
Description			Value
Material Type			Imidized Amorphous Thermoplastic
Chemical Name			PAI Polyamide-imide
Trade Name			Torlon® 4301
Additives			Bearing Grade Additives
Color			Black
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.45
	ASTM D792	lb/in³	0.052
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.4
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	12,000
Tensile Modulus	ASTM D638	psi	800,000
Tensile Elongation at Break	ASTM D638	%	3
Flexural Strength	ASTM D790	psi	23,000
Flexural Modulus	ASTM D790	psi	800,000
Compressive Strength	ASTM D695	psi	22,000
Compressive Modulus	ASTM D695	psi	950,000
Hardness	ASTM D785	NA	Rockwell M106
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.8
Dynamic Coefficient of Friction	QTM 55007	NA	0.2
Wear K Factor	QTM 55010	in³-min/ft-lbs-hr	10
Limiting PV	QTM 55007	psi-fpm	40,000
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	1.4
Heat Deflection Temp	ASTM D648	°C at 264 psi	279
	ASTM D648	°F at 264 psi	534
Melting Point Temp	ASTM D3418	°C	275
	ASTM D3418	°F	527
Max Continuous Operating Temp		°C	260
		°F	500
Minimum Operating Temp		°C	-200
		°F	-328
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	3.7
	ASTM C117	x 10^4 cal/cm-sec-°C	12.8
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Constant at 1 MHz	ASTM D150	NA	6
Dissipation Factor at 1 MHz	ASTM D150	NA	0.037
Surface Resistivity	ASTM D257	ohm/square	10^13
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
MIL SPEC			ASTM 5204 PAI022L15 which replaces Mil-P 46179A Type II, Class 1
UV Resistant			Yes
Relative Cost			$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TORLON is a registered trademark of Solvay Advanced Polymers.
