Fluorosint ® HPV

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

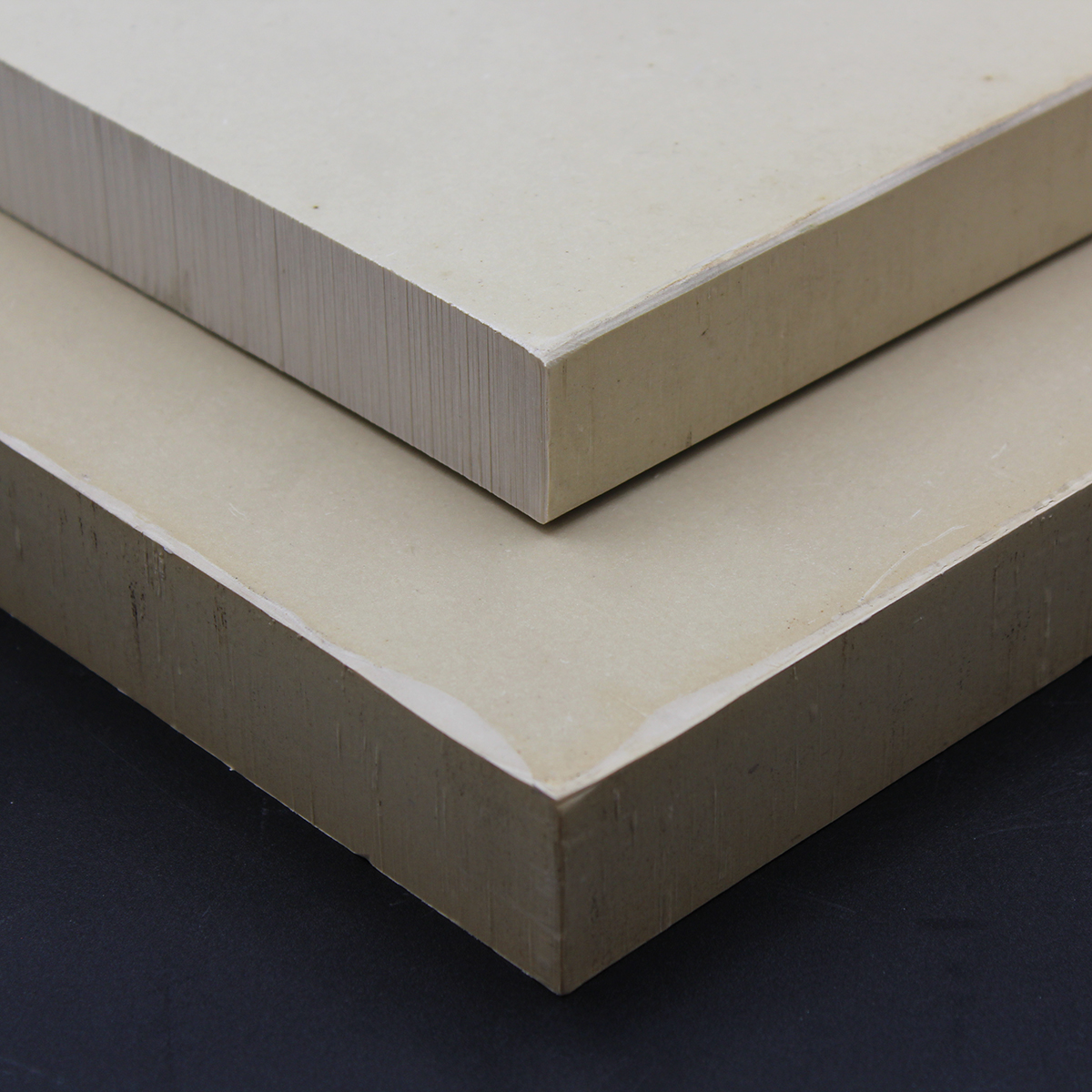

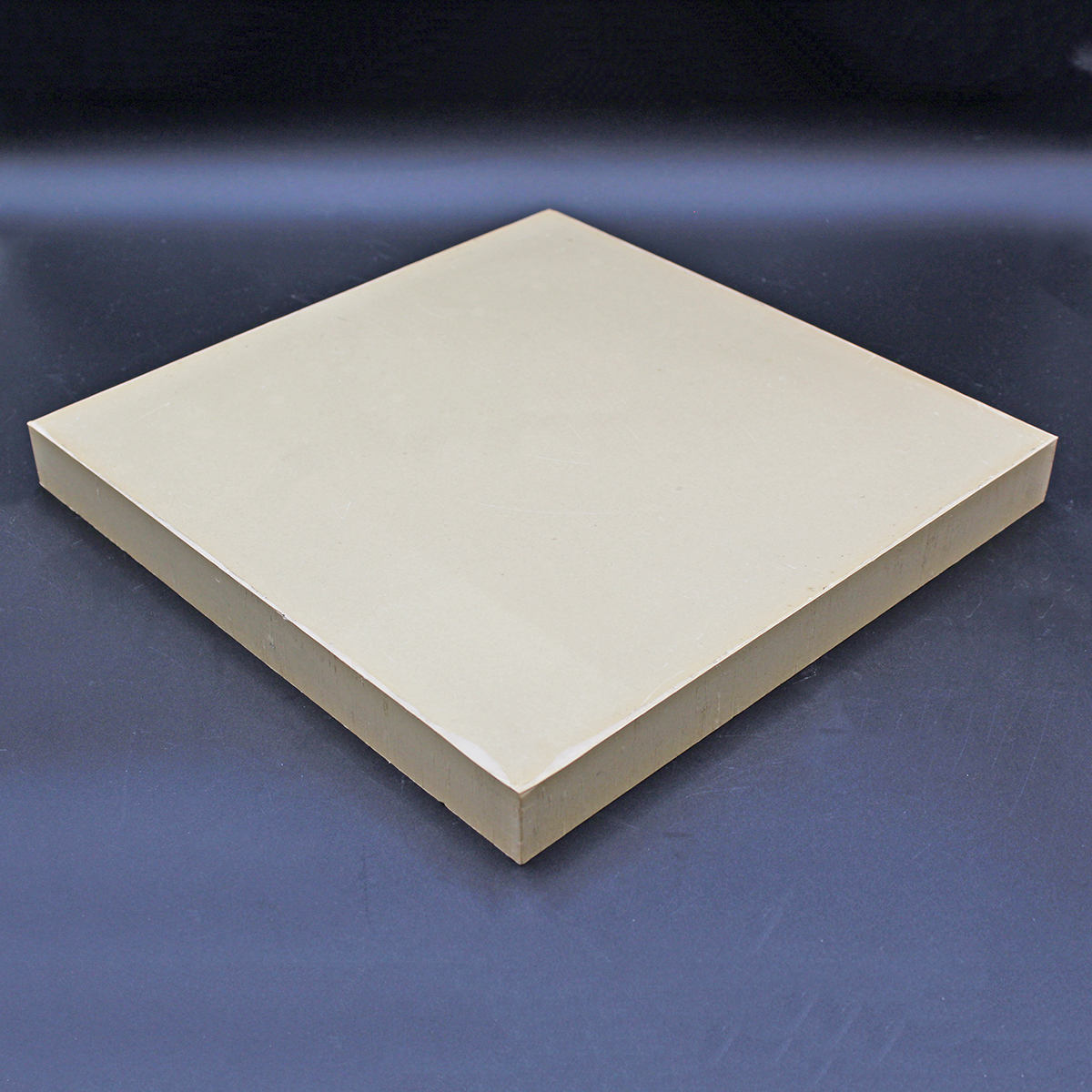

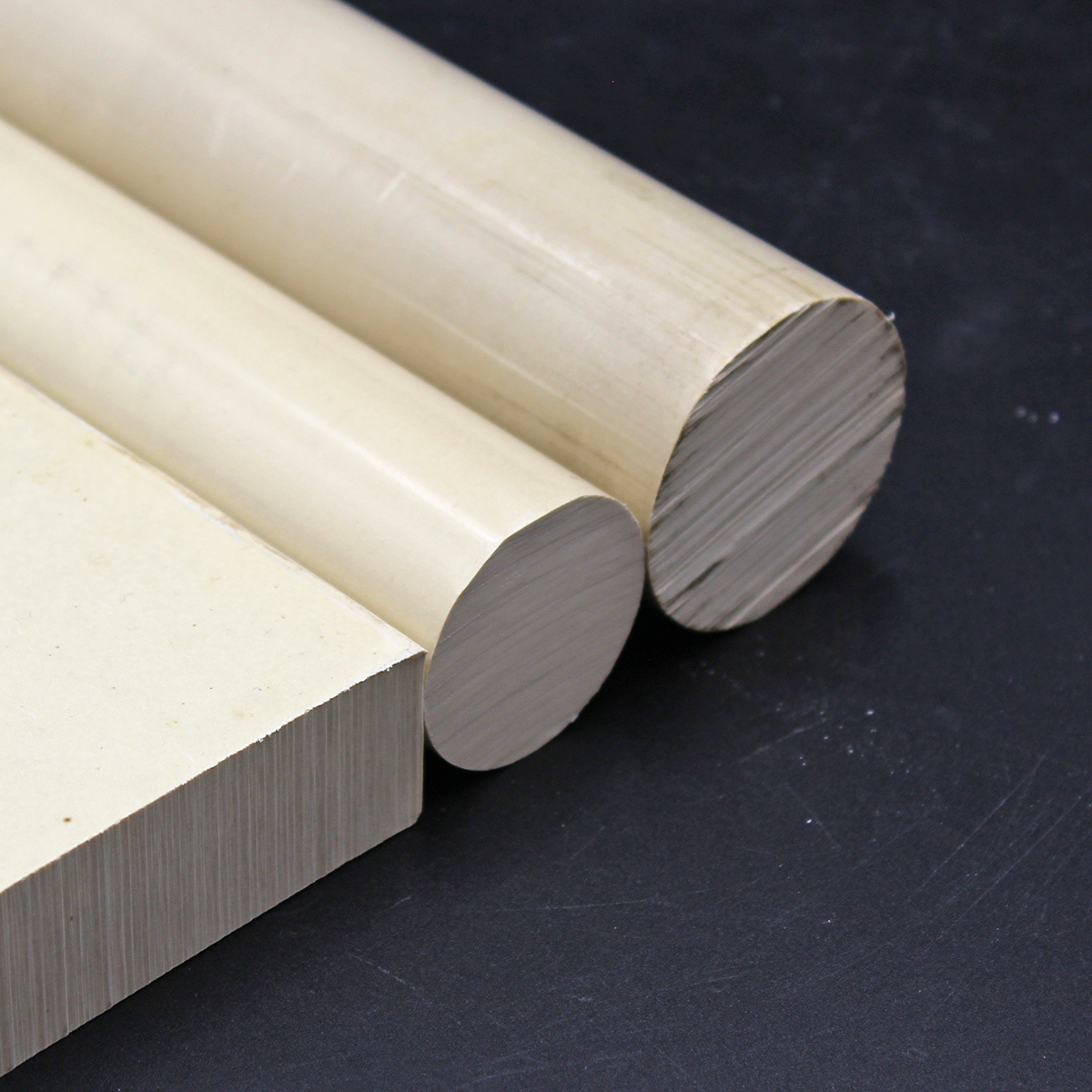

FDA compliant Fluorosint® HPV is a high performance bearing grade of Fluorosint - optimized for high PV and very low “K” or wear factor. Fluorosint® HPV was developed for bearing applications where other, low-tech PTFE formulations exhibit premature wear or simply cannot perform. FDA compliance gives food and pharmaceutical equipment manufacturers new design options and all benefit from its excellent load bearing and wear characteristics. Ideal for high performance bearings, bushings and seals where higher loads and minimal wear are required.

Learn more about the complete line of Fluorosint® Products


Key Properties

  • FDA Compliant
  • Excellent Wear Resistance
  • Excellent Bearing Performance

Limitations

  • Lower Mechanical Properties than other high performance materials

Applications

  • Bushings & Bearings
  • Food Processing Components
  • High Performance Seals
  • Pump, Valve & Compressor Wear Components
  • Thrust washers
  • Wear Guides

Resin Trade Names

Manufacturer Trade Names

  • Fluorosint® HPV

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

  • Dark Tan

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Fluorosint ® HPV

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic Fluoropolymer
Chemical Name PTFE Polytetrafluoroethylene
Trade Name Fluorosint® HPV
Additives Proprietary Additives
Color Dark Tan
Manufacturer Quadrant
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 2.06
  ASTM D792 lb/in³ 0.074
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.15
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 0.43
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 1,450
Tensile Modulus ASTM D638 psi 210,000
Tensile Elongation at Break ASTM D638 % 90
Flexural Strength ASTM D790 psi 2,500
Flexural Modulus ASTM D790 psi 165,000
Compressive Strength ASTM D695 psi 3,000
Compressive Modulus ASTM D695 psi 110,000
Hardness ASTM D785 NA Rockwell R44
IZOD Impact-Notched ASTM D256 ft-lb/in 1.8
Dynamic Coefficient of Friction QTM 55007 (Dry vs Steel) NA 0.15
Wear K Factor QTM 55010 in³-min/ft-lbs-hr 38
Limiting PV QTM 55007 psi-fpm 20,000
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 4.9
Heat Deflection Temp ASTM D648 °C at 264 psi 82
  ASTM D648 °F at 264 psi 180
Melting Point Temp ASTM D3418 °C 327
  ASTM D3418 °F 621
Max Continuous Operating Temp °C 260
  °F 500
Minimum Operating Temp °C -200
  °F -328
Flammability Rating UL94 NA V-0
ELECTRICAL
Property Test Unit of Measure Value
Surface Resistivity ASTM D257 ohm/square >10^13
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant Yes
Relative Cost $$$$$
Machinability 2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Fluorosint® is a registered trademark of Quadrant Engineering Plastic Products.
