Ertalyte ® TX PET-P

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

Unit Price

Subtotal

Note: There is a $50.00 line item minimum on all orders.

General Info

Ertalyte® TX PET-P is an internally lubricated thermoplastic polyester providing enhanced wear and inertness over general purpose nylon(PA) and acetal(POM) products. Containing uniformly dispersed solid lubricant, it provides a lower wear rate and coefficient of friction than unmodified polyesters like PET or PBT and even internally lubricated materials like Acetron® AF POM-H.

Ertalyte® TX PET-P excels under both high pressure and velocity conditions. It is also ideally suited for applications involving soft metal and plastic mating surfaces.

These characteristics make Ertalyte® TX ideal for wet or dry bearing and wear applications that involve high pressure and velocity conditions and environments with soft metal and plastic mating surfaces where noise reduction is critical.

Ertalyte® TX PET-P is FDA Compliant

Click For More Information on the Complete Line of Ertalyte® PET Polyester Products

Key Properties

  • FDA Compliant
  • Good for both wet and dry environments
  • High strength and rigidity
  • Excellent stain resistance
  • Good wear resistance
  • Excellent dimensional stability
  • Better acid resistance than nylon or acetal

Limitations

  • Low Resistance to Continuous Hot Water or Steam
  • Low Resistance to Strong Alkalies
  • Not recommended for continuous use in alkaline liquid or in hot water over (131 F / 55 C)

Applications

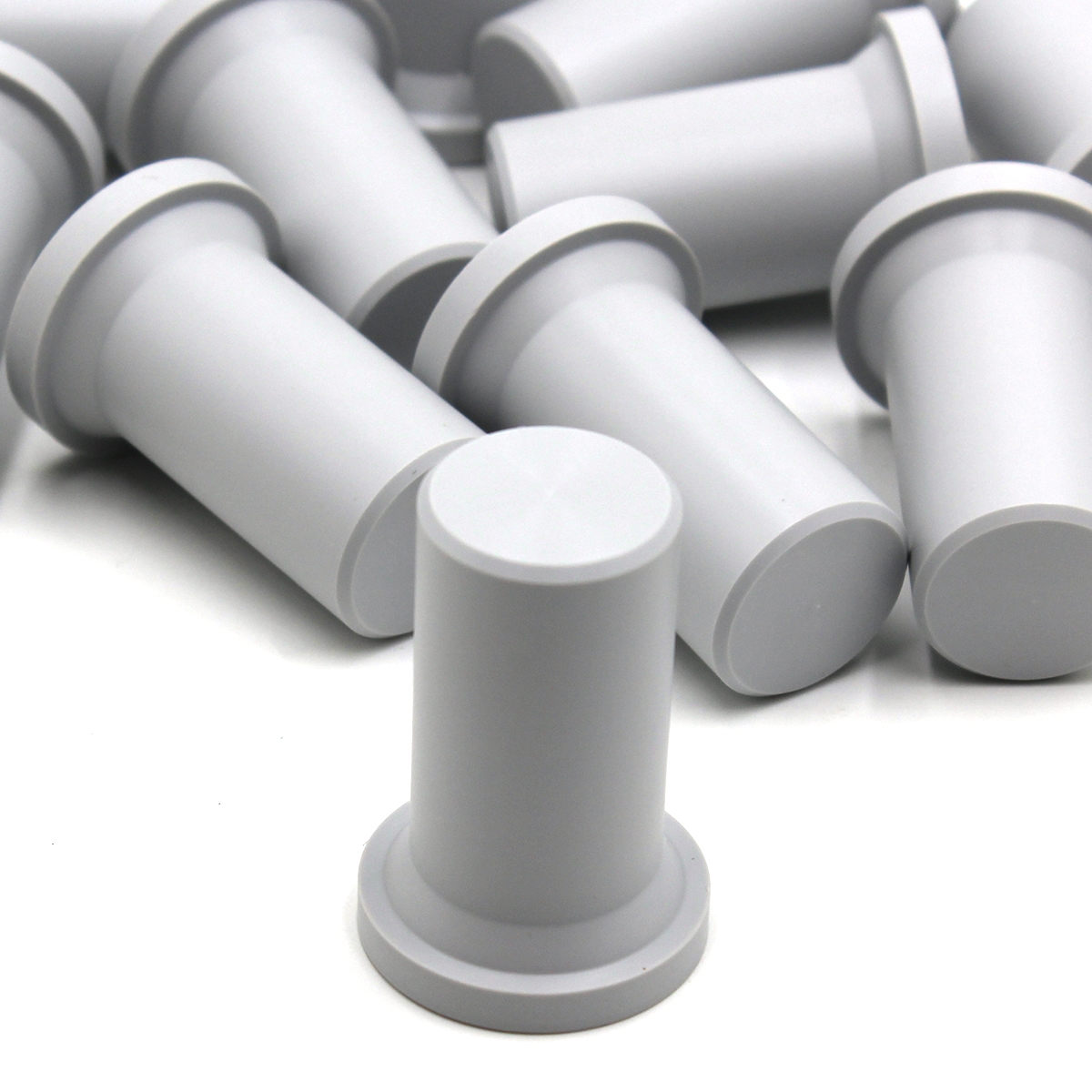

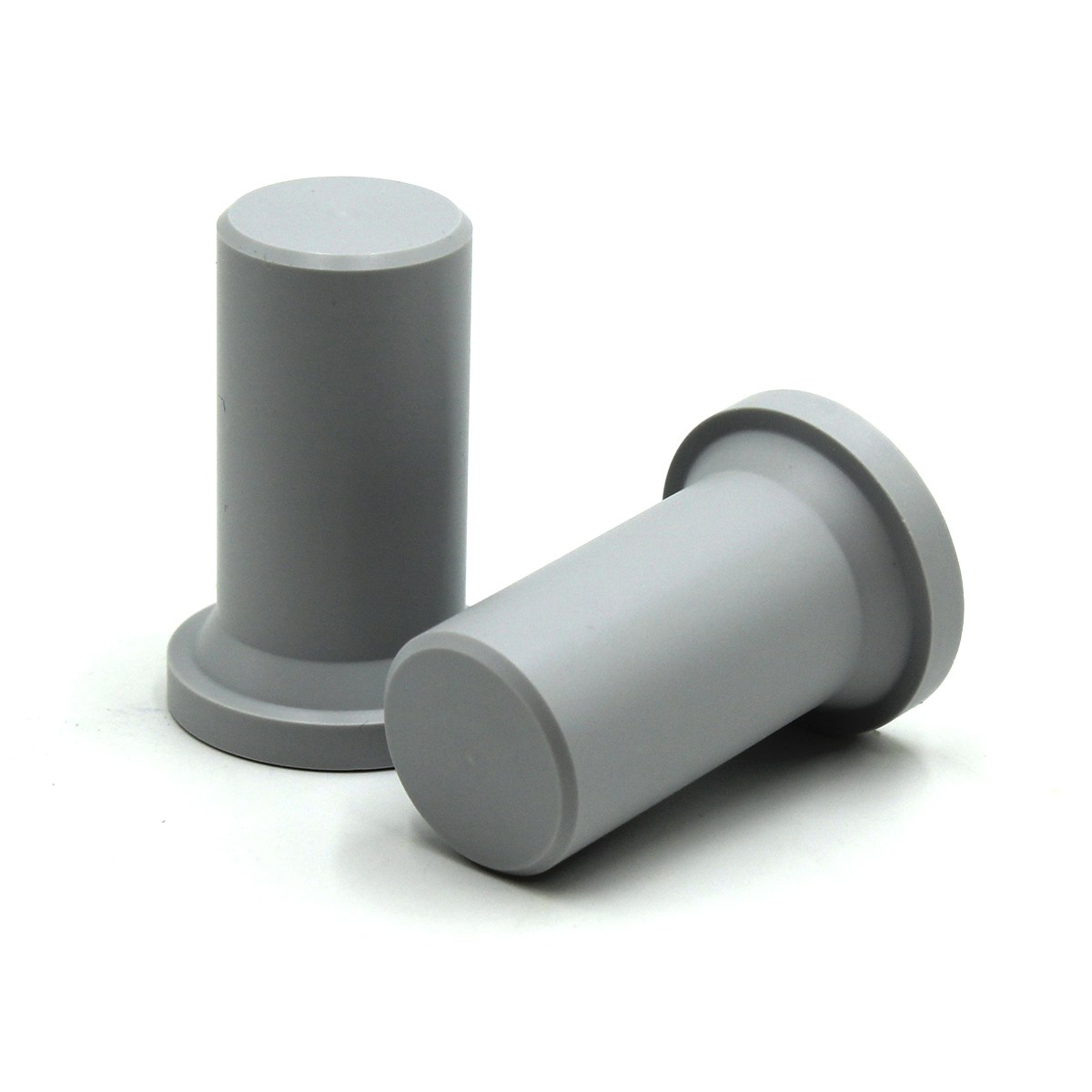

  • Bushings & Bearings
  • Food & Beverage Processing Equipment Components

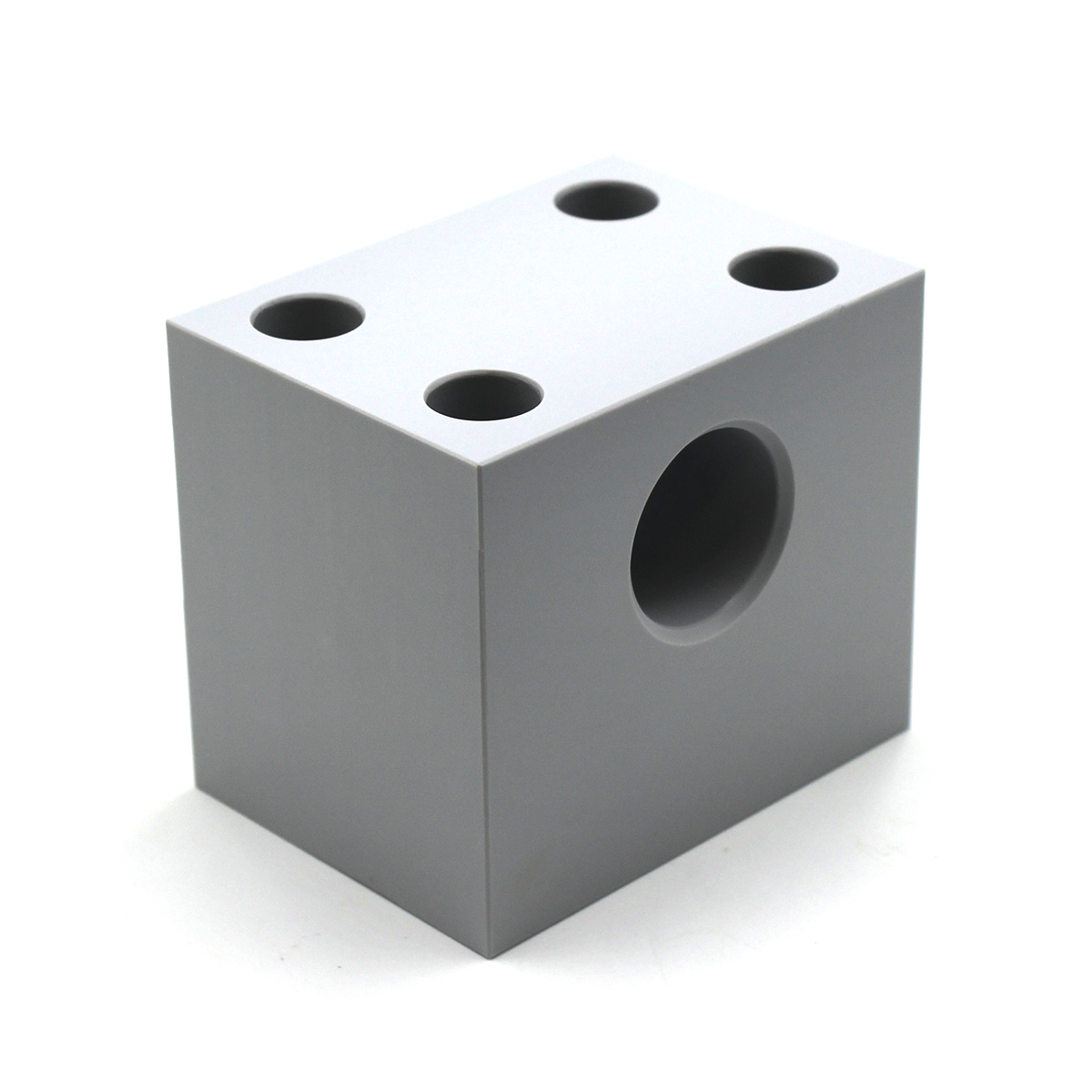

  • Manifolds
  • Pharmaceutical Test Equipment - Carousel, Filter Track, Locating Disk & Ring
  • Piston & Fill Valves for Food Processing
  • Process and Test Equipment Manifolds
  • Pump & Valve Components

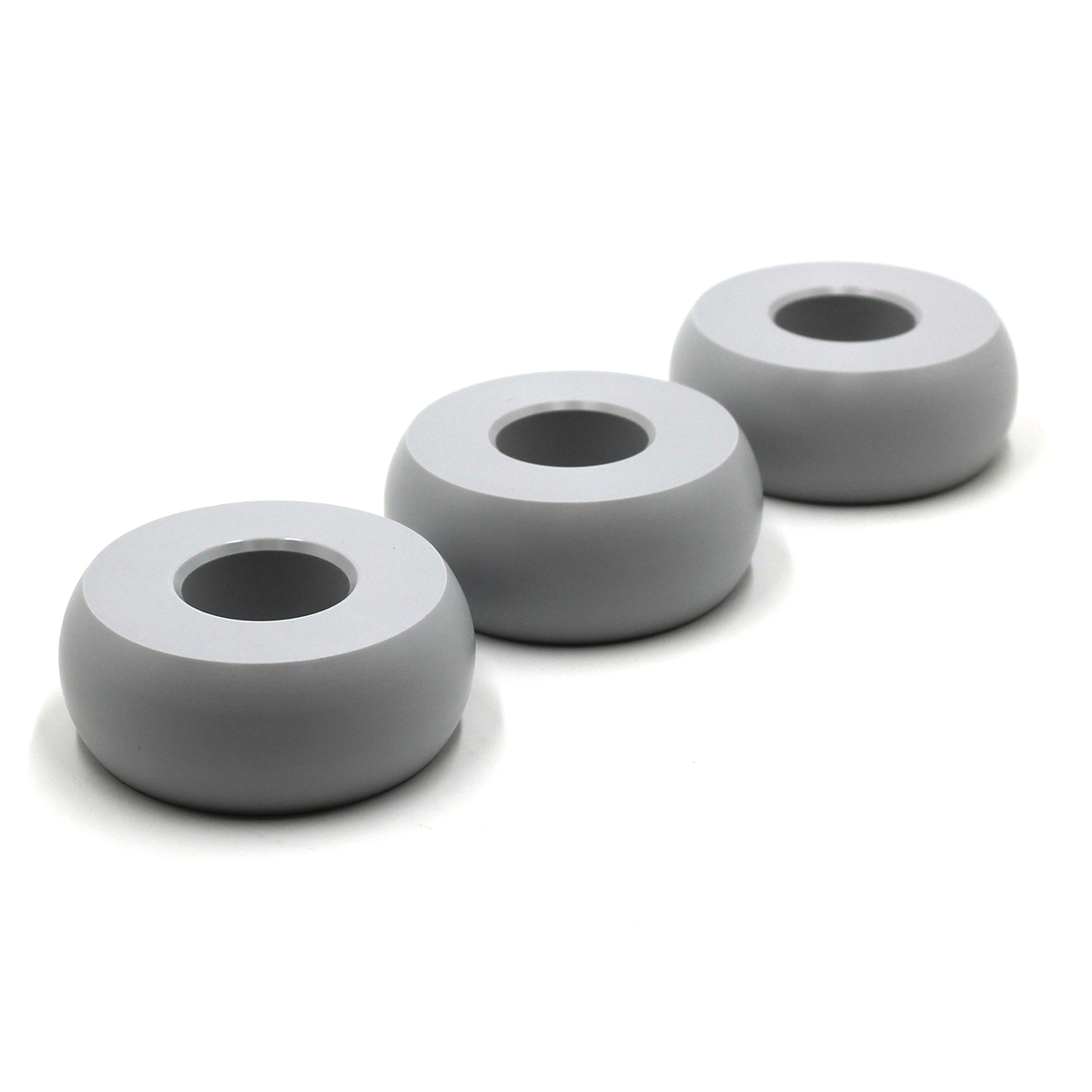

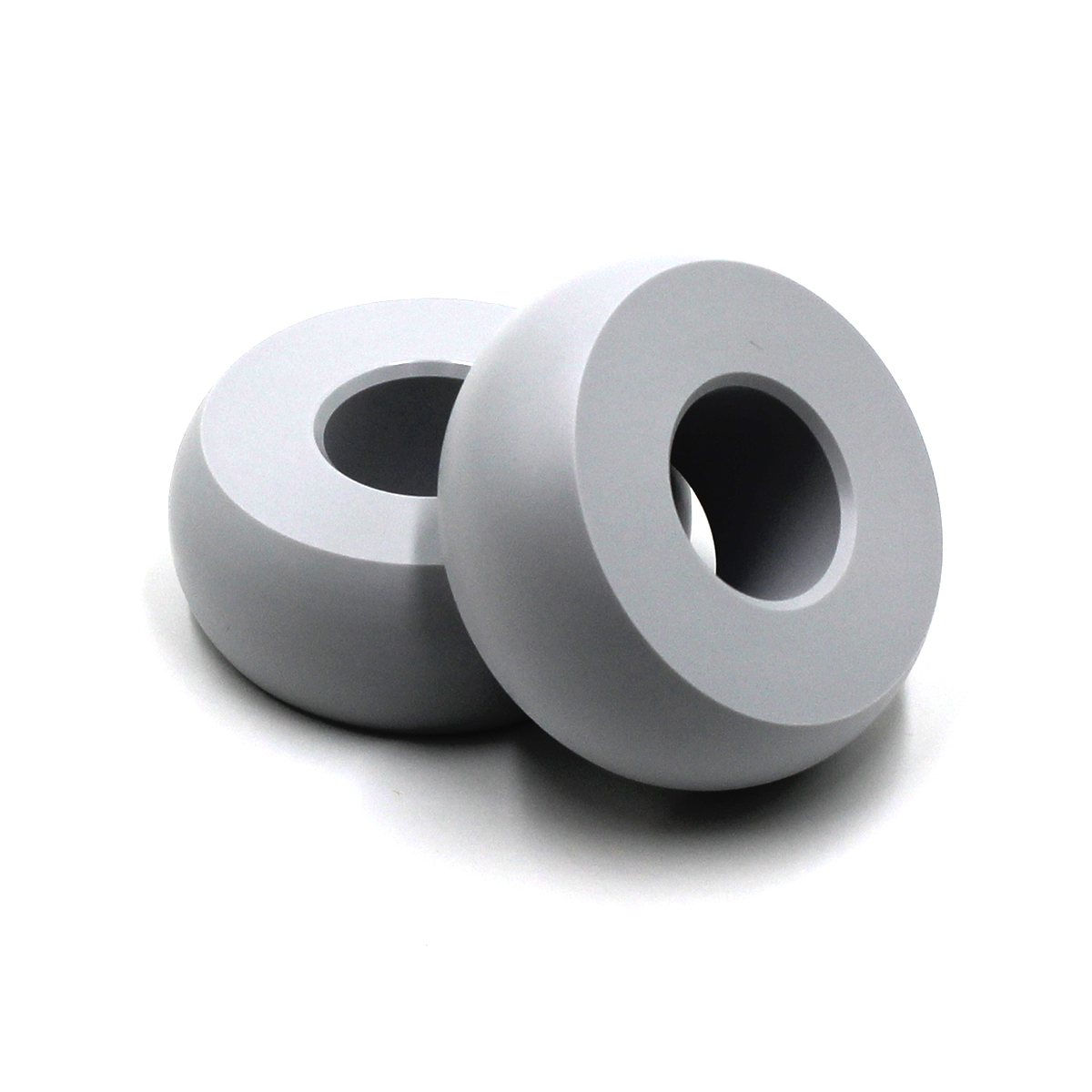

  • Rollers

Resin Trade Names

Manufacturer Trade Names

  • Ertalyte® TX Internally Lubricated

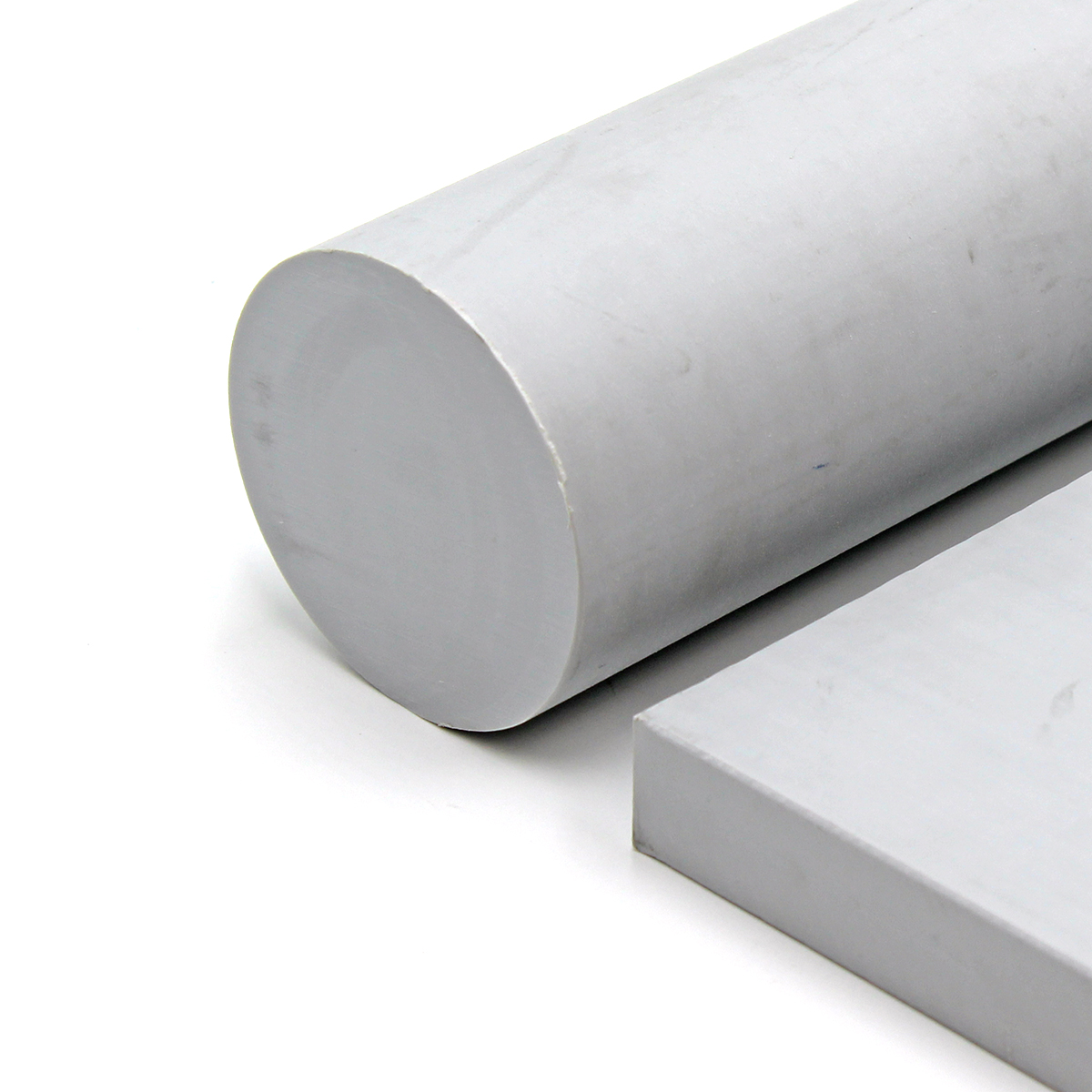

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

  • Gray and Blue (Minimums Apply)

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Ertalyte ® TX PET-P

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name PET-P Polyethylene Terephthalate Polyester
Trade Name Ertalyte® TX
Additives Premium Solid Lubricant Filled
Color Gray
Manufacturer Mitsubishi Chemical Group
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.44
  ASTM D792 lb/in³ 0.052
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.06
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 0.47
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 11,000
Tensile Modulus ASTM D638 psi 500,000
Tensile Elongation at Break ASTM D638 % 5
Flexural Strength ASTM D790 psi 16,000
Flexural Modulus ASTM D790 psi 460,000
Compressive Strength ASTM D695 psi 15,250
Compressive Modulus ASTM D695 psi 400,000
Hardness ASTM D785 NA Shore D80
IZOD Impact-Notched ASTM D256 ft-lb/in 0.4
Dynamic Coefficient of Friction QTM 55007 NA 0.19
Wear K Factor QTM 55010 in³-min/ft-lbs-hr 35
Limiting PV QTM 55007 psi-fpm 6000 (4:1 safety factor)
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 4.5
Heat Deflection Temp ASTM D648 °C at 264 psi 82
  ASTM D648 °F at 264 psi 180
Melting Point Temp ASTM D3418 °C 255
  ASTM D3418 °F 491
Max Continuous Operating Temp °C 99
  °F 210
Minimum Operating Temp °C -28
  °F -20
Thermal Conductivity ASTM C117 BTU-in/ft²-hr-°F 1.9
  ASTM C117 x 10^4 cal/cm-sec-°C 6.6
Flammability Rating UL94 NA HB
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Strength ASTM D149 V/mil 533
Dielectric Constant at 1 MHz ASTM D150 NA 3.6
Dissipation Factor at 1 MHz ASTM D150 NA 0.02
Surface Resistivity ASTM D257 ohm/square > 10^13
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
ASTM Shape Spec ASTM D-6261 S-TPE0211
UV Resistant No
Relative Cost $$$$
Machinability 2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

ERTALYTE is a registered trademark of Mitsubishi Chemical Group. DELRIN is a registered trademark of DuPont.
