Delrin ® AF 20% PTFE-filled Acetal (Full Strength)

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

DELRIN ® AF (PTFE-filled) is manufactured from Delrin ® homopolymer resin which has been uniformly filled with a dispersion of 20% PTFE fibers. Delrin ® AF is a unique thermoplastic material for use in moving parts in which low friction and long wear life are important.

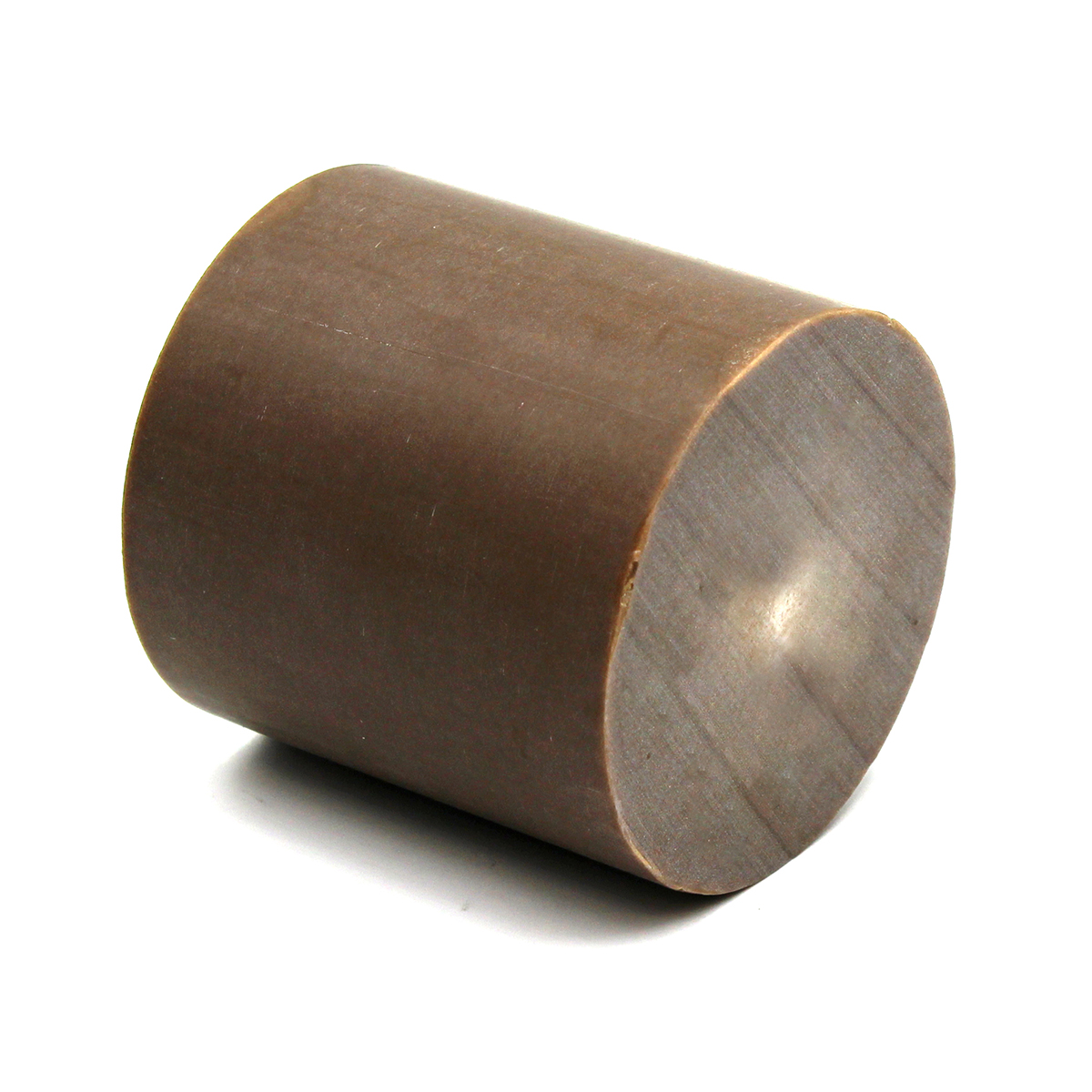

Delrin ® AF is BROWN in color.

Click for more information on the complete line of Delrin Acetal Plastic Products

It is sometimes referred to as Full Strength DELRIN ® AF and can be produced from either Delrin 100 AF or 500 AF resin, due to the higher PTFE fiber content it offers lower frictional properties than AF blends.

DELRIN® 100 AF Blend is the most common and commercially available DELRIN® AF grade. DELRIN® 100 AF Blend offers an attractive blend of properties and lower cost compared to DELRIN® AF Full Strength and is the the most widely used of DELRIN ® AF grades.

Key Properties

Limitations

Applications

Resin Trade Names

Manufacturer Trade Names

Delrin ® AF (Produced in 100 AF or 500 AF Grades)

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Delrin ® AF 20% PTFE-filled Acetal (Full Strength)

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			POM Polyoxymethylene Acetal Homopolymer
Trade Name			Delrin ® AF (Produced in 100 AF or 500 AF Grades)
Additives			PTFE fibers
Color			Brown
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.54
	ASTM D792	lb/in³	0.055
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.2
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	1
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	6,200
Tensile Modulus	ASTM D638	psi	360,000
Tensile Elongation at Break	ASTM D638	%	10
Flexural Strength	ASTM D790	psi	12,000
Flexural Modulus	ASTM D790	psi	445,000
Compressive Strength	ASTM D695	psi	13,000
Compressive Modulus	ASTM D695	psi	250,000
Hardness	ASTM D785	N/A	Rockwell R110 Shore D80
IZOD Impact-Notched	ASTM D256	ft-lb/in	2.38
Static Coefficient of Friction	(Dry vs Steel) PTM 55007 @73 F	NA	0.19
Dynamic Coefficient of Friction	(Dry vs Steel) PTM 55007 @73 F	NA	0.15
Limiting PV	PTM 55007	psi-ft/min	9,000
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	6.1
Heat Deflection Temp	ASTM D648	°C at 264 psi	118
	ASTM D648	°F at 264 psi	244
Max Continuous Operating Temp		°C	82
		°F	180
Minimum Operating Temp		°C	-50
		°F	-58
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	400
Dielectric Constant at 1 MHz	ASTM D150	NA	3.1
Dissipation Factor at 1 MHz	ASTM D150	10^Hz	0.01
Surface Resistivity	EOS/ESD S11.11	ohm	10^13
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

DELRIN® is a registered trademark of DuPont
