Pomalux ® Acetal Copolymer

Compliance Info

Slide 1 of 4, currently active
Slide 2 of 4
Slide 3 of 4
Slide 4 of 4

General Info

Pomalux Polyoxymethylene (POMC) is a high-performance acetal copolymer used for a wide range of applications. Pomalux has good chemical and high-temperature resistance.

As a semi-crystalline material, Pomalux has good wear resistance and low frictional characteristics.

Pomalux also has low moisture absorption making Pomalux a good candidate for a wide range of structural and mechanical components that carry or transmit loads in dry or wet environments.

Both natural and black Pomalux natural are FDA compliant.

Key Properties

Strength and Stiffness
Wear Resistance
Easy to Machine
Dimensional Stability
Low Moisture Absorption
FDA Compliant

Limitations

Applications

Jigs and textures
Pump and valve parts
Bushings and bearings
Gears
Wear pads
Electrical components

Resin Trade Names

Manufacturer Trade Names

Pomalux ®

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

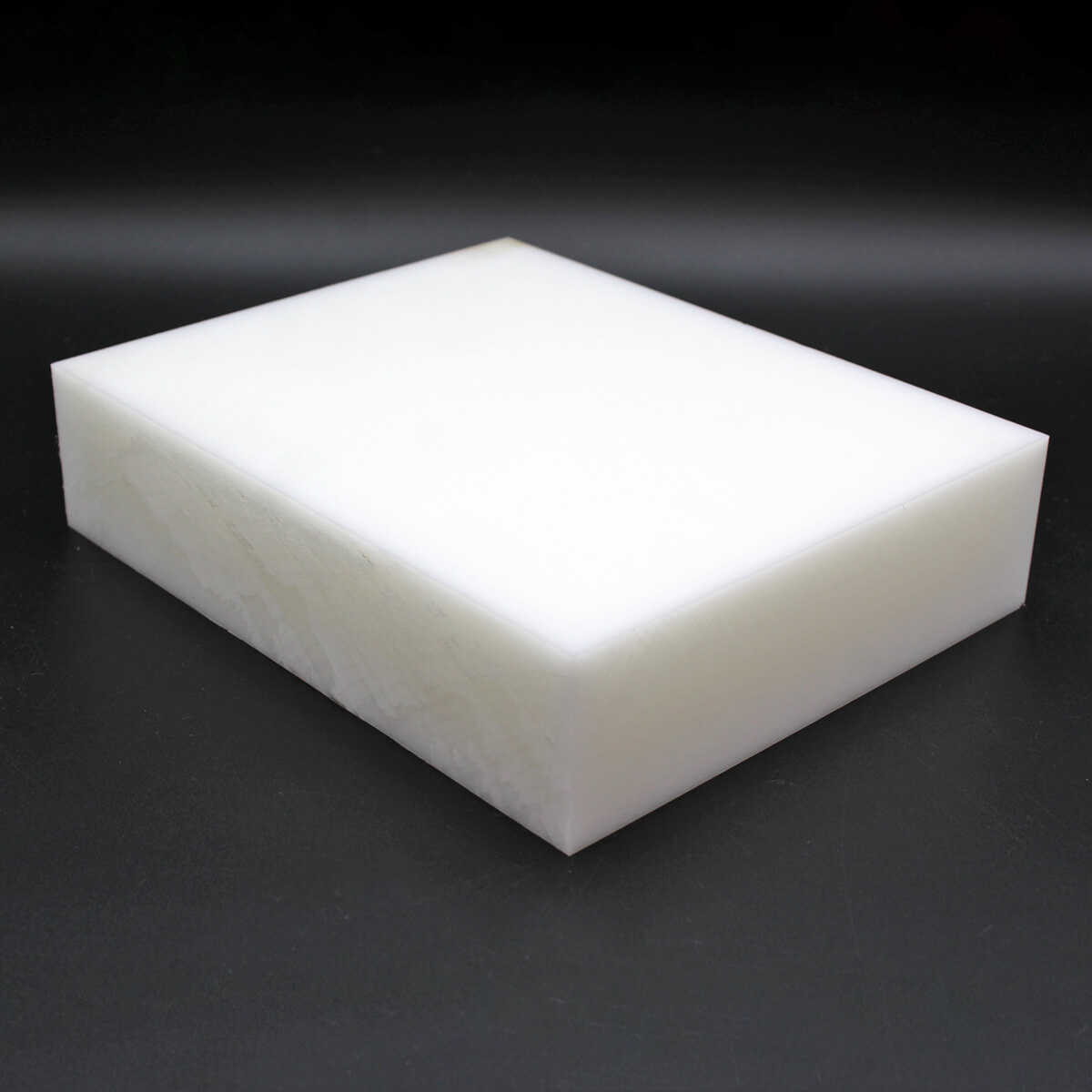

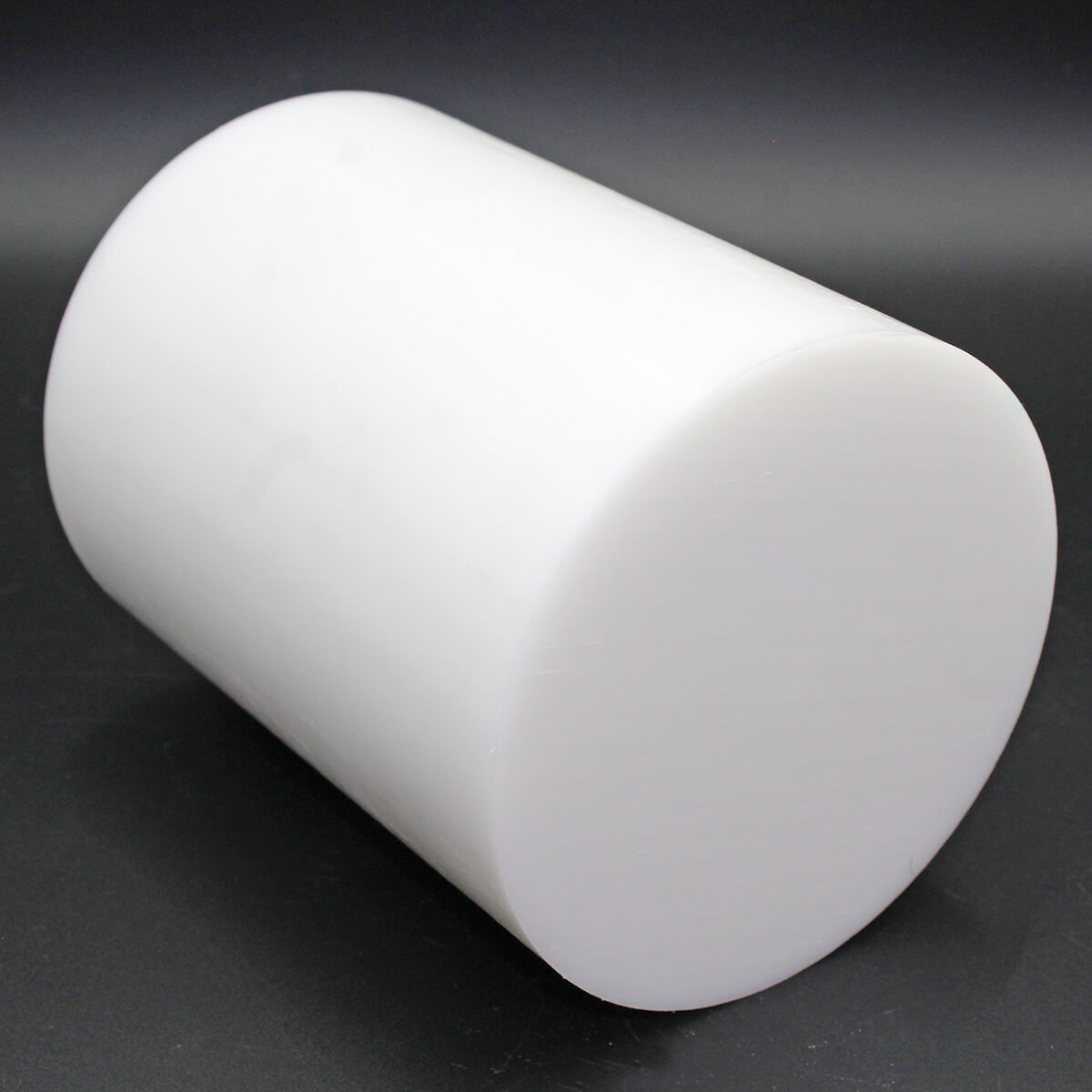

Sheet - .030 to 6.000 Inch Thick Rod - .500 to 8.000 Inch Diameters Film - .002 to .029 Inch Thick

Available Colors

Natural or Black

Safety Data Sheet

Typical Properties of Pomalux ® Acetal Copolymer

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			POM Polyoxymethylene Acetal Copolymer
Trade Name			Pomalux ®
Color			Natural or Black
Manufacturer			Westlake
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.41
	ASTM D792	lb/in³	0.051
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.2
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	13,700
Tensile Modulus	ASTM D638	psi	357,000
Tensile Elongation at Break	ASTM D638	%	75
Flexural Modulus	ASTM D790	psi	375,000
Compressive Strength	ASTM D695	psi	16,000
Hardness	ASTM D785	Rockwell M	Rockwell M78
IZOD Impact-Notched	ASTM D256	ft-lb/in	1.5
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-4 in./in./°F	1.2
Heat Deflection Temp	ASTM D648	°C at 264 psi	110
	ASTM D648	°F at 264 psi	230
Max Continuous Operating Temp		°C	82
		°F	180
Minimum Operating Temp		°C	-50
		°F	-58
Thermal Conductivity	ASTM C177	cal/sec/cm^2/C/cm	1.6
Flammability Rating	UL94	NA	HB
COMPLIANCE
Description			Value
FDA			Yes
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Pomalux® is a registered trademark of Westlake Plastic Company.
