Delrin ® 527 UV Stable Acetal

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

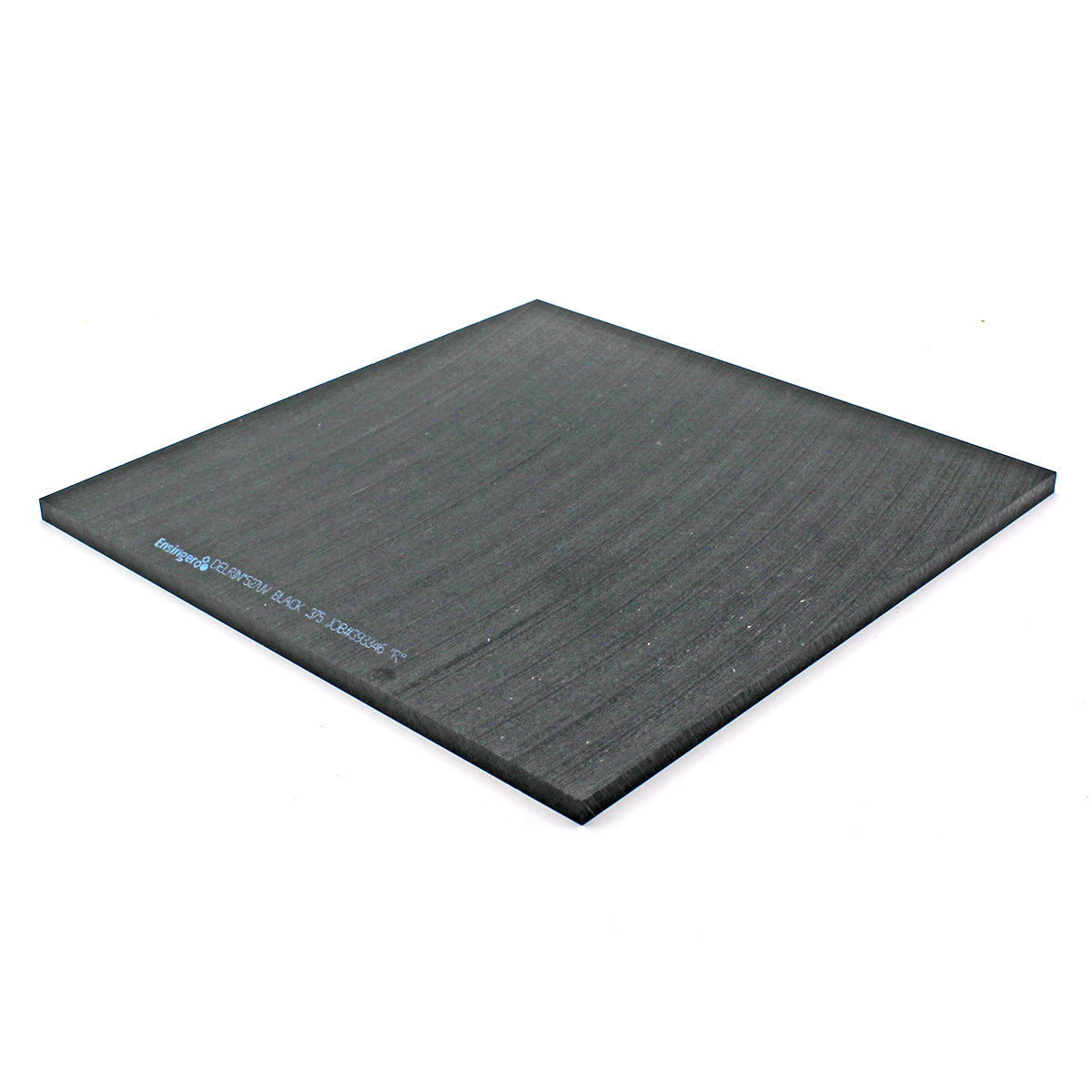

DELRIN® 527 UV BK701 is a black homopolymer acetal that has been enhanced with UV stabilizers. It is also available in natural on a custom run basis. Developed by DuPont to replace Delrin®507, this material is particularly suited to automotive and other outdoor applications. It exhibits improvements in UV aging characteristics and thermal stability.

Click for more information on the complete line of Delrin Acetal Plastic Products

Key Properties

Enhanced Longevity Under UV Exposure
High Surface Hardness
Good Machining Characteristics
Suited to Automotive and Outdoor Applications
Improved UV Stability Over Delrin® 507

Limitations

Wear Resistance in Dry Environments
Poor Resistance to Strong Acids and Alkalies
Larger Cross Sections are prone to Centerline Porosity

Applications

Automotive Components
Construction Equipment Components
Electronic Components
Outdoor Applications
Outdoor Housings
Structural Components

Resin Trade Names

Manufacturer Trade Names

DELRIN® 527

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Delrin ® 527 UV Stable Acetal

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			POM Polyoxymethylene Acetal Homopolymer
Trade Name			DELRIN® 527
Additives			UV Stabilizer
Color			Black
Manufacturer			Ensinger
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.41
	ASTM D792	lb/in³	0.051
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.14
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	10,300
Tensile Modulus	ASTM D638	psi	420,000
Tensile Elongation at Break	ASTM D638	%	15
Flexural Strength	ASTM D790	psi	13,500
Flexural Modulus	ASTM D790	psi	585,000
Hardness	ASTM D785	NA	Rockwell M89
IZOD Impact-Notched	ASTM D256	ft-lb/in	1.25
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	6.1
Heat Deflection Temp	ASTM D648	°C at 264 psi	92
	ASTM D648	°F at 264 psi	198
Melting Point Temp	ASTM D3418	°C	178
	ASTM D3418	°F	352
Max Continuous Operating Temp		°C	85
		°F	185
Minimum Operating Temp		°C	-50
		°F	-58
Flammability Rating	UL94	NA	HB
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
ASTM Shape Spec			ASTM D6100-17 S-POM01601222434 (Only for Acetal shapes >0.062" thick)
UV Resistant			Yes
Relative Cost			$$$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

DELRIN® is a registered trademark of DuPont.
