General Info
U-60CF is an ultra-high strength carbon fiber reinforced compression molded PBI variant available as a stock shape. CF reinforced PBI has 36 kpsi tensile strength, 42 kpsi flexural strength, and 65 kpsi compressive strength.
Ideal for bearing and wear and structural applications that require a high strength material for extreme temperatures.
U-60CF has excellent dimensional stability and offers a very low CLTE.
Available in 15%, 25% or 30% carbon fiber reinforced grades.
Click for more information on the complete line of Celazole PBI Products
For Celazole PBI resin (powder/pellet), solution, film, or fiber please contact: Mr. Mike Gruender, Vice President of Sales & Marketing, PBI Performance Products, Inc. in Charlotte, NC (USA) at 1-704-554-3036 or e-mail him at [email protected]
Boedeker Plastics, Inc. is a preferred partner of PBI Performance Products, Inc. in the supply of Celazole PBI parts and shapes.
Key Properties
- Higher Mechanical Properties than unfilled PBI
- Enhanced Dimensional Stability over unfilled PBI
- Lower CLTE than unfilled PBI
- 36,000 PSI Tensile Strength
- 65,000 PSI Compressive Strength
- Best Mechanical Properties to 800°F (425°C)
- Continuous Service Capability of 650°F (343°C) in Air
- Continuous Service Capability Of 750°F (399°C) in Inert Environments
- Highest Heat Deflection Temperature 800°F (427°C)
Limitations
- PBI is extremely hard and can be challenging to fabricate.
- Polycrystalline diamond tools are recommended when fabricating production quantities.
- PBI tends to be notch sensitive. All corners should be radiused (0.040" min.) and edges chamfered to maximize part toughness.
- High tolerance fabricated components should be stored in sealed containers (usually polybags with desiccant) to avoid dimensional changes due to moisture absorption. •Cracking or Blistering - While it is not common, serious part damage can result from severe environmental shocks when PBI parts have sorbed moisture. This may occur when a moisture-containing PBI part experiences a rapid and extreme change in temperature nd/or pressure. For example, a part containing 4% moisture at ambient temperature and pressure which is then placed in full vacuum at 300C may crack or blister as the moisture escapes. Likewise, a PBI part saturated in steam and then rapidly decompressed may crack or blister. To avoid these situations, users must understand how to store and dry PBI parts (Contact Us for Guidelines).
Applications
- Guide Rollers
- High Temp Bushings and Bearings
- High Temp Structural Components
Resin Trade Names
- Celazole ® U-60 CF Carbon Fiber Reinforced PBI
Manufacturer Trade Names
- Celazole ® U-60 CF Carbon Fiber Reinforced PBI
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Available in 15%, 25% or 30% carbon fiber reinforced grades.

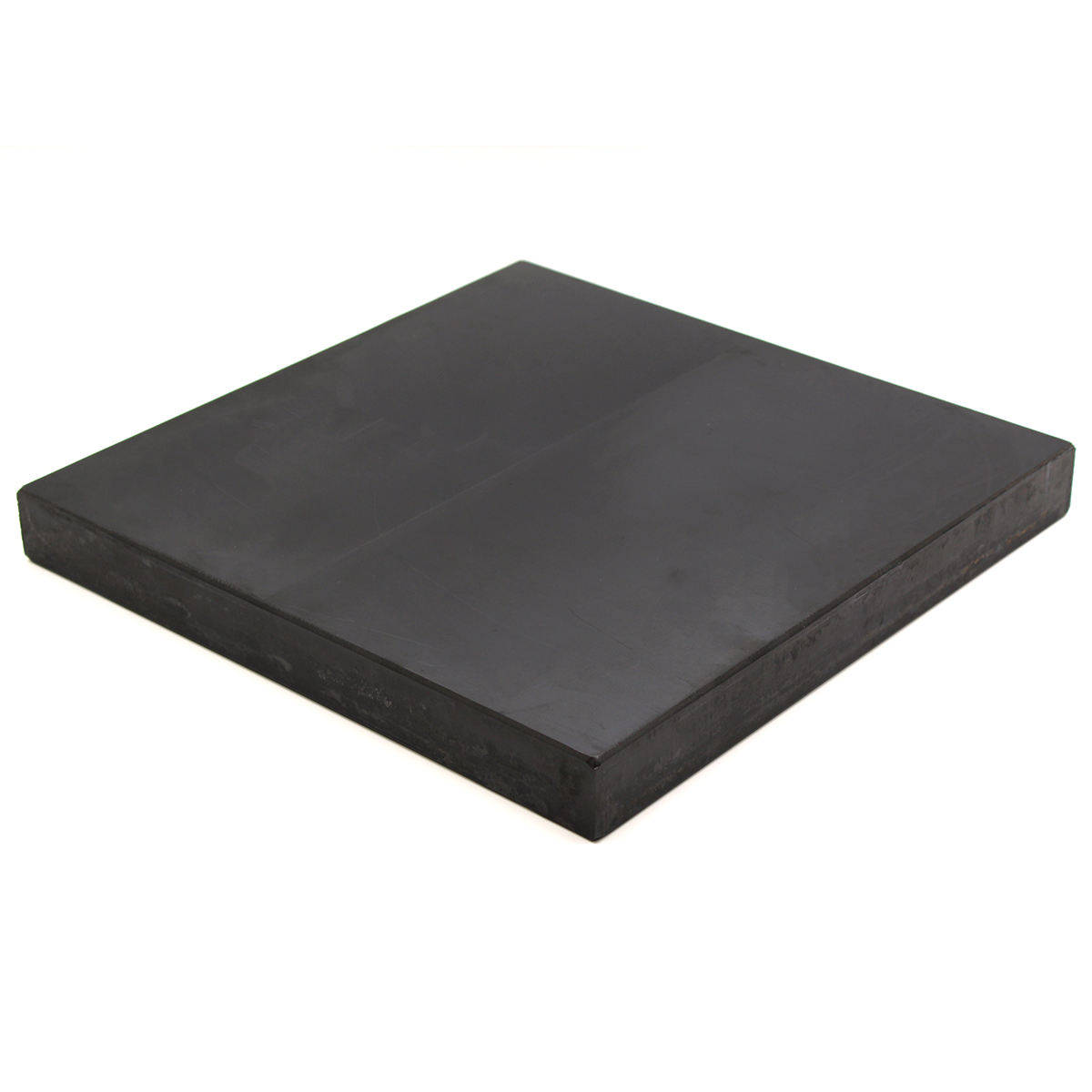

Sheet Thickness .390 in (10 mm), .790 in (20 mm), 1.180 in (30 mm), 1.570 in (40 mm)
Width and Length 7.48 in (190 mm) x 7.48 in (190 mm)
Contact us for Rod and Tube Availability
NOTE: For PBI resin (powder / pellet) or filament please contact: Mr. Mike Gruender, PBI Polymer Product Manager for PBI Performance Products, Inc. in Charlotte, NC (USA) at 1-704-554-3036 or e-mail him at [email protected].
