TPX ™ PMP Polymethylpentene

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

TPX™ Polymethylpentene is the lightest of all known polymers with a density of 0.83 g/cm³. It's most important property is optical transparency in both the far-infrared and visible parts of the spectrum. TPX ® also has excellent electrical insulating and chemical resistance properties, and offers a very high melting point. It is available in sheet, rod and film forms.

Key Properties

  • TPX™ is optically transparent in far-infrared and visible parts of the spectrum, allowing the co-transmission of a HeNe laser alignment beam.
  • Index of refraction is 1.46 and is relatively independent of wavelength.
  • Loss is very low at mm-wavelengths and gradually increases until becoming unacceptable in the mid-IR at about 30 to 50 microns wavelength.
  • Because of its low density, TPX ® has high acoustic efficiency (a high damping factor due to large internal losses.) It also displays exceptionally low distortion and high power handling characteristics.

Limitations

Applications

  • Sound equipment -- speaker cones, ultrasound scanners
  • Medical -- instrument handles, petri dishes
  • Laser lenses
  • Microwave oven trays
  • Release paper
  • Release Film
  • Release Paper for Synthetic Leather
  • LED Molds
  • Mandrels And Sheaths For Rubber Hose Production
  • Cosmetic Caps and Tubes
  • Heat Resistant Non-Woven
  • Chemical Tubes
  • Animal Cages

Resin Trade Names

  • TPX™

Manufacturer Trade Names

  • TPX™ PMP Polymethylpentene

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

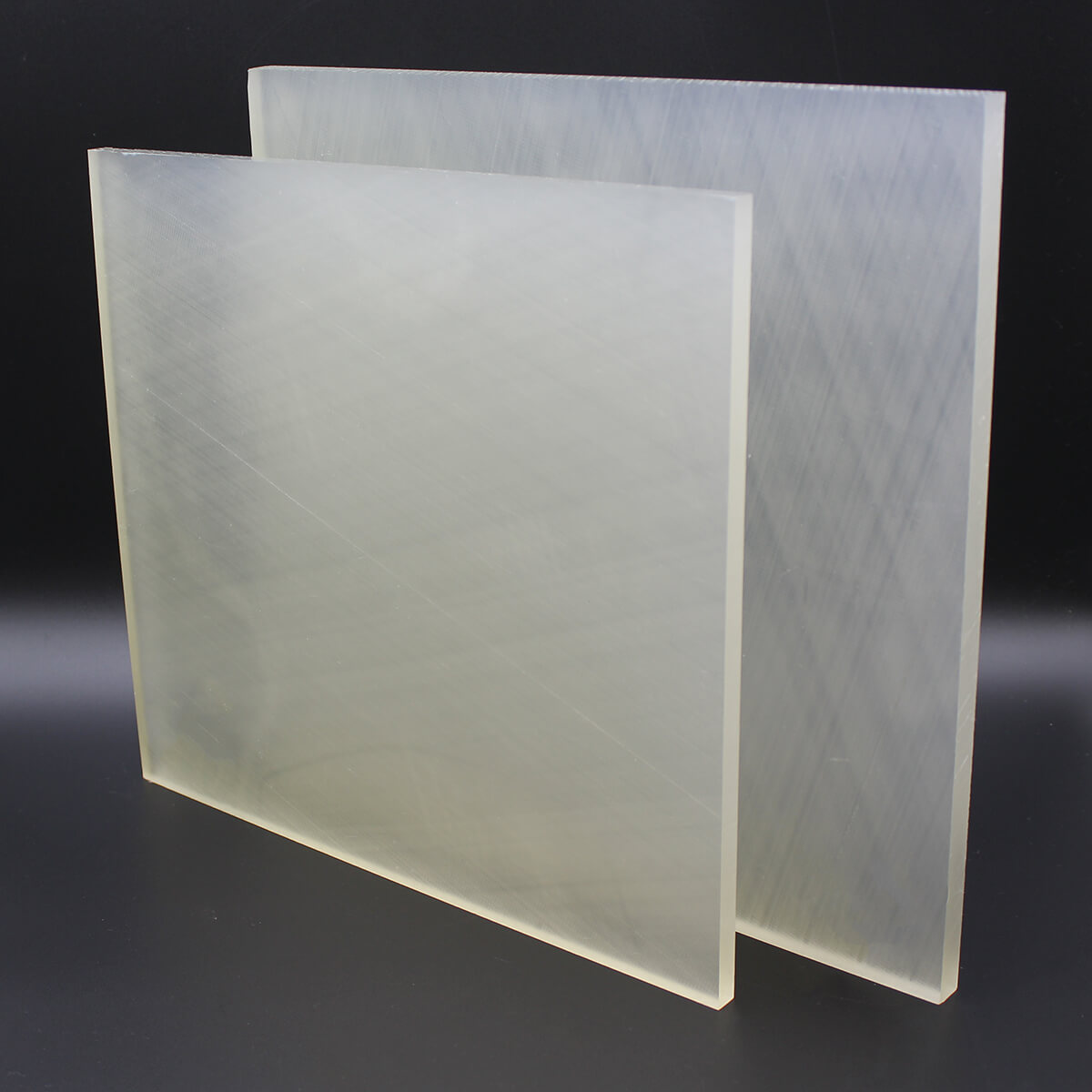

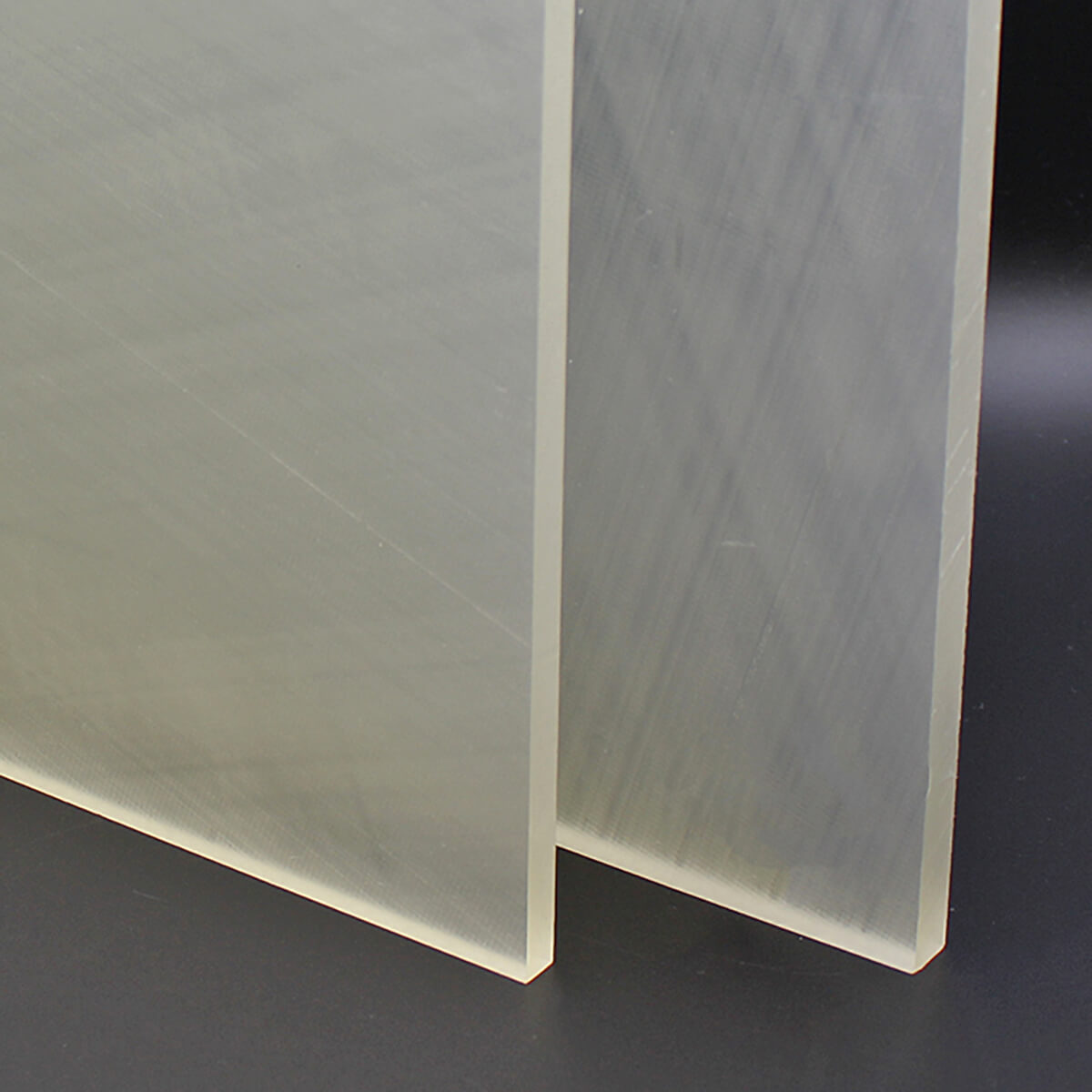

Sheet: .035" to 4.000" thick Rod: .250" to 4.000" diameter Film: .002" to .029" thick Minimums may apply

Available Colors

  • Transparent Clear

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of TPX ™ PMP Polymethylpentene

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name PMP Polymethylpentene
Trade Name TPX™
Additives Unfilled
Color Transparent Clear
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.83
  ASTM D792 lb/in³ 0.03
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.01
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 4,100
Tensile Modulus ASTM D638 psi 280,000
Flexural Strength ASTM D790 psi 6,100
Flexural Modulus ASTM D790 psi 210,000
IZOD Impact-Notched ASTM D256 ft-lb/in 1
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 6.5
Heat Deflection Temp ASTM D648 °C at 264 psi 100
  ASTM D648 °F at 264 psi 212
Max Continuous Operating Temp °C 100
  °F 212
Thermal Conductivity ASTM C117 BTU-in/ft²-hr-°F 1.16
Flammability Rating UL94 NA HB
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Strength ASTM D149 V/mil 20
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant No
Relative Cost $$$
Machinability 3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TPX™ is a registered trademark of Mitsui Petrochemical Industries, Ltd.
