General Info
PolyTetraFluoroEthylene is a fluorocarbon-based polymer and is commonly abbreviated PTFE. While the most famous brand of PTFE is manufactured only by DuPont, several other manufacturers make their own brands of PTFE which can often be used as substitute material. PTFE has outstanding chemical resistance, a wide operating temperature range from cryogenic to 500F, resistance to weathering, high impact strength, low friction, electrical and thermal insulation, and self-lubricating properties. 25% Glass filled PTFE has improved dimensional stability with a lower coefficient of linear thermal expansion and higher deformation under load.
Click for more information on the complete line of PTFE Plastics
Key Properties
- Excellent Chemical Resistance
- Excellent Dielectric Properties
- Improved Stiffness vs. Unfilled PTFE
- Lower CLTE vs. Unfilled PTFE
- Resistance to Weathering
- Self-Lubricating
- Very Low Coefficient of Friction
- Wide Operating Temperature Range from Cryogenic to 500F
Limitations
- High Loads
- Subject to Creep, Cold Flow
- Thermal Expansion
- Tight Tolerance Applications
Applications
- Chemical Processing Components
- Electrical Components
- Gaskets
- Pump & Valve Components
- Seals
- Valve Seats
Resin Trade Names
Manufacturer Trade Names

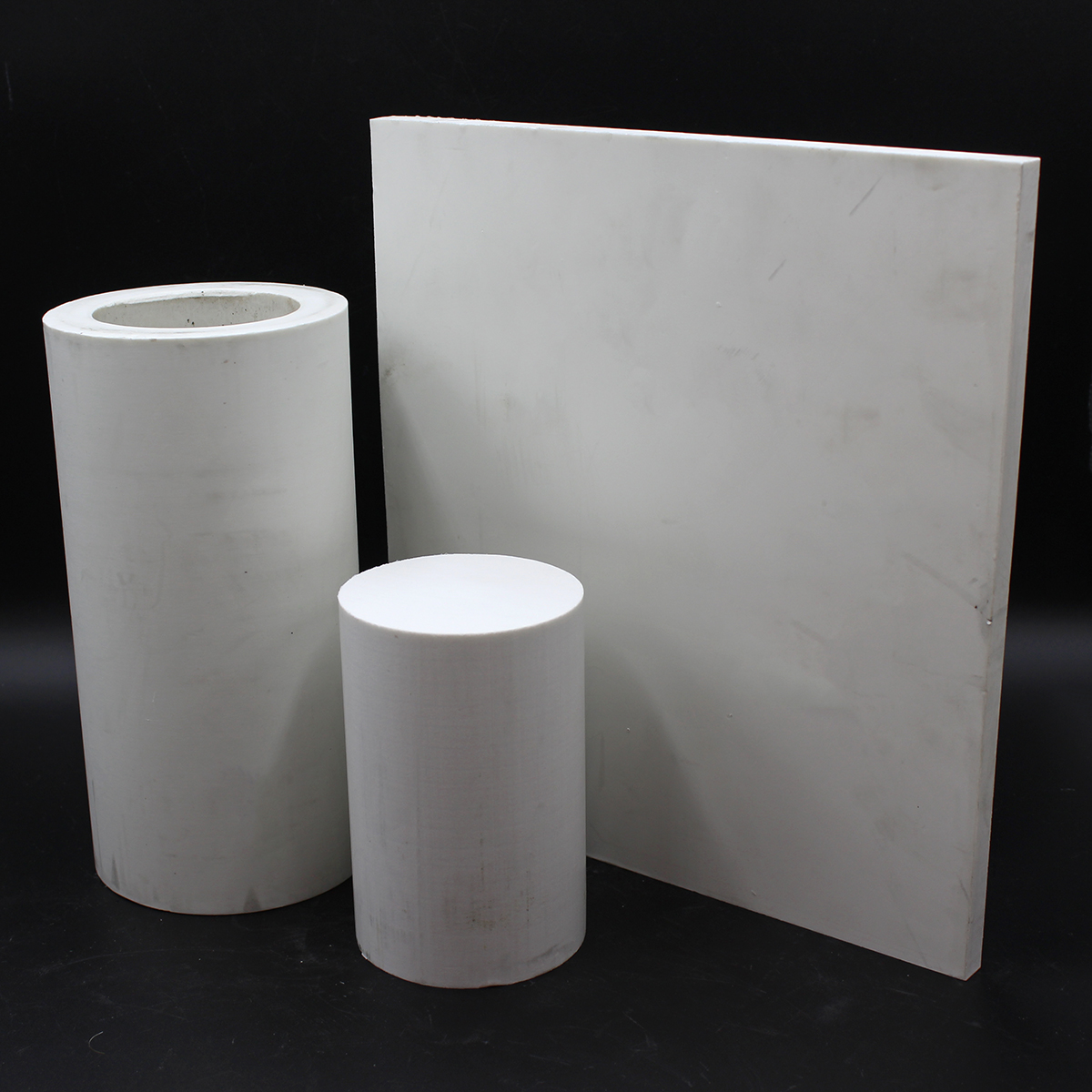

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
