BOETEK™ 550 Mica Reinforced PTFE

Compliance Info
BOETEK™ 550 Mica Reinforced PTFE
Previous Next
  • Slide 1 of 4, currently active
  • Slide 2 of 4
  • Slide 3 of 4
  • Slide 4 of 4
Previous Next

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

BOETEK™ 550 is a high-performance fluoropolymer-based compound reinforced with synthetic mica, specifically engineered for demanding applications.

This compression-molded advanced polymer offers exceptional dimensional stability and superior thermal and mechanical properties. BOETEK™ 550 excels at creating abradable seals for rotating and turbo equipment, providing 9 times greater resistance to deformation than unfilled PTFE and better abradability than Nickel Graphite, Babbitt, and other soft materials.

Other benefits include improved compressive strength compared to unfilled PTFE and impervious to most hydrocarbons, with excellent chemical resistance, including corrosive gases such as Chlorine.

Its unique thermal expansion properties closely match aluminum, minimizing fit and clearance issues.

Additionally, it's one-third harder than standard PTFE, ensuring enhanced wear resistance while maintaining low friction. It also offers a max continuous use temperature of 550°F.

BOETEK™ 550 Mica Reinforced PTFE for reliable, efficient sealing solutions that outperform traditional materials and support higher pressure applications effectively. In many applications, you can upgrade seals, valve seats, and other sealing applications in pumps, valves, and compressor applications with BOETEK™ 550 for increased part life and increased mean time between repairs.


Key Properties

  • Low Deformation Under Load 9X Greater Than Unfilled PTFE
  • No Abrasive to Mating Surface
  • Excellent Chemical Resistance
  • Resistant to Corrosive Gases including Chlorine
  • Outstanding Dimensional Stability, Close to Aluminum

Limitations

  • Lower Mechanical Properties than other high performance materials

Applications

  • Automotive and Truck Turbocharger Abradable Seals
  • Labyrinth sacrificial, Abradable Seals
  • In addition to the security a sacrificial part provides the system, BOETEK 550 Mica Reinforced PTFE allows the introduction of abradable sealing technology where mating parts are allowed to cut their own running clearance and thus permitting significant gains in efficiency.
  • Shrouds
  • Split and one-piece seals
  • Valve Seats and Seals

Resin Trade Names

Manufacturer Trade Names

  • BOETEK™ 550 Mica Reinforced PTFE

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

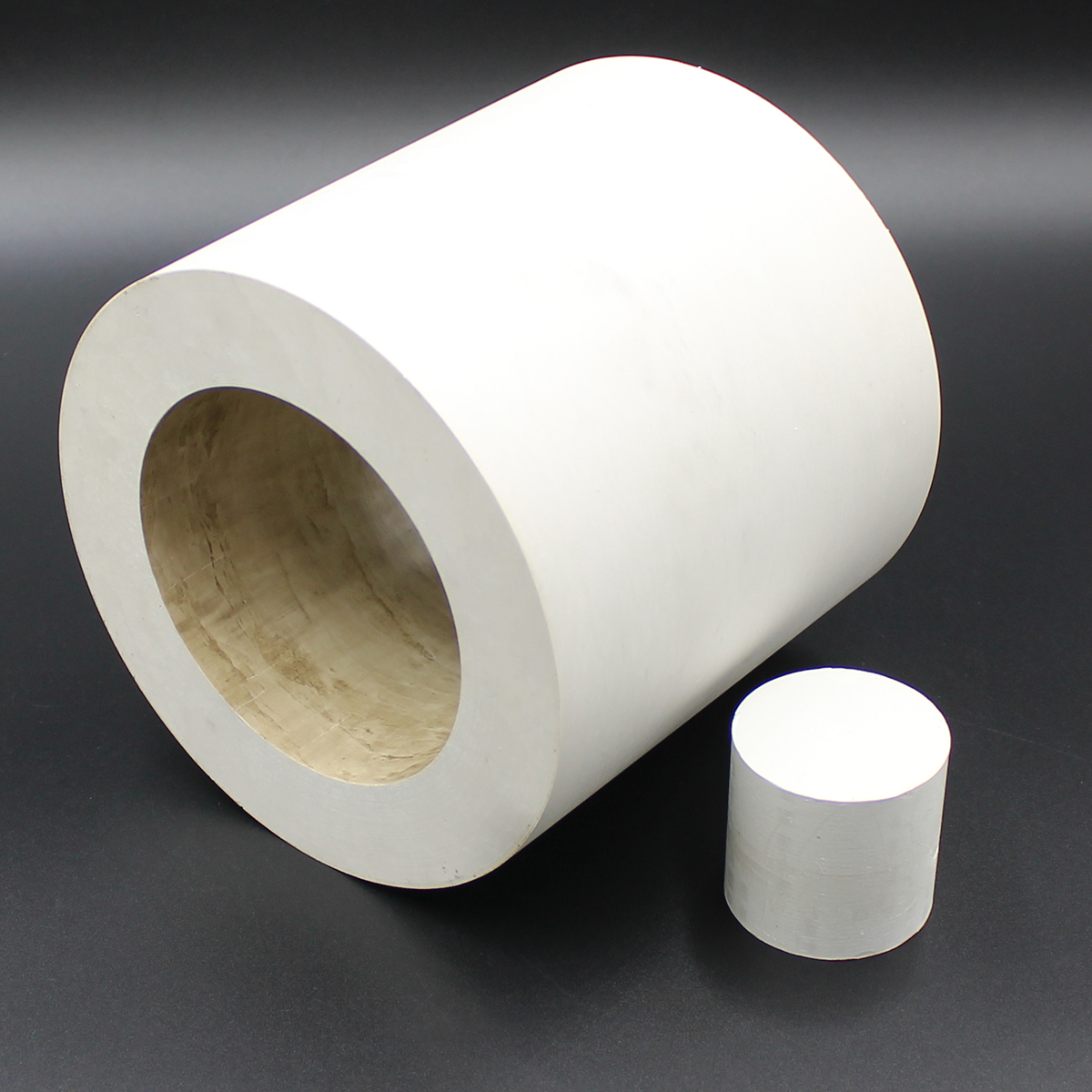

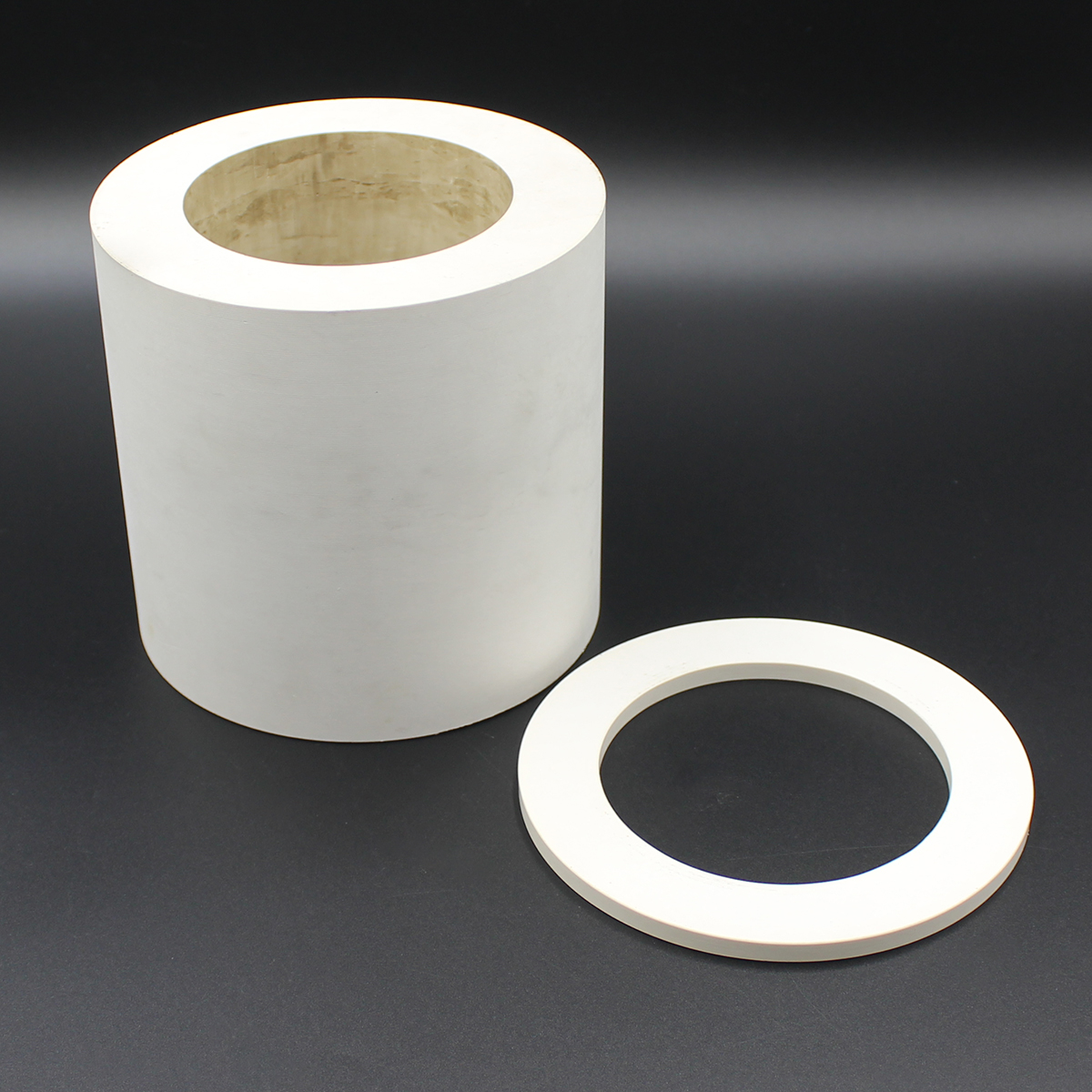

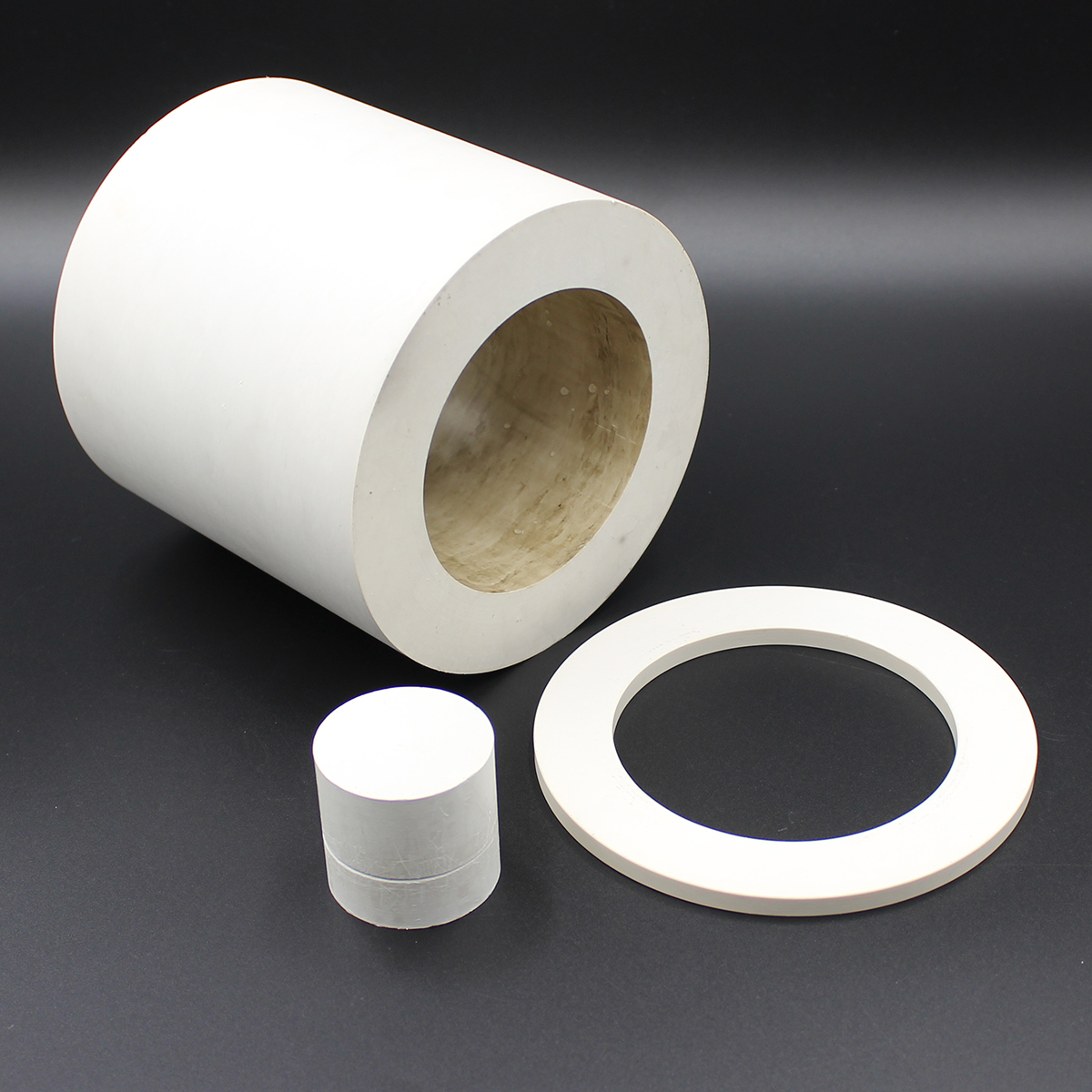

Available Sizes

Note: This is a made-to-order product, and minimum quantities and longer lead times may apply. Sheet Sizes Sheet Thickness .300 inch to 2.500 inch Thickness Sheet Width X L 12.000 inch x 12.000 inch 12.000 inch x 24.000 inch Rod Sizes 1.250 inch Diameter x 8.000 inch L 2.000 inch Diameter x 8.000 inch L 2.500 inch Diameter x 6.000 inch L 3.000 inch Diameter x 6.000 inch L 3.250 inch Diameter x 6.000 inch L 4.000 inch Diameter x 6.000 inch L Tube Sizes 5.000 Inch OD x 3.000 Inch ID x 8.000 inch L 6.000 Inch OD x 3.500 Inch ID x 8.000 inch L 6.000 Inch OD x 4.500 Inch ID x 8.000 inch L 6.500 Inch OD x 5.000 Inch ID x 8.000 inch L 7.000 Inch OD x 4.500 Inch ID x 8.000 inch L 7.000 Inch OD x 5.250 Inch ID x 8.000 inch L 7.500 Inch OD x 5.250 Inch ID x 8.000 inch L 7.500 Inch OD x 5.750 Inch ID x 6.000 inch L 7.750 Inch OD x 5.250 Inch ID x 6.000 inch L 7.750 Inch OD x 6.250 Inch ID x 6.000 inch L 8.250 Inch OD x 6.250 Inch ID x 6.000 inch L 8.500 Inch OD x 6.250 Inch ID x 6.000 inch L 10.000 Inch OD x 8.000 Inch ID x 6.000 inch L 11.000 Inch OD x 8.000 Inch ID x 6.000 inch L 11.000 Inch OD x 9.000 Inch ID x 6.000 inch L 12.000 Inch OD x 9.000 Inch ID x 6.000 inch L 13.000 Inch OD x 11.000 Inch ID x 6.000 inch L 14.000 Inch OD x 12.000 Inch ID x 6.000 inch L 15.000 Inch OD x 12.000 Inch ID x 6.000 inch L 15.500 Inch OD x 13.000 Inch ID x 6.000 inch L 16.000 Inch OD x 14.500 Inch ID x 6.000 inch L 18.500 Inch OD x 15.000 Inch ID x 6.000 inch L 19.500 Inch OD x 16.000 Inch ID x 6.000 inch L 24.000 Inch OD x 18.000 Inch ID x 6.000 inch L

Available Colors

  • Off White

Safety Data Sheet

Contact Us

Typical Properties of BOETEK™ 550 Mica Reinforced PTFE

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic Fluoropolymer
Chemical Name PTFE Polytetrafluoroethylene
Trade Name BOETEK™ 550 Mica Reinforced PTFE
Additives Synthetic Mica
Color Off White
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 2.28
  ASTM D792 lb/in³ 0.082
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.08
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 0.028
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 1,350
Tensile Modulus ASTM D638 psi 330,000
Tensile Elongation at Break ASTM D638 % 13.3
Flexural Strength ASTM D790 psi 2,800
Flexural Modulus ASTM D790 psi 590,000
Compressive Strength ASTM D695 psi 4,700
Compressive Modulus ASTM D695 psi 250,000
Hardness ASTM D785 Shore D 70 Shore D
IZOD Impact-Notched ASTM D256 ft-lb/in 1.32
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 2.5
Heat Deflection Temp ASTM D648 °C at 264 psi 175
  ASTM D648 °F at 264 psi 348
Melting Point Temp ASTM D3418 °C 327
  ASTM D3418 °F 621
Max Continuous Operating Temp °C 287
  °F 550
Minimum Operating Temp °C -200
  °F -328
ELECTRICAL
Property Test Unit of Measure Value
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant Yes
Relative Cost $$$$$
Machinability 2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

BOETEK™ is a trademark of Boedeker Plastics, Inc, with registration currently pending.
