General Info
PLAVIS-S offers improved thermal properties with continuous use of 350C / 662F, designed for demanding applications that require thermal and dimensional stability. PLAVIS-S offers higher tensile strength than PLAVIS-N and higher elongation at elevated temperatures.
At 23 ℃, PLAVIS-S has almost twice the strength and a similar elongation as PLAVIS-N. At 260 ℃, PLAVIS-S has about 50% more strength and exceptionally greater elongation characteristics. In continuous exposure to air at 698 F (370 C),after about 300 hours, PLAVIS-S will retain half its initial strength. After about 100 hours, elongation is reduced by 50%
Click for more information on the complete line of Plavis Polyimides
NOTE: Plavis may be compared favorably to Vespel ® polyimide produced by DuPont.
Key Properties
- Highest Continuous Use Temp of all PLAVIS Grades at 350 C / 662 F
- PLAVIS-S offers improved mechanical properties at room and high temperatures
- PLAVIS-S has less internal deformation such as distortion and cracks
- PLAVIS-S is developed for demanding applications that require thermal and dimensional stability
- Excellent tensile strength and elongation at high temperature
- Excellent thermal oxidation resistance - higher than PLAVIS-N
- Higher Modulus and Surface Hardness
Limitations
- Chemical Resistance to Some Strong Acids and Bases
- Hydrolyzes in Presence of Steam
- PLAVIS should not be used in strong alkali conditions such as a PH over 10
- The chemical structure of PLAVIS is not resistant to bases
Applications
- Rotary seal rings
- Plungers
- Printer wire guides
- Spline couplings
- Wear strips
- Valve seats
- Thermal and electrical insulators
- Wafer clamping, polishing and grinding rings
- Wafer guides & carriers
- Vacuum pads
- Die pickup collets
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes

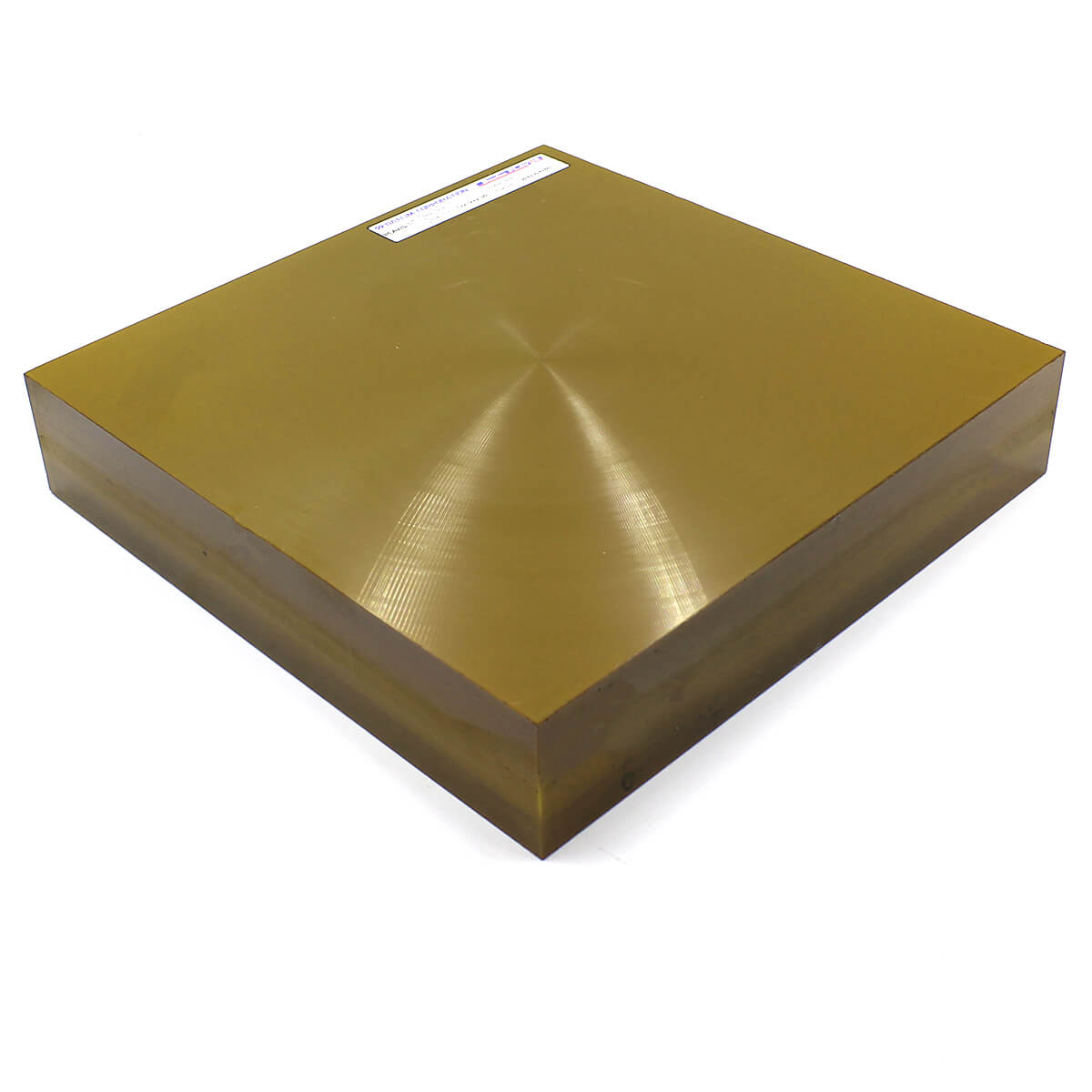

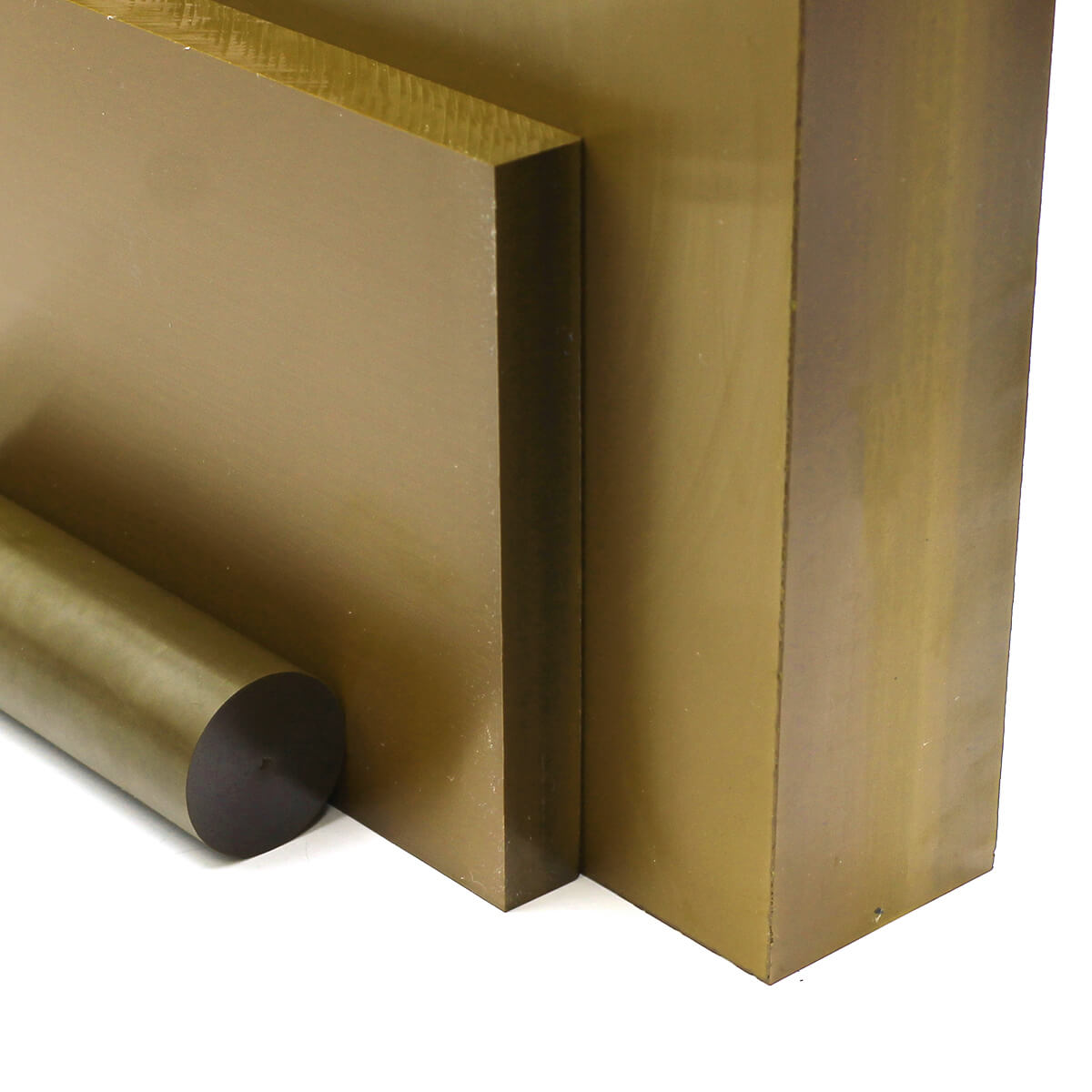

Plavis polyimide is available in molded shapes as follows:
Plates ... up to 2" thick x 12" x 12" (50mm thick x 304 mm x 304 mm)
Rods ... up to 2" (50.8 mm) diameter by up to 19.7" (500.38 mm) long
Boedeker offers cut to size service on all in-stock items and same day shipping.
If you do not see the size your looking for contact us for alternative options.
