PLAVIS ® G15 15% Graphite Polyimide

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

Unit Price

Subtotal

Note: There is a $50.00 line item minimum on all orders.

General Info

Plavis ® G15 Polyimide has 15% graphite by weight added to the base resin for increased wear resistance and reduced friction in applications. G15 has the highest mechanical properties of the graphite filled grades.

PLAVIS does not have a melting point and has a continuous operating temperature of 300 C / 572 F.  At 370 C / 698 F, a 50% reduction in tensile strength will occur at 200 hours for PLAVIS-N (unfilled), 220 hours for PLAVIS G15 (15% Graphite) and 360 hours for PLAVIS-G40 (40% graphite filled).

In a vacuum or oxygen void environment, the heat resistance of PLAVIS is even higher.  Since PLAVIS has no melting point unlike other polyimides or ther­moplastics such as PEEK, PAI, PEI; the strength vs. temperature of PLAVIS is very linear and predictable. For applications where part dimensions and tolerances are critical over a range of temperature, PLAVIS is an excellent.

Click for more information on the complete line of Plavis Polyimides

NOTE: Plavis may be compared favorably to Vespel ® polyimide produced by DuPont.

Key Properties

  • High-temperature Performance
  • Continuous Use 300 C / 572 F
  • Excursions up to 370 C / 698 F (50% reduction in tensile strength will occur at 220 hours for PLAVIS G15)
  • Wear-Resistance
  • Chemical Resistance
  • Easy to Machine
  • Creep Resistant
  • Radiation Resistance
  • Isostatically molded for uniform multidirectional performance.

Limitations

  • PLAVIS should not be used in strong alkali conditions such as a PH over 10
  • The chemical structure of PLAVIS is not resistant to bases
  • Chemical Resistance to Some Strong Acids and Bases
  • Hydrolyzes in Presence of Steam

Applications

  • Thrust washers and discs
  • Bushings
  • Flanged bearings

Resin Trade Names

Manufacturer Trade Names

  • PLAVIS® G15

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

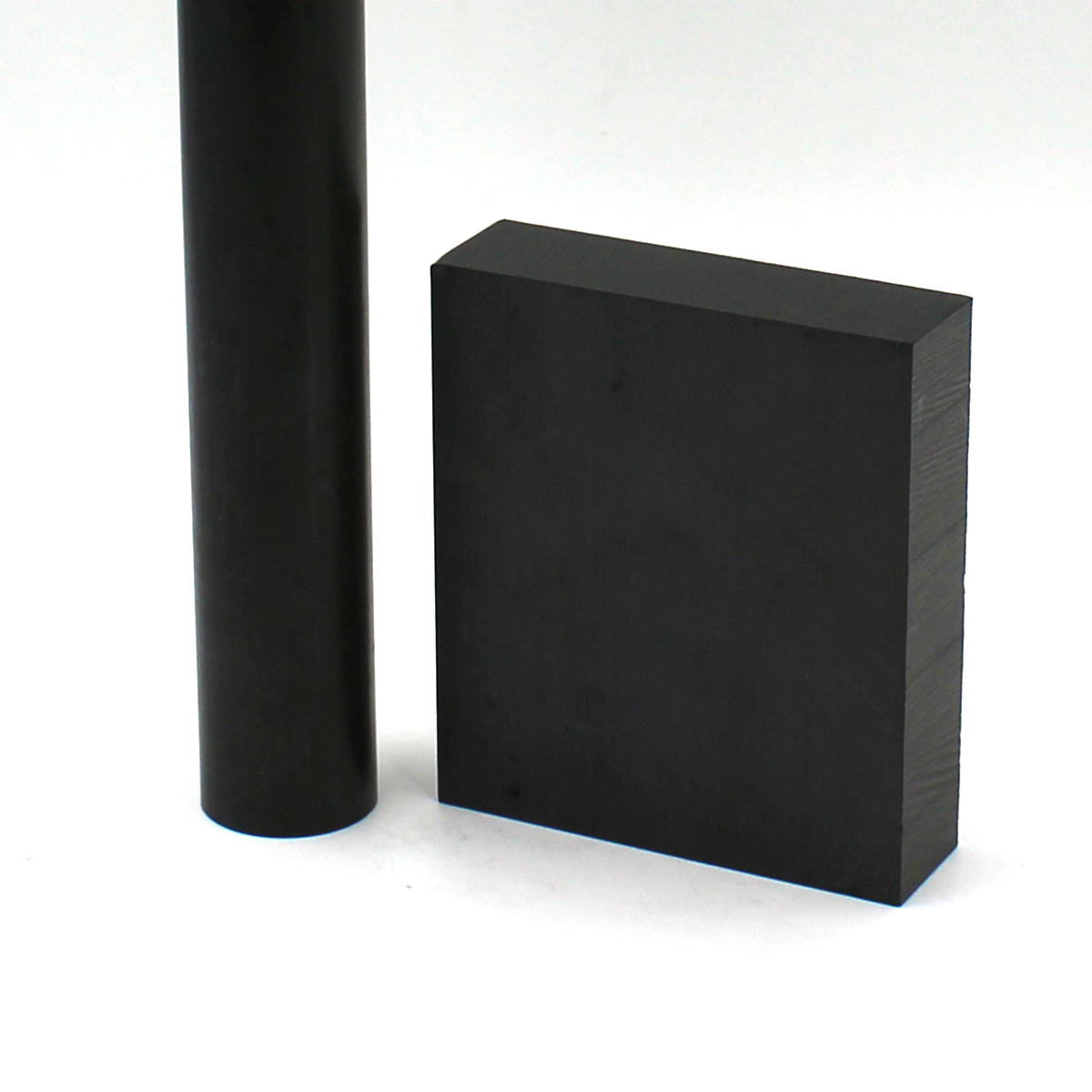

Plavis polyimide is available in molded shapes as follows: Plates ... up to 2" thick x 12" x 12" (50mm thick x 304 mm x 304 mm) Rods ... up to 2" (50.8 mm) diameter by up to 19.7" (500.38 mm) long Boedeker offers cut to size service on all in-stock items and same day shipping. If you do not see the size your looking for contact us for alternative options.

Available Colors

  • Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of PLAVIS ® G15 15% Graphite Polyimide

DETAIL
Description Value
Material Type Imidized Amorphous Thermoplastic
Chemical Name PI Polyimide
Trade Name PLAVIS® G15
Additives 15% Graphite
Color Black
Manufacturer Daelim Corporation
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.44
  ASTM D792 lb/in³ 0.052
Water Absorption, 24 hrs, Immersion 1.1
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D1708 psi 9,671
Tensile Modulus ASTM D638 psi 348,000
Tensile Elongation at Break ASTM D1708 % 4.5
Flexural Strength ASTM D790 psi 16,356
Flexural Modulus ASTM D790 psi 55,471
Compressive Strength ASTM D695 psi 15,361
Compressive Modulus ASTM D695 psi 410,000
Hardness ASTM D785 Rockwell M68-78
IZOD Impact-Notched ASTM D256 ft-lb/in 0.84
Static Coefficient of Friction (PV=10kg/cm2 · m/sec)(0.98Mpa·m/sec) 0.23
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 1.9
Max Continuous Operating Temp °C 300
  °F 572
Minimum Operating Temp °C -195
  °F -319
Flammability Rating UL94 NA V-0
ELECTRICAL
Property Test Unit of Measure Value
Dissipation Factor at 1 MHz ASTM D150 NA 0.010
Surface Resistivity ASTM D257 ohm/square 10^12 - 10^13
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant No
Relative Cost $$$$$$$$
Machinability 3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

PLAVIS® is a registered trademark of Daelim Corporation. VESPEL® is a registered trademark of DuPont.
