XP-95 TECAPEEK ® 15% PTFE Filled PEEK

Compliance Info

Slide 1 of 4, currently active
Slide 2 of 4
Slide 3 of 4
Slide 4 of 4

General Info

TECAPEEK 15% PTFE Filled

Click for more information on the complete line of TECAPEEK Plastics

Please indicate that FDA compliance is required at the time of order placement for this material.

Key Properties

Limitations

Applications

Resin Trade Names

Manufacturer Trade Names

XP-95 TECAPEEK®

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

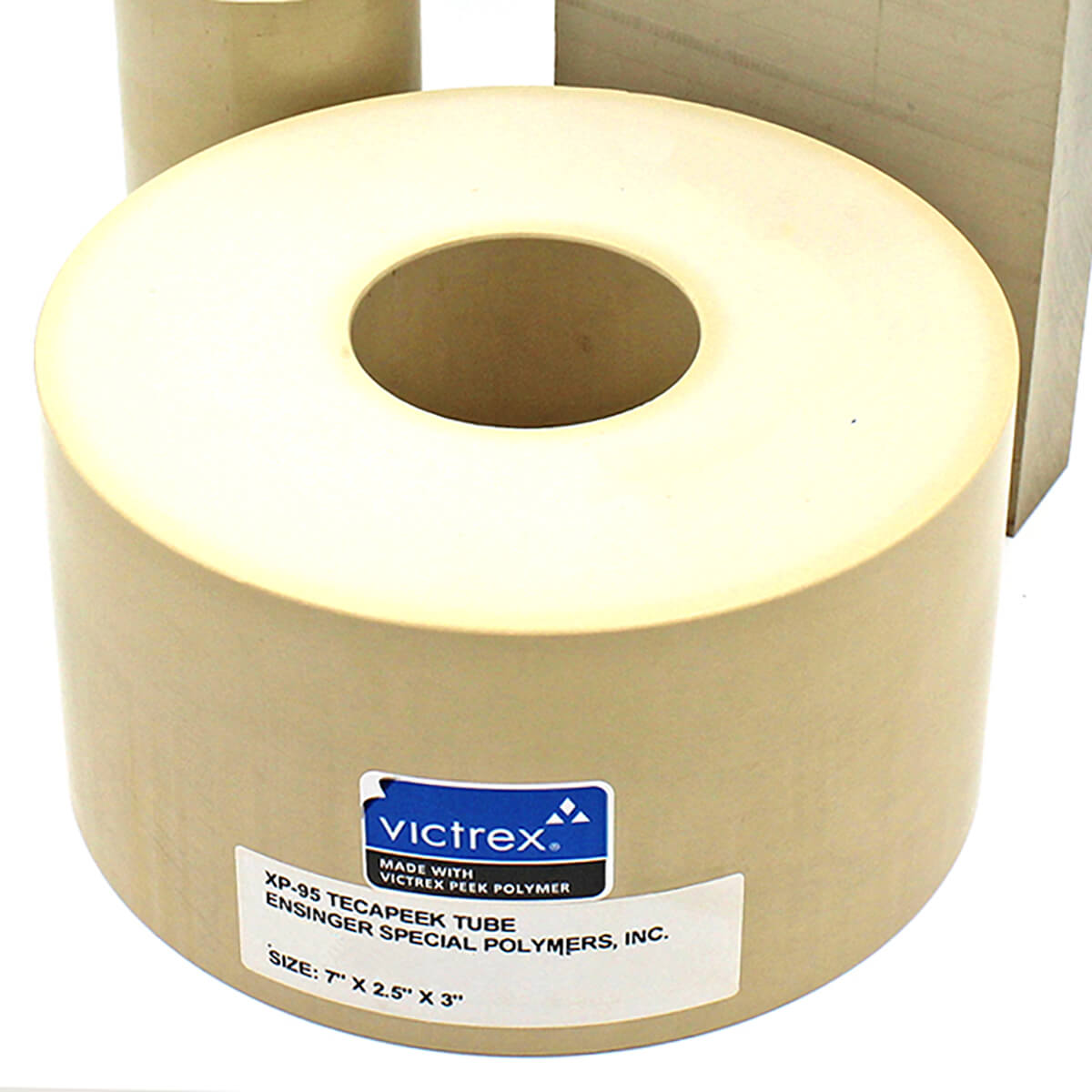

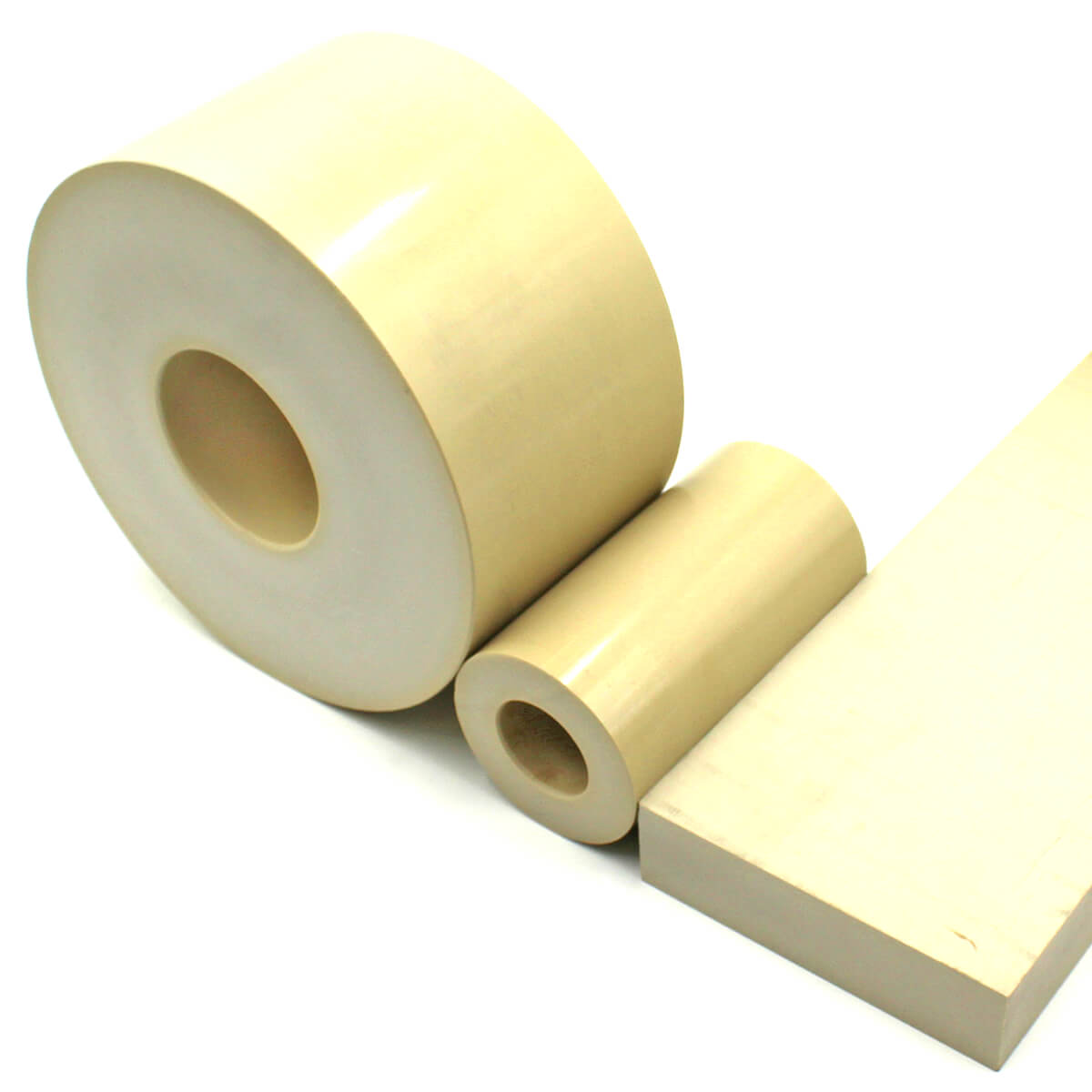

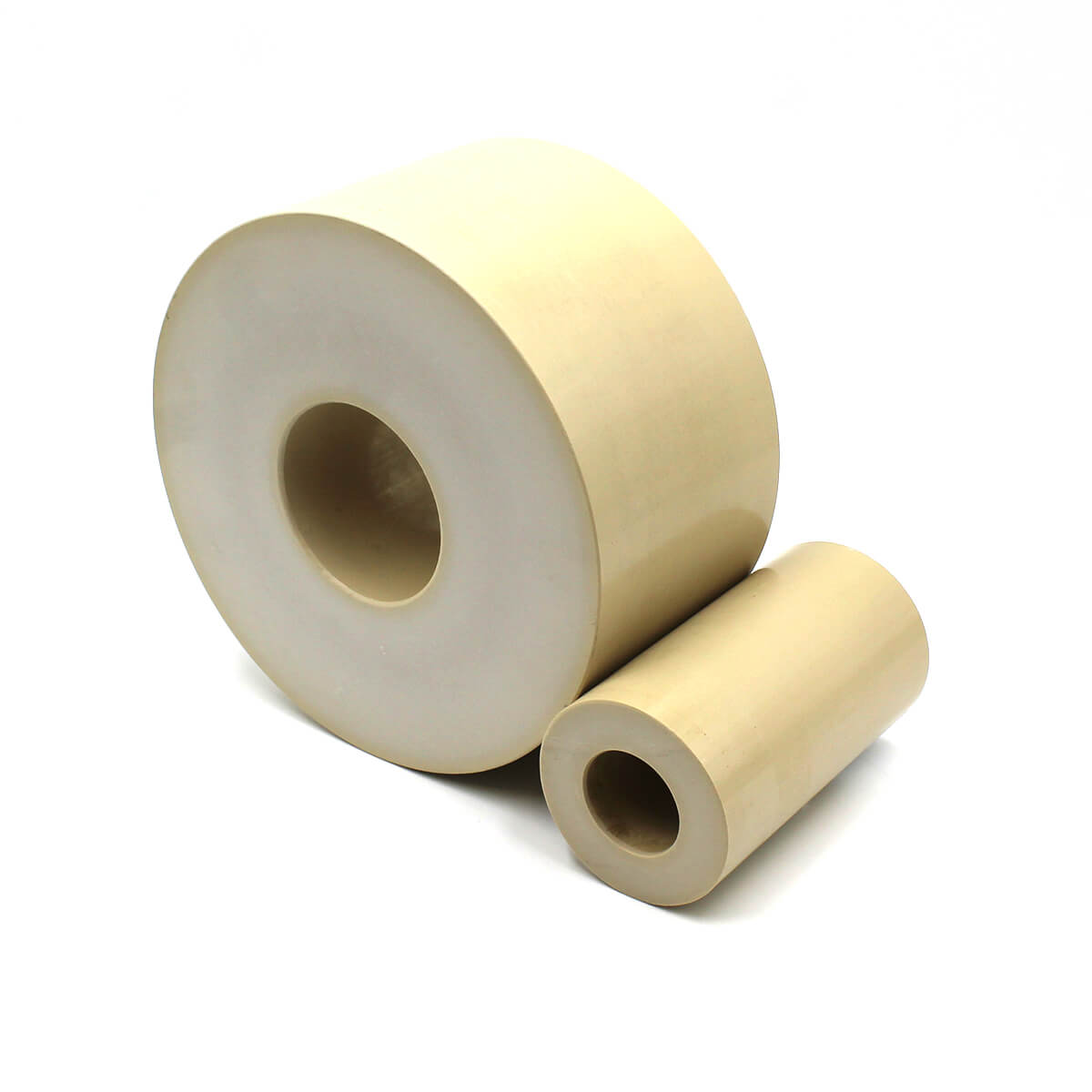

Available Sizes

Sheet Thickness .250” x 2.000” Size W X L 12.000” x 15.000” Thickness .250” to 3.000” Size W X L 10.000” x 10.000” & 13.000” x 13.000 Thickness .250” x 2.500” Size W X L 15.000” x 30.000” & 24.000” x 24.000” Rod Diameter 1.000” to 3.250” Lengths 3.000” to 6.000” L Tube Unfilled PEEK Outside Diameter 1.500” to 81.500” Lengths 3.000” to 6.000” L Filled PEEK Outside Diameter 1.500” to 8.000” Lengths 3.000” to 8.000” Outside Diameter 8.250” to 81.500” Lengths 3.000” to 6.000” L Disks Diameter 3.250” to 26.000” Thickness .500” to 3.000”

Available Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of XP-95 TECAPEEK ® 15% PTFE Filled PEEK

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			XP-95 TECAPEEK®
Additives			15% PTFE Filled
Manufacturer			Ensinger Special Polymers, Inc.
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.4
	ASTM D792	lb/in³	0.051
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	11,500
Tensile Modulus	ASTM D638	psi	550,000
Tensile Elongation at Break	ASTM D638	%	4.3
Flexural Strength	ASTM D790	psi	19,500
Flexural Modulus	ASTM D790	psi	630,000
Compressive Strength	ASTM D695	psi- Maximum	32,000
Hardness	ASTM D785	Shore D	88
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.66
Static Coefficient of Friction	ASTM D-3702		0.17
Dynamic Coefficient of Friction	ASTM D-3702		0.08
THERMAL
Property	Test	Unit of Measure	Value
Minimum Operating Temp		°C	-60
		°F	-76
COMPLIANCE
Description			Value
FDA			Yes
USDA			Yes
OTHER
Description			Value
Relative Cost			$$$$$$

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TECAPEEK® is a registered trademark of Ensinger.
