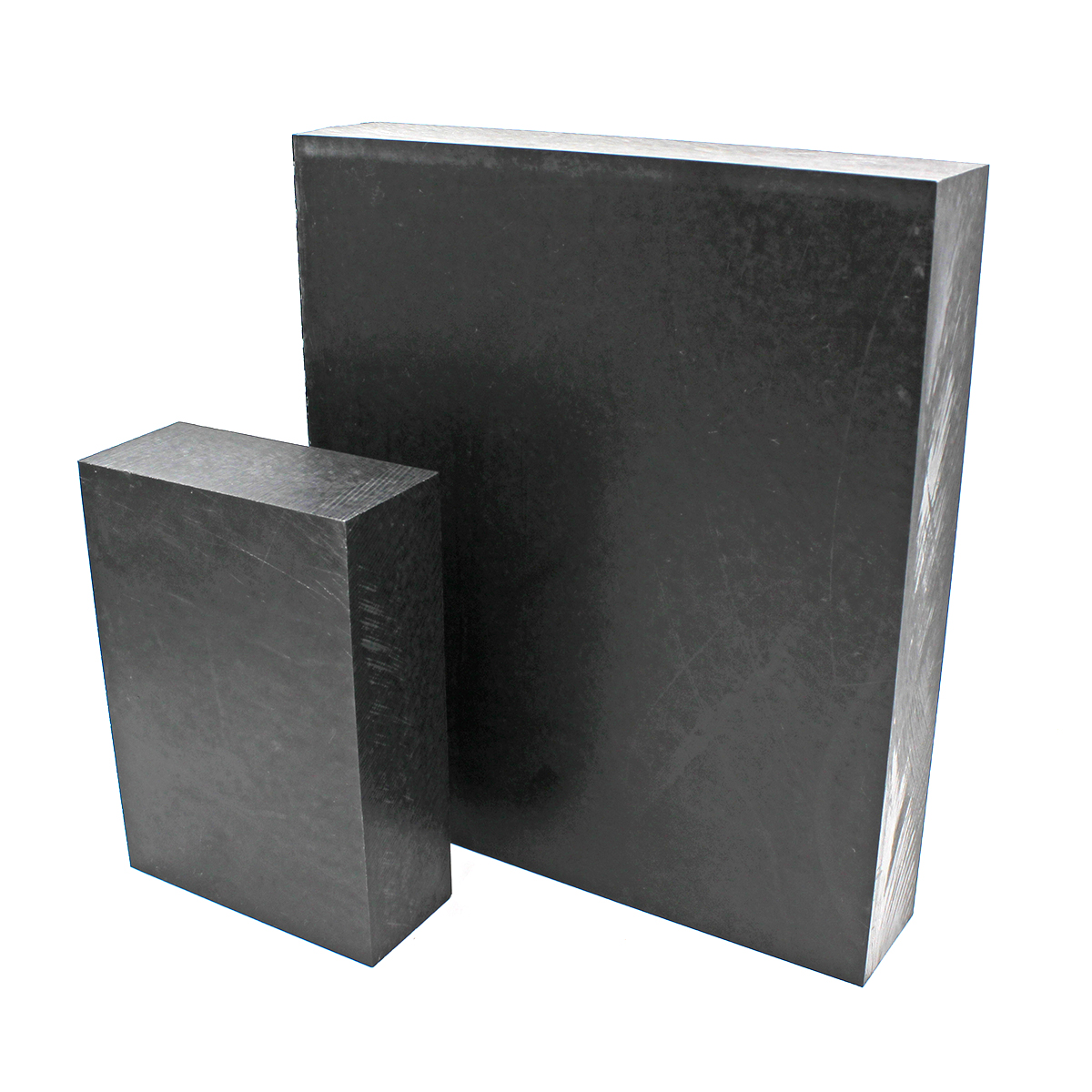

Pomalux ® CN-F (Conductive Acetal Copolymer - Carbon Fiber)

Compliance Info

Slide 1 of 1, currently active

General Info

Pomalux CN-F is conductive acetal copolymer that contains non-sloughing carbon-fibers which not only act to produce a conductive material with surface resisitivty of 10^2 – 10^6 ohms/sq, but also provides enhanced mechanical characteristics including strength and stiffness.

Go to our Static Control Plastics Page for more information on our complete line of static control plastics.

Key Properties

Non-Sloughing Carbon Fiber Additive
Conductive
Dimensional Stability
High Strength

Limitations

Applications

Fixtures and Jigs for Static Sensitive Parts
Conductive Structural Applications
Conductive Bearing and Wear Applications
End Effectors for Critical Semicon Applications

Resin Trade Names

Manufacturer Trade Names

Pomalux ® CN-F

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

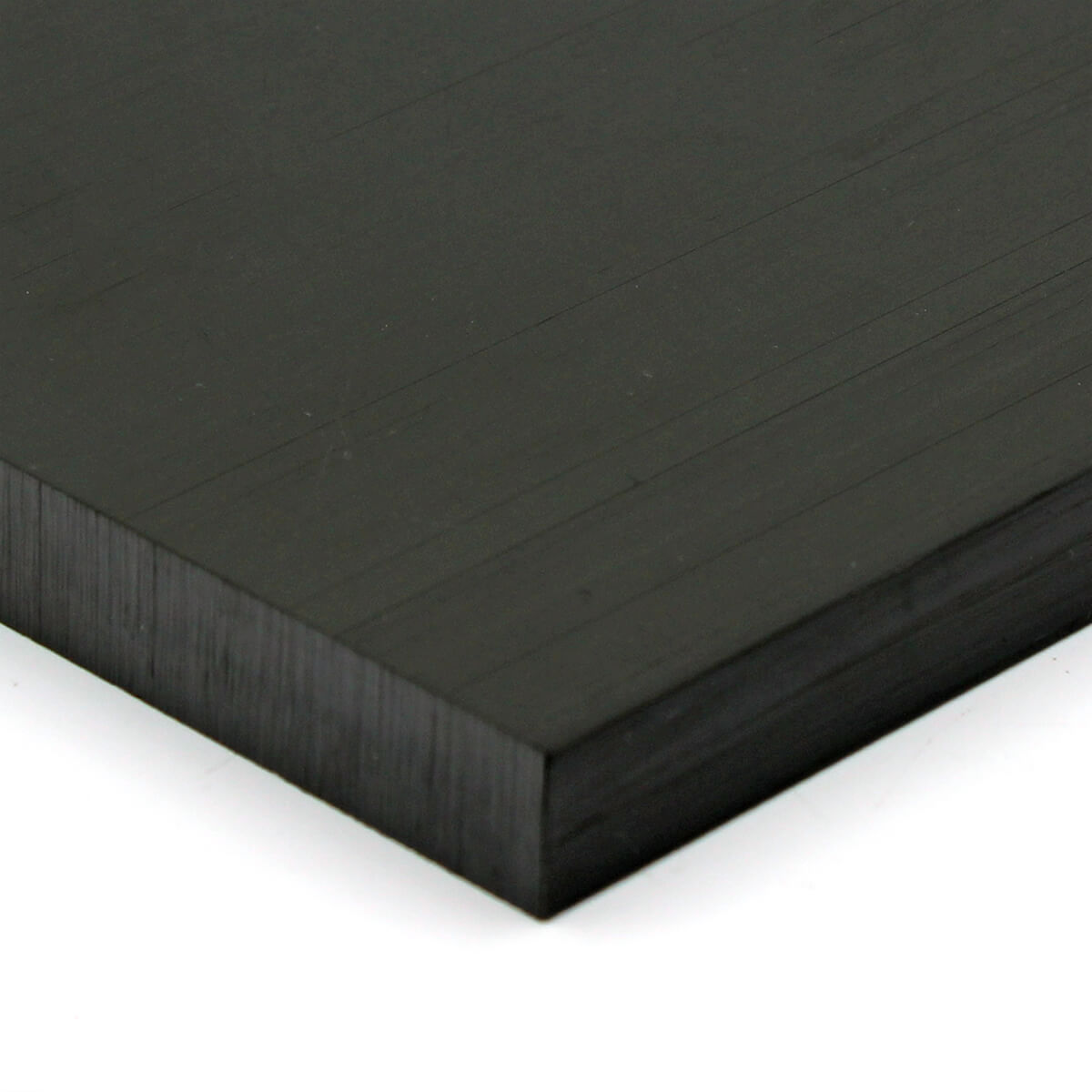

Sheet .250 to 4.000 thickness Some sizes may require minimum order quantities and longer lead times.

Available Colors

Black

Safety Data Sheet

Typical Properties of Pomalux ® CN-F (Conductive Acetal Copolymer - Carbon Fiber)

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			POM Polyoxymethylene Acetal Copolymer
Trade Name			Pomalux ® CN-F
Additives			Non-Sloughing Carbon Fibers
Color			Black
Manufacturer			Westlake
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.4
	ASTM D792	lb/in³	0.051
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	6,500
Tensile Elongation at Break	ASTM D638	%	10
Flexural Modulus	ASTM D790	psi	950,000
IZOD Impact-Notched	ASTM D256	ft-lb/in	1
THERMAL
Property	Test	Unit of Measure	Value
Max Continuous Operating Temp		°C	82
		°F	180
Minimum Operating Temp		°C	-50
		°F	-58
ELECTRICAL
Property	Test	Unit of Measure	Value
Surface Resistivity	ASTM D257	ohm/square	10^2 - 10^3
COMPLIANCE
Description			Value
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$$$
Machinability			2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Pomalux® is a registered trademark of Westlake Plastic Company.
