Semitron ® ESd 300 PET-P

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

Semitron® ESd 300 is a static dissipative PET-P based material for use where electrical discharge in operation is a problem. Semitron® ESd 300 PET-P offers a low CLTE (coefficient of linear thermal expansion) and very low water absorption, making it an excellent choice for applications up to 210F continuous that require dimensional stability in wet environments.

Click for more information on the complete line of Semitron Plastics

Key Properties

Surface resistivity 10^5 to 10^9 Ohm/Square (Static Dissipative Range)
Thermal performance to 210°F (98°C) Continuous Use
Consistent Electrical Properties
Excellent Dimensional Stability Low CLTE & Low Water Absorption
Outstanding Toughness & Abrasion Resistance
Semitron® ESd products are inherently dissipative. They do not rely on atmospheric phenomena (humidity) to activate, nor are surface treatments used to achieve dissipation. Static electricity is dissipated through these products as readily as it is dissipated along the surface.

Limitations

Low Resistance to Continuous Hot Water or Steam
Low Resistance to Strong Alkalies
Not recommended for continuous use in alkaline liquid or in hot water over (131 F / 55 C)

Applications

Back End Test Sockets
LCD Assembly Components
Packaging Machine Guides
Printed Circuit Board Assembly Components
Semiconductor Chip Mounters
Semiconductor Fixtures
Solder Printing Jigs
Transfer Tools

Resin Trade Names

Manufacturer Trade Names

Semitron® ESd 300

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

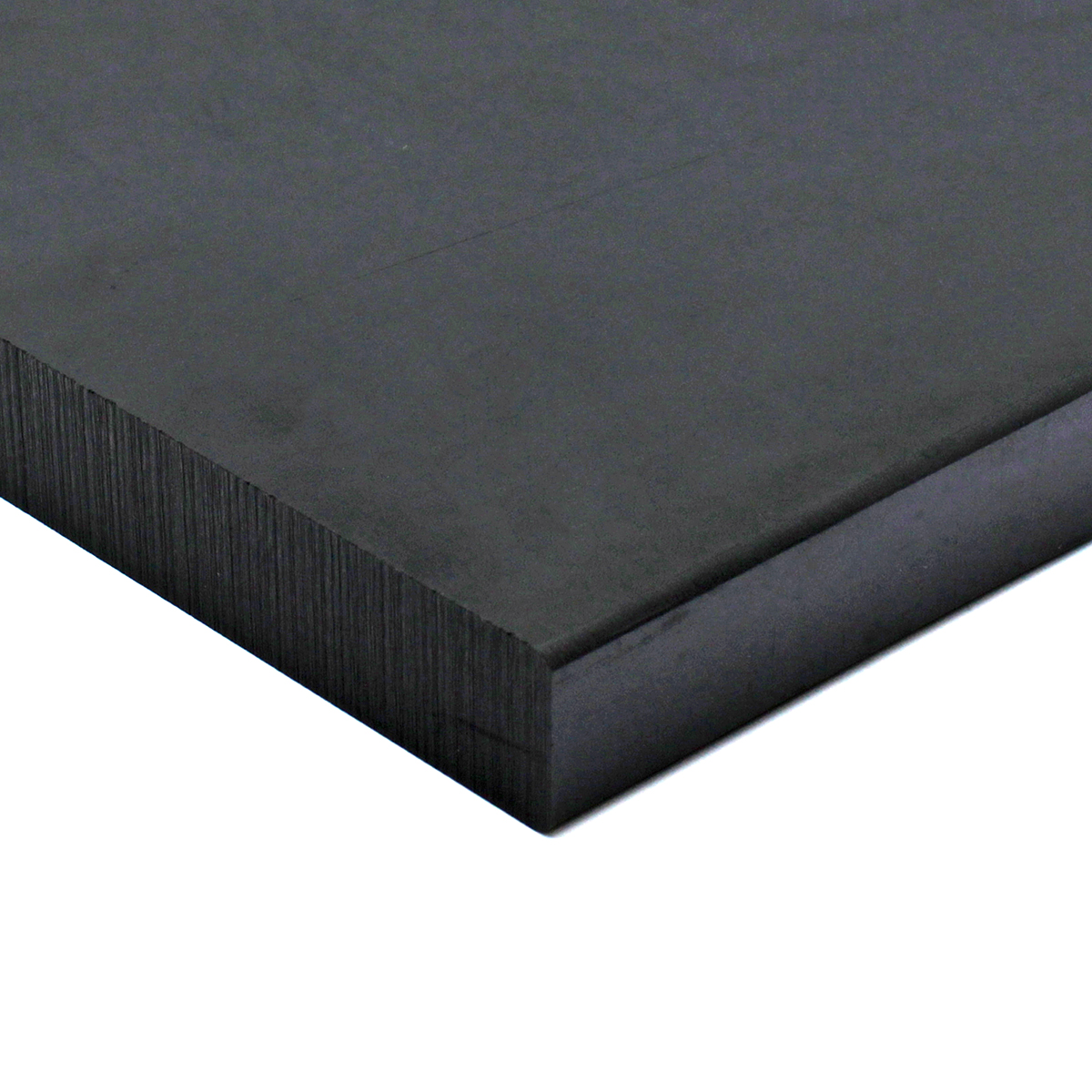

Available in Sheet, Rod and Machined Parts Sheet Sizes .315 in (8 mm) x 23.622 in (600 mm) x 47.000 in (1193.8 mm) .394 in (10 mm) x 23.622 in (600 mm) x 47.000 in (1193.8 mm) .787 in (20 mm) x 23.622 in (600 mm) x 47.000 in (1193.8 mm) .984 in (25 mm) x 23.622 in (600 mm) x 47.000 in (1193.8 mm) 1.181 in (30 mm) x 23.622 in (600 mm) x 47.000 in (1193.8 mm) 1.969 in (5 0mm) x 23.622 in (600 mm) x 47.000 in (1193.8 mm) Rod Sizes .375 in (9.525 mm) Diameter to 1.25 in (31.75 mm) * *Minimum order quantities and longer lead times may apply to rod We offer same day shipping and cut to size service on all inventoried products, Contact Us for a quote on a custom size or if you do not see the material and size you are looking for.

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Semitron ® ESd 300 PET-P

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PET-P Polyethylene Terephthalate Polyester
Trade Name			Semitron® ESd 300
Additives			Proprietary ESD Additives
Color			Black
Manufacturer			Quadrant
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.39
	ASTM D792	lb/in³	0.05
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.07
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	11,500
Tensile Modulus	ASTM D638	psi	500,000
Tensile Elongation at Break	ASTM D638	%	3
Flexural Strength	ASTM D790	psi	15,500
Flexural Modulus	ASTM D790	psi	490,000
Compressive Strength	ASTM D695	psi	16,000
Compressive Modulus	ASTM D695	psi	370,000
Hardness	ASTM D785	NA	Rockwell M102 (R127)
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.5
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	3.1
Heat Deflection Temp	ASTM D648	°C at 264 psi	115
	ASTM D648	°F at 264 psi	240
Max Continuous Operating Temp		°C	98
		°F	210
Minimum Operating Temp		°C	-28
		°F	-20
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Surface Resistivity	ANSI/ESD STM 11.11	ohm/square	10^6 to 10^9
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$
Machinability			2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Semitron® is a registered trademark of Quadrant Engineering Plastic Products.
