Absylux ® CN-P Conductive ABS

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

Absylux® CN-P (Conductive Acrylonitrile-Butadiene-Styrene) is a carbon powder filled conductive material with high strength and stiffness, and relatively high impact strength. This material is easily machined and fabricated into close tolerance finished parts.

Click for more information on the complete line of ABS Products

Key Properties

Good strength and stiffness
Cost effective
Easily machined
Good chemical resistance
Durable
Bondable

Limitations

Applications

Automotive Equipment
Disk Drive Assembly Fixtures
Electronic Component Transfer Trays
Semiconductor/Electronic Components
Telecommunications Hardware

Resin Trade Names

Manufacturer Trade Names

Absylux® CN-P Conductive ABS

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

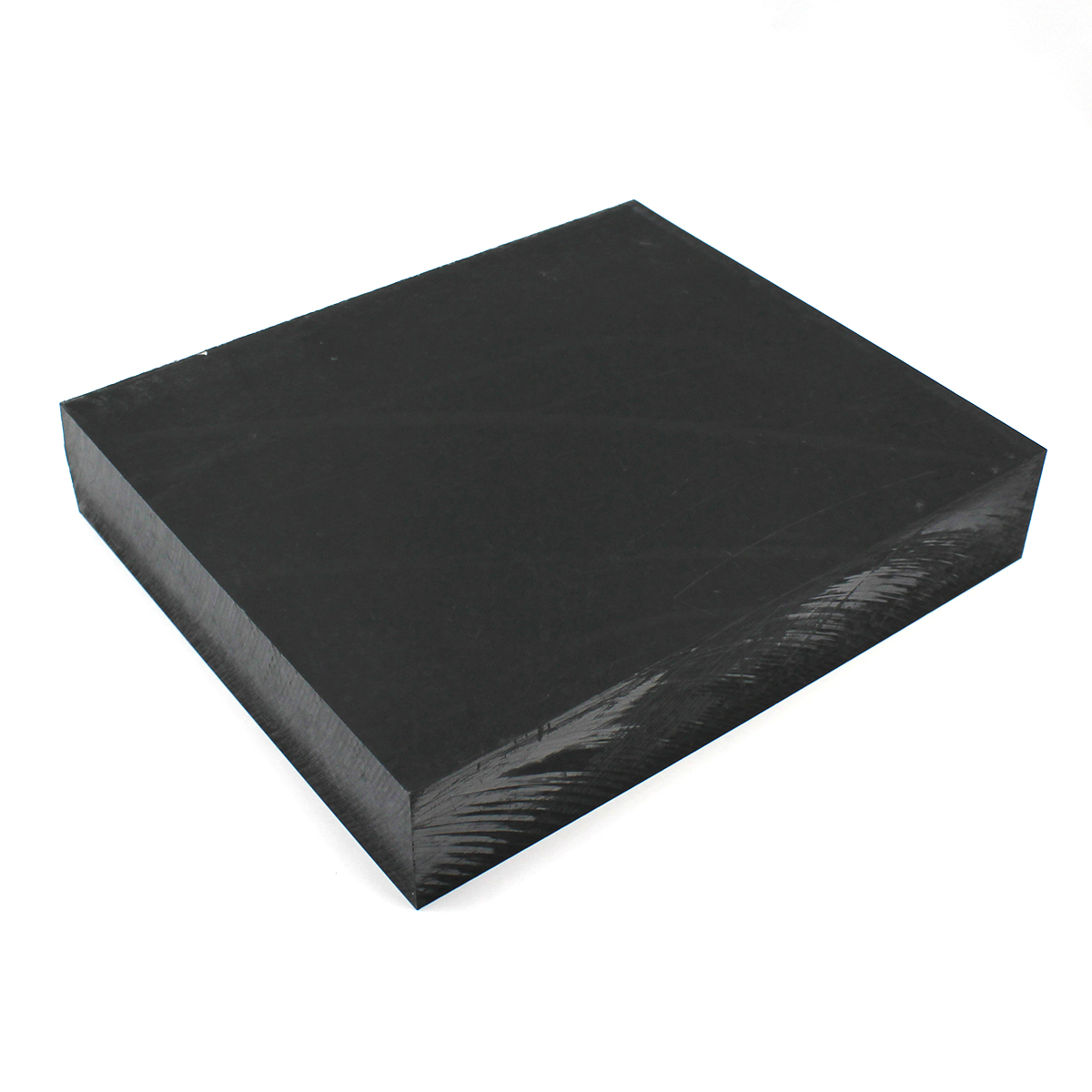

Sheet: .250 to 4.000 inch thick Rod: .250 to 4.000 inch diameter

Available Colors

Black

Safety Data Sheet

Typical Properties of Absylux ® CN-P Conductive ABS

DETAIL
Description			Value
Material Type			Amorphous Thermoplastic
Chemical Name			ABS Acrylonitrile Butadiene Styrene
Trade Name			Absylux® CN-P
Additives			Carbon
Color			Black
Manufacturer			Westlake
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.13
	ASTM D792	lb/in³	0.041
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.3
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	4,000
Tensile Modulus	ASTM D638	psi	-
Flexural Strength	ASTM D790	psi	7,200
IZOD Impact-Notched	ASTM D256	ft-lb/in	13
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	-
Heat Deflection Temp	ASTM D648	°C at 264 psi	77
	ASTM D648	°F at 264 psi	170
Max Continuous Operating Temp		°C	60
		°F	140
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Surface Resistivity	D257	ohm/square	10^2 - 10^6
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

ABSYLUX is a registered trademark of Westlake Plastic Company
