BOETEK™ Static Control 42-SD PES

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

BOETEK™ Static Control 42-SD PES is a high-performance Polyether-Sulfone (PES) plastic engineered for use in electronics, semiconductor, and other high-tech industries. It offers a surface resistivity of 10^6 to 10^9, which falls within the static-dissipative range for critical electronic components, helping eliminate damage from static buildup.

It is designed to maintain consistent surface resistivity with minimal to no initial charge. BOETEK™ Static Control 42-SD PES effectively manages electrostatic charges across a broad temperature range of up to 338°F continuous, with a glass transition (Tg) of 420°F. This property ensures optimal performance in environments susceptible to static electricity.

BOETEK™ Static Control 42-SD PES is compression-molded and fully annealed, providing superior dimensional stability during and after the machining of complex components.

Available in sheet, rod, and tube for precision machining for critical components in electronics and semiconductor applications.

Key Properties

High strength and stiffness
Low stress for tight tolerance machining
Surface resistivity: 10^6 – 10^9 ohms/sq.
High Thermal performance

Limitations

Applications

Circuit Boards
Components for High Speed Electronic Printing
Hard Disk Drives Components
Integrated Circuits Components
Photovoltaic Processing Equipment
Sensitive Processing Components in a Wide Range of Semiconductor Processes

Resin Trade Names

Manufacturer Trade Names

BOETEK™ Static Control 42-SD PES

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

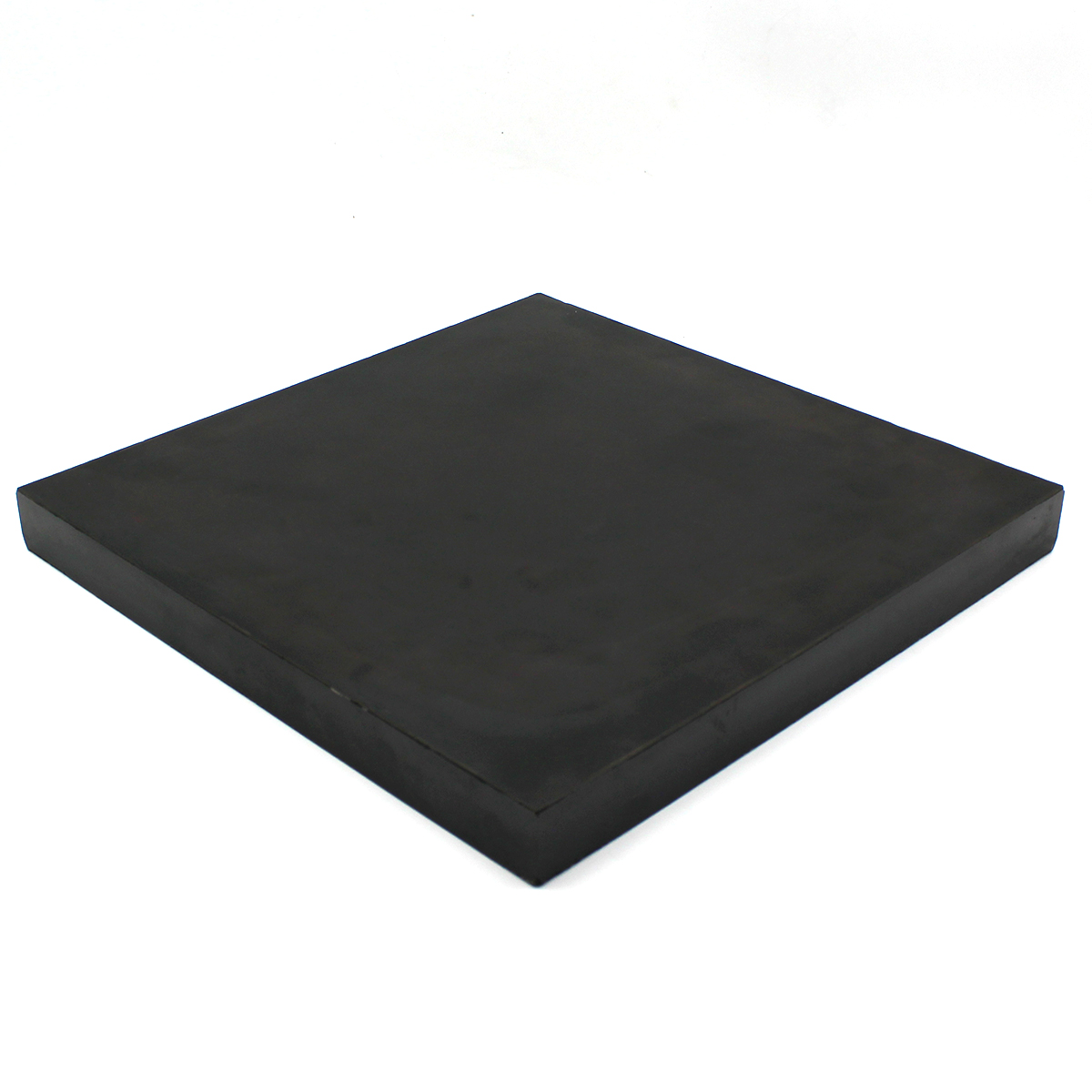

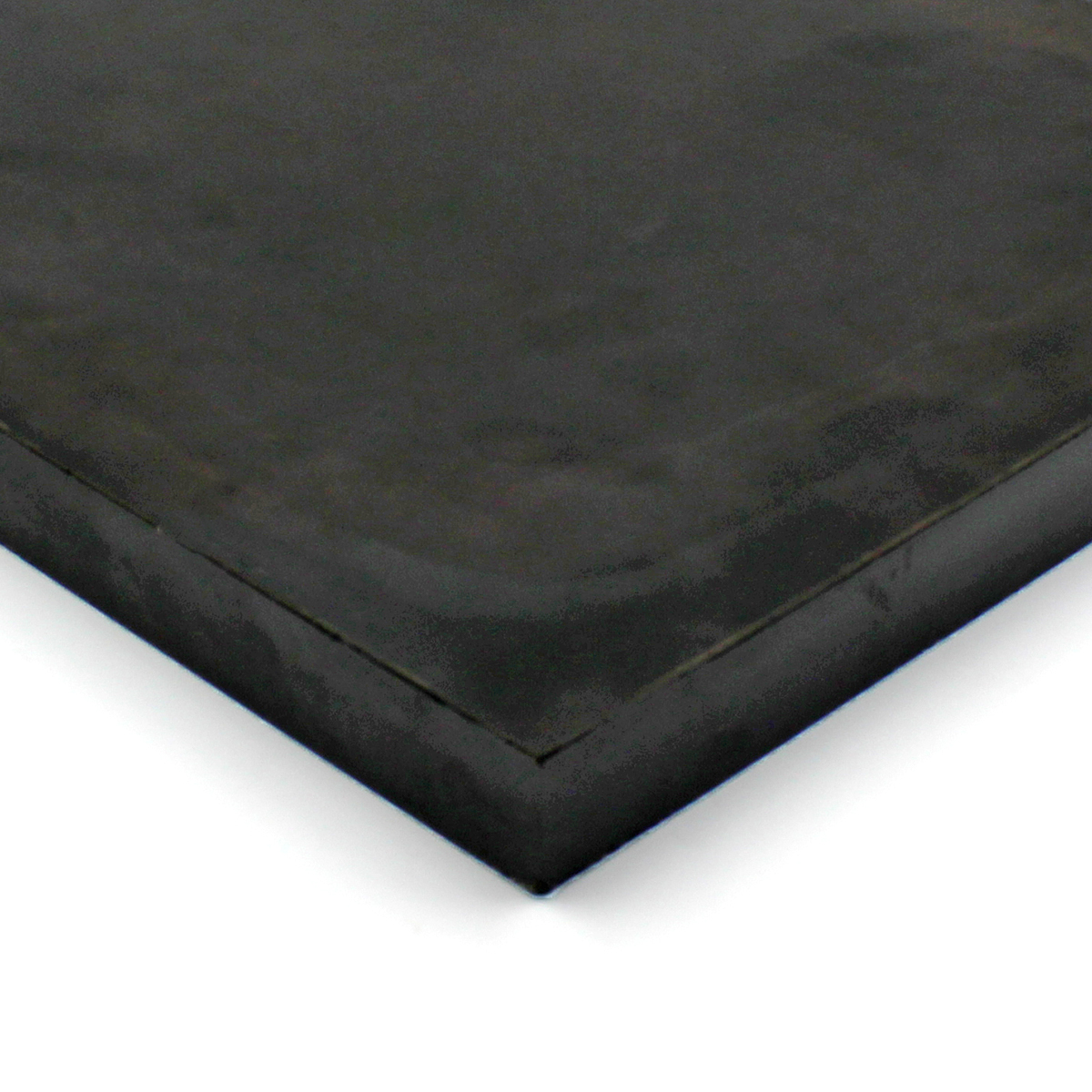

The product is available in rod, tube, and plate. Sheet / Plate Sizes Thicknesses from 0.375 to 2.500 inches Sizes 12.000 x 12.000 and 12.000 x 24.000 inches Rod Sizes Rod Diameters 1.000 to 4.000 inches Rod Lengths 4.000 to 8.000 inches Tubes Tube Outside Dimensions 1.750 OD to 24.000 inches OD Tube Lengths 1.000 to 8.000 inches, depending on OD and ID. All BOETEK Static Control shapes are compression molded. Minimum order quantities and lead times vary depending on shape and size.

Available Colors

Black

Safety Data Sheet

Typical Properties of BOETEK™ Static Control 42-SD PES

DETAIL
Description			Value
Material Type			Imidized Amorphous Thermoplastic
Chemical Name			PES Polyether Sulfone
Trade Name			BOETEK™ Static Control 42-SD PES
Additives			Proprietary ESd Additive
Color			Black
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.52
	ASTM D792	lb/in³	0.055
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.2
Water Absorption, Saturation, Immersion	ASTM D570		1.5
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	9,100
Tensile Modulus	ASTM D638	psi	910,000
Tensile Elongation at Break	ASTM D638	%	1.5
Flexural Strength	ASTM D790	psi	15,800
Flexural Modulus	ASTM D790	psi	910,000
Compressive Strength	ASTM D695	psi	22,300
Compressive Modulus	ASTM D695	psi	580,000
Hardness	ASTM D785	Rockwell M	Rockwell M120
IZOD Impact-Notched	ASTM D256	ft-lb/in	1
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	1.6
Heat Deflection Temp	ASTM D648	°C at 264 psi	200
	ASTM D648	°F at 264 psi	392
Max Continuous Operating Temp		°C	170
		°F	338
Minimum Operating Temp		°C	-50
		°F	-58
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Surface Resistivity	ANSI/ESD STM 11.11	ohm/square	10^6 - 10^9
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$
Machinability			4

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

BOETEK™ is a trademark of Boedeker Plastics, Inc, with registration currently pending.
