GPO-3 Glass Polyester Laminate (Also Known as Red Barrier Board)

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

GPO-3 is a rigid fiberglass reinforced composite laminate with a polyester resin system, it is flame retardant and is used for general purpose electrical and/or mechanical applications where low cost is desired.

GPO-3 can withstand higher temperatures compared to GPO-1 or GPO-2 grades and exhibits better electrical characteristics.  GPO-3 offers excellent dimensional strength, high impact strength, high strength, excellent electrical properties and good flame and smoke characteristics.

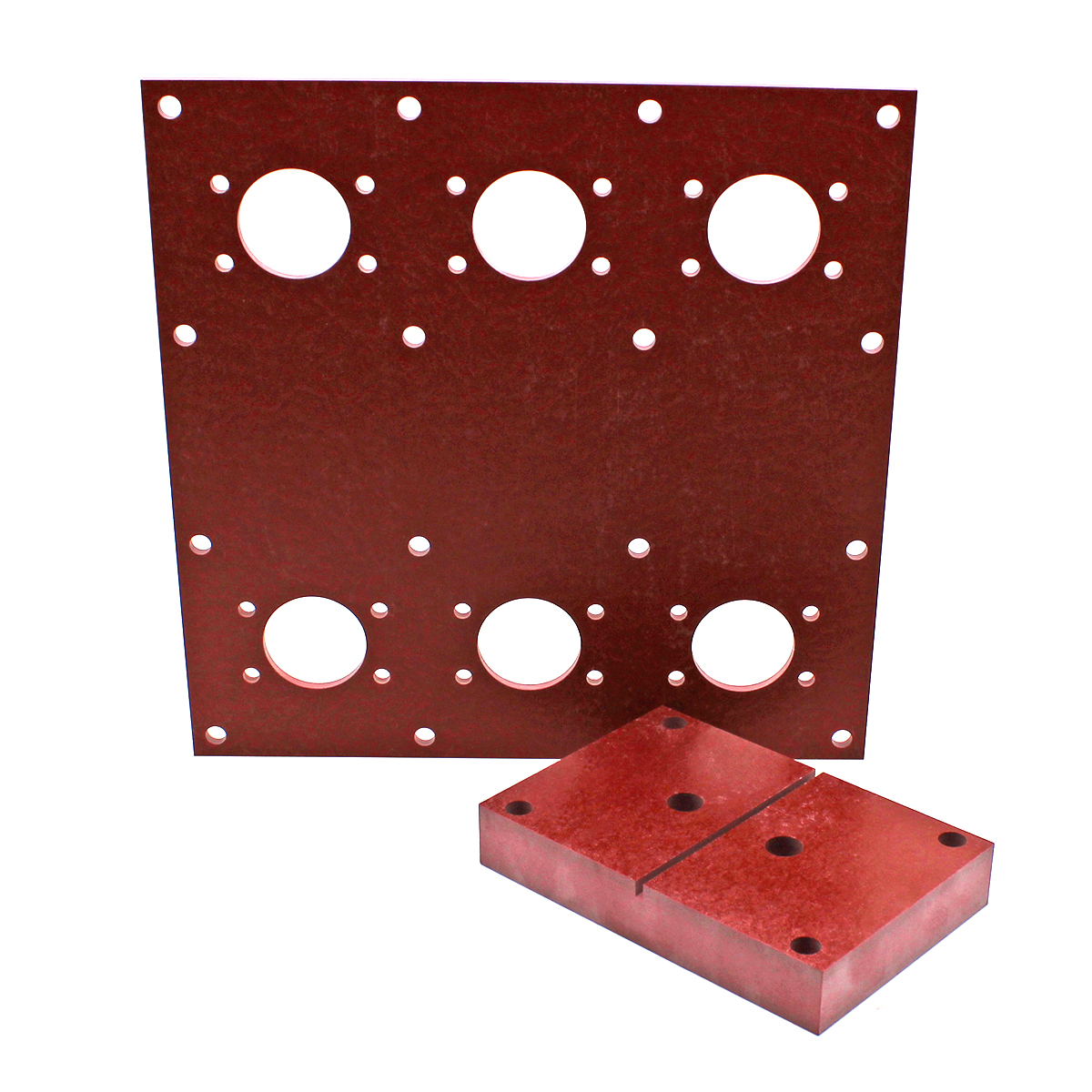

In the construction industry, GPO-3 is known as "Red Barrier Board." It is commonly used for construction applications involving electrical insulation, including phase and end barriers, electrical insulating and bus bar support, mounting panels in switchgear, transformer applications, antenna component bases, and electrically insulating spacers.

Click for more information on the complete line of Glass Filled Industrial Laminates

For complete data on all standard available GPO Grades including GPO-1, GPO-2, GPO-3 and Specialty Grades DOWNLOAD OUR COMPLETE GPO GRADES DATA SHEET COMPARISON

NOTE: The typical properties listed below are for H900 Grade GPO-3, properties will vary depending on grade.  For properties of other GPO-3 grades reference our data comparison sheet in the above download.

Key Properties

  • High Strength
  • High Stiffness
  • Excellent Electrical Properties
  • High Arc and Carbon Track Resistance
  • Flame Resistance
  • Good Flame and Smoke Characteristics
  • Excellent Dimensional Stability
  • Excellent Impact Strength

Limitations

  • Difficult to Machine

Applications

  • End Barriers
  • Insulating Supports
  • Bus Bars
  • Mounting Panels
  • Switch Gear Components
  • Structural Electrical Components

Resin Trade Names

Manufacturer Trade Names

  • Haysite®, Glastic®, GPO-3

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

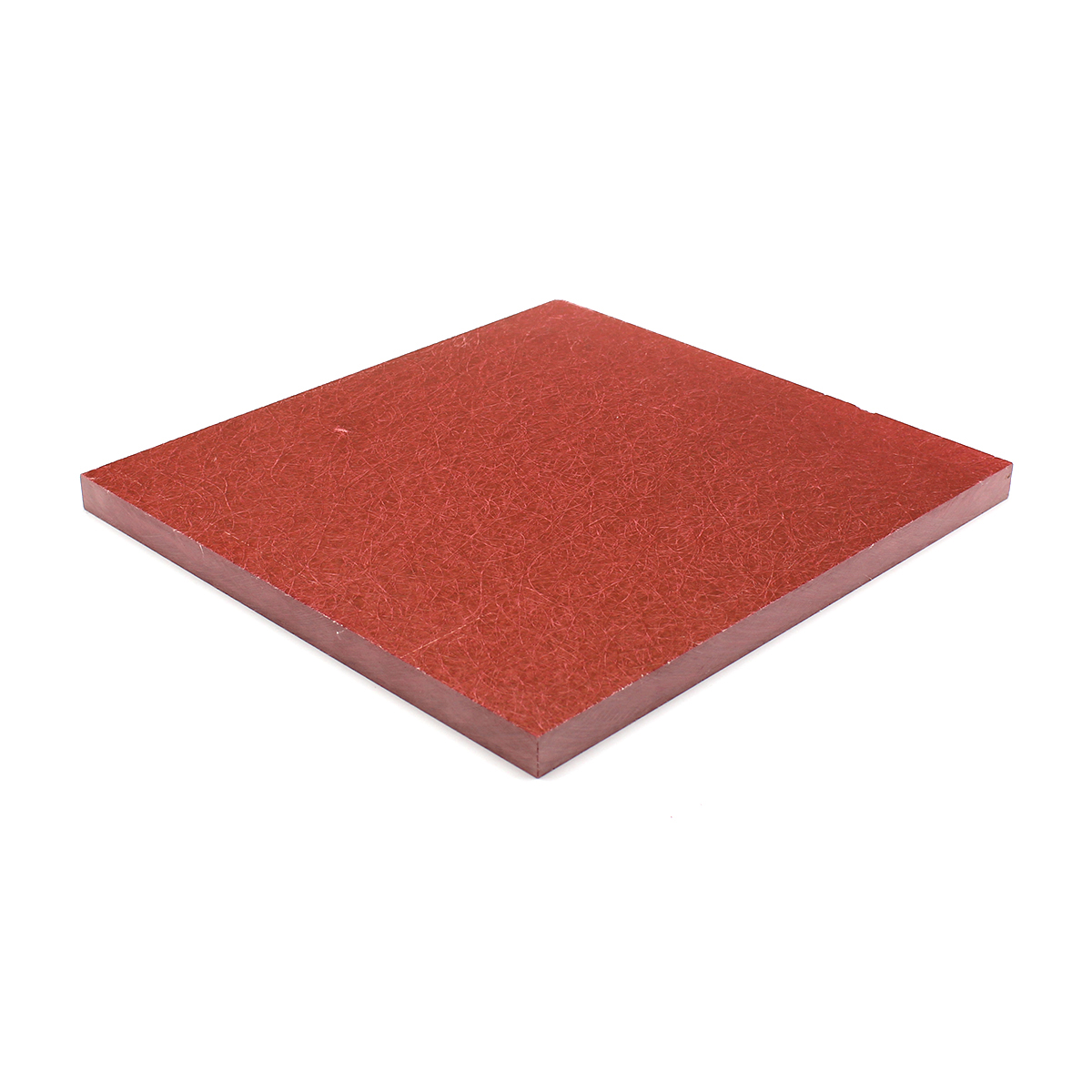

Sheet Thickness - .031 to 2.000 Inch Thick W x L - 36.000 x 72.000 inch and 48.000 x 96.000 inch Custom Cut Sizes available with Boedeker Cut to Size Service Contact us for custom sizes with your requirements.

Available Colors

  • Red

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of GPO-3 Glass Polyester Laminate (Also Known as Red Barrier Board)

DETAIL
Description Value
Material Type Thermoset Composite
Chemical Name Polyester Glass Laminate
Additives Fiberglass
Color Red
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.8
  ASTM D792 lb/in³ 0.065
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.2
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 9,000
Flexural Strength ASTM D790 psi 18,000
Flexural Modulus ASTM D790 psi 1,500,000
Compressive Strength ASTM D695 psi 30,000
Hardness ASTM D785 Barcol 62 Barcol
IZOD Impact-Notched ASTM D256 ft-lb/in 8
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 2
Max Continuous Operating Temp °C 160
  °F 320
Flammability Rating UL94 NA V-0
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Strength ASTM D149 V/mil - Short Time in Oil 1/16", VPM 450
Dissipation Factor at 1 MHz ASTM D150 60Hz 0.06
COMPLIANCE
Description Value
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
MIL SPEC Mil-I-24768/6
Relative Cost $$
Machinability 7

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.
