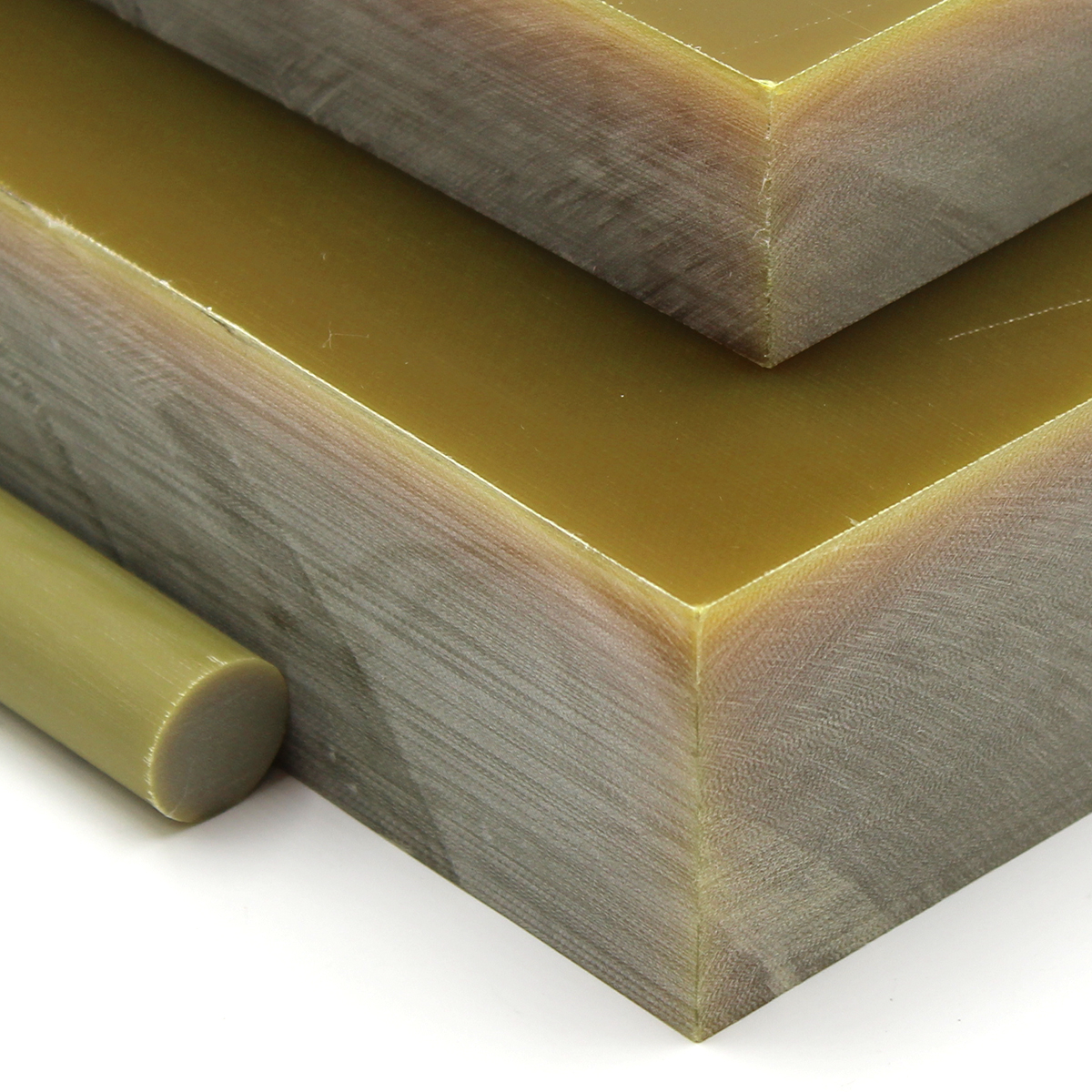

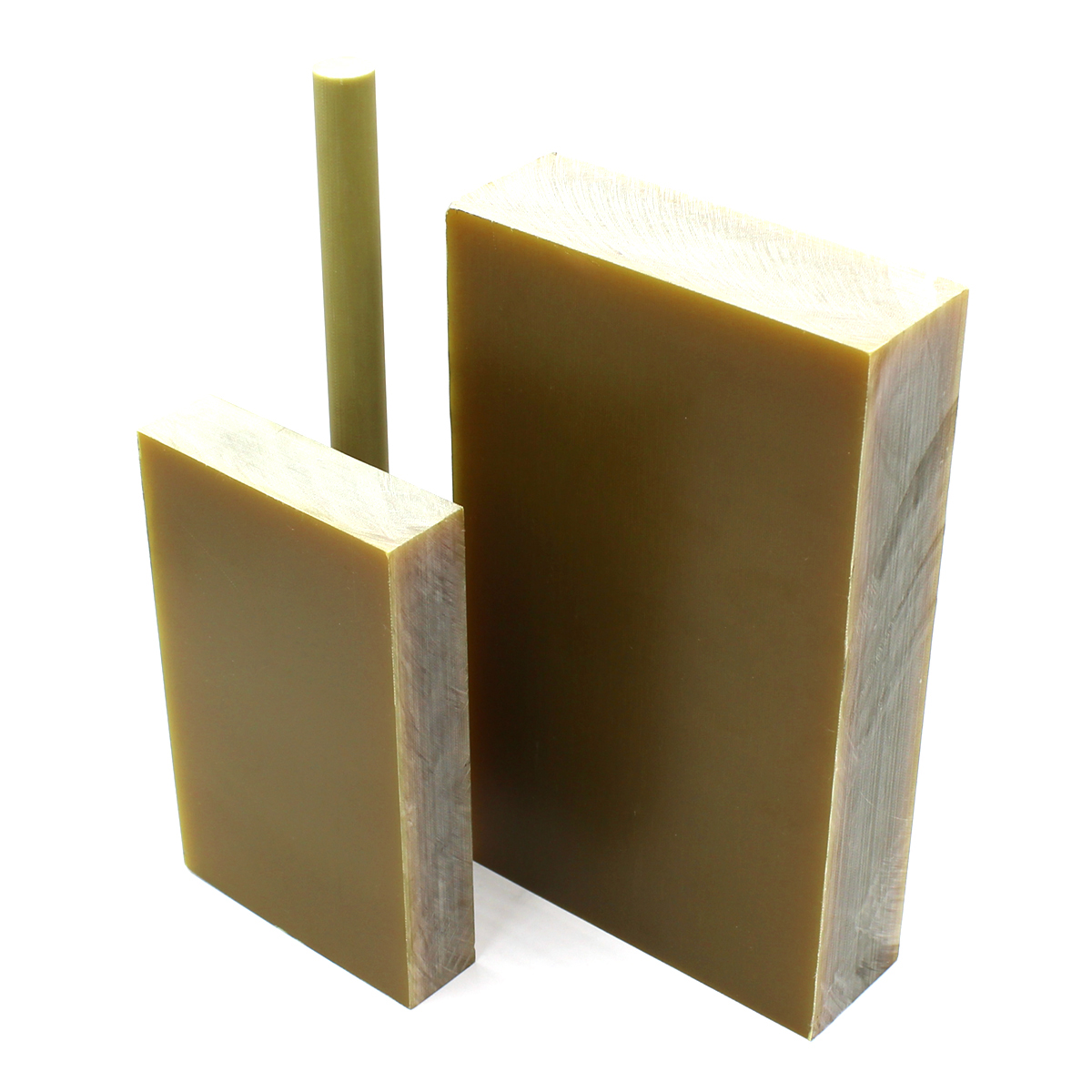

G-11 FR-5 Glass Epoxy Laminate Natural

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

A grade similar in composition and properties to Grade G-10 but more suitable for continuous use at elevated temperature. G-11 retains at least 50% of its structural strength at continuous operating temperatures in excess of 300°F. "FR" grades are flame retardant.

Click for more information on the complete line of Glass Filled Industrial Laminates

Key Properties

FR Grades are Fire Retardant
High Dielectric Strength
High Mechanical Strength
Low CLTE

Limitations

Difficult to Machine
Properties vary based on reinforcement orientation – higher values are typical when tested parallel to the reinforcement and lower when tested perpendicular to the reinforcement.

Applications

Arc Barriers
Downhole Oil & Gas Components
Electrical Housings
Electrical Insulators
Structural Components
Terminal Boards

Resin Trade Names

Manufacturer Trade Names

G-11 FR-5
Micarta

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Natural (Light Green)

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of G-11 FR-5 Glass Epoxy Laminate Natural

DETAIL
Description			Value
Material Type			Thermoset Composite
Chemical Name			High Temp Epoxy Glass Laminate
Additives			Glass
Color			Dark Green
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.8
	ASTM D792	lb/in³	0.065
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.2
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	43,000
Compressive Strength	ASTM D695	psi	63,000
Hardness	ASTM D785	NA	Rockwell M112
IZOD Impact-Notched	ASTM D256	ft-lb/in	12
THERMAL
Property	Test	Unit of Measure	Value
Max Continuous Operating Temp		°C	180
		°F	356
Minimum Operating Temp		°C	-128
		°F	-200
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	2
	ASTM C117	x 10^4 cal/cm-sec-°C	7
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	900
Dielectric Constant at 1 MHz	ASTM D150	NA	4.5
Dissipation Factor at 1 MHz	ASTM D150	NA	0.02
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$
Machinability			10

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.
