General Info
BOETEK® T-247 Bearing Grade CM PAI is a compression-molded bearing and wear grade Polyamide-Imide (PAI) formulated with graphite and PTFE lubricants for demanding pump, valve, compressor, and sealing applications. Designed for reciprocating motion under high loads and low speeds, BOETEK® T-247 provides excellent wear resistance, low friction, and reliable performance in severe-service applications where conventional bearing materials may experience excessive wear.
Typical applications include compressor piston rings, labby seals, rider rings, wear rings, valve seats, valve components, mechanical seals, rod packing rings, bushings, bearings, thrust washers, and other high-load wear components.
BOETEK® T-247 is an excellent choice for engineers seeking compression-molded PAI, bearing-grade PAI, wear-resistant PAI, graphite-filled PAI, PTFE-lubricated PAI, compressor plastics, pump wear materials, valve seat materials, and high-performance plastic bearing materials.
Key Properties
- Thermal Performance to 500°F (260°C) Continuous Use Temp
- Bearing & Wear and Seal Grade
- Formulated for Rotating Equipment
- Excellent Wear Resistance
- Low Coefficient of Friction (COF)
- Compression Molded Grade Offers Larger Shapes & Thicker Cross Sections
Limitations
Applications
- Bushings & Bearings
- Labyrinth Seals
- Pump Seal & Wear Components
- Rotating Equipment Components
- Wear Rings
Resin Trade Names
Manufacturer Trade Names
- BOETEK® T-247 Bearing Grade CM PAI
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes

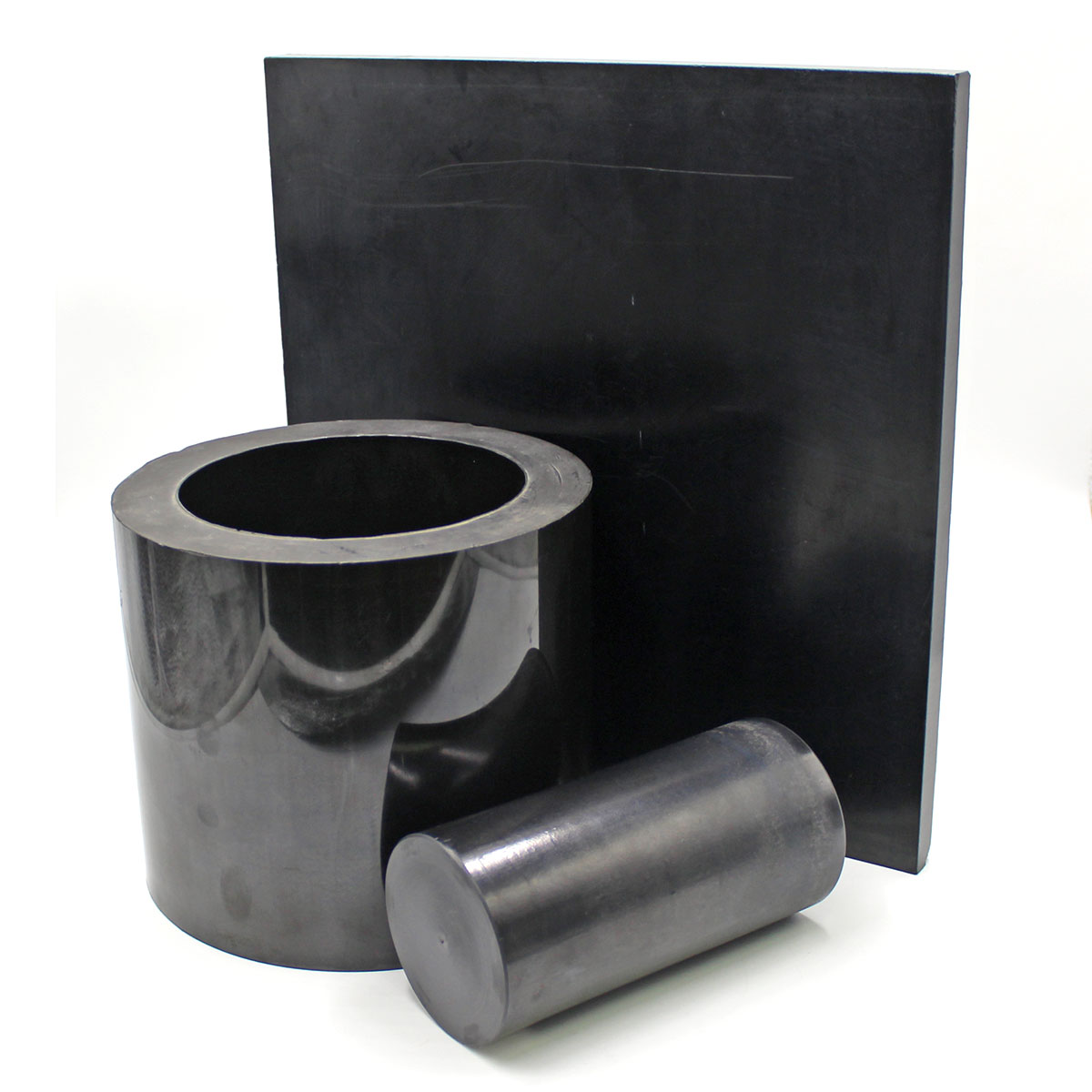

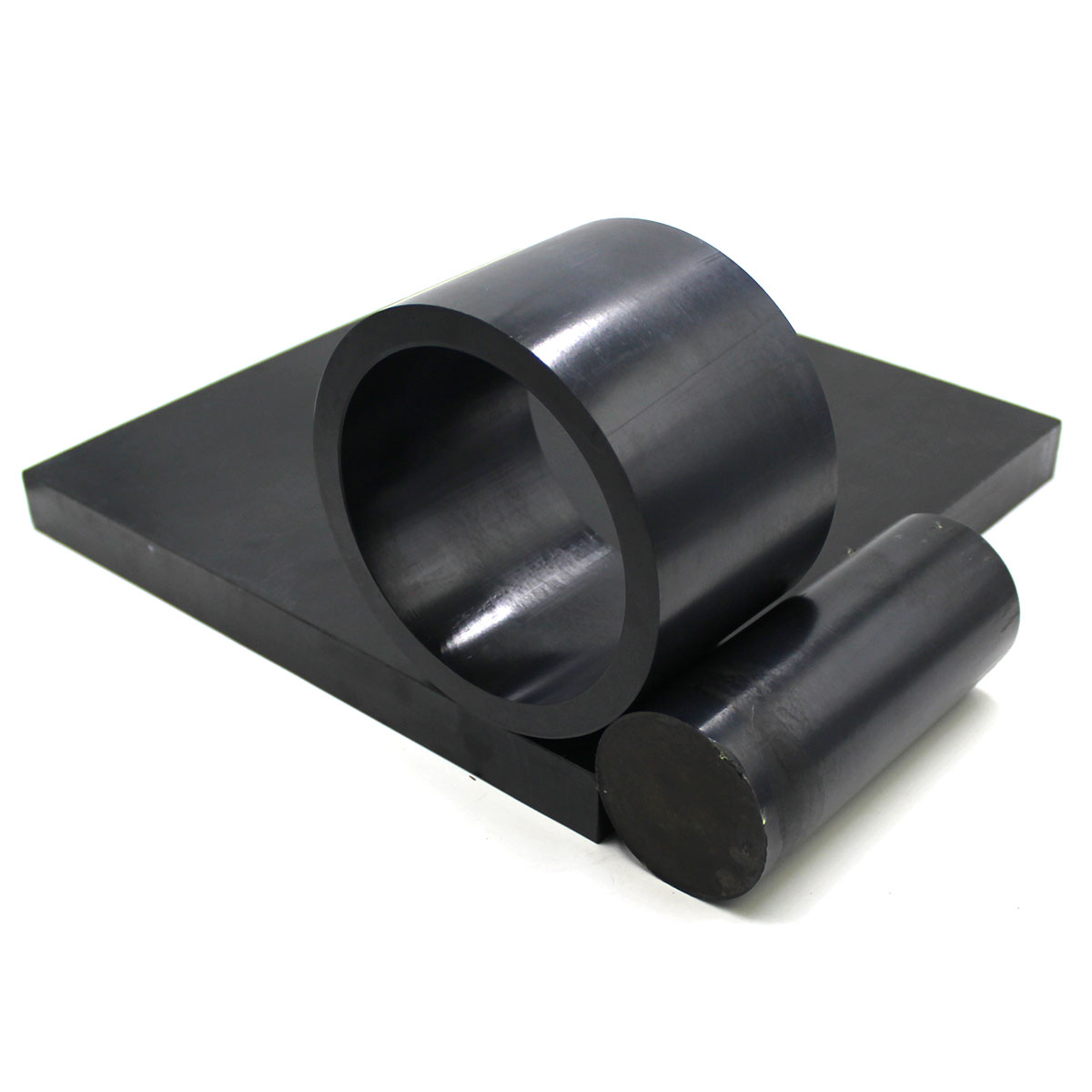

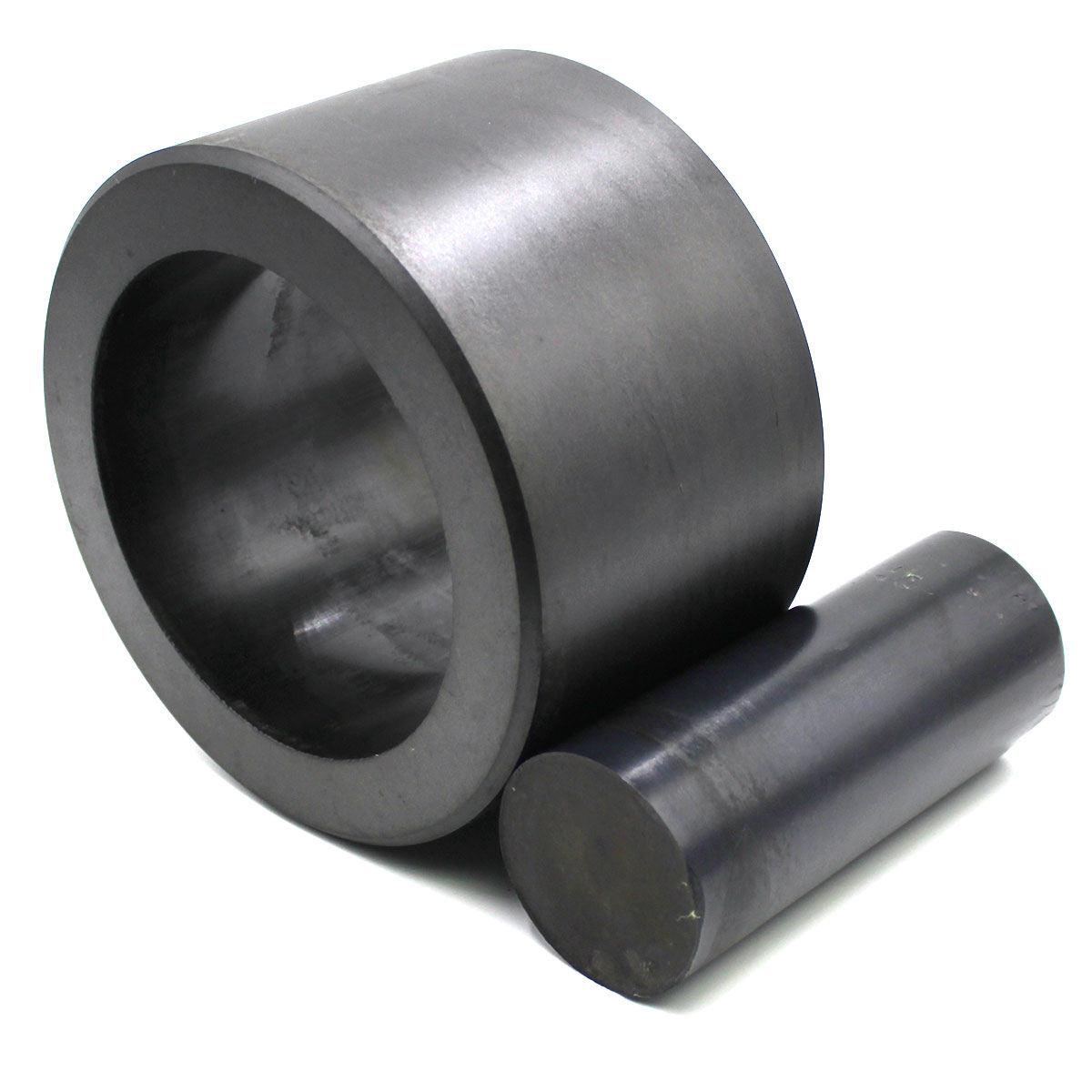

The product is available in rod, tube, and plate.
Sheet / Plate Sizes
Thicknesses from 0.375 to 2.500 inches
Sizes 12.000 x 12.000 and 12.000 x 24.000 inches
Rod Sizes
Rod Diameters 1.000 to 4.000 inches
Rod Lengths 4.000 to 8.000 inches
Tubes
Tube Outside Dimensions 1.750 OD to 24.000 inches OD
Tube Lengths 1.000 to 8.000 inches, depending on OD and ID.
All BOETEK T-247 shapes are compression molded. Minimum order quantities and lead times vary depending on shape and size.
