General Info
Rulon ® J is dull gold in color and provides one of the lowest coefficient of friction of all Rulons, and provides good wear and abrasion resistance. Because this grade is "all plastic", it can be run on non-ferrous and non-metallic mating surfaces such as 316 Stainless, brass, and other plastics. It is used in both bearing and seal applications, but is generally not suitable for use in alkaline or oxidizing acid solutions. This is the best Rulon grade for aluminum and soft mating surfaces.
Rulon ® J offers a very low coefficient of friction vs. other filled PTFE grades.
Click for more information on the complete line of Rulon Plastics
Key Properties
- Excellent for Dry & Vacuum Environments
- Low Maintenance
- Self-Lubrication
- Wash Down and Caustic Resistance
- Ideal for Eliminating “Slip Stick”
- Very Low Coefficient of Friction vs. Other Filled PTFE Grades
- Works Well Against Soft Mating Surfaces Such as 316 Stainless, Aluminum, Mild Steel, Brass and Other Plastics
- Maximum Pressure Velocity (continuous)(MPa x m/s): 7,500PV (.35)
- Maximum Pressure PSI (Static)(MPa): 750 PSI (6.9)
- Maximum Velocity – SFM (no load)m/s): 400 (2)
- Shaft Hardness Minimum: Rc25
- Shaft Finish Ra µin9 (µm): 8-16 (.2-.4)
- Shaft Material: 316 Stainless Steel & Non Ferrous
Limitations
- Subject to Creep, Cold Flow
- Tight Tolerance Applications
- Some chemicals will attack filler, not recommended in steam environments
- Contact Us for questions regarding chemical applications
Applications
- Anemometers
- Appliance Applications
- Automotive Applications
- Bushings & Bearings
- Insulators
- Linear Slides
- Piston Rings
- Printer & Copier Applications
- Solenoid Valve Applications
- Textile Industry Applications
- Thrust Washers
- Wear Bands
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Note: Some Rulon® grades are made to order and have minimum order quantities.
Sheet
Molded
Thickness up to 3.140”
Width & Length 24” x 24”
Skived Tape
Thickness up to .250”
Width 38”

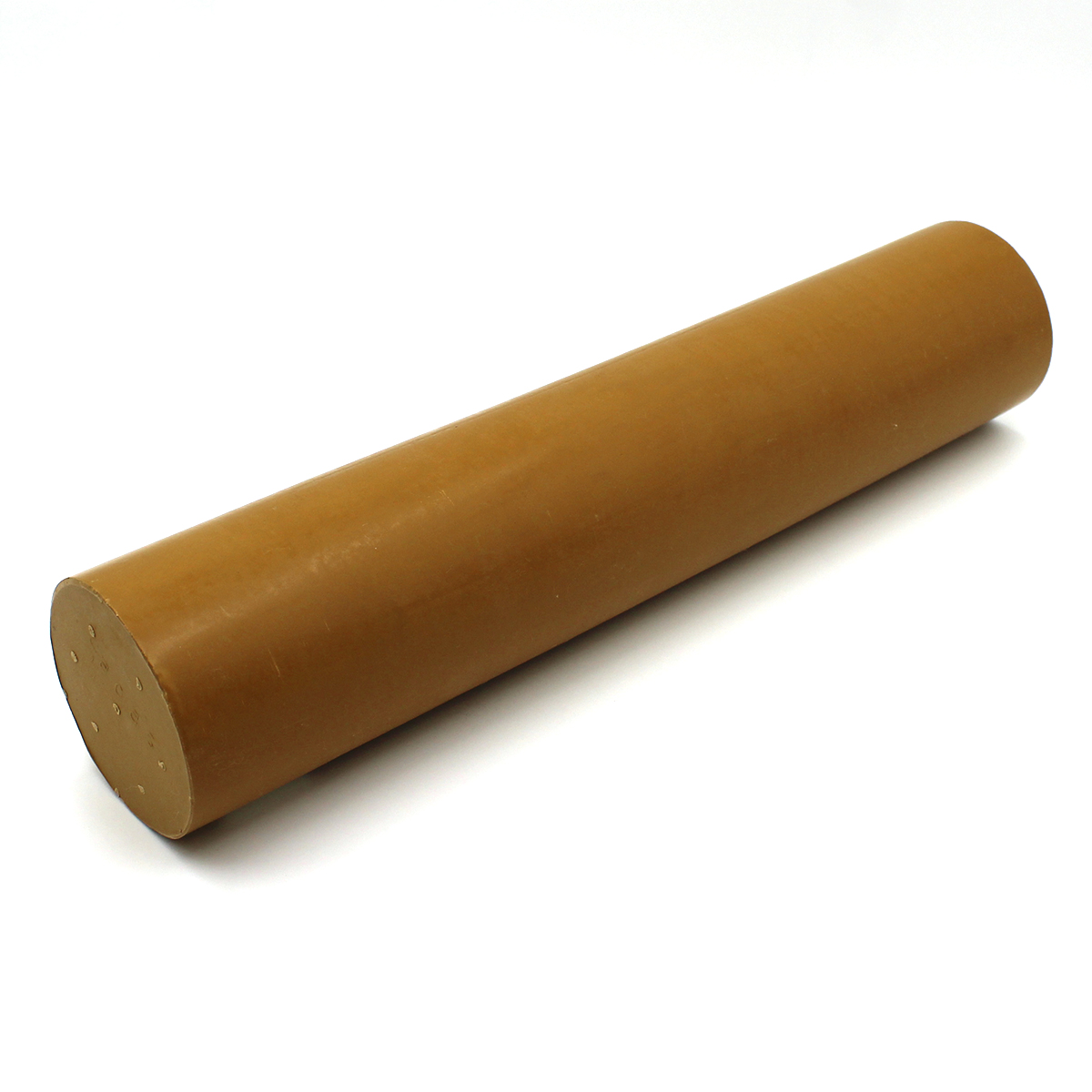

Rod
Extruded Rod
Diameters Up to 3.000”
Length 10’ L
Molded Rod
Diameters Up to 47”
Length 12” L
Molded Tube
OD Outside Diameter Up to 47.000”
ID Inside Diameter Contact US
Length 12” L
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
