General Info
Rulon® AR is maroon in color and was the first commercially available reinforced PTFE and is still quite popular. Rulon® AR is used primarily in seal applications because of its flexibility and wear resistance. Recommended for LOX applications, approved by NASA for oxygen service. Requires mating surface material to be 35RC or harder due to abrasive nature of filler. Excellent electrical and thermal insulator and inert to all chemical environments.
Rulon ® AR offers the best combination of flexibility and load-carrying properties. It has high wear resistance, low friction, and good electrically insulative and chemical properties. Since, its fillers are ceramic in nature, mating surfaces should be RC35 or harder. It is and used in seals, piston cups, and some bearings.
Click for more information on the complete line of Rulon Plastics
Key Properties
- Excellent for Steam, Wet, Dry & Vacuum Environments
- Decades of Use in Automotive Shaft Seals & Fuel Metering
- Long Life & Reliability in Continuous Non-Lubricated Service
- Maximum Pressure Velocity (continuous)(MPa x m/s): 10,000PV (.35)
- Maximum Pressure PSI (Static)(MPa): 1,000 PSI (6.9)
- Maximum Velocity – SFM (no load)m/s): 400 (2)
- Shaft Hardness Minimum: Rc35
- Shaft Finish Ra µin9 (µm): 8-16 (.2-.4)
- Shaft Material: Steel
Limitations
- Subject to Creep, Cold Flow
- Tight Tolerance Applications
Applications
- Appliance Applications
- Automotive Applications
- Compressor Applications
- Insulators Thermal and Electrical
- Mixer Applications
- Pipe Support Applications
- Pump Applications
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Note: Some Rulon® grades are made to order and have minimum order quantities.
Sheet
Molded
Thickness up to 3.140”
Width & Length 24” x 24”

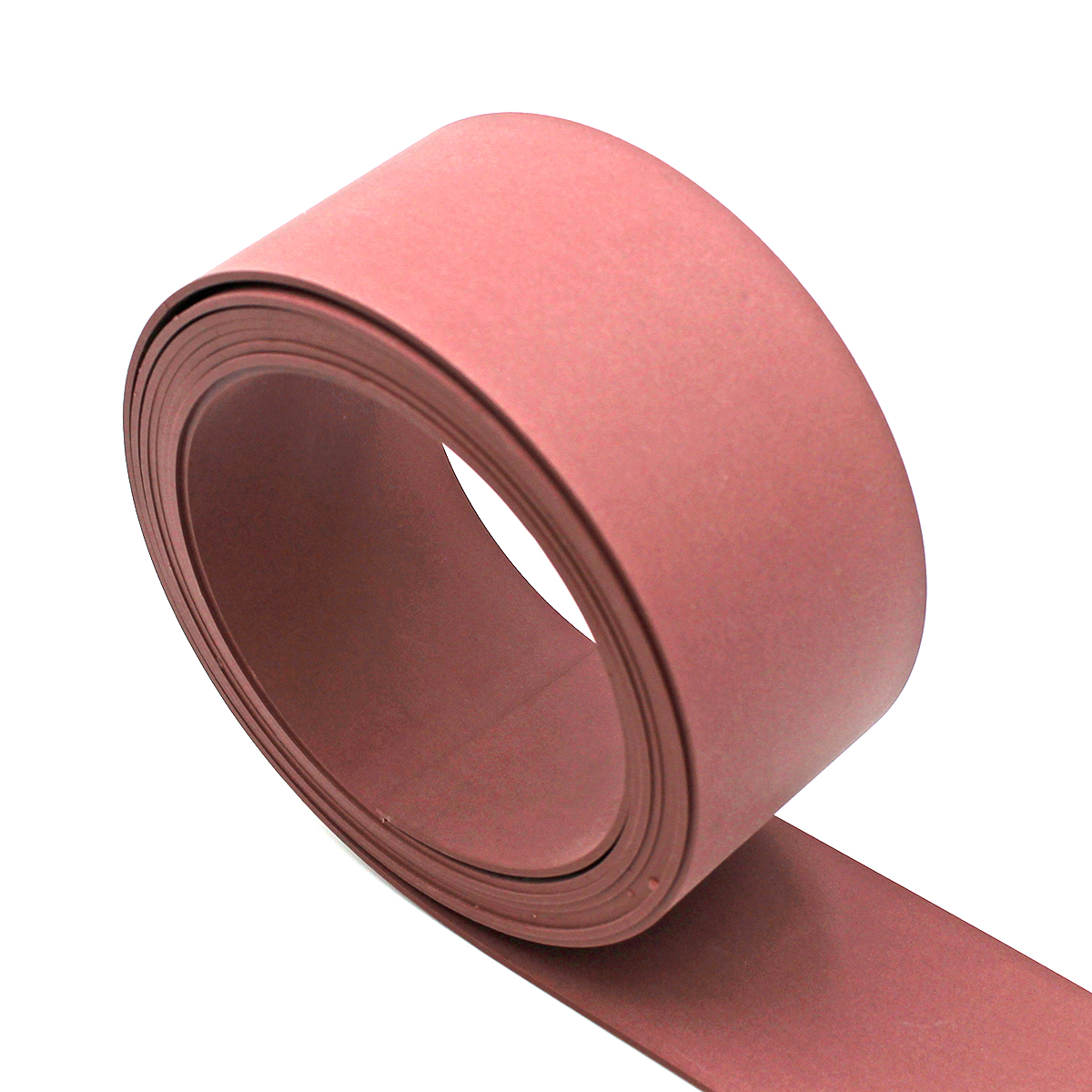

Skived Tape
Thickness up to .250”
Width 38”
Rod
Extruded Rod
Diameters Up to 3.000”
Length 10’ L
Molded Rod
Diameters Up to 47”
Length 12” L

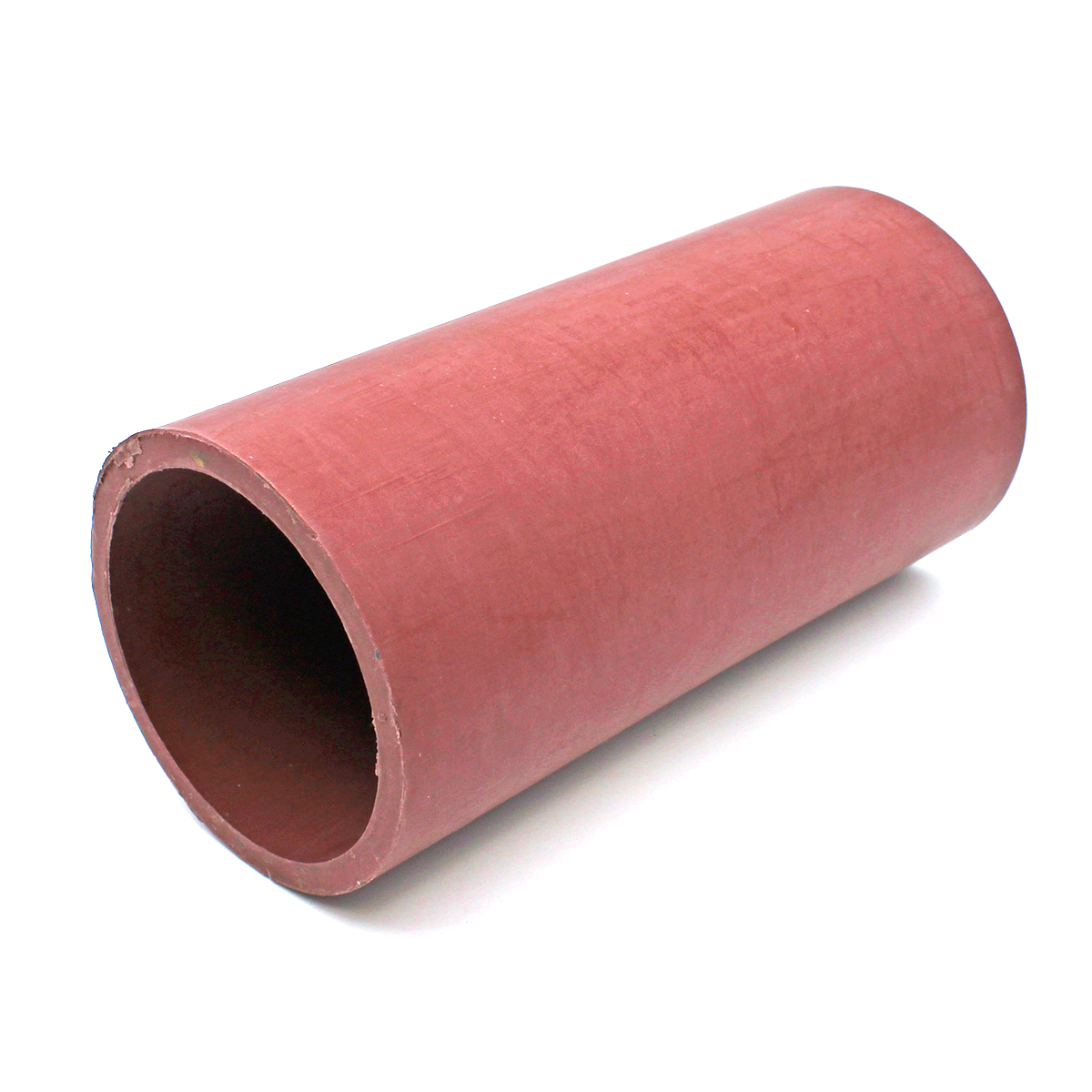

Molded Tube
OD Outside Diameter Up to 47.000”
ID Inside Diameter Contact US
Length 12” L
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
